1、Product Description
Manufactured by Huizhou Antenk Electronics Co., Ltd, the FHDS06 series 2.0mm pitch dual row straight female header with 4.0mm width and 4.0mm plastic height is a standard through-hole board-to-board receptacle designed for stable signal and low-current power interconnection between printed circuit boards. In strict accordance with official engineering drawing standards, this connector supports contact quantities ranging from 2 pins to 80 pins with fixed 2.0mm row pitch, and it provides two structural versions including bump equipped anti-reverse Type 2 and bump free Type 1 to prevent wrong-direction mating during assembly. The insulating body can be customized with PA6T, LCP, PA46 and PA9T multiple high temperature resistant materials that all meet UL94V-0 flame retardant certification. Elastic brass contact terminals are available with gold flash, multi-thickness selective gold plating and pure tin plating surface treatment options to reduce contact resistance and strengthen anti-corrosion and anti-tarnish performance. Its electrical specifications contain 1.5A rated current, minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, capable of enduring 500V AC dielectric voltage for one minute and maintaining steady operation within the temperature scope from minus 65°C to plus 125°C. All PCB layout dimensional parameters are precisely controlled within tolerance limits to perfectly match standard through-hole wave soldering techniques. Our whole production procedure covers independent precision mold development, high-speed brass terminal stamping, high temperature resistant plastic injection molding, anti-oxidation electroplating and automatic assembly. Imported Taiwan high-speed punching machines and Japanese precision injection molding equipment guarantee unified dimensional consistency during mass volume production.
This dual row straight female header is installed by inserting vertical through-hole pins into preset holes on printed circuit boards following the official PCB layout drawing and completing wave soldering fixation, then inserting matched male pin headers into the female receptacle to form closed-loop board-to-board signal and power transmission circuits. It is widely applied in industrial control mainboards, communication signal modules, liquid crystal display driver boards, smart household control panels, portable data storage devices, automotive electronic control units and precision measuring instruments. During soldering and daily application, users must reasonably control soldering temperature to avoid thermal deformation of the plastic insulator, prohibit forced violent plugging and unplugging to prevent elastic fatigue and permanent deformation of brass contact springs, and store unused connectors in dry sealed packaging to avoid oxidation and rust of internal terminals. All products comply with EU RoHS and REACH environmental protection directives, most product specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management system certifications. We offer tray, bag, tube and tape reel diversified packaging solutions to fit manual assembly and fully automatic SMT production lines.
Compared with other connector manufacturers in the industry, Antenk independently develops and owns more than 250 sets of plastic injection molds and 180 sets of precision brass stamping molds, supporting personalized customization of pin number, insulator material, anti-bump structure, contact plating mode and packaging type for this dual row female header series. Our 10000-square-meter manufacturing plant with 250 professional staff is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring stable batch product quality and on-time delivery for large bulk export orders. As a brand certified with Guangdong Famous Trademark qualification, more than 70 percent of our board-to-board connectors are exported to global overseas markets. We carry out full-link quality inspection including incoming raw material check, in-process production supervision and finished product comprehensive testing, greatly improving vibration resistance and long-term connection reliability, effectively eliminating intermittent circuit disconnection faults caused by poor contact, and establishing long-term reliable cooperative partnerships with clients across Europe, America, Southeast Asia and other international regions all over the world.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

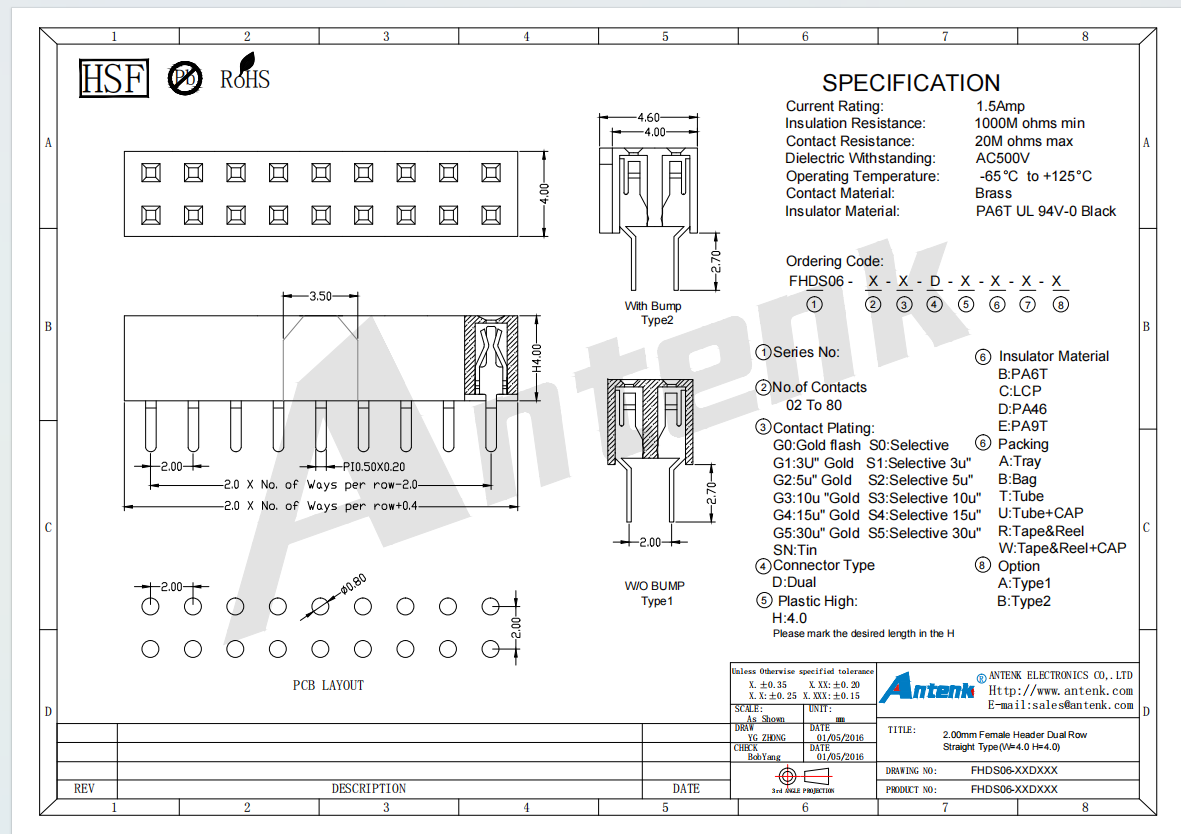

3、Product Drawing
