Multi-way Hydraulic Valve DCV60-6-4A Full Product Introduction
1. Basic Product Overview

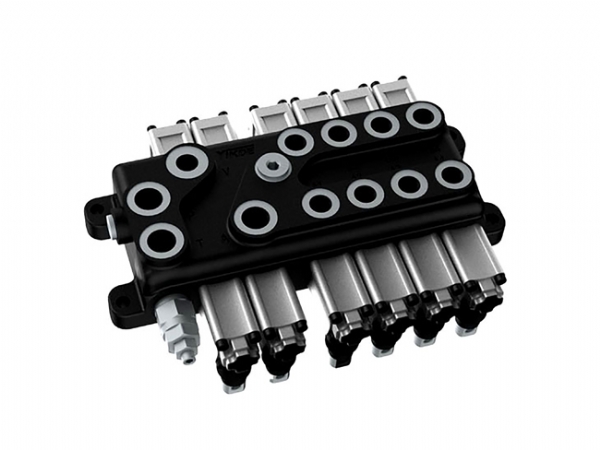

The DCV60-6-4A is a sectional integrally cast manual multi-way hydraulic directional control valve (DCV). As the core control hub of the complete hydraulic system, it centrally distributes hydraulic oil flow to operate multiple groups of hydraulic cylinders and orbital/plunger hydraulic motor independently. It is widely applied to loaders, truck-mounted cranes, agricultural machinery, sanitation equipment, compact drilling rigs and other machinery. Its valve sections can be added or removed as required to match the quantity of actuators, making it a mainstream valve for complete machine supporting and modification of small & medium tonnage construction machinery.
Model Breakdown
- DCV: General series code for multi-way directional control valves
- 60: Rated flow of 60L/min per spool
- 6: Rated system working pressure of 6MPa (some batches refer to 6-spool configuration on the nameplate; the mainstream specification features a 60L/min flow rate)
- 4A: 4 integrated spool structures with 4 independent control oil circuits; Type A standard center function: Port P unloads while ports A and B are closed to lock loads
2. Core Technical Parameters
Item Specification Details
Product Type Sectional Multi-way Hydraulic Directional Control Valve
Rated Flow 60L/min per spool
Maximum Working Pressure 21MPa
Number of Equipped Spools 4 spools (4A)
Control Mode Manual lever operation; hydraulic pilot or solenoid directional modules can be optionally installed
Inlet & Return Port Thread G3/4; Working Ports: G1/2
Center Position Function Type A: P connects to T for unloading; A and B closed for pressure retention
Valve Body Material High-strength cast iron
Sealing Material NBR nitrile rubber seals (FKM fluororubber upgrade available)
Applicable Fluid ISO VG46 / VG68 anti-wear hydraulic oil
Operating Temperature -20℃ ~ +80℃
Optional Extra Functions Integrated relief valve, makeup check valve and overload safety valve
Warranty Period 1 year
3. Structure & Working Principle
The whole valve is assembled from an inlet section, 4 independent directional spools, a return section and a built-in main relief valve, connected to the oil outlet of the main oil pump in the hydraulic system:
1. Neutral Standby Gear: Hydraulic oil from the pump flows directly from port P to port T and returns to the oil tank for unloading, keeping the system idle and energy-saving. All A and B working ports are sealed to lock the rear hydraulic motor and hydraulic cylinders and fix loads in place.
2. Manual Lever Pulling for Direction Change: Displace the corresponding spool to switch oil passages. High-pressure oil from port P is delivered to port A while port B connects to return port T, driving the hydraulic motor to rotate forward or the cylinder to extend. Pull the lever in the opposite direction to swap oil passages and realize reverse movement of actuators.
3. Release the lever, and the built-in reset spring pushes the spool back to neutral instantly to cut off oil supply and lock loads.
4. The integrated main relief valve provides overload protection. It automatically discharges excess pressure when the hydraulic system exceeds the pressure limit, protecting the oil pump, hydraulic motor and pipelines from high-pressure damage.
4. Key Product Advantages
1. 4-spool integrated layout enables one valve to control 4 sets of hydraulic motor or hydraulic cylinders simultaneously, simplifying pipeline arrangement of the whole hydraulic system and reducing leakage points at pipe joints.
2. Strong adaptability to medium & large flow of 60L/min, supporting synchronous operation of travel motors, winch motors and outrigger cylinders.
3. Type A center unloading design allows the oil pump to unload for power saving and consumption reduction at idle speed without heat buildup during long standby periods.
4. Modular sectional structure allows adding or removing valve sections later to expand control circuits for high flexibility in equipment retrofitting.
5. Cast iron valve body features excellent wear and impact resistance, suitable for dusty and heavily vibrating working conditions on construction sites and farmlands for prolonged service life.
6. Optional built-in individual overload safety valves protect each matching hydraulic motor separately to avoid component breakdown from overload stalling.
5. Typical Application Scenarios
1. Truck-mounted cranes and compact cranes: Four-circuit control of winch hydraulic motor, luffing cylinders, telescopic boom cylinders and outrigger cylinders respectively;
2. Sanitation road sweepers: Regulation of travel motors, brush roller hydraulic motor, lifting cylinders and unloading cylinders;
3. Agricultural harvesters and tractor attachments: Driving conveying hydraulic motor, lifting cylinders and swing arm mechanisms;
4. Mini loaders and small drilling rigs: Centralized control of travel motors, power head motors and feed cylinders;
5. Supporting main integrated valve assemblies for the hydraulic system of all types of mobile hydraulic equipment.
6. Fault Replacement Instructions
Replace the complete DCV60-6-4A multi-way valve assembly for overhaul or full replacement if faults occur including weak single-circuit action, stuck immovable spools, heavy oil seepage at valve joint surfaces, cross-oil interference between circuits, or failure to lock free coasting of the hydraulic motor. Such defects are mainly caused by spool abrasion, aged seals and scratched inner valve bores.
