VT-7 Multi-Branch Bracket Wiring Harness with USB RJ45 and Multi-Type Connectors

2 week ago

0 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

With complete automated production equipment and standardized quality inspec

VT-7 Multi-Branch Bracket Wiring Harness with USB RJ45 and Multi-Type Connectors

tion systems, our company specializes in developing multi-branch, multi-interface integrated wiring products for automotive electronics and industrial control scenarios. We excel at tailor-made circuit connection solutions and stable supply of Customized Electrical Connectors And Harnesses, serving global industrial equipment manufacturers, vehicle electronic refitting enterprises and intelligent monitoring system suppliers. All products comply with RoHS environmental standards and pass strict electrical performance tests to adapt to diverse complex application environments.

Item	Description
Product Name	VT-7 Multi-Branch Bracket Wiring Harness with USB RJ45 and Multi-Type Connectors
Type	Custom Multi-Port Integrated Signal & Data Transmission Wiring Harness
Voltage	DC 300V Test Voltage, 5V/12V/24V Working DC, Custom Voltage Available
Pins Material	Gold-Plated RJ45 8P8C Contacts, Tin-Plated Copper Terminals, Nickel-Plated USB Connector Pins
Plug Material	PA66+GF Nylon Connector Housings, Black PVC Outer Cable Jacket, Injection Molded SR Strain Relief Box, Heat-Shrink Tubing Protection
Working Temperature	-40℃ ~ +105℃, Industrial & Automotive Grade Weather Resistance
Length	1200±30mm Main Cable, 300±20mm Branch Cables, Custom Length Fully Supported
Minimum Insulation Resistance	≥5MΩ
Maximum Conduction Resistance	≤3Ω
Compliance Standard	RoHS Environmental Compliance
Application Fields	Vehicle monitoring host multi-signal connection, industrial control panel integrated wiring, multi-channel data & power transmission, on-board DVR equipment harness, customized electronic device internal cabling, automotive modification multi-port wiring, IoT device integrated cable assembly
Specific Shipping Cost	Please Contact Us

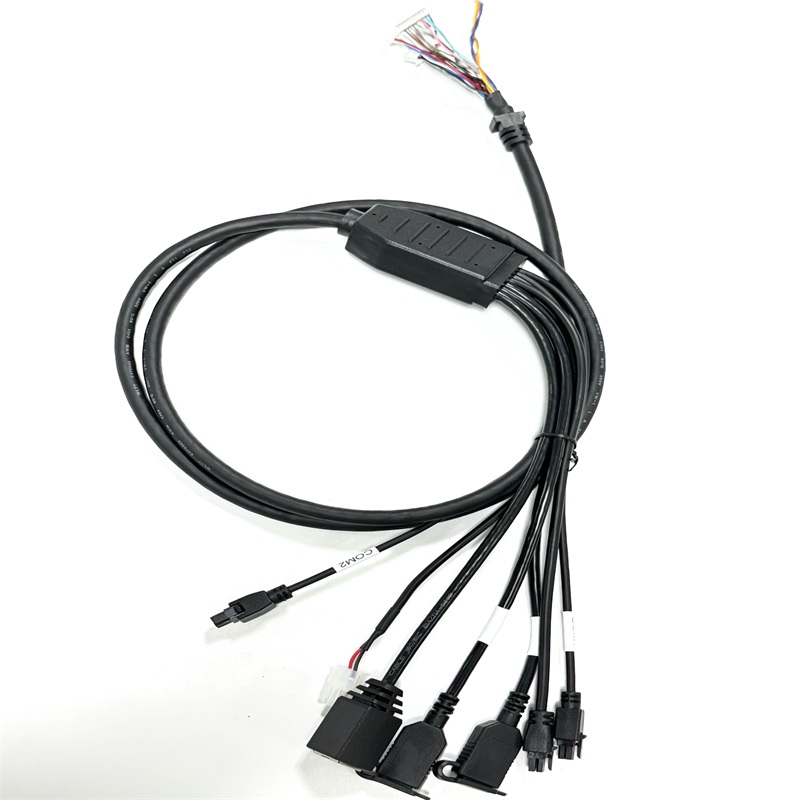

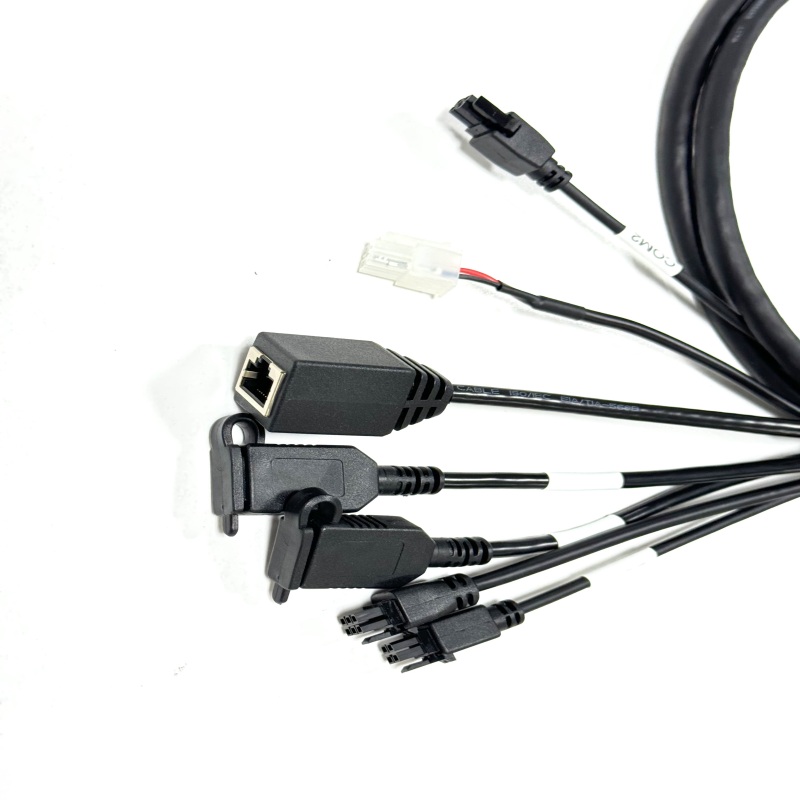

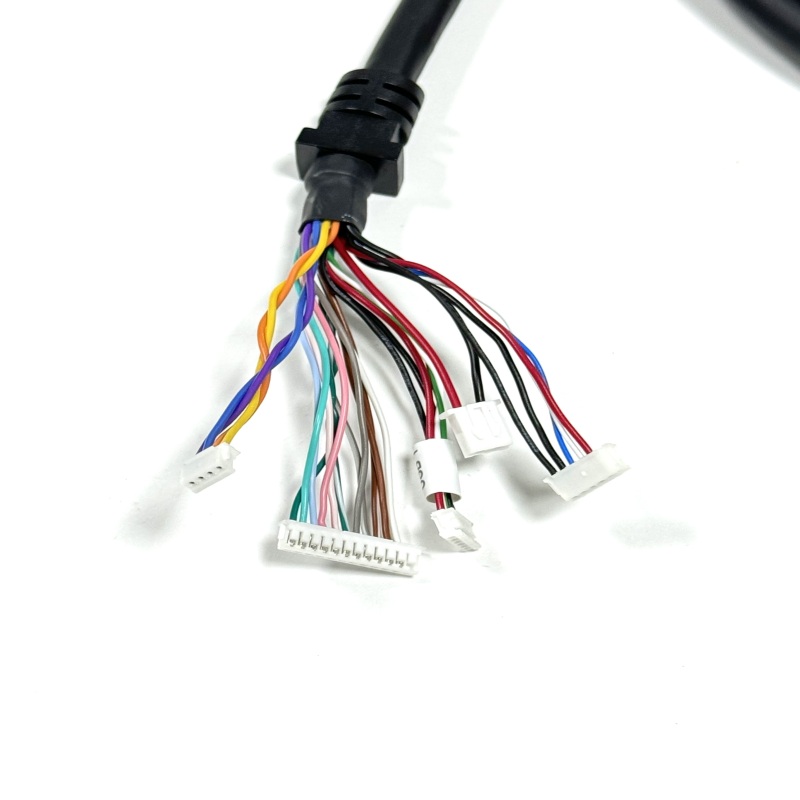

The VT-7 Multi-Branch Bracket Wiring Harness is a highly integrated multi-port comprehensive wiring product independently developed for centralized signal transmission and power distribution. Different from conventional single-function wiring harnesses with single interface on the market, this product integrates multiple mainstream connectors including USB AF, RJ45 network port, ZH1.5 series terminals, MX3.0 pin headers and open wire terminals, realizing one-line multi-channel power supply, data transmission and signal synchronization. Equipped with an integrated fixed bracket and injection-molded strain relief structure, it features neat wiring layout and firm installation, which effectively solves the problems of scattered wiring and difficult fixation of vehicle monitoring hosts and industrial control equipment. It is a highly versatile and upgradable custom cable assembly and wiring harness.

This wiring harness adopts multi-specification high-quality PVC insulated wires with 20AWG, 24AWG and 26AWG diversified wire gauges, matched with gold-plated network contacts and tinned copper terminals, ensuring low resistance and stable conduction during long-term operation. The built-in CAT5E shielded network cable can effectively resist external electromagnetic interference, guaranteeing stable and lossless data transmission. The whole product supports a wide temperature range of -40℃ to +105℃, with excellent wear resistance, anti-aging and anti-interference performance. The main cable and branch cables adopt standardized length design, and the internal circuits are distinguished by color coding, which is convenient for installation, inspection and later maintenance. Meanwhile, we can adjust wire gauge, branch length, connector combination and pin definition according to customer equipment parameters to create exclusive custom automotive wire harness suitable for vehicle monitoring, on-board DVR and automotive electronic control systems.

In terms of quality control, every finished VT-7 bracket wiring harness undergoes 100% full continuity test, DC 300V withstand voltage test and terminal tensile test before delivery. It strictly eliminates hidden risks such as short circuit, open circuit, poor contact and loose terminals. The integrated fixed bracket design avoids wire displacement and abrasion caused by equipment vibration and vehicle bumping, greatly improving the stability and service life of the whole wiring system. The integrated injection molding reinforcement at the wire outlet effectively prevents core wire breakage caused by frequent plugging and pulling and long-term bending.

This multi-branch integrated wiring harness boasts extremely high scenario adaptability. It is widely applicable to on-board monitoring host integrated wiring, automotive electronic equipment power and signal connection, industrial control panel multi-channel data transmission, intelligent IoT equipment internal wiring and automotive modification supporting circuits. As a core multi-functional product of our customized wiring series, it not only realizes standardized mass production, but also supports personalized structural optimization. It can perfectly replace scattered ordinary wiring assemblies, and continues to iterate high-performance Customized Electrical Connectors And Harnesses to meet the upgrading wiring demands of intelligent vehicle and industrial automation industries. Whether for prototype trial production or large-scale supporting use, our customized custom cable assembly and wiring harness and targeted custom automotive wire harness solutions can fully meet customer differentiated needs.
