Focusing on new energy vehicle after-sales maintenance and industrial diagnostic wiring solutions, the company has complete automated production processes and rigorous electrical testing standards. We specialize in developing high-precision vehicle testing accessories and customized wiring structures, providing stable and durable automotive wiring harness connectors and supporting harness products for global auto repair institutions, new energy equipment manufacturers and vehicle diagnostic tool brands, fully meeting diversified vehicle detection and maintenance needs.

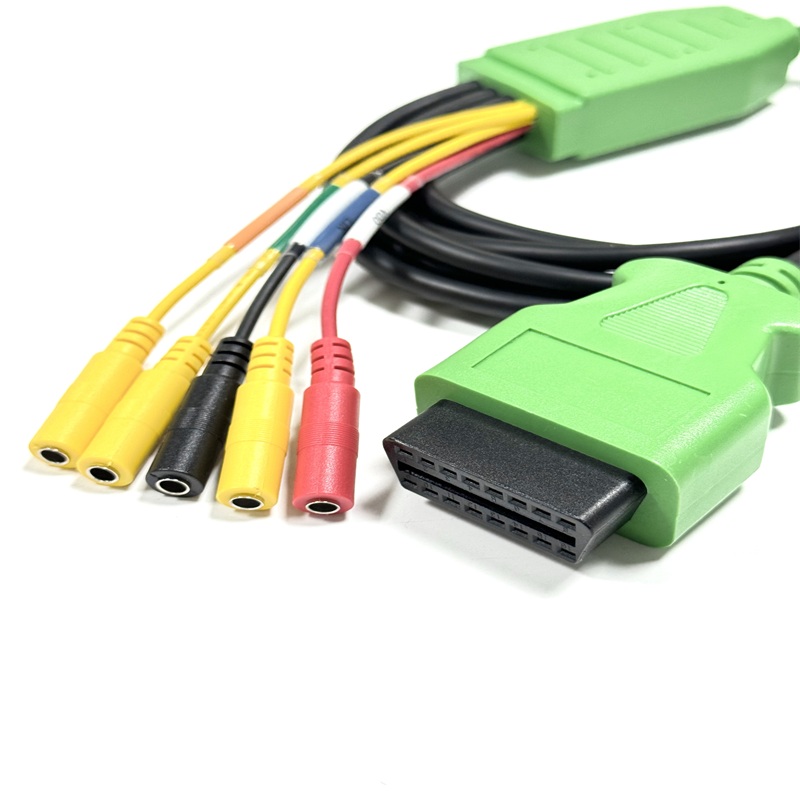

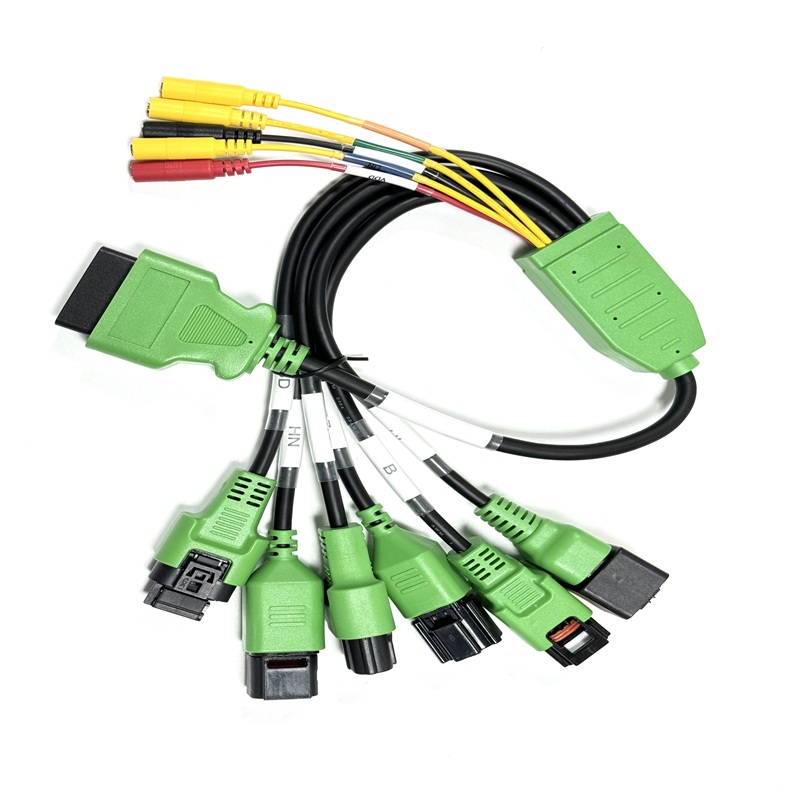

The EV Compressor 7 in 1 OBD2 Test Cable with Banana Clip Wires is a professional multi-functional detection harness independently developed for new energy vehicle air-conditioning compressor fault diagnosis and performance testing. Different from single-function ordinary test cables on the market, this product integrates seven sets of matching green compressor connectors, standard OBD2 male interface and multi-color banana clip terminals in one assembly, realizing one-piece quick connection and multi-scenario switching detection. It serves as a practical and efficient OBD diagnostic adapter, effectively solving the problems of cumbersome wiring, poor compatibility and low detection efficiency in traditional EV compressor maintenance work.

Item	Description
Product Name	EV Compressor 7 in 1 OBD2 Test Cable with Banana Clip Wires
Type	NEV Compressor Diagnostic Test Wiring Harness / Multi-Connector Automotive Test Cable
Voltage	DC 1000V Test Voltage, 12V/24V/48V Working DC, Custom Voltage Available
Pins Material	Tin-Plated Copper Compressor Terminals, Nickel-Plated Brass OBDII Pins, Copper Banana Plug Contacts
Plug Material	Green PVC Compressor Connector Housings, ABS+PC OBDII 16Pin Shell, Colored Banana Plug Insulation Jackets, Black PVC Outer Cable Jacket
Working Temperature	-40℃ ~ +80℃, Automotive Grade Heat-Resistant PVC Insulation
Length	250±20mm Main Cable, 300±20mm Branch Cables, 150±10mm Banana Plug Leads, Custom Length Supported
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Compliance Standard	RoHS Environmental Compliance
Application Fields	New energy vehicle air conditioner compressor testing, automotive AC system fault diagnosis, compressor performance bench testing, NEV repair shop diagnostic tool matching, electric vehicle compressor parameter detection, automotive HVAC system maintenance
Specific Shipping Cost	Please Contact Us

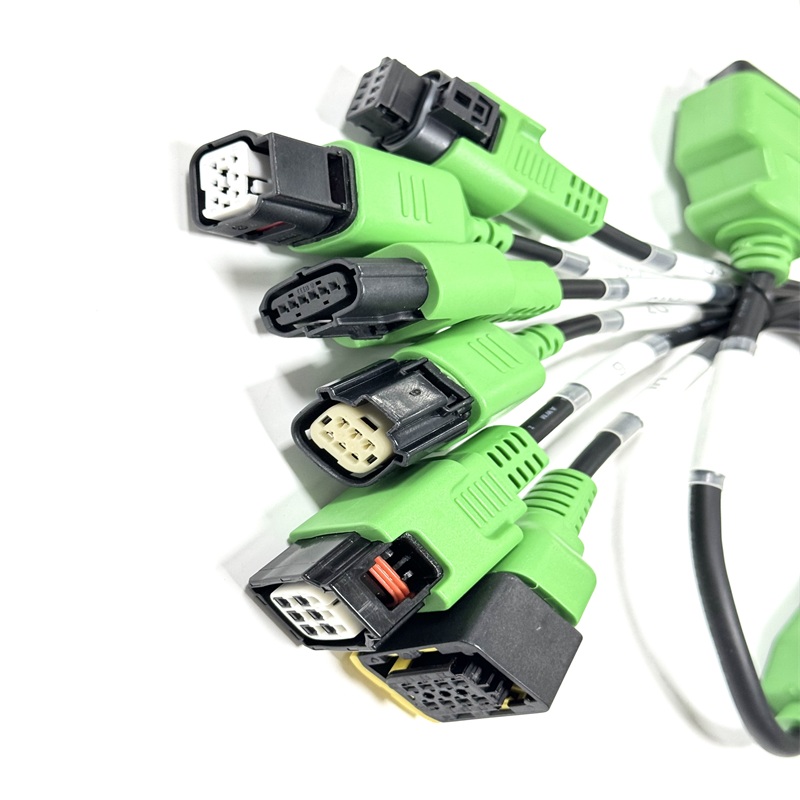

Built with high-standard automotive-grade materials, this diagnostic harness adopts premium UL1015 18AWG high-current wires and UL2464 shielded signal wires. The thickened PVC outer sheath features excellent wear resistance, aging resistance and low-temperature resistance, adapting to complex maintenance environments ranging from -40℃ to +80℃. The matched nickel-plated OBDII cable interface ensures stable plugging and precise signal transmission without data delay or signal loss. All customized green connectors and terminal structures belong to high-precision automotive wiring harness connectors, which fit perfectly with new energy vehicle compressor interfaces, avoiding poor contact and virtual connection during long-term detection.

In terms of electrical performance and safety, the entire cable supports DC 1000V high voltage withstand test, with the minimum insulation resistance reaching 10MΩ and the maximum conduction resistance controlled within 2Ω. Every finished product undergoes 100% continuity inspection and high-voltage safety test before delivery, with zero short circuit and open circuit hidden dangers. The product adopts segmented scientific wiring design, with standardized color-coded wires and independent branch protection, which is convenient for maintenance personnel to quickly identify circuits and improve detection accuracy. The reasonable length design of main cable, branch cables and banana clip leads meets the operation requirements of on-site vehicle detection and bench test.

This all-in-one EV test cable has strong industry pertinence and wide applicability. It is mainly used for fault code reading, performance parameter detection and routine maintenance of new energy vehicle air-conditioning compressors, and can also be applied to matching detection of automotive HVAC systems and electrical equipment bench testing. As an upgraded multi-scenario OBD diagnostic adapter, it breaks the limitation of traditional single-channel detection tools. With reliable OBDII cable transmission performance and professional automotive wiring harness connectors configuration, it has become a necessary supporting accessory for new energy auto repair shops and vehicle diagnostic equipment laboratories.

Adhering to the concept of precise customization and quality priority, Fubang Wire Harness also supports personalized adjustment of wire length, connector type and wire specification according to customer test equipment and vehicle models. We keep optimizing the craftsmanship of new energy vehicle test harnesses to provide more professional, safer and more efficient wiring solutions for the global new energy vehicle maintenance industry.

If you need sample testing, bulk factory quotation or personalized wiring customization service, please contact our sales team anytime.
