Panel Mount Feed-Through Multi-Port Cable Assembly with Micro USB RS232 RS485 Connectors

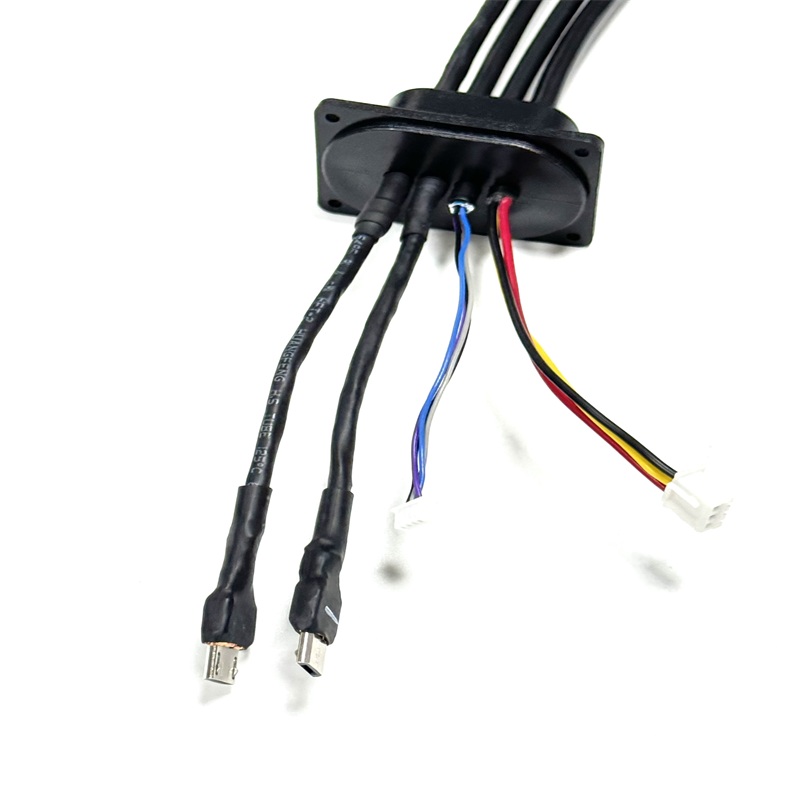

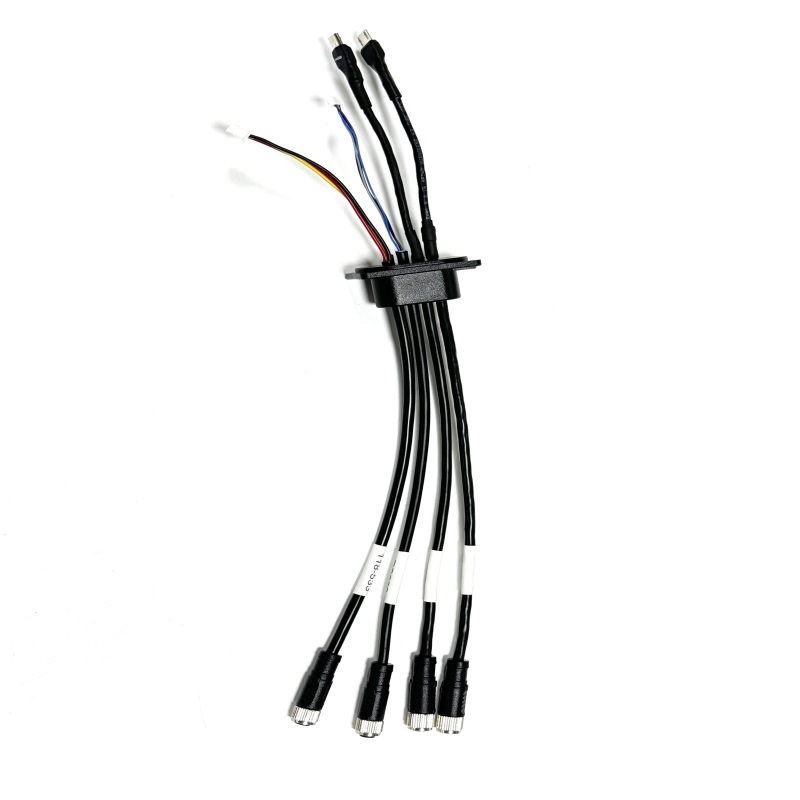

This Panel Mount Feed-Through Multi-Port Cable Assembly is a dedicated pass-through wiring solution designed for equipment cabinet panel installation. Unlike ordinary loose multi-branch wires, this harness adopts an integrated fixed flange base to realize orderly wiring penetration between the inside and outside of the control cabinet. It integrates Micro USB interfaces, RS232, RS485 communication ports and reserved open signal leads in one set, simplifying the independent wiring of multiple communication lines. It serves as a highly integrated custom cable assembly, solving the pain points of messy wiring, difficult fixation and poor shielding effect during equipment assembly.

Item	Description
Product Name	Panel Mount Feed-Through Multi-Port Cable Assembly with Micro USB RS232 RS485 Connectors
Type	Industrial Cabinet Panel Pass-Through Wiring Harness / Custom Multi-Signal Data Cable Assembly
Voltage	DC 500V Test Voltage, 5V/12V/24V Working DC, Custom Voltage Available
Pins Material	Tin-Plated Copper Signal Terminals, Nickel-Plated Brass Circular Connector Contacts, Gold-Plating Optional
Plug Material	Black PVC Panel Mount Flange Housing, Metal Threaded Circular Connectors, Black PVC Outer Cable Jacket, Double-Sided Conductive Aluminum Foil Shielding Layer
Working Temperature	-40℃ ~ +105℃, Industrial Grade Flame-Retardant PVC Insulation
Length	200±20mm Total, Custom Length Fully Supported
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤3Ω
Compliance Standard	RoHS Environmental Compliance
Application Fields	Industrial control cabinet panel feed-through wiring, factory automation equipment data transmission, machine vision sensor connection, vehicle monitoring host panel wiring, electronic equipment internal signal cabling, customized multi-port data interface assembly, industrial communication equipment wiring
Specific Shipping Cost	Please Contact Us

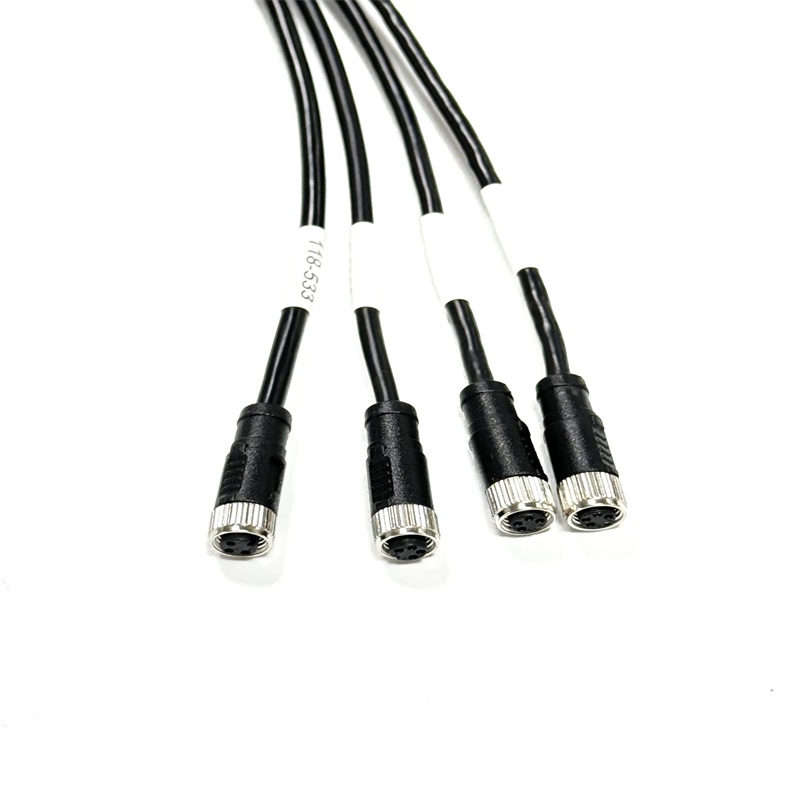

The internal signal lines adopt UL2725 shielded data cables with aluminum foil wrapping structure, which effectively suppress external electromagnetic interference and guarantee stable transmission of serial signals and USB data. All circular connectors adopt metal threaded locking structure for reliable docking, while each branch wire is marked with heat-shrink labels for easy identification during installation and maintenance. The whole assembly supports operation within -40℃ to +105℃, adapting to continuous working conditions in industrial workshops and on-board equipment cabins. Our engineering team can adjust wire gauge, branch length, interface combination and shielding structure according to cabinet layout demands to build exclusive custom wire harness assembly matching compact panel installation space.

Every finished harness undergoes DC 500V withstand voltage test, full continuity inspection and tensile testing before delivery, strictly eliminating hidden troubles such as poor contact, open circuit and short circuit. The integrated injection-molded flange ensures firm panel installation, effectively reducing wire shaking and abrasion caused by equipment vibration. The segmented overmolding and strain relief design at each branch connection greatly improves the bending resistance and service life of the whole wiring system.

This multi-port feed-through wiring harness has broad cross-scenario application value. It can be applied to industrial control cabinet panel penetration wiring, machine vision equipment data connection, on-board monitoring host signal transmission and intelligent communication equipment internal wiring. As a typical multi-interface customized variant of our complete series of electrical harness assembly, it can be matched with different circular connectors and data interfaces to expand multi-channel communication wiring kits. As a compact feed-through type custom cable assembly, it is widely favored by automation integrators, and we continue to optimize internal wire routing and shielding performance to deliver targeted custom wire harness assembly for customers requiring stable long-distance serial communication.
