Shenzhen Fubang Wire Harness Co., Ltd. is a professional OEM & ODM manufacturer concentrating on vehicle body sensor and switch wiring solutions. We rely on automated cutting, precision crimping and complete electrical testing workflow to develop reliable wiring products for passenger vehicles, light commercial vehicles and engineering machinery. We keep optimizing process standards to deliver stable automotive cable assembly for global auto parts suppliers, vehicle modification manufacturers and automotive electronic system developers. All raw materials meet RoHS specifications to satisfy long-term vehicle operating requirements under diverse climate environments.

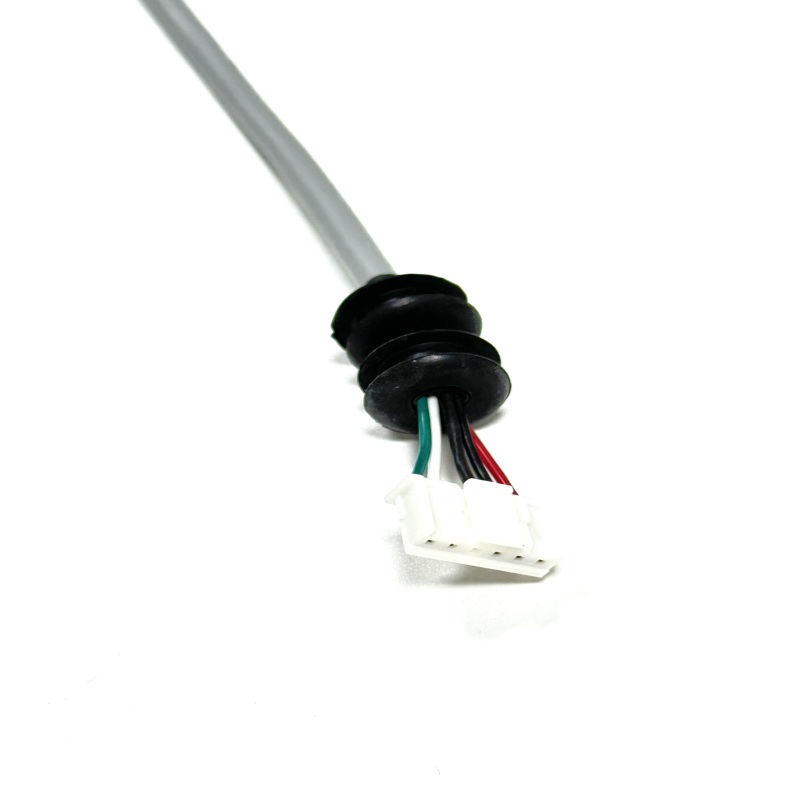

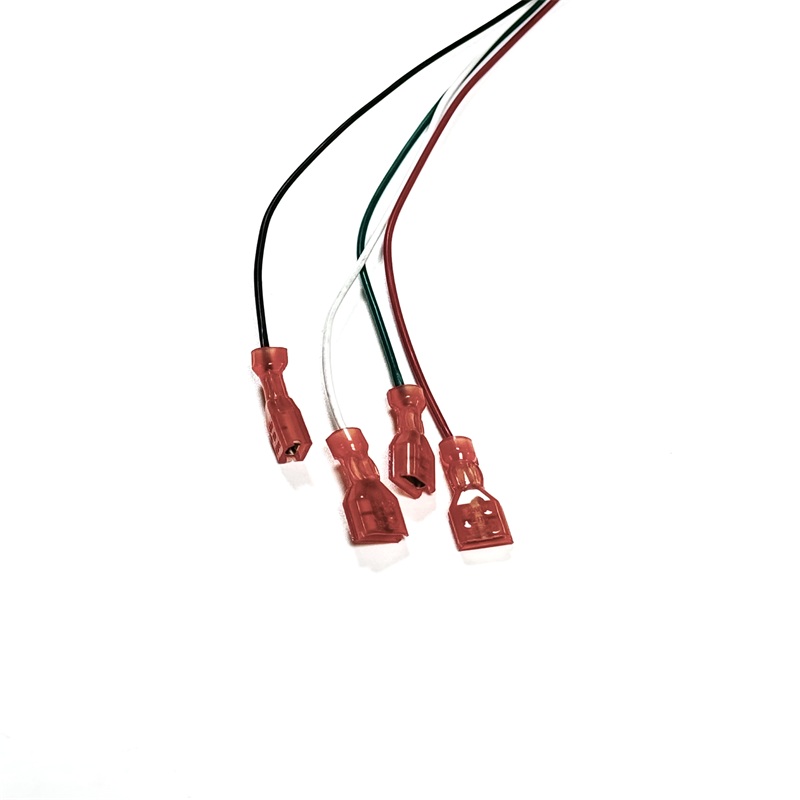

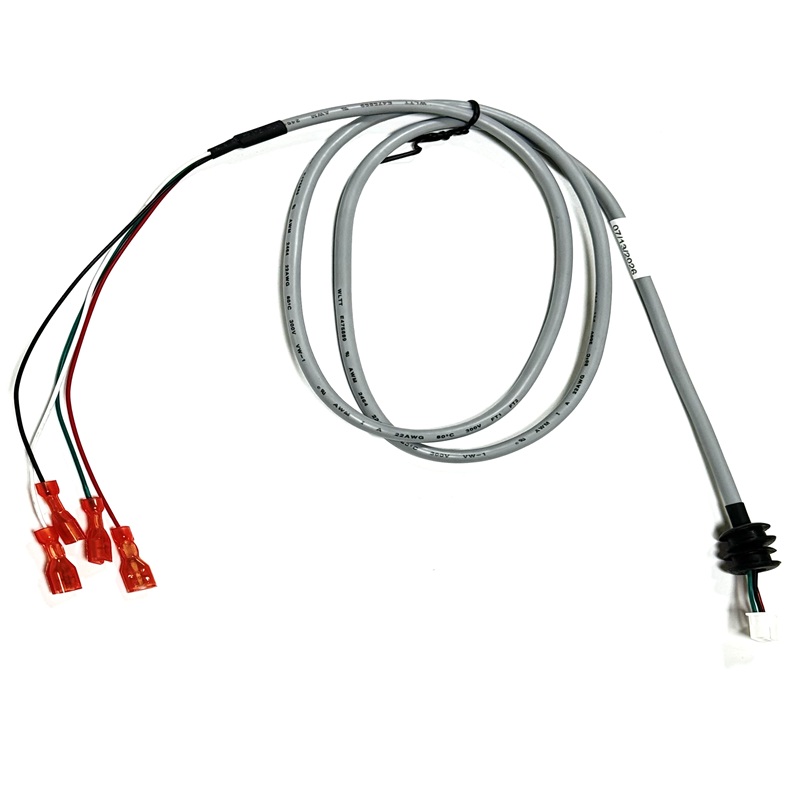

This Assembly, Hood Switch Cable is a dedicated sensor signal harness developed for vehicle hood detection systems. Unlike simple open-ended jump wires, this wiring assembly is equipped with standard JST 6P female connector on one side and multiple color-coded quick-disconnect spade terminals on the other side. A molded rubber cable gland is pre-installed on the main cable, which achieves effective dustproof and waterproof protection when passing through vehicle sheet metal. As a targeted custom cable assembly, it greatly simplifies on-site wiring installation for hood position detection modules.

Item	Description
Product Name	Assembly, Hood Switch Cable
Type	Automotive Hood Switch Wiring Harness / Custom Vehicle Sensor Cable Assembly
Voltage	DC 300V Test Voltage, 12V/24V Working DC, Custom Voltage Available
Pins Material	Tinned Copper Wire Conductors, Nickel-Plated Quick Disconnect Terminals
Plug Material	PA66 JST 6P Connector Housing, Grey PVC Outer Cable Jacket, Rubber Cable Gland, Heat Shrink Tubing
Working Temperature	-40℃ ~ +105℃, Automotive Weather Resistance Grade
Length	1156±30mm Total Length, Custom Length Fully Supported
Minimum Insulation Resistance	≥5MΩ
Maximum Conduction Resistance	≤3Ω
Compliance Standard	RoHS Environmental Compliance
Application Fields	Automotive hood detection switch connection, passenger & commercial vehicle body control wiring, vehicle door/hood sensor signal transmission, automotive electronic control module wiring, fleet vehicle electrical replacement harness, custom automotive sensor wiring projects
Specific Shipping Cost	Please Contact Us

The harness adopts UL2464 multi-core composite shielded wire with grey anti-aging PVC outer sheath, which resists abrasion, oil and ultraviolet aging under long-term on-board working conditions. Internal conductors use tinned copper to ensure stable signal transmission without interruption caused by vehicle vibration. Color coding strictly follows vehicle circuit definition standards, making circuit identification convenient during assembly and maintenance. Each joint is wrapped with heat shrink tubing for reinforced insulation. Our engineering team can adjust overall length, terminal types and pin assignment according to vehicle layout design to create exclusive custom wire harness assembly matching different vehicle hood detection structures.

Every finished hood switch cable passes DC 300V withstand voltage test and full continuity inspection before delivery. All crimped terminals complete pull force inspection to avoid terminal detachment during vehicle bumping. The cable gland structure prevents the outer jacket from being cut by sharp sheet metal edges, effectively extending the service life of the whole wiring system.

This vehicle detection wiring harness possesses strong targeted application performance. It is mainly used for hood lock sensor signal connection of passenger cars and light commercial vehicles, and can also be adapted for door sensor, trunk switch and other body signal transmission circuits. As a mature application type of our mass-produced automotive cable assembly, it can be combined with different automotive connectors to expand multi-channel vehicle body sensor wiring kits. Whether for mass original equipment supporting or small-batch replacement parts development, our flexible custom cable assembly and tailored custom wire harness assembly solutions can meet differentiated vehicle wiring demands.
