JST 3Pin Automotive Inflation Switch Wiring Harness with Braided Protective Sleeve

2 week ago

0 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

Supported by precision crimping equipment, standardized assembly workflows and strict electrical verification processes, we deliver tailored wiring products to vehicle electronics manufacturers, auto modification enterprises and intelligent equipment developers worldwide. We excel at designing compact wiring structures that fit limited installation space, and can develop reliable custom wiring harness to match diversified small-signal connection demands. All raw materials comply with RoHS standards to satisfy global automotive aftermarket and industrial equipment certification requirements.

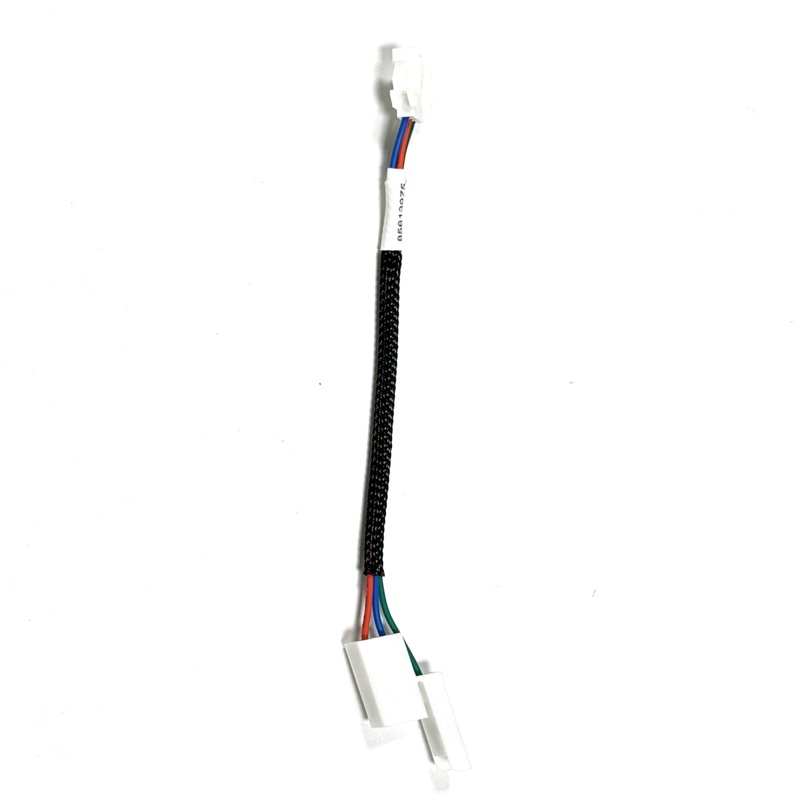

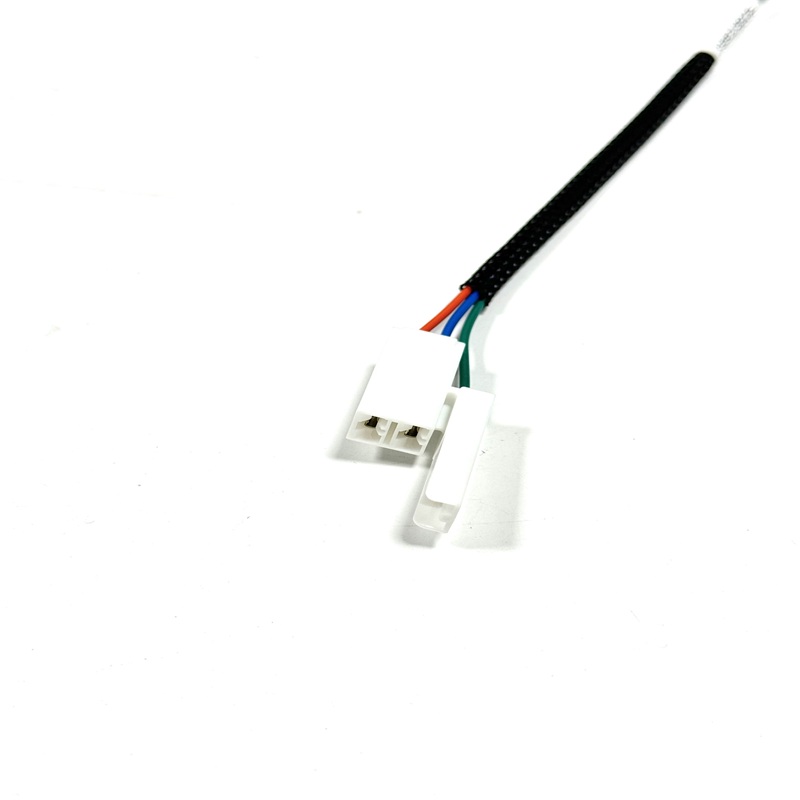

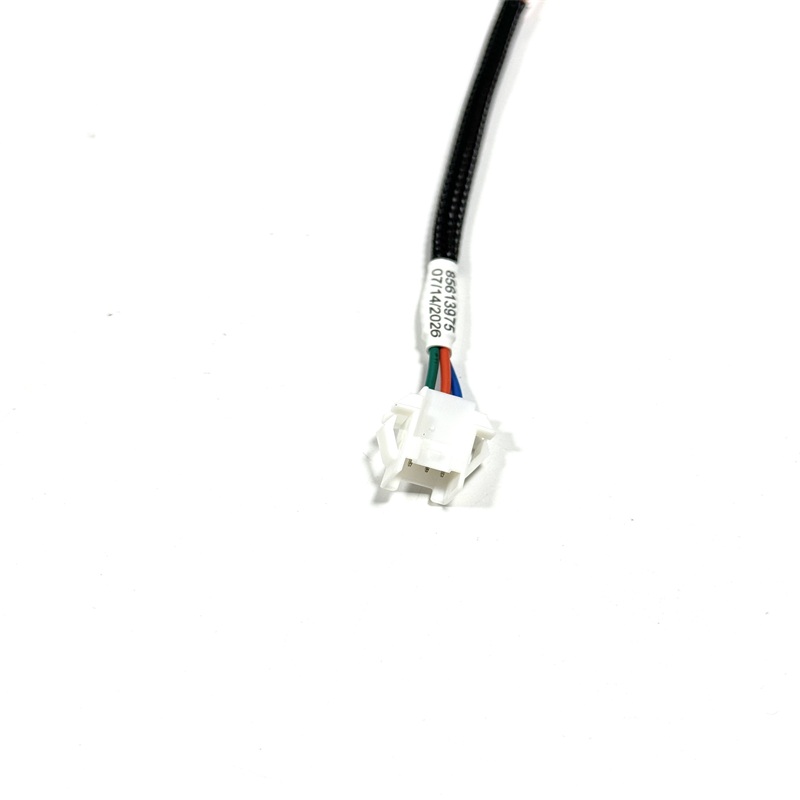

This JST 3Pin Automotive Inflation Switch Wiring Harness with Braided Protective Sleeve is a mini double-ended interconnection harness designed for vehicle switch signal transmission. Unlike ordinary short jumper wires without anti-abrasion protection, this product adopts paired JST 3Pin male and female connectors, and the main cable section is wrapped by dense black PET braided sleeve. It effectively prevents wire insulation damage caused by long-term friction inside vehicle panels. As a lightweight custom cable assembly, it provides stable plug-and-play signal transmission for automotive inflation switches and various small vehicle body sensors.

Item	Description
Product Name	JST 3Pin Automotive Inflation Switch Wiring Harness with Braided Protective Sleeve
Type	Short Double-Ended Automotive Switch Signal Cable / Custom Vehicle Sensor Wiring Harness
Voltage	DC 300V Test Voltage, 12V/24V Working DC, Custom Voltage Available
Pins Material	Tin-Plated Copper JST Crimp Terminals
Plug Material	White PA66 JST 3Pin Connector Housings, Black PET Braided Mesh Protective Sleeve, UL1007 PVC Insulated Wires, White Heat-Shrink Tubing
Working Temperature	-40℃ ~ +105℃, Automotive Grade Heat & Weather Resistant
Length	153±13mm Total Length, 127mm Braided Sleeve Section, Custom Length Fully Supported
Minimum Insulation Resistance	≥5MΩ
Maximum Conduction Resistance	≤3Ω
Compliance Standard	RoHS Environmental Compliance
Application Fields	Automotive inflation switch signal connection, vehicle interior switch wiring, car sensor signal transmission, automotive electronic control module internal cabling, vehicle modification small signal harness, custom automotive switch wiring projects
Specific Shipping Cost	Please Contact Us

Constructed with UL1007 22AWG color-coded tinned copper wires, the harness ensures low-impedance signal conduction under continuous vibration conditions inside vehicles. The braided mesh shielding layer delivers outstanding wear resistance, effectively resisting scraping from sharp sheet metal edges. Each wire terminal undergoes precision crimping and is reinforced by heat shrink tubing to avoid wire breakage during repeated bending. Our technical team can adjust overall length, connector model and wire gauge according to different vehicle internal layout, so as to create targeted custom wire harness assembly suitable for narrow assembly space inside automotive control modules.

Every finished harness passes DC 300V withstand voltage test and 100% continuity inspection before delivery. All crimp terminals complete pull force testing to eliminate risks of loose contact or terminal detachment during vehicle operation. Color coding strictly follows automotive circuit specifications, making circuit identification convenient for assembly and maintenance work. The compact overall size saves installation space inside car bodies, bringing greater flexibility for product structural design.

This miniature signal interconnection harness features strong scene adaptability. It is widely applied to automotive inflation switch wiring, vehicle body sensor signal transmission, interior control switch connection and automotive electronic control board internal wiring. As a typical compact customized product of our product line, it inherits the mature craftsmanship of our custom wiring harness series. We can flexibly adjust interface types and protective structures according to customer requirements, delivering all-in-one custom cable assembly and wiring harness solutions. Whether for mass original equipment matching or small-batch prototype trial production, our customizable custom cable assembly and optimized custom wire harness assembly can meet differentiated vehicle electronic wiring demands.
