OBDII 16Pin Female to 7Pin Male Bobcat Construction Equipment Diagnostic Adapter Cable Length 260mm

2 month ago

7 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

Shenzhen Fubang Wire Harness Co., Ltd. specializes in designing and manufacturing professional diagnostic conversion wiring for construction machinery, agricultural equipment and commercial vehicles. We rely on mature overmolding craftsmanship and strict electrical performance verification processes to develop dedicated adapter cables that adapt to complex outdoor engineering maintenance environments. We continuously optimize interface matching and signal stability of various diagnostic connection products, providing durable wiring solutions for global machinery maintenance enterprises and diagnostic equipment manufacturers. We deliver reliable car OBDII cables that satisfy diverse cross-device diagnostic requirements, and all raw materials comply with RoHS environmental standards.

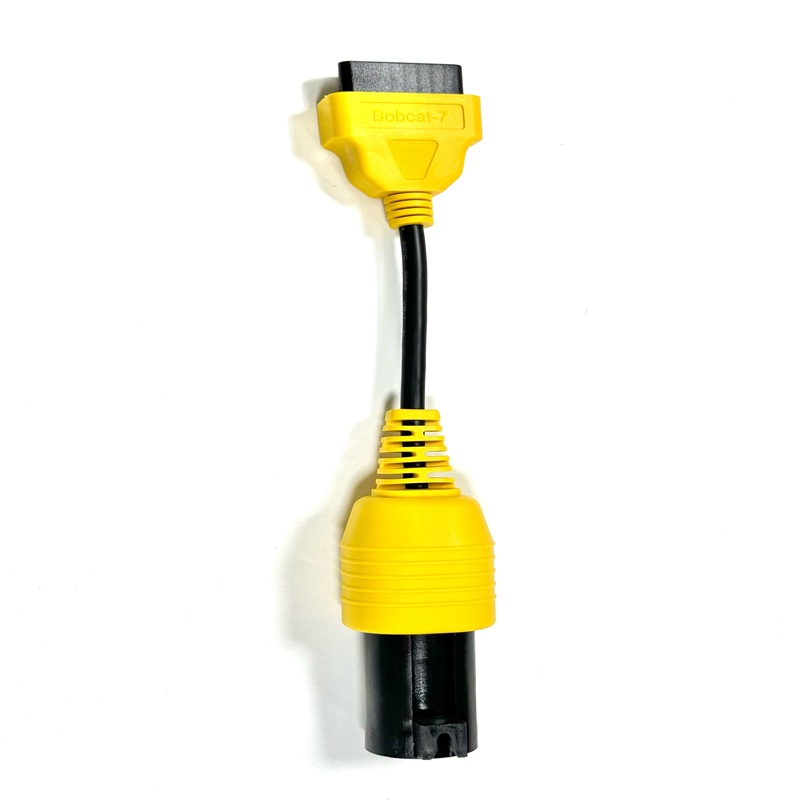

This OBDII 16Pin Female to 7Pin Male Bobcat Construction Equipment Diagnostic Adapter Cable Length 260mm is a targeted conversion harness developed exclusively for Bobcat engineering machinery. Unlike ordinary vehicle diagnostic cables that only adapt to passenger cars and heavy trucks, this cable realizes seamless signal conversion between standard OBD scanner interfaces and Bobcat 7Pin equipment ports. It serves as a high-precision OBD diagnostic adapter, allowing maintenance technicians to directly connect universal OBD diagnostic scanners to Bobcat skid steer loaders without additional complicated wiring conversion during field maintenance work.

Item	Description
Product Name	OBDII 16Pin Female to 7Pin Male Bobcat Construction Equipment Diagnostic Adapter Cable Length 260mm
Type	Heavy Machinery Diagnostic Conversion Wiring Harness / Skid Steer Loader OBD Adapter Cable
Voltage	DC 300V Test Voltage, 12V/24V Working DC, Custom Voltage Available

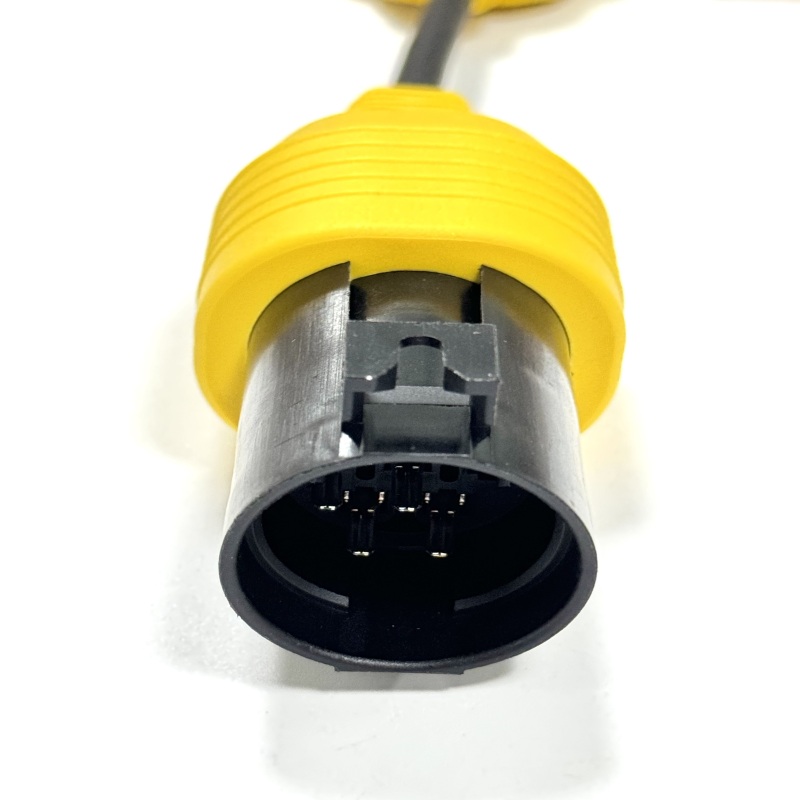

Pins Material	Nickel-Plated Phosphor Bronze OBD Terminals, Tin-Plated Copper 7Pin Circular Connector Contacts

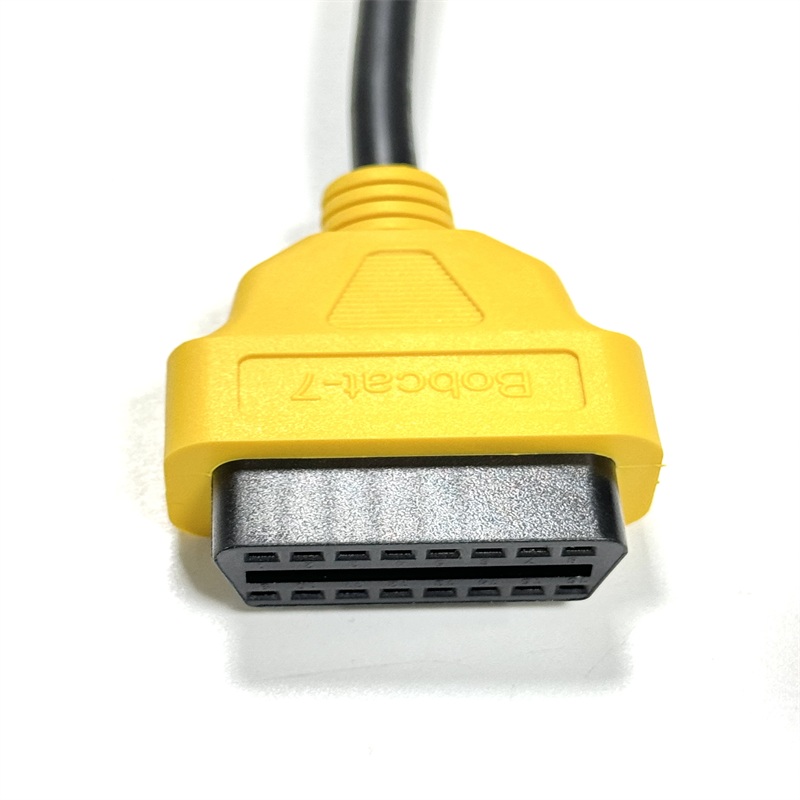

Plug Material	Yellow PVC Injection Molded Connector Housings, Black ABS+PC OBD 16Pin Female Shell, Black PVC Outer Cable Jacket, Aluminum Foil Shielding Layer
Working Temperature	-40℃ ~ +105℃, Industrial Heavy Machinery Grade
Length	260±10mm Total Length, Custom Length Fully Supported
Minimum Insulation Resistance	≥5MΩ
Maximum Conduction Resistance	≤3Ω
Compliance Standard	RoHS Environmental Compliance
Application Fields	Bobcat skid steer loader fault diagnosis, construction equipment ECU data reading, heavy machinery maintenance scanner matching, engineering vehicle diagnostic tool connection, farm equipment detection wiring, aftermarket heavy equipment diagnostic accessory cable
Specific Shipping Cost	Please Contact Us

The cable adopts UL2464 multi-core shielded tinned copper wire built-in aluminum foil shielding layer, which effectively filters electromagnetic interference generated by engineering machinery engines and hydraulic systems, maintaining stable data communication during long-duration fault detection. Integrated yellow one-piece injection molding overmold reinforces the wire outlet position, effectively resisting wire breakage caused by frequent plugging, pulling and bending on construction sites. Precise pin assignment strictly follows official Bobcat communication definitions to avoid communication failure or equipment recognition errors. Our technical team can adjust cable length, shell color and internal wire layout according to different diagnostic scanner models to develop customized vehicle diagnostic OBDII cable suitable for engineering machinery detection scenarios.

Every finished adapter cable passes DC 300V withstand voltage test and 100% full-point continuity inspection before leaving the factory. All metal contact terminals undergo anti-oxidation treatment, maintaining stable conduction performance even under dusty and humid construction site conditions. The compact 260mm overall length balances easy carrying and flexible operation, convenient for technicians to use in narrow machinery operation spaces. The distinctive yellow appearance is easy to distinguish among numerous maintenance wires, effectively preventing misuse.

This engineering machinery dedicated conversion cable has clear market positioning and prominent scene advantages. It is widely used for fault code reading, real-time operating parameter monitoring and ECU troubleshooting of Bobcat skid steer loaders and related construction equipment. As a representative engineering machinery model in our complete product series of car OBDII cables, it can be matched with various mainstream diagnostic scanners to form a complete engineering machinery detection kit. As a portable field maintenance-oriented OBD diagnostic adapter, it greatly improves maintenance efficiency for machinery repair workshops. We can further optimize anti-shock and wear-resistant outer sheath structure to provide high-performance vehicle diagnostic OBDII cable customized solutions for professional engineering diagnostic equipment brands.

If you need sample testing, bulk factory quotation or personalized construction machinery diagnostic cable customization service, please contact our team anytime.
