DC 12V Power Harness XH2.54 3Pin Female Connector to 3 Fork Terminals with Ferrite Core Length 330mm

2 month ago

6 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

We integrate precision terminal crimping, standardized wire marking and noise suppression structural design to deliver stable wiring solutions for equipment manufacturers across multiple industries. With flexible manufacturing capacity, we are capable of developing diverse customized electrical harnesses to match unique equipment layout and power connection requirements. All raw materials comply with RoHS requirements to satisfy global industrial and automotive electronic supply standards.

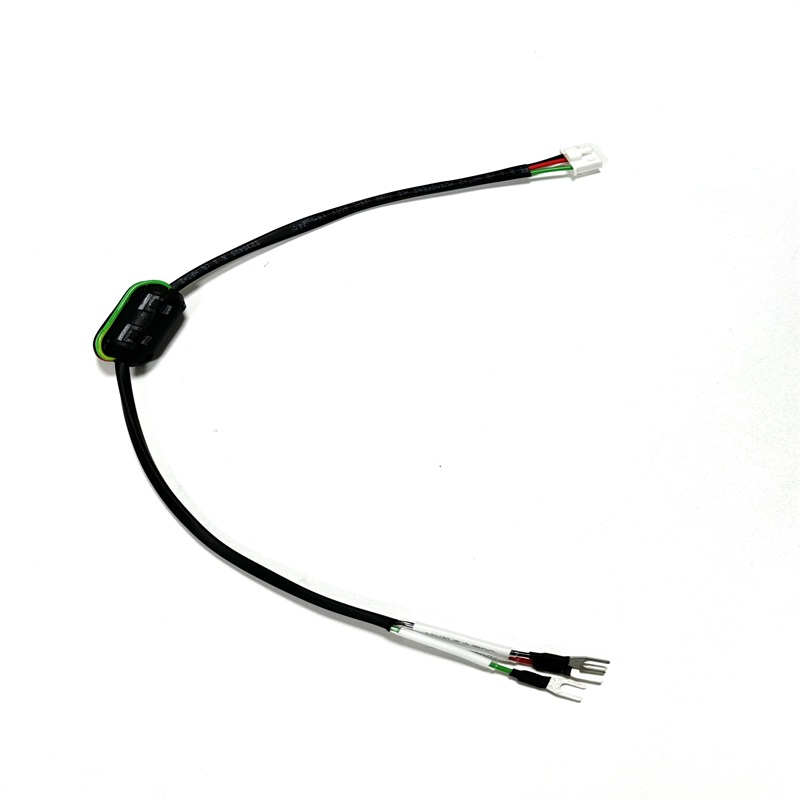

This DC 12V Power Harness XH2.54 3Pin Female Connector to 3 Fork Terminals with Ferrite Core Length 330mm is a dedicated low-voltage power interconnection cable designed for charging control modules and small intelligent devices. Unlike ordinary simple jumper wires without anti-interference design, this harness is equipped with an assembled ferrite core along the cable. It effectively suppresses electromagnetic interference generated during equipment operation, avoiding signal distortion and unstable power supply. This well-structured unit serves as a practical custom cable assembly and wiring harness, realizing convenient plug-in connection on one side and reliable screw fixed connection via U-type fork terminals on the other side.

Item	Description
Product Name	DC 12V Power Harness XH2.54 3Pin Female Connector to 3 Fork Terminals with Ferrite Core Length 330mm
Type	Low Voltage Industrial Power Wiring Harness / Equipment Charging Control Custom Cable
Voltage	DC 300V Test Voltage, 12V DC Working Voltage, Custom Voltage Available
Pins Material	Nickel-Plated Brass Crimp Terminals, U-Type Fork Terminals

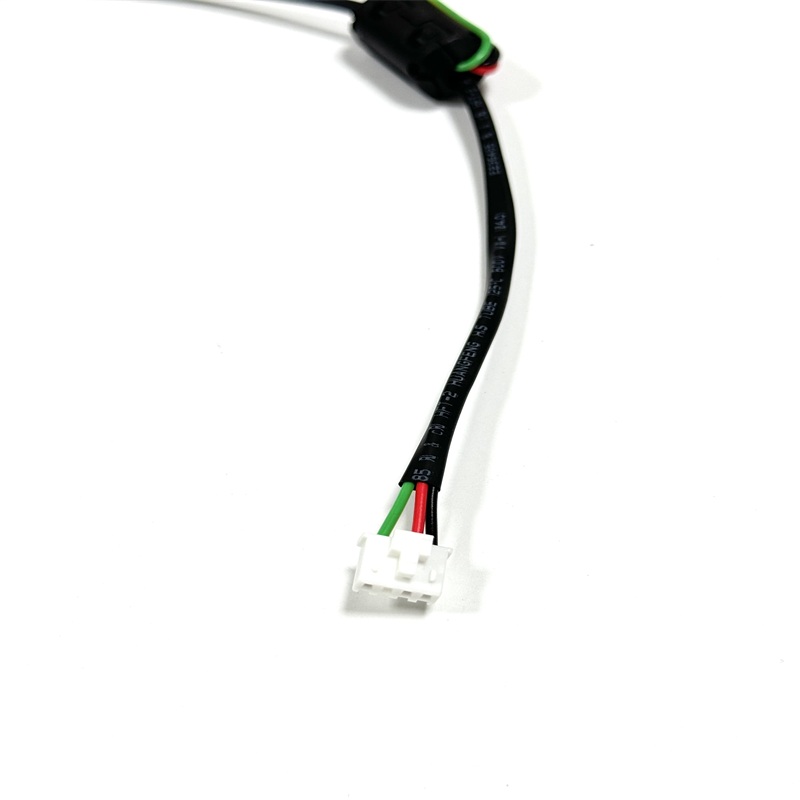

Plug Material	White PA66 XH2.54 3Pin Female Connector Housing, Black PVC Cable Jacket, Assembled Ferrite Core, Printed Heat Shrink Tubing
Working Temperature	-40℃ ~ +105℃, Industrial & On-Board Equipment Grade
Length	330±10mm Total Length, Custom Length Fully Supported
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Compliance Standard	RoHS Environmental Compliance
Application Fields	12V device power connection, charging control board wiring, intelligent equipment internal power harness, industrial low voltage control module connection, automotive auxiliary electronic power supply, monitoring equipment internal wiring, DIY electronic project power cable
Specific Shipping Cost	Please Contact Us

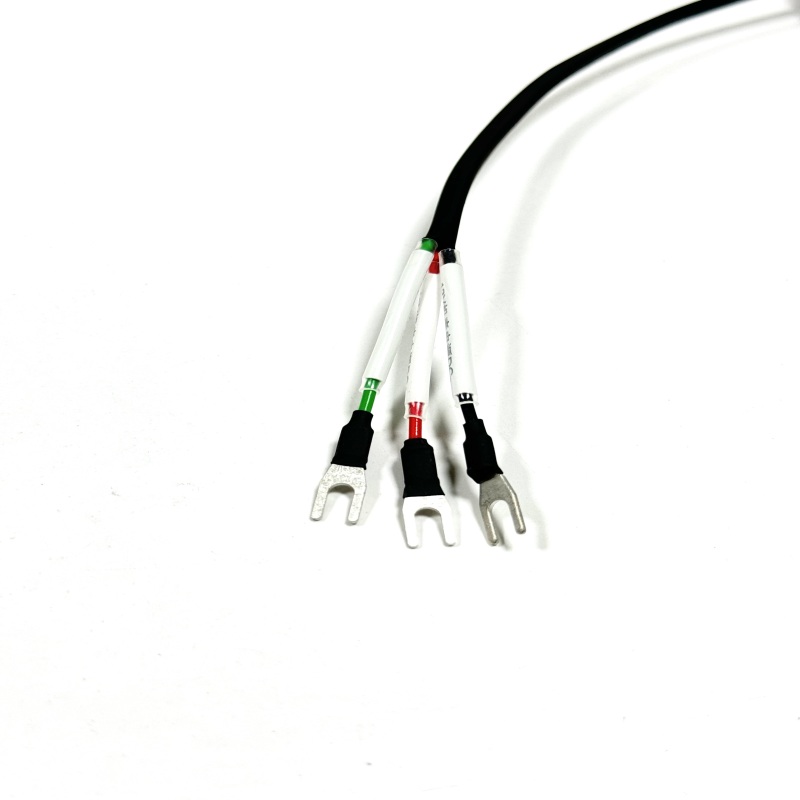

The harness adopts UL1007 22AWG color-coded tinned copper wires to guarantee low-impedance power transmission under continuous working status. Specially printed heat shrink tubes mark positive, negative and ground lines clearly, which simplifies assembly and later maintenance work for production technicians. The XH2.54 connector features stable locking structure to prevent accidental disconnection caused by equipment vibration. Our engineering team can adjust overall length, terminal types, connector specifications and add different protective structures as requested, creating targeted automotive cable assembly suitable for vehicle auxiliary power supply or industrial control equipment wiring scenarios.

Every finished harness undergoes DC 300V withstand voltage test and 100% continuity inspection before leaving the factory. All nickel-plated terminals maintain good oxidation resistance for long-term stable contact. Strict wire routing and binding processing prevent wire twisting and abrasion inside equipment housings. The standard 330mm overall length reserves reasonable installation space, while customized dimensions are available to adapt to different equipment shell sizes.

This low-voltage power interconnection harness possesses strong versatility across industrial and automotive electronic projects. It is widely applied to charging control board power access, intelligent monitoring equipment internal wiring, automotive auxiliary electronic power connection and low-voltage industrial control module interconnection. As a typical power type within our full range of customized electrical harnesses, it can be freely matched with various peripheral components to complete complete equipment wiring schemes. As a ready-to-assemble custom cable assembly and wiring harness, it greatly accelerates customers’ product assembly progress. We can further optimize shielding performance and add abrasion-resistant outer protection layers to deliver high-quality automotive cable assembly solutions for mass production equipment manufacturers and prototype development projects.
