Product details

Centrifugal Disk Automatic Feeding Machine

High-Speed Feeding for Modern Automated Production

When production speed keeps increasing, the feeding system often becomes the bottleneck. The High Speed Centrifugal Parts Feeding Equipment is designed to solve that problem by delivering small components quickly, smoothly, and continuously. Instead of relying on vibration alone, this machine uses a high-speed rotating disk to separate and guide parts into the correct position, making it an excellent choice for manufacturers handling lightweight plastic parts, metal components, electronic accessories, caps, connectors, and many other precision products.

Item	Specification
Drive Type	Servo / Variable frequency motor drive
Disk Diameter	φ300~φ600mm, non-standard customization available
Feeding Speed	0~120 pcs/min, stepless speed regulation
Workpiece Size	2mm~60mm
Control System	PLC + photoelectric sensor, auto start-stop for material shortage/full material
Power Supply	AC220V 50/60Hz
Power	0.37KW~0.75KW
Noise Level	≤65dB
IO Port	Reserved IO signal, supports linkage with automatic production line

Compared with a traditional vibrating feeder, the centrifugal feeding method creates less vibration and allows parts to move more gently, reducing scratches and surface damage. It also keeps a stable feeding rhythm even during long production shifts, helping automated equipment maintain high output without frequent interruptions.

Stable Feeding with Flexible Customization

Every production line is different, so this machine is built with flexibility in mind. The Centrifugal Disk Automatic Parts Feeder can be customized according to your product size, shape, weight, and required feeding direction. Whether your components are round, flat, lightweight, or specially shaped, the feeding track and disk structure can be adjusted to achieve reliable orientation before entering the next process.

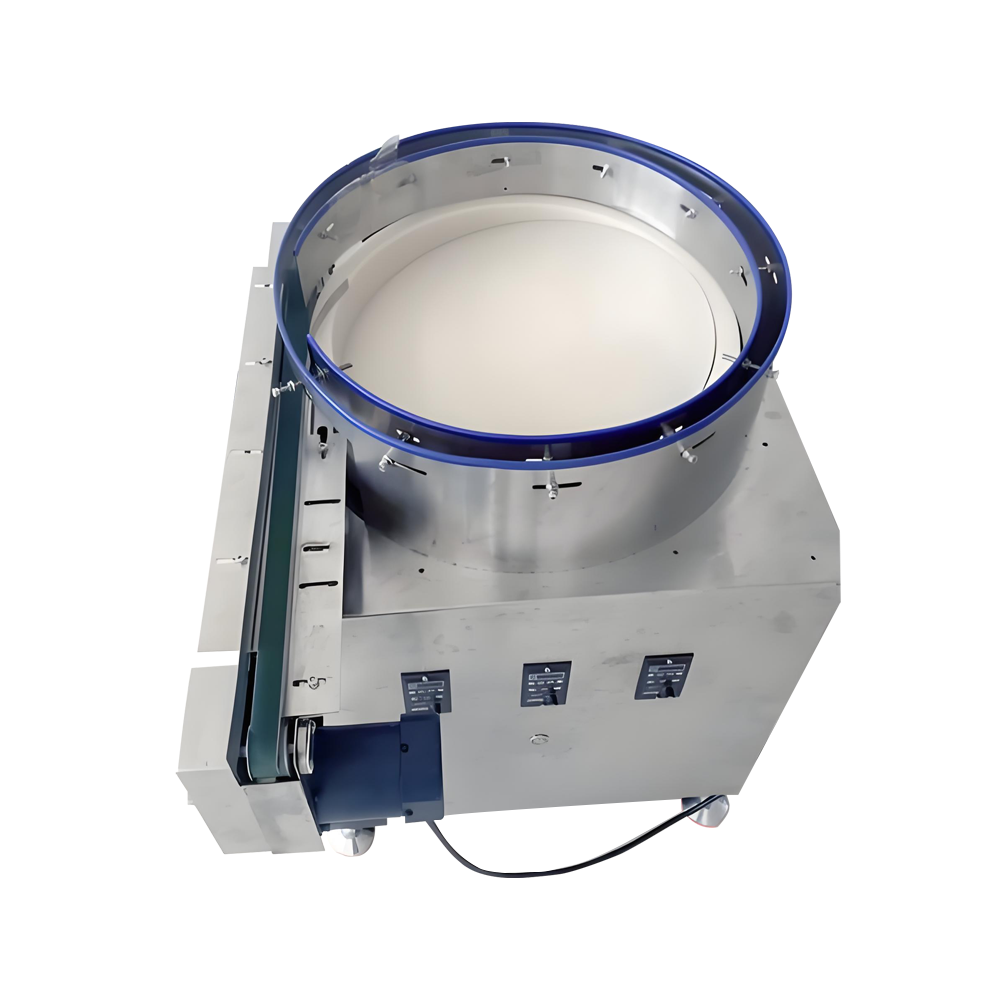

Centrifugal Disk Feeding Automation Systems

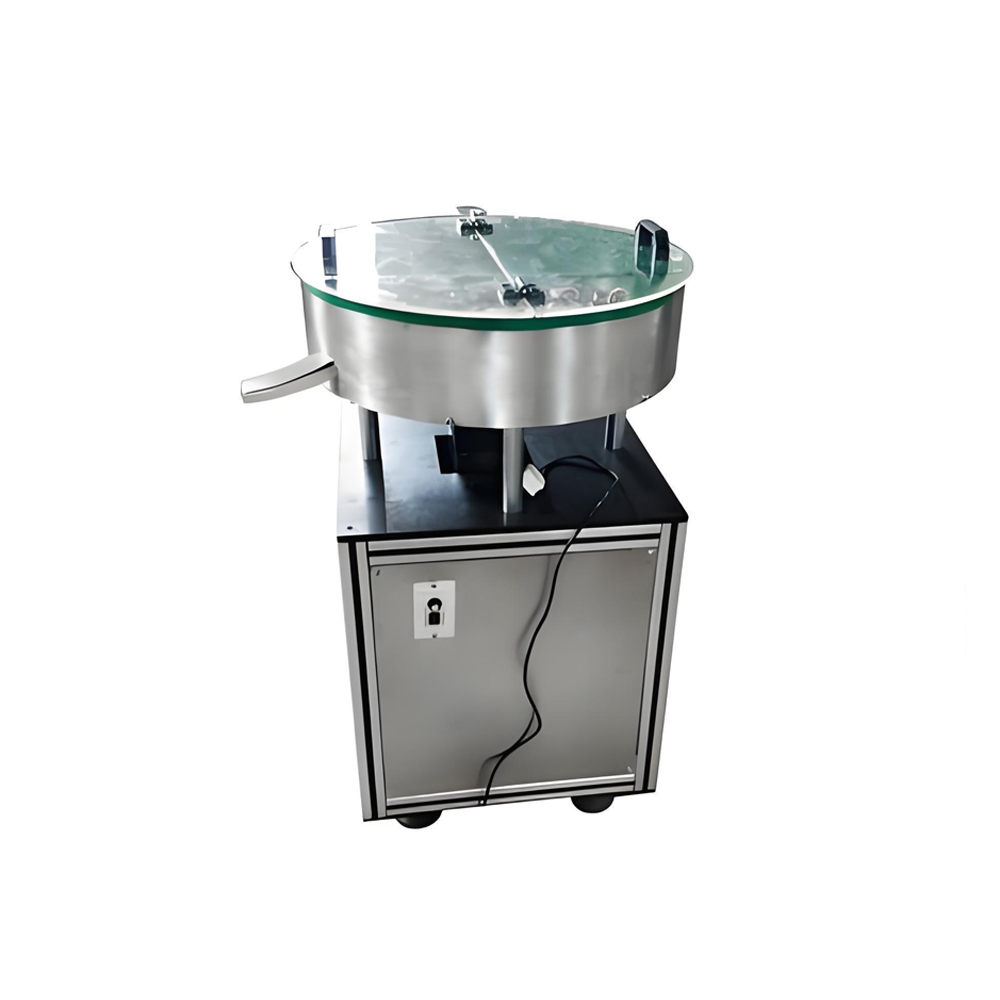

Centrifugal Disk Automatic Feeding Machine

For factories that already use a linear feeder or other conveying devices, the centrifugal feeder can be integrated without complicated modifications. The compact structure makes installation simple while reducing floor space. Stable feeding also helps robots, assembly stations, and inspection systems work more efficiently by ensuring every part arrives in the correct position at the right time.

Built for Continuous Automatic Manufacturing

The Centrifugal Disk Feeding Automation Systems are widely used in electronics, medical devices, automotive components, consumer products, and precision assembly industries where speed and consistency are equally important. With fewer moving contact points and optimized mechanical design, the machine delivers reliable performance while keeping maintenance requirements low.

As one of the professional manufacturers of automation equipment, Mingzheng provides complete feeding solutions based on different production requirements. We can combine this equipment with a centrifugal bowl feeder or customize the feeding system to match your existing automation line. From project evaluation and mechanical design to installation and technical support, our engineering team works closely with every customer to deliver practical, efficient, and long-lasting automatic feeding solutions.
