1.Product Description
Huizhou Antenk Electronics Co., Ltd. independently develops and manufactures SMT type single 18650 lithium battery holders, professional surface mount power components dedicated to fixing single 18650 cylindrical lithium cells and realizing stable power conduction inside compact electronic devices. The base housing is molded with high temperature resistant PA46 nylon material equivalent to STANYL 46 grade, featuring exceptional heat resistance, anti-creep property and stable insulation under long time high temperature operating environments. Conductive terminals are made of 0.3mm thick stainless steel sheets, while the built-in compression spring is fabricated from 0.5mm diameter music wire to offer lasting uniform elastic pressure on battery poles. Multiple surface plating options are available including tin, nickel flash gold and various thicknesses of gold plating to satisfy distinct requirements for electrical conductivity, anti-oxidation performance and service longevity. All dimensional parameters are processed under strict tolerance standards, with precise SMT pin layout fully compatible with automated PCB surface mounting procedures. The compact streamlined structure maximizes internal space utilization of equipment, and all raw materials conform to RoHS and REACH environmental directives to meet global export standards.
This SMT 18650 battery holder is designed to adapt fully automatic PCB reflow soldering production lines as well as manual assembly work. Manufacturers place the holder onto designated PCB bonding pads and finish soldering through reflow oven processes, then insert one standard 18650 lithium battery into the accommodating cavity. Stainless steel terminals and elastic music wire springs closely attach to battery positive and negative electrodes to build continuous conductive circuits. It is widely applied in portable communication devices, industrial control panels, digital cameras, smart home appliances, portable power banks, electronic toys, precision testing instruments and vehicle auxiliary electronic systems. During application, users must install only standard 18650 batteries and strictly avoid reverse polarity insertion to prevent short-circuit damage. Violent extrusion on the nylon shell and over stretching of internal springs are prohibited, and finished battery holders need to be preserved in dry surroundings away from moisture, dust and corrosive gases.
Antenk owns remaarkable competitive strengths compared with conventional battery holder manufacturers backed by complete automotive-grade quality management certifications. Most competitors only provide limited plating selections and ordinary steel springs prone to fatigue deformation, while our product supplies abundant plating solutions paired with durable music wire springs that maintain stable elasticity after thousands of battery replacement cycles. Our factory has obtained ISO9001, ISO14001 and IATF16949 quality certifications, equipped with more than 20 professional testing devices to conduct 100 percent batch inspection covering dimensional accuracy, spring fatigue resistance, conductive efficiency and heat resistance performance. Custom structural adjustments and two packaging modes of tray and bag are supported with low minimum order quantity and no extra mold expenses, whereas overseas suppliers charge high tooling costs and have prolonged delivery periods. In-house mold development guarantees consistent precision and steady mass production quality for both plastic housings and metal conductive parts.
Antenk adopts full vertical integrated production procedures for this SMT battery holder at its 10000 square meter manufacturing bases with 250 professional staff members. The whole production workflow begins with self-designed precision mold manufacturing relying on 250+ plastic connector molds and 180+ hardware terminal molds. High temperature resistant nylon pellets are injected into insulating bases via imported precision plastic injection machines; stainless steel plates and music wire undergo stamping and forming through high-speed precision punching equipment. Subsequent electroplating, component assembly and trimming steps are completed in dedicated workshops. All finished goods pass comprehensive aging, thermal cycling and electrical performance tests before shipment, with unique batch numbers assigned for full production traceability. We provide free samples, official PCB layout drawings and 24-hour global technical support. Over 70 percent of Antenk’s electronic components are exported worldwide, winning consistent trust from electronic purchasers across Europe, America, Southeast Asia and other international regions.
Heat Resistant Nylon Battery Base can withstand sustained high operating temperatures and retain stable insulating performance for long-term electronic device operation.
SMD Welded Battery Terminal fits automated reflow soldering processes to achieve firm bonding and reliable electrical connection on printed circuit boards.
Elastic Music Wire Spring delivers lasting consistent pressing force to battery poles and effectively prevents poor contact caused by vibration and shaking.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

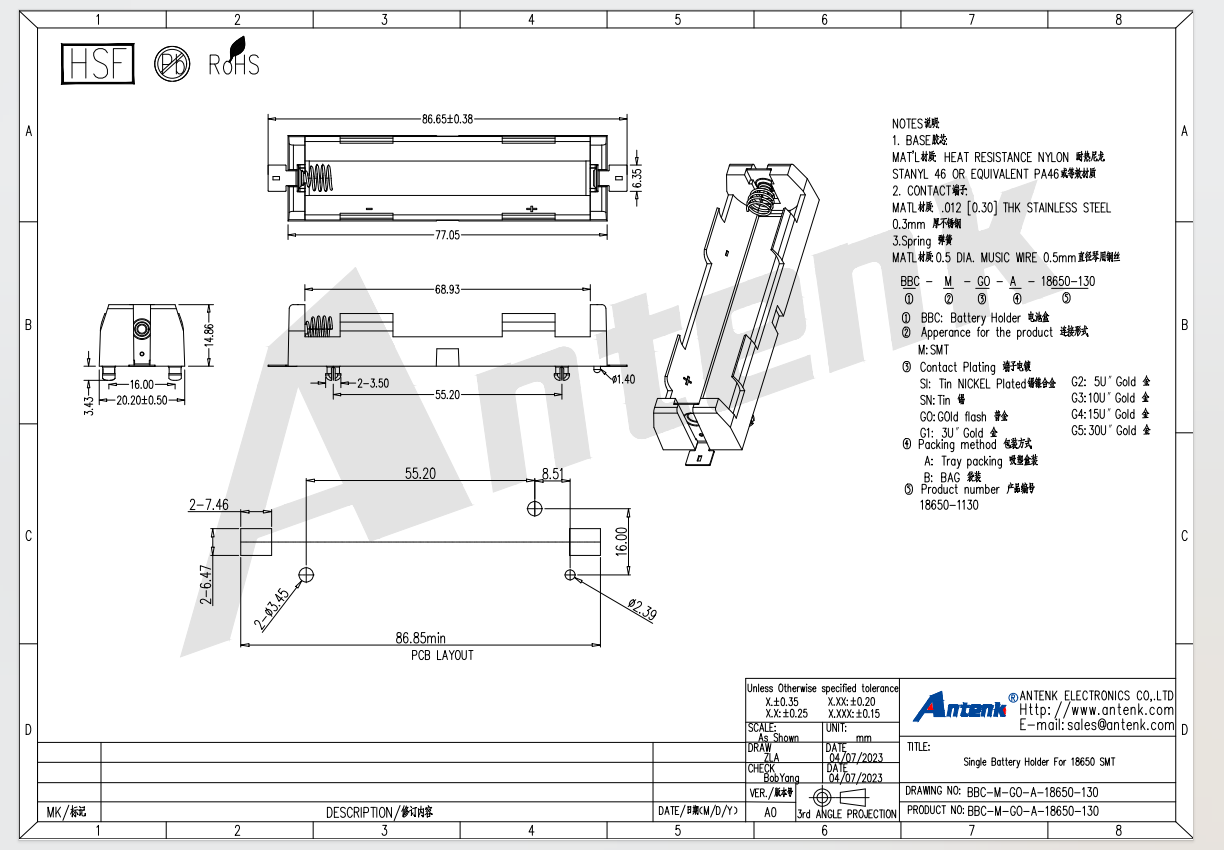

3.Product Drawing
