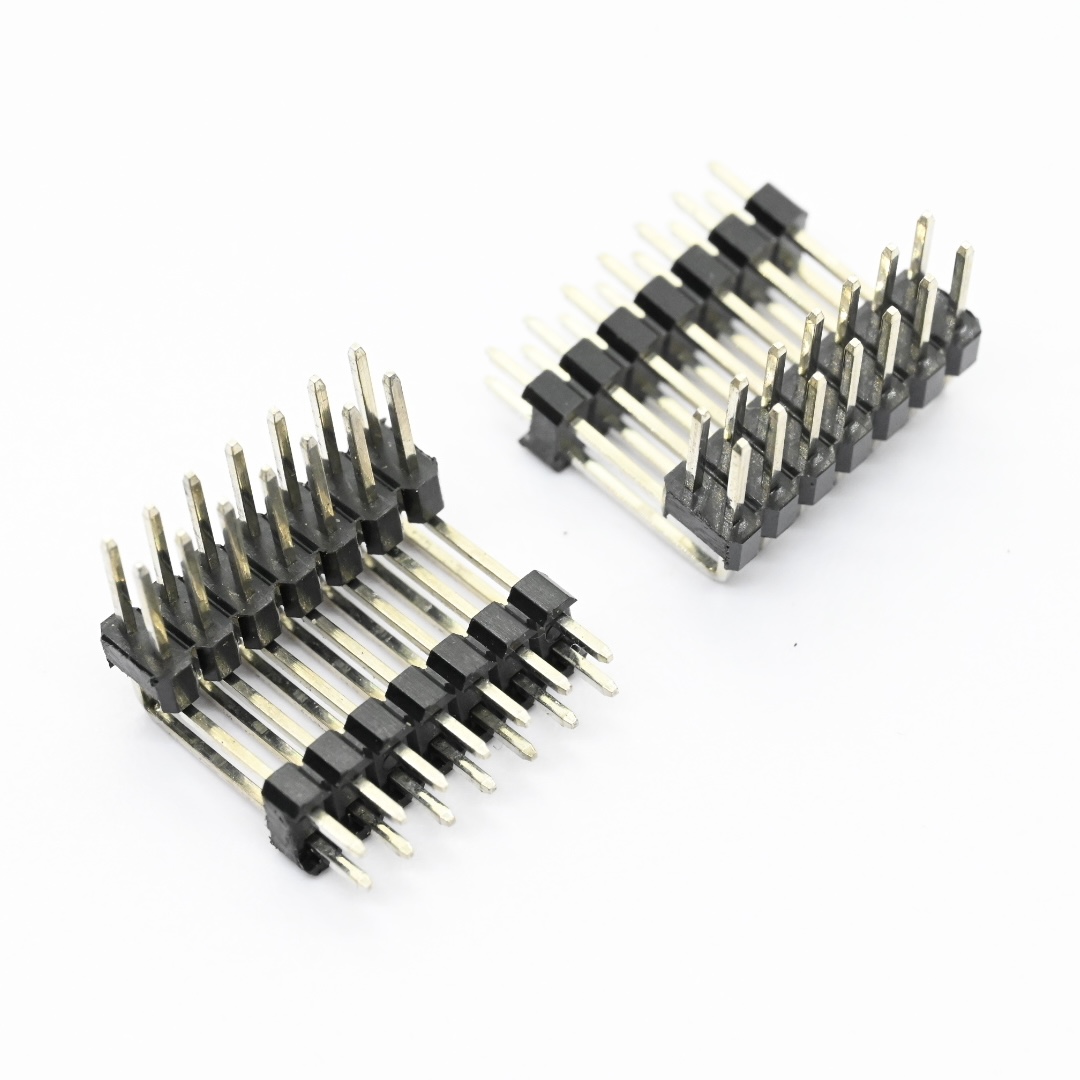

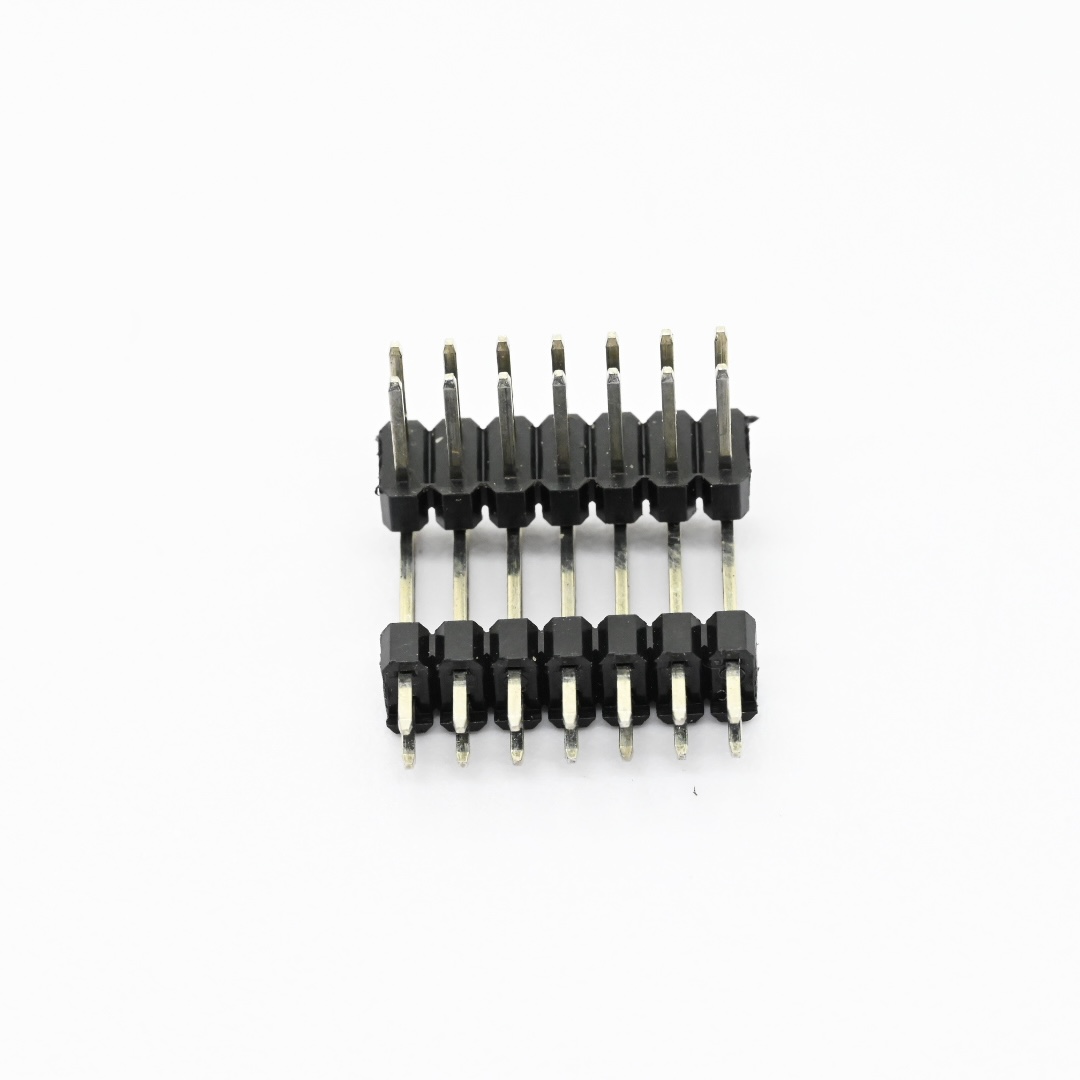

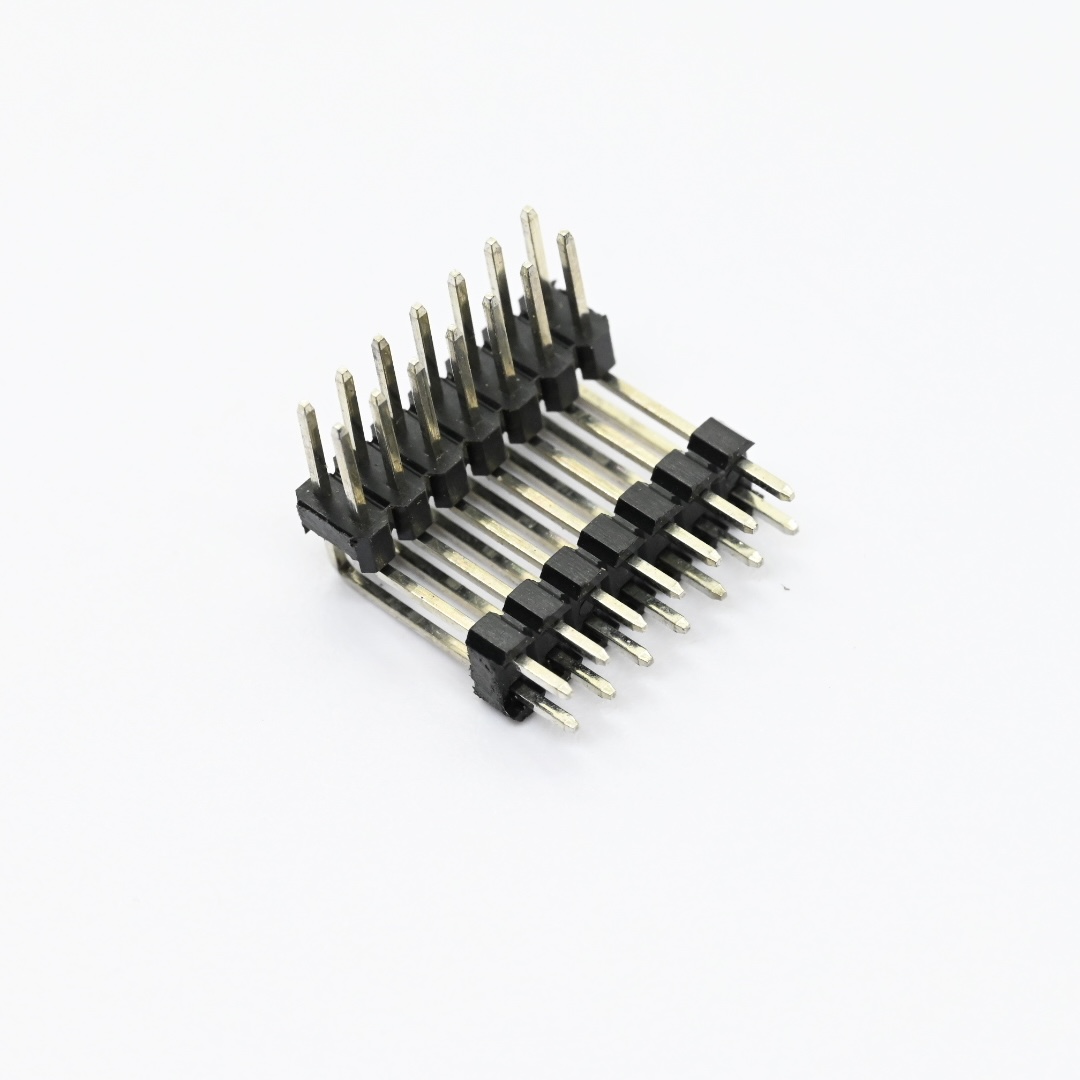

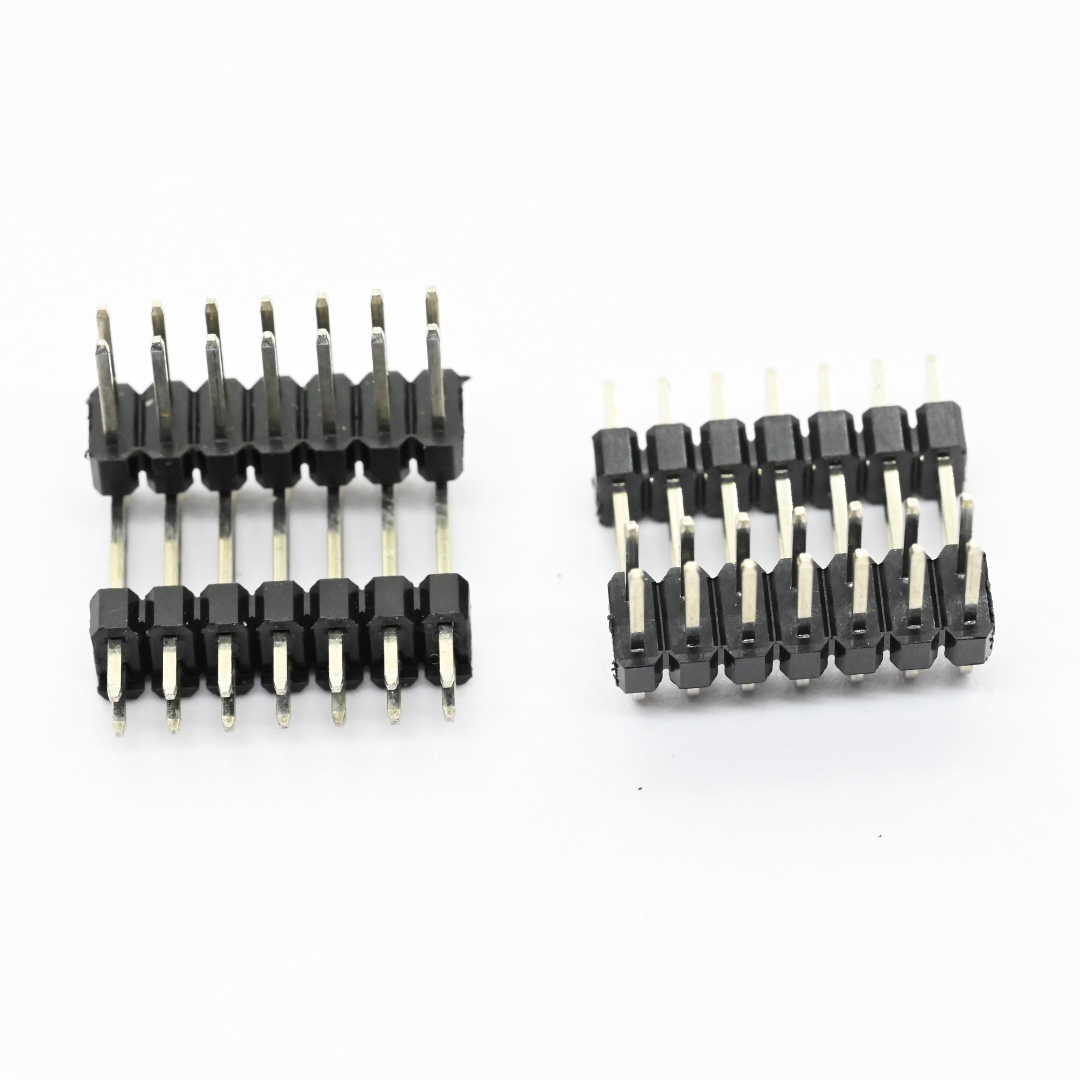

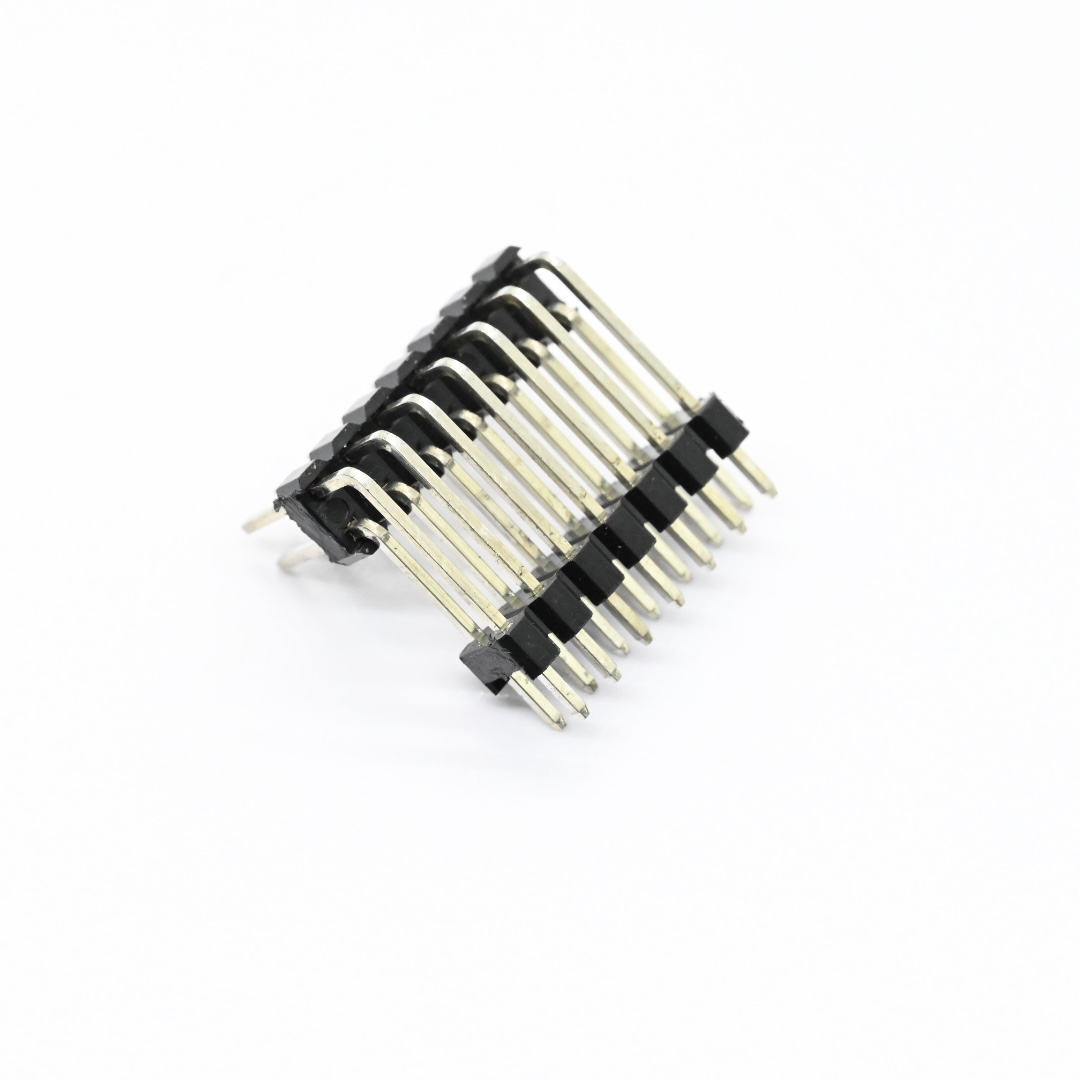

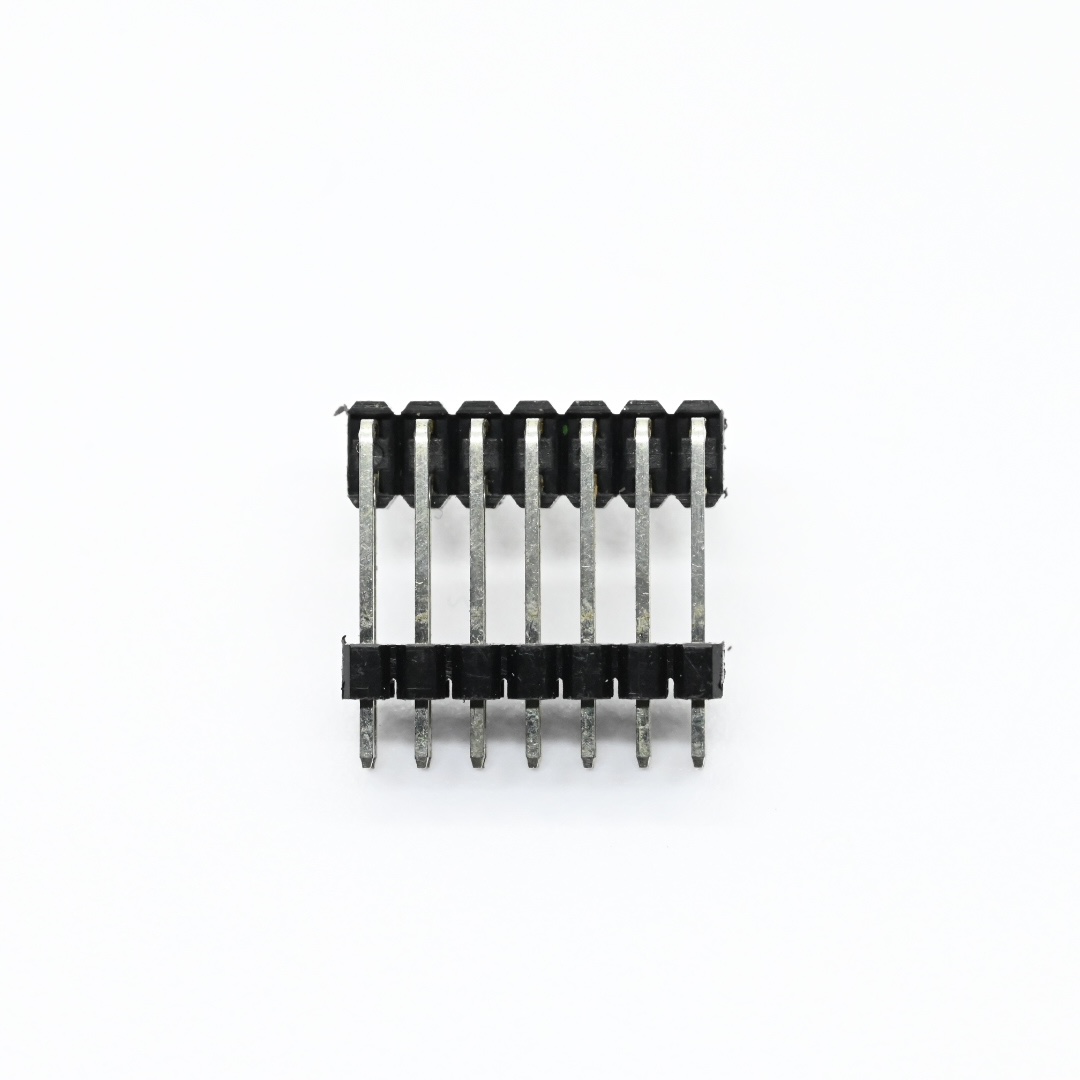

2.54mm Dual Row Double Plastic Angled Header

2.54mm Dual Row Double Plastic Angled Header

2 week ago

7 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. produces PHER08 series 2.54 millimeter dual row double plastic angled pin headers for reliable board to board signal and power transmission inside electronic equipment. This angled pin header adopts brass pins and PBT insulator material with UL94V 0 flame retardant rating, supports customizable contact numbers and multiple plating selections including tin gold flash and varied gold thickness. It delivers 3 amp current rating, 1000 megaohms minimum insulation resistance and 1500 volt AC dielectric withstand, operating temperature ranges from minus 65 degree Celsius to plus 125 degree Celsius. Users complete angled through hole soldering on printed circuit boards, select suitable contact count pin plating and insulator version according to project requirements, follow drawing tolerance standards for PCB layout and store goods within dry surroundings to prevent brass pin oxidation. Different from competitors outsourcing key manufacturing processes Antenk carries out full in house production covering independent mold development terminal stamping plastic injection molding electroplating and complete laboratory reliability testing. We are certified with ISO9001 ISO14001 IATF16949 and UL standards and provide multiple packaging options with continuous engineering technical support, over seventy percent of our connector products are exported worldwide. Feel free to send your project requirements for free sample evaluation and full technical datasheet resources.

1. Double Plastic Angled Header adopts double layer plastic structure to enhance structural stability for angled board to board connection.

2. Brass Pin Angled Header uses high conductivity brass pins to guarantee stable electrical transmission for electronic assemblies.

3. High Temp Pin Header withstands wide temperature range from minus 65 to plus 125 degree Celsius for harsh working environments.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: Dual row double plastic angled pin header

1.2 Measurement unit: millimeter

1.3 Key dimension: 2.54 millimeter pitch, customizable contact numbers. Pin specification PIN0.64SQ, multiple size options for pin length and plastic height. General drawing tolerances follow drawing standard. Refer to official engineering drawing for complete dimension tables and PCB footprint reference data.

1.4 Contact plating options: Selective tin, gold flash, 3 micro inch gold, 5 micro inch gold, 10 micro inch gold, 15 micro inch gold, 30 micro inch gold

1.5 Available packaging form supports multiple industry standard packing methods

1.6 CTA: Contact our engineering team to obtain complete dimension drawings and PCB layout files for your hardware design validation.

2. Material Construction

2.1 Insulator housing: PBT material with UL94V 0 flame retardant rating

2.2 Contact pin: Brass material with multiple plating alternatives

3. Electrical & Performance Parameters

3.1 Rated current: 3 Amp

3.2 Minimum insulation resistance: 1000 megaohms

3.3 Dielectric withstand: 1500V AC

3.4 Operating temperature range: minus 65 degree Celsius to plus 125 degree Celsius

4. Usage Method

4.1 Assembly mode: Angled through hole soldering onto printed circuit boards

4.2 Operation tip: Select proper contact quantity, pin plating and insulator specification according to actual project requirements

5. Application Scenarios

5.1 Industrial control equipment

5.2 Consumer electronic devices

5.3 Communication hardware assemblies

5.4 General board to board interconnection systems

6. Operation & Storage Precautions

6.1 Strictly follow official drawing tolerance standards for PCB layout design

6.2 Avoid excessive mechanical force to prevent pin bending and plastic housing damage

6.3 Store products under dry environment to avoid oxidation of plated pin surfaces

6.4 Confirm contact count, plating and dimension parameters before mechanical and circuit design

6.5 CTA: Submit your contact count, plating and dimension requirements, we can provide free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

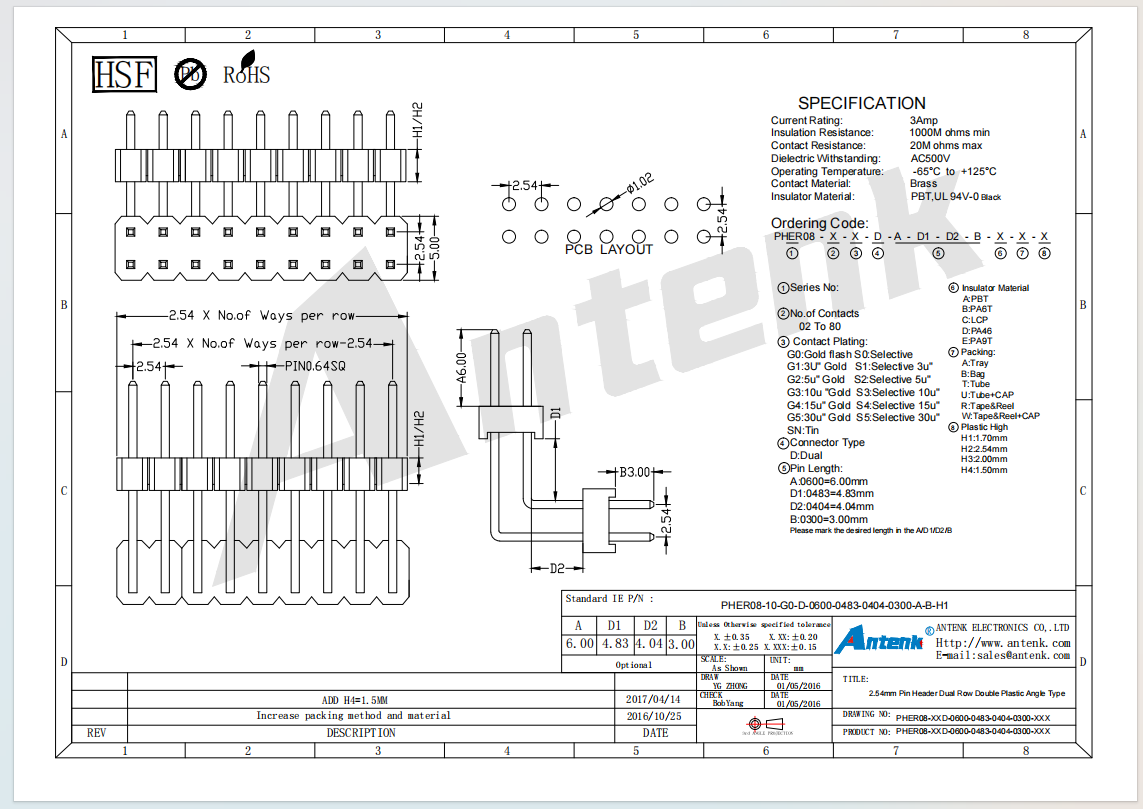

Product Drawing：
