2.00mm Straight Dual Row Wafer Header

2.00mm Straight Dual Row Wafer Header

3 week ago

4 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures AW2006V 2xNP series 2.00 millimeter pitch 180 degree straight dual row wafer header for reliable wire to board power and signal transmission after through hole soldering onto printed circuit boards, this header mates with AH2006 series dual row housing. This straight dual row wafer header supports multiple pole configurations, overall dimensions change with different pole quantities, please check official engineering drawing for complete dimension tables and PCB layout reference data. Its insulator housing adopts Nylon66 material with UL94V 0 flame retardant grade and supplies grey or black housing color choices, brass pins feature tin over nickel surface plating. It delivers 3A AC DC rated current and 250V AC DC rated voltage, provides 800V AC one minute dielectric strength and minimum 1000 megaohm insulation resistance, operating temperature ranges from minus 40 degree Celsius to plus 105 degree Celsius. Complying with RoHS and REACH standards, this connector fits consumer electronics smart home appliances and industrial control devices. Operators must follow official PCB drawing for soldering work and keep inventory under dry storage to prevent brass pin oxidation. Unlike competitors outsourcing stamping molding and plating Antenk completes full in house production including independent mold development brass terminal stamping plastic injection molding electroplating and comprehensive laboratory reliability verification. We hold ISO9001 ISO14001 IATF16949 and UL certifications, offer custom color options and round the clock engineering support, more than seventy percent of connector goods are exported globally. Feel free to submit your project specifications for sample quotation and complete datasheet resources.

1. Straight Dual Row Header delivers stable dual channel signal and power connection for printed circuit board assemblies.

2. Nickel Tin Plated Header provides excellent anti oxidation performance to extend connector service lifespan.

3. Vertical Mount Wafer Header realizes compact vertical installation to save valuable internal device space.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: 180 degree straight vertical mount dual row wafer header

1.2 Measurement unit: millimeter

1.3 Key dimension: contact pitch 2.00 mm, multiple pole selections available. Overall dimension varies with different pole counts. Refer to official engineering drawing for full dimension tables and PCB layout reference data.

1.4 Mating part: Compatible with AH2006 series dual row housing

1.5 Housing color options: Grey and black

1.6 Pin specification: 0.50 square pin

1.7 CTA: Contact our engineering team to acquire complete dimension drawings and PCB footprint files for your hardware design validation.

2. Material Construction

2.1 Insulator housing: Nylon 66 with UL94V‑0 flame retardant grade

2.2 Contact pin: Brass base material with tin over nickel plating finish

3. Electrical Parameters

3.1 Rated current: 3A AC DC

3.2 Rated voltage: 250V AC DC

3.3 Dielectric strength: 800V AC for one minute

3.4 Insulation resistance: minimum 1000 megaohm

4. Environmental Parameters

4.1 Operating temperature range: minus 40°C to plus 105°C

5. Compliance Standard

5.1 Environmental compliance: RoHS compliant

6. Usage Method

6.1 Assembly mode: Through hole soldering onto printed circuit boards

6.2 Operation tip: Select suitable pole quantity and housing color according to actual circuit design requirements, mate with AH2006 series dual row housing.

7. Application Scenarios

7.1 Consumer electronic devices

7.2 Smart home appliances

7.3 Industrial control equipment

8. Operation & Storage Precautions

8.1 Complete through hole soldering operation following official PCB layout drawing

8.2 Do not apply excessive mechanical force to brass pins to avoid terminal deformation

8.3 Store products in dry environment to prevent tin nickel plated pins from oxidation

8.4 Verify dimension parameters housing color and pole count before mechanical structure design

8.5 CTA: Submit your pole count and color requirements, we can offer free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

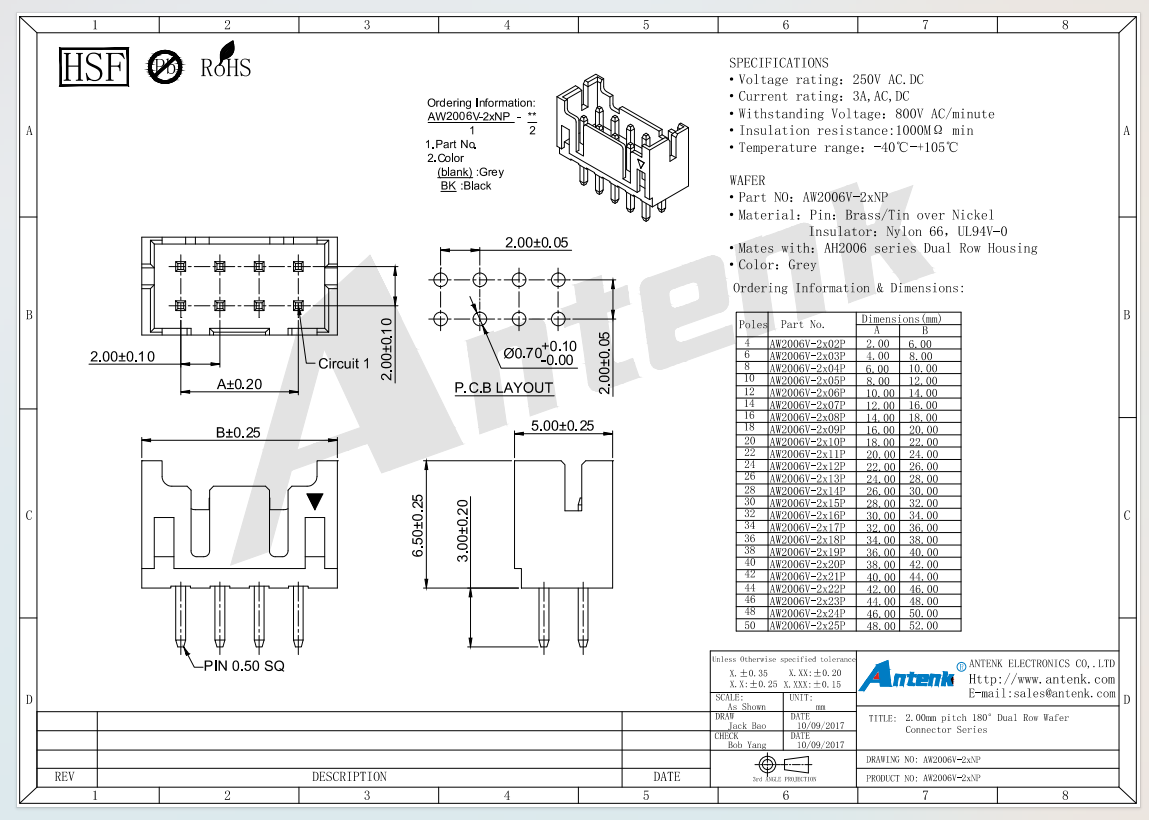

Product Drawing：

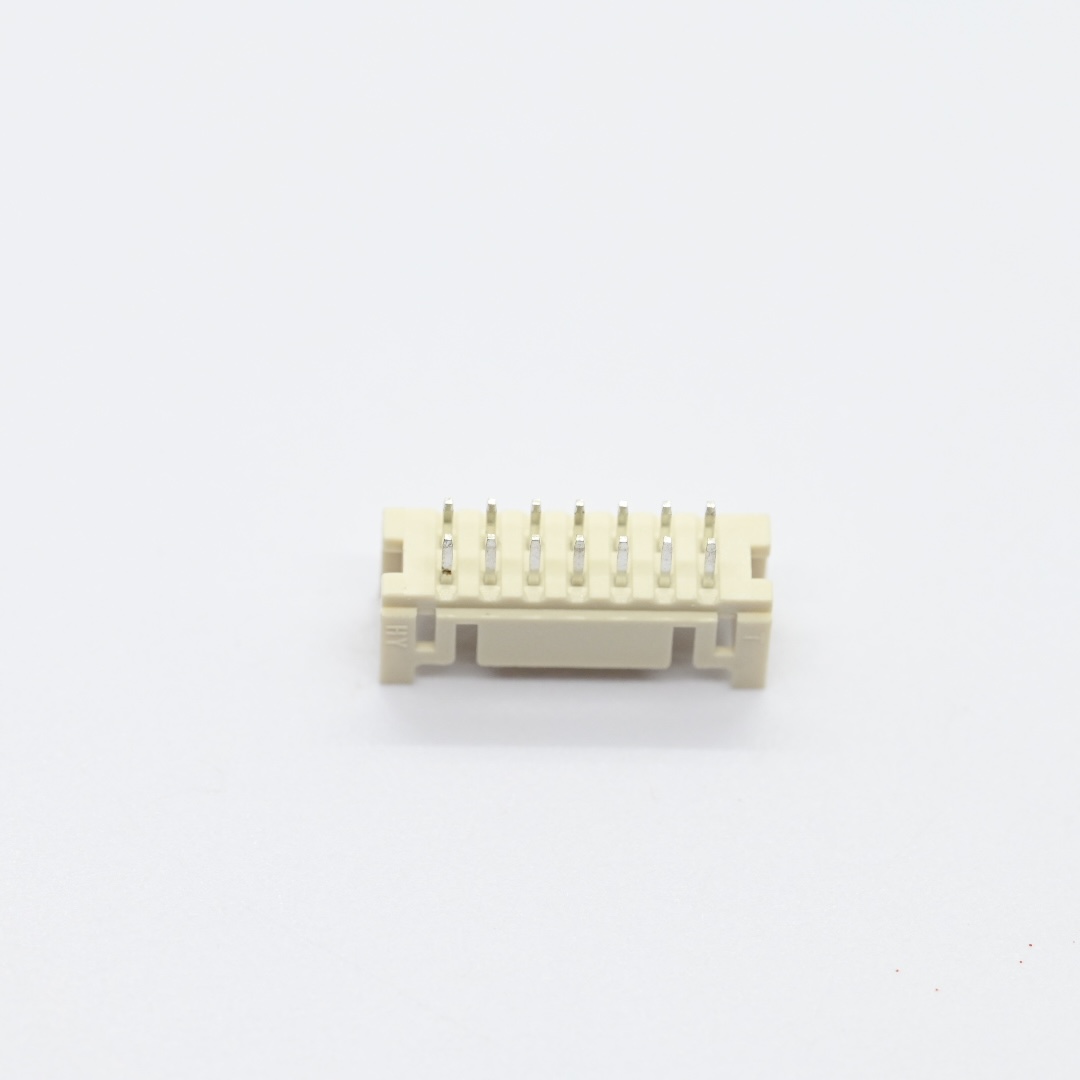

AW2006V-2x7P+2.00mm pitch 180 Dual Row Wafer Connector Series（1）

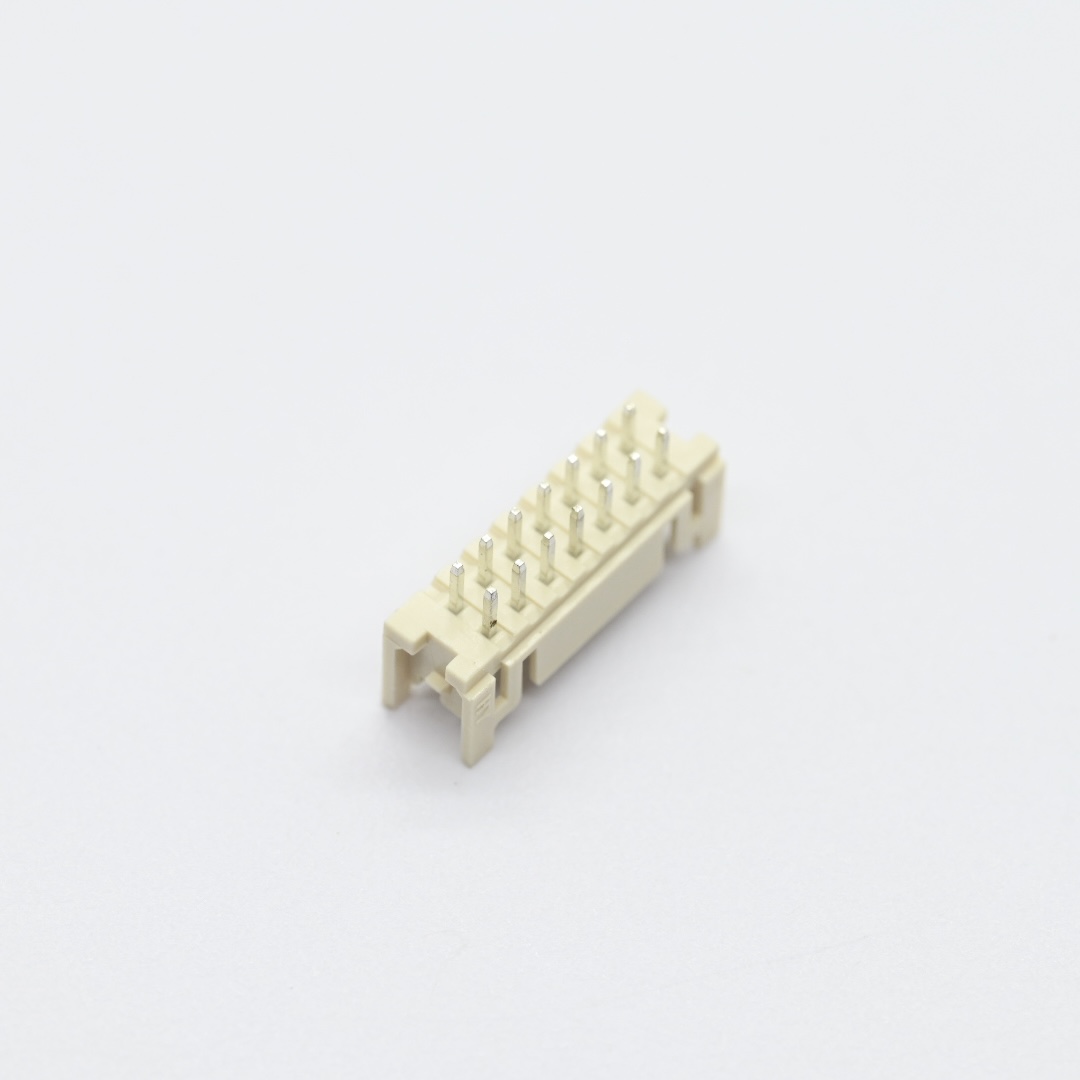

AW2006V-2x7P+2.00mm pitch 180 Dual Row Wafer Connector Series（2）

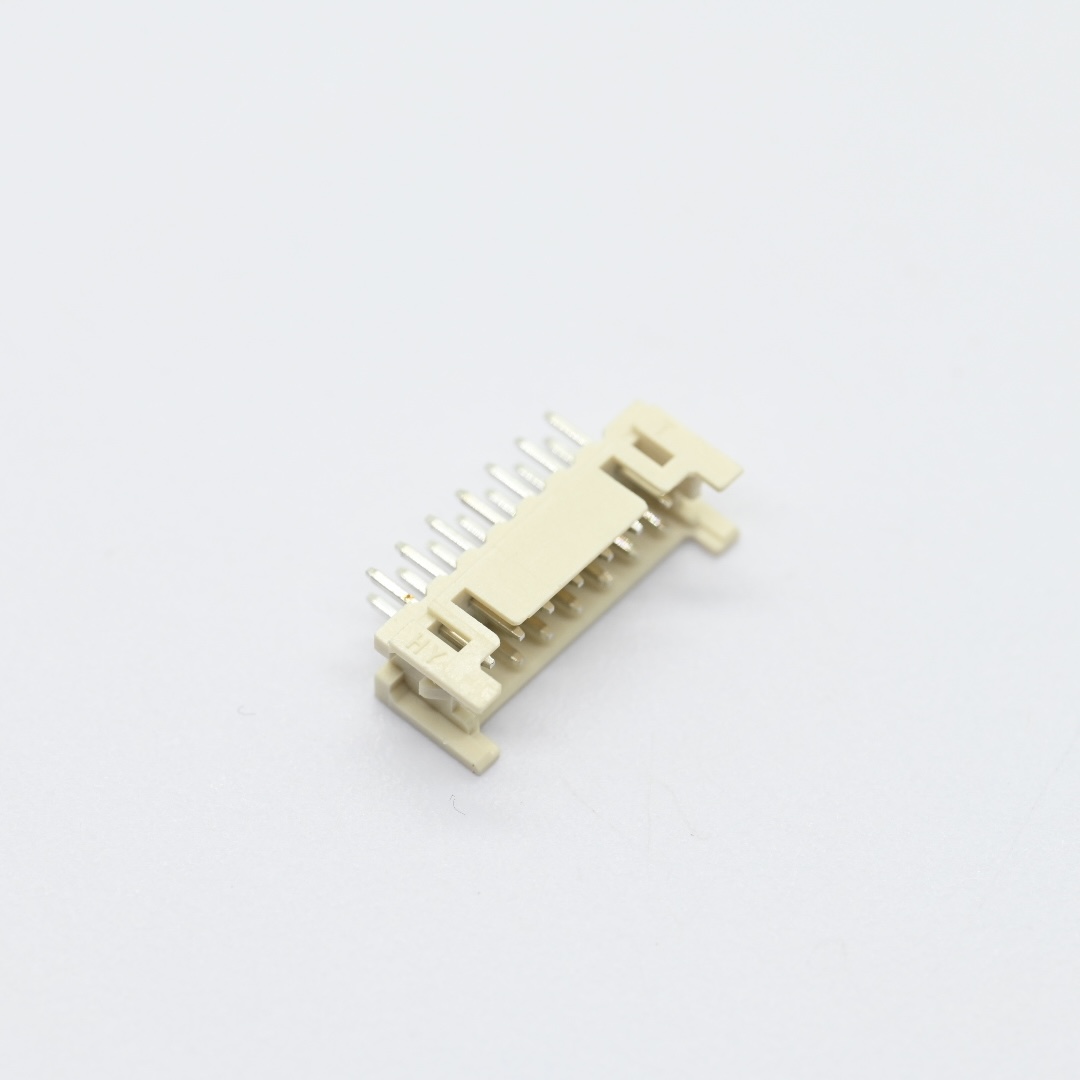

AW2006V-2x7P+2.00mm pitch 180 Dual Row Wafer Connector Series（4）

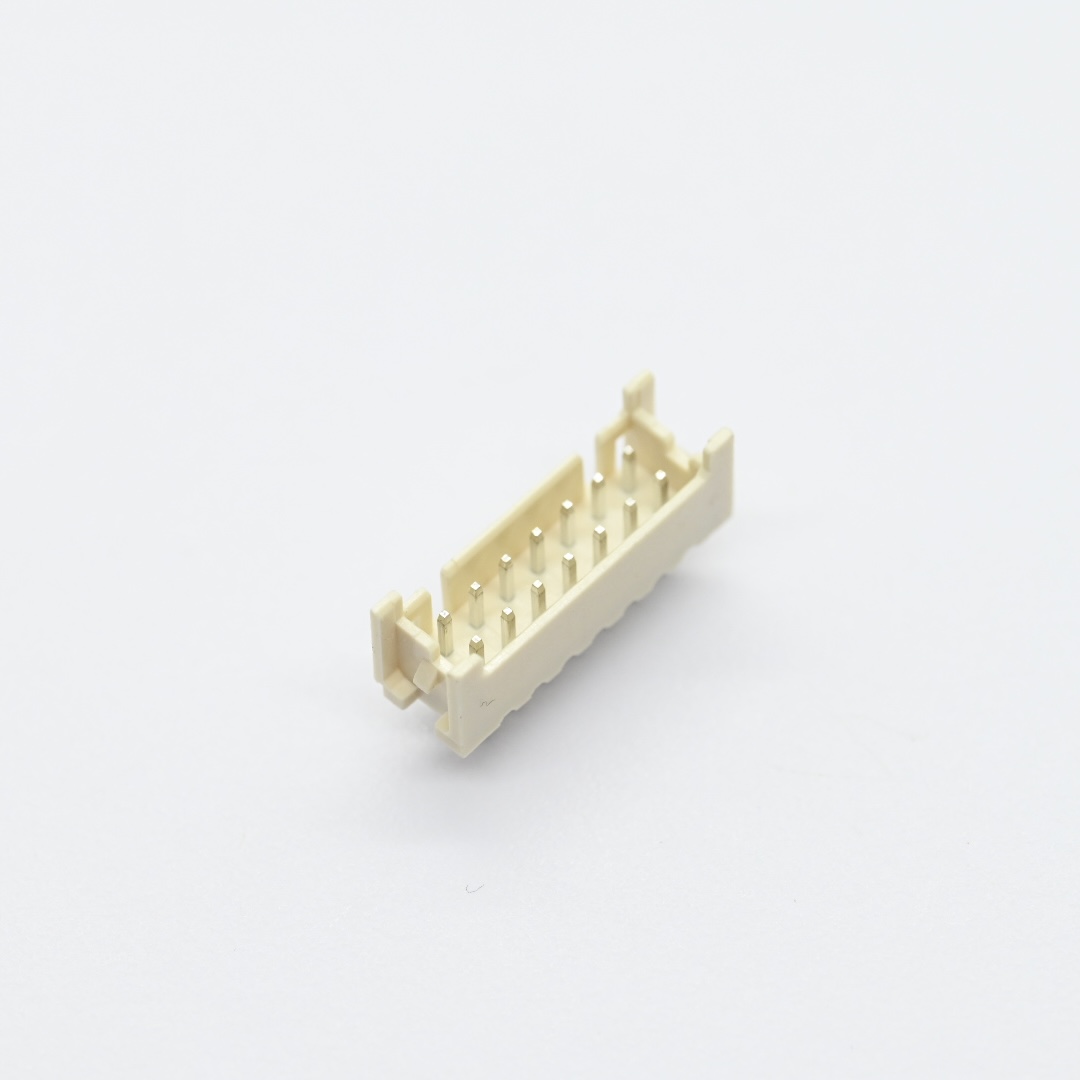

AW2006V-2x7P+2.00mm pitch 180 Dual Row Wafer Connector Series（6）

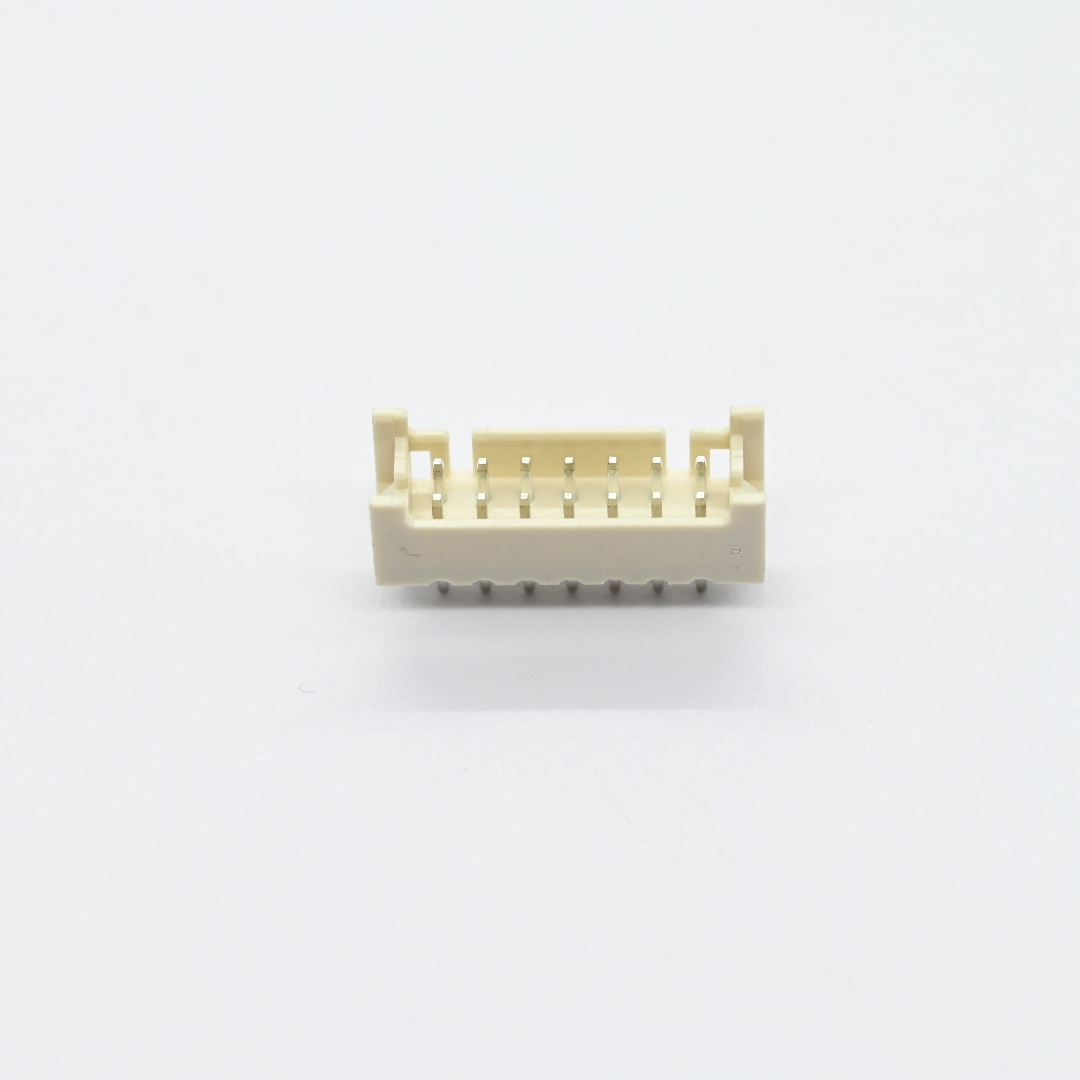

AW2006V-2x7P+2.00mm pitch 180 Dual Row Wafer Connector Series（5）

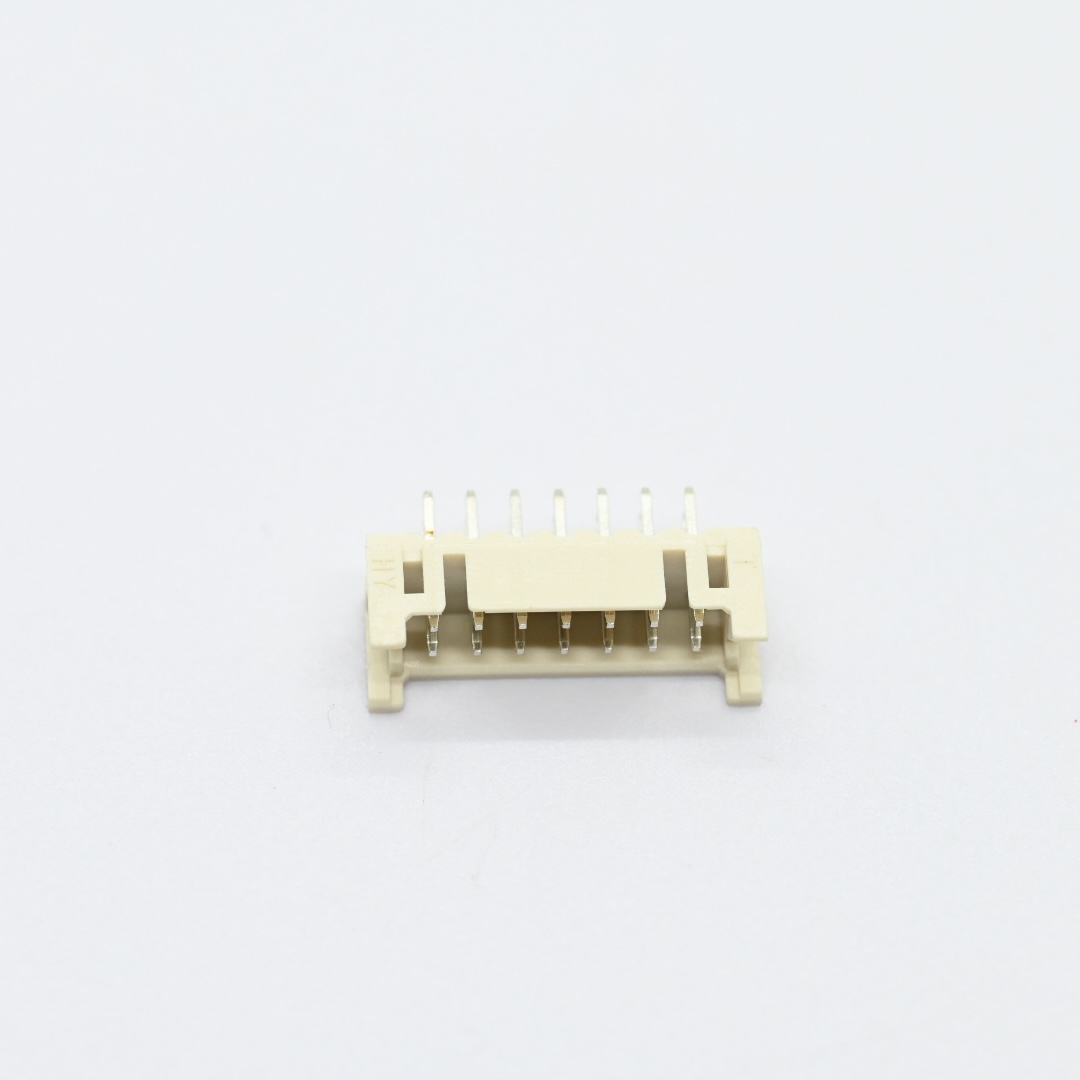

AW2006V-2x7P+2.00mm pitch 180 Dual Row Wafer Connector Series（3）
