BMS 485 Communication Y Splitter Cable XH2.54 Connector Harness

2 week ago

1 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

We have mature production lines for custom connector crimping, wire bundling and protective wrapping. We deliver stable, reliable wiring solutions for global equipment manufacturers, and possess rich experience in manufacturing car wire harness for energy storage vehicle control systems. All finished products comply with RoHS requirements and pass comprehensive electrical testing before delivery.

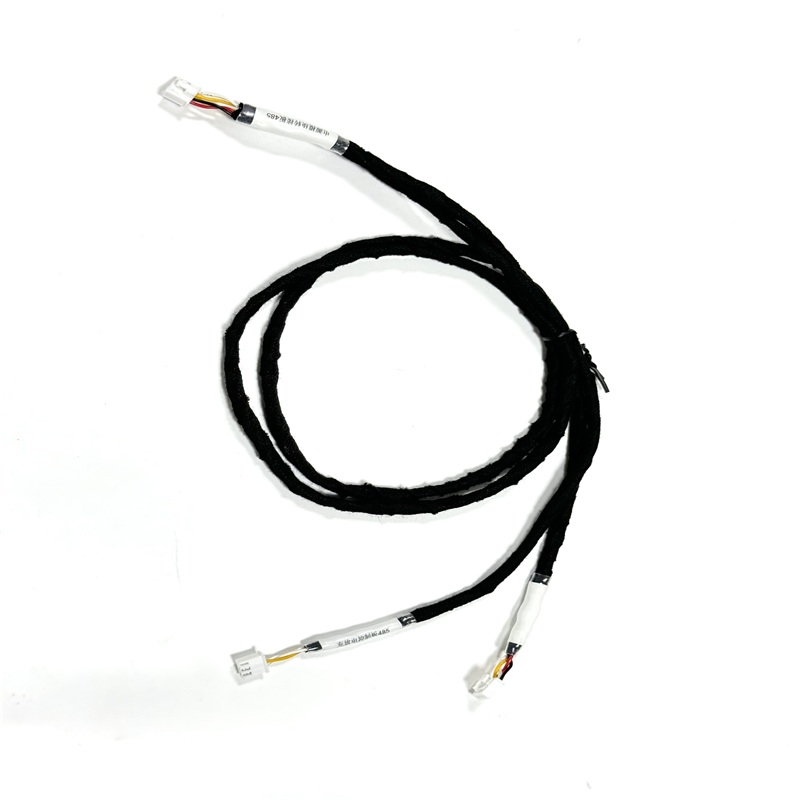

This BMS 485 Communication Y Splitter Cable XH2.54 Connector Harness is purpose-built for 485 signal distribution inside battery management systems. Designed with a Y-shaped branching structure, it enables one main signal channel to connect two sets of control boards simultaneously. As a professional custom cable assembly and wiring harness, it solves the wiring trouble caused by insufficient communication ports in energy storage equipment, simplifying the internal layout of battery packs and control cabinets.

Item	Description
Product Name	BMS 485 Communication Y Splitter Cable XH2.54 Connector Harness
Type	Battery Management System Signal Wiring Harness/Custom BMS 485 Communication Splitter Cable
Voltage	DC 300V Test Voltage, Signal Level Low Voltage Application, Custom Voltage Available
Pins Material	Gold-Plated Phosphor Bronze Crystal Terminal Contacts
Plug Material	RJ45 8P8C Modular Plug, RJ12 6P6C Short Body Modular Plug, Black CAT5E UTP PVC Cable Jacket, PVC Strain Relief, Printed White Heat Shrink Tubing
Working Temperature	-40℃ ~ +105℃, Industrial Communication Equipment Grade
Length	1070±50mm Total Length, Custom Length Fully Supported
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Compliance Standard	RoHS Environmental Compliance
Application Fields	Industrial controller data communication, monitoring equipment signal transmission, automated device serial communication connection, test equipment internal data wiring, intelligent terminal communication accessory cable
Specific Shipping Cost	Please Contact Us

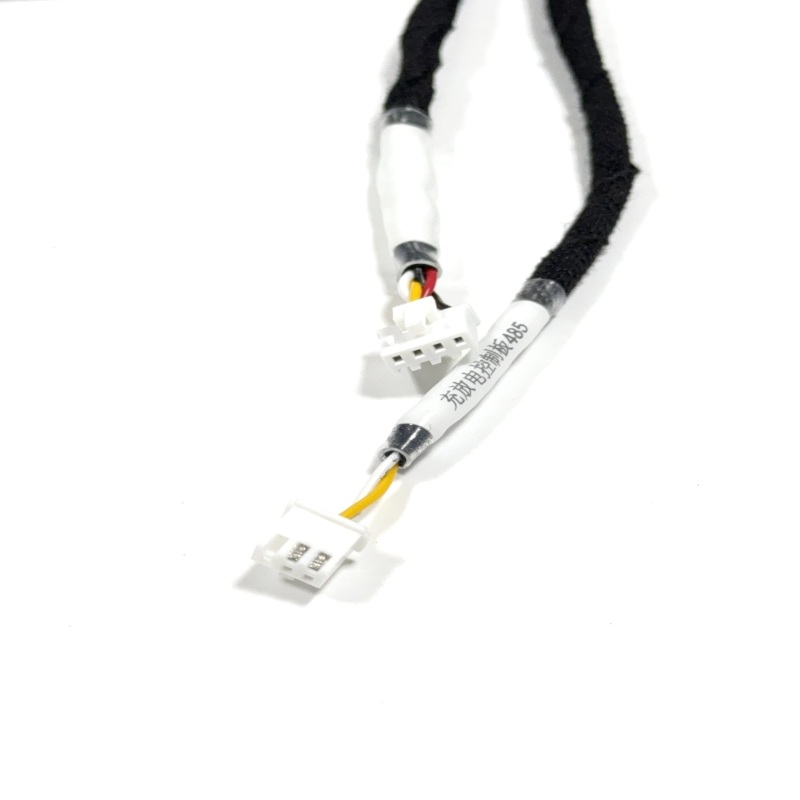

The harness adopts UL1007 26AWG tinned copper wires with clear color coding, guaranteeing stable 485 signal transmission and effectively reducing signal interference. The whole cable is wrapped with black woven fabric sleeve, which provides excellent wear resistance and noise shielding. White marked heat shrink tubes are reserved at each connector end, convenient for on-site identification during equipment assembly. We adopt standard XH2.54 locking connectors to avoid accidental disconnection under long-term vibration. For customers with vehicle energy storage projects, we can upgrade specifications to create qualified customized car wiring harness that adapts to the vibration environment of mobile energy storage devices.

Every communication splitter harness undergoes strict continuity, insulation and withstand voltage testing. We inspect every crimp terminal to eliminate hidden risks such as poor contact and signal interruption. Beyond fixed specifications, our engineering team can adjust wire length, pin definition, connector types and protective structures as required. Whether you need prototype samples or mass production orders, we can tailor the custom cable assembly and wiring harness according to your equipment schematic drawings.

This communication splitter wiring harness is widely applied in lithium battery energy storage systems, battery management modules, charging and discharging control panels, and on-board energy storage control equipment. Optimized for low-voltage signal transmission scenarios, it is one of our core interconnection accessories matching energy storage equipment. For customers developing mobile energy storage products, we provide iterative optimization services for customized car wiring harness, continuously improving the stability of vehicle-mounted signal transmission.
