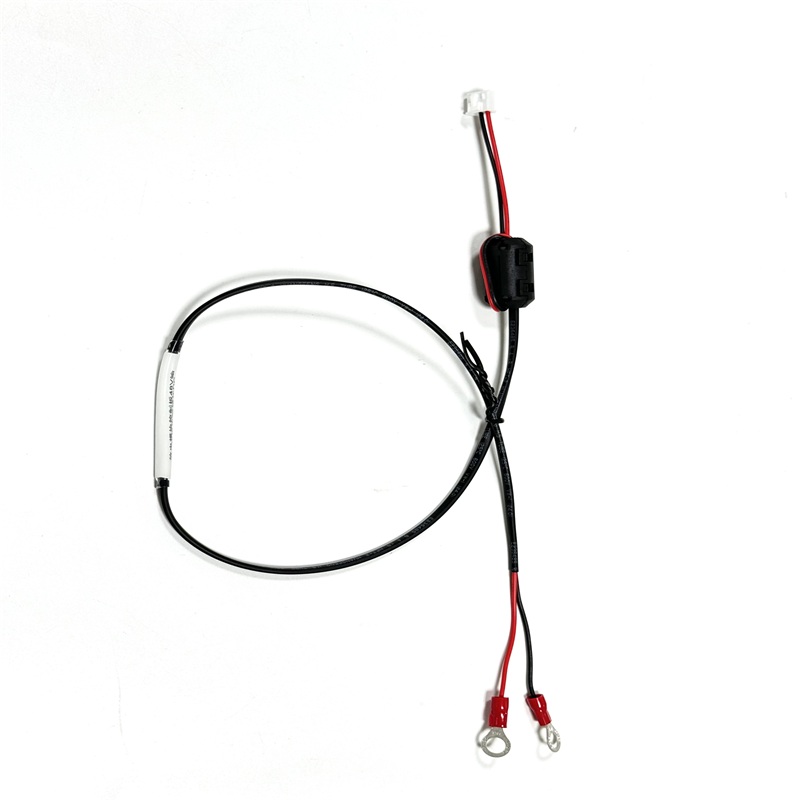

XH2.54 3Pin to Ring Terminal DC Power Cable with Ferrite Core 48V Discharge Module Harness Length 650mm

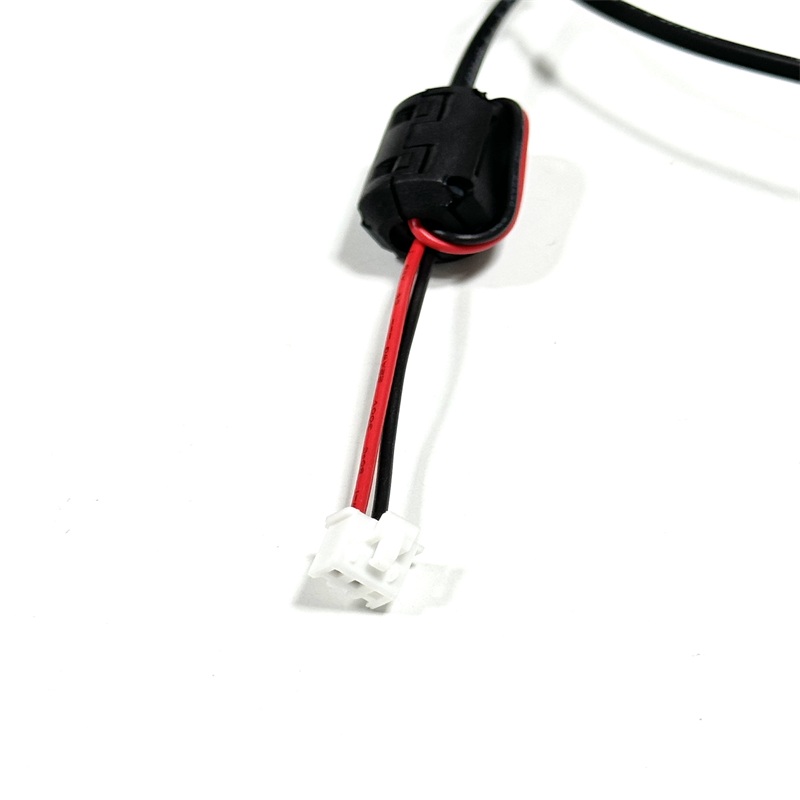

This XH2.54 3Pin to Ring Terminal DC Power Cable with Ferrite Core 48V Discharge Module Harness is specially developed for 48V discharge module power input connection. Designed with built-in snap-on ferrite core, the cable can effectively suppress electromagnetic interference during power transmission, guaranteeing stable power supply operation of the control module. As a robust power connection solution, it can be used as a reliable automotive DC cable for mobile energy storage equipment scenarios where anti-interference performance is required.

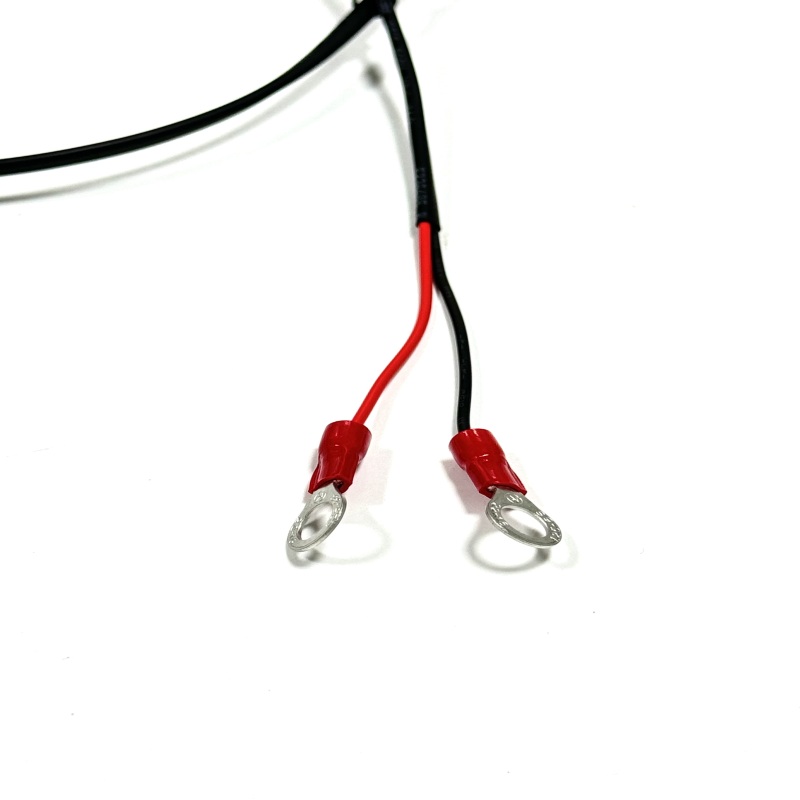

The harness adopts UL1007 22AWG tinned copper wire with red and black color coding, which brings excellent electrical conductivity and oxidation resistance. One end is equipped with standard XH2.54 locking connector, and the other end comes with insulated RV1.25-6 ring terminals for convenient bolt fixing. Custom printed heat shrink tubes are reserved on the cable surface, making product identification easier during equipment assembly. For customers with different installation requirements, we can adjust wire length, terminal types and add accessories to create a suitable dc cable adapter matching your equipment layout.

Item	Description
Product Name	XH2.54 3Pin to Ring Terminal DC Power Cable with Ferrite Core 48V Discharge Module Harness Length 650mm
Type	DC Power Wiring Harness / Ferrite Core EMI Suppression Power Cable
Voltage	DC 300V Test Voltage, 48V DC Working Voltage, Custom Voltage Available
Pins Material	Tin-Plated Copper XH2.54 Crimp Terminals, Tin-Plated Brass RV1.25-6 Ring Terminals
Plug Material	White PA66 XH2.54 3Pin Connector Housing with Lock Buckle, Red Insulated Ring Terminal Sleeves, Black PVC Outer Cable Jacket, Black Snap-On Ferrite Core (UF70B, 7mm Inner Diameter)
Working Temperature	-40℃ ~ +105℃, Industrial Grade Heat Resistant
Length	650±30mm Total Length, Custom Length Fully Supported
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Compliance Standard	RoHS Environmental Compliance
Application Fields	48V discharge module power connection, high voltage power module wiring, battery management system power supply, industrial control equipment DC power input, energy storage system internal power harness, customized electronic equipment power cable
Specific Shipping Cost	Please Contact Us

We implement strict testing standards for every finished harness. Each cable passes continuity test, insulation resistance and withstand voltage inspection to avoid hidden dangers such as poor contact and circuit interruption. Beyond the existing specifications, our engineering team supports personalized drawing-based customization. Whether you need prototype samples or mass production orders, we can adjust connectors, shielding structures and wire gauges to satisfy diverse demands related to automotive cable and connectors.

This power wiring harness is widely applied in 48V discharge control modules, energy storage battery power supply units, industrial DC control equipment and onboard mobile energy storage systems. The built-in anti-interference ferrite core makes it especially suitable for working environments with complex electromagnetic signals. If your project requires customized power interconnection accessories that can serve as a automotive DC cable, our team can optimize the structural design according to your working conditions.
