HDB15 Female to OBDII 16Pin Male Diagnostic Extension Cable Length 2000mm

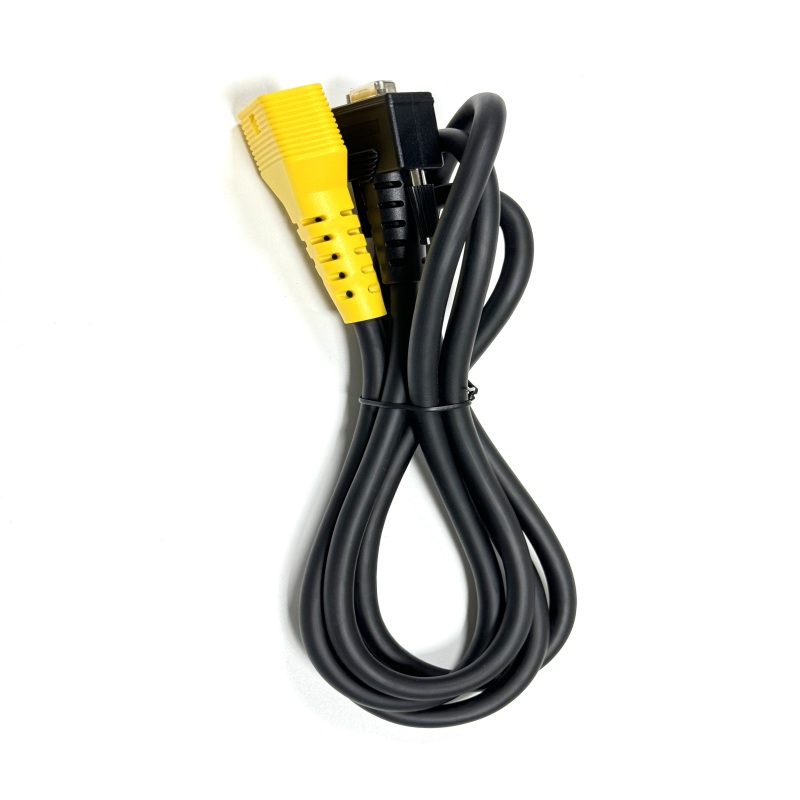

This HDB15 Female to OBDII 16Pin Male Diagnostic Cable is engineered for professional automotive fault diagnosis equipment connection. The cable length reaches 2000±30mm, reserving sufficient operating space for technicians during vehicle inspection. Built with multi-core shielded composite wire, the internal structure adopts aluminum foil shielding and cotton rope reinforcement, effectively reducing external signal interference and guaranteeing stable data transmission between scanning tools and vehicle ECU.

Item	Description
Product Name	HDB15 Female to OBDII 16Pin Male Diagnostic Extension Cable Length 2000mm
Type	Automotive OBD Diagnostic Wiring Harness / DB15 to OBD Scanner Extension Cable
Voltage	DC 300V Test Voltage, 12V/24V Working DC, Custom Voltage Available
Pins Material	Bright Nickel-Plated Brass OBD Contact Pins, Tin-Plated HDB15 D-Sub Connector Contacts
Plug Material	Yellow PA66+GF OBDII 16Pin Male Connector Housing with Back Cover, Black HDB15 D-Sub Female Shell, Black Glossy PVC Outer Cable Jacket, Aluminum Foil Shielding Layer, Cotton Rope Reinforced Core
Working Temperature	-40℃ ~ +105℃, Automotive Grade Weather Resistant
Length	2000±30mm (Approx. 78.7 Inches), Custom Length Fully Supported
Minimum Insulation Resistance	≥3MΩ
Maximum Conduction Resistance	≤3Ω
Compliance Standard	RoHS Environmental Compliance
Application Fields	Automotive OBD2 diagnostic tool extension cable, vehicle fault code scanner connection, car ECU programming and data reading, professional diagnostic equipment matching cable, automotive repair workshop accessory wiring, aftermarket scan tool main cable
Specific Shipping Cost	Please Contact Us

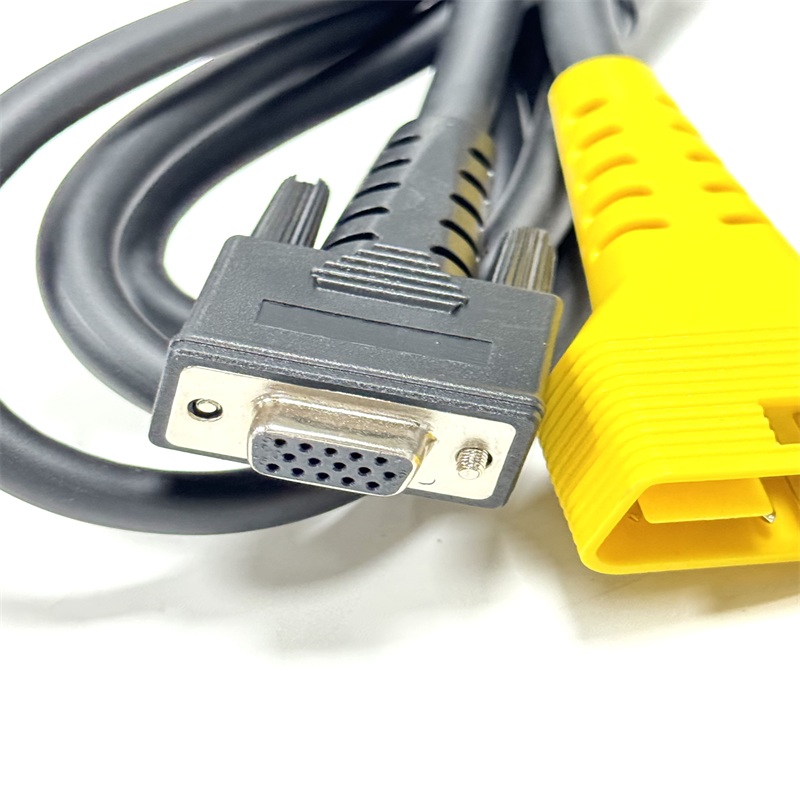

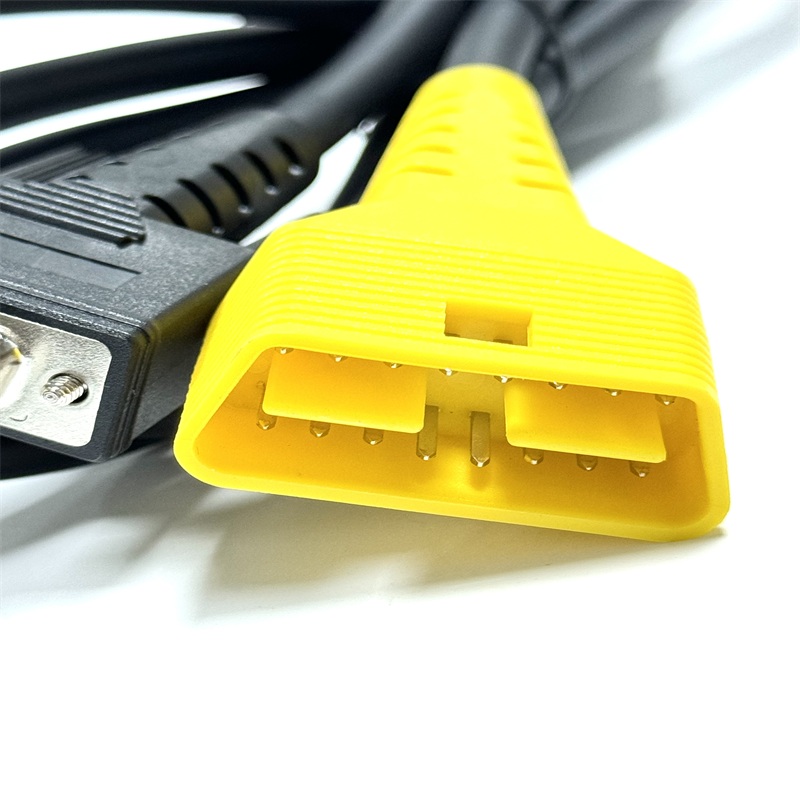

As a dedicated extension accessory, this item belongs to professional-grade automotive OBDII cable. One end is equipped with standard OBDII 16Pin male plug with yellow protective housing, which can steadily connect to vehicle OBD interfaces. The other end uses HDB15 D-Sub female connector, realizing signal conversion for special diagnostic scanners. Strict pin assignment is implemented according to drawing standards to avoid communication failure caused by wrong wiring.

All finished cables pass comprehensive electrical inspection including continuity test and withstand voltage test. The minimum insulation resistance reaches ≥3MΩ while the maximum conduction resistance is controlled within 3Ω, meeting the strict requirements of long-time continuous diagnosis work. The cable outer sheath adopts automotive-grade PVC material, adapting to complicated workshop environment with wide working temperature range.

This vehicle diagnostic OBDII cable is widely used in auto repair workshops, vehicle ECU programming, fault code reading and data monitoring scenarios. Apart from the standard specification shown here, we support personalized adjustment on cable length, connector appearance and wire configuration. Our engineering team can adjust the scheme of automotive cable and connectors to satisfy different diagnostic device designs.
