Product details

We have long focused on diversified wire processing and connection solutions for new energy vehicles, industrial automation, intelligent equipment and medical machinery industries. Our factory owns complete independent production lines, covering wire cutting, terminal crimping, precision assembly and full electrical testing. We are adept at developing diversified custom cable assembly and wiring harness schemes to satisfy non-standard connection demands from global clients. Beyond general industrial wiring, we also specialize in mature automotive cable assembly manufacturing, strictly following auto-grade quality standards to guarantee the stability and durability of wiring products under long-term vibration and temperature fluctuation environments. In addition to standardized finished harnesses, our flexible one-stop custom cable assembly service supports personalized adjustments on wire specification, connector model, wiring layout and finished structure for all kinds of special equipment.

This SenRing Slip Ring Wiring Harness is a customized rotary transmission wiring product independently developed for rotating mechanical signal conduction, which perfectly solves the wire winding and fracture troubles during continuous rotation of equipment. Different from fixed straight wiring harnesses like BMS connecting cables, this product integrates flange-mounted conductive slip ring and finished wiring, realizing 360° unrestricted rotating signal transmission while keeping circuit smooth.

Item	Description
Product Name	SenRing Slip Ring Wiring Harness
Type	Rotary Conductive Slip Ring Assembly with Custom Terminal Wiring Harness
Voltage	DC 300V, 0.01s withstand voltage test
Pins Material	Tin-plated brass terminals, gold plating available on request
Plug Material	PA66 engineering plastic male & female 8P connector housing
Working Temperature	-40℃ ~ +105℃, customizable according to working environment
Length	Single side wire length: 200±20mm, total length customizable
Minimum Insulation Resistance	≥5MΩ
Maximum Conduction Resistance	≤3Ω
Compliance Standard	RoHS Environmental Compliance
Application Fields	Industrial rotating equipment, surveillance pan-tilt devices, automation rotary machinery, intelligent robots, medical rotating instruments, test equipment rotary signal transmission, mechanical engineering customized rotary wiring projects
Specific Shipping Cost	Please Contact Us

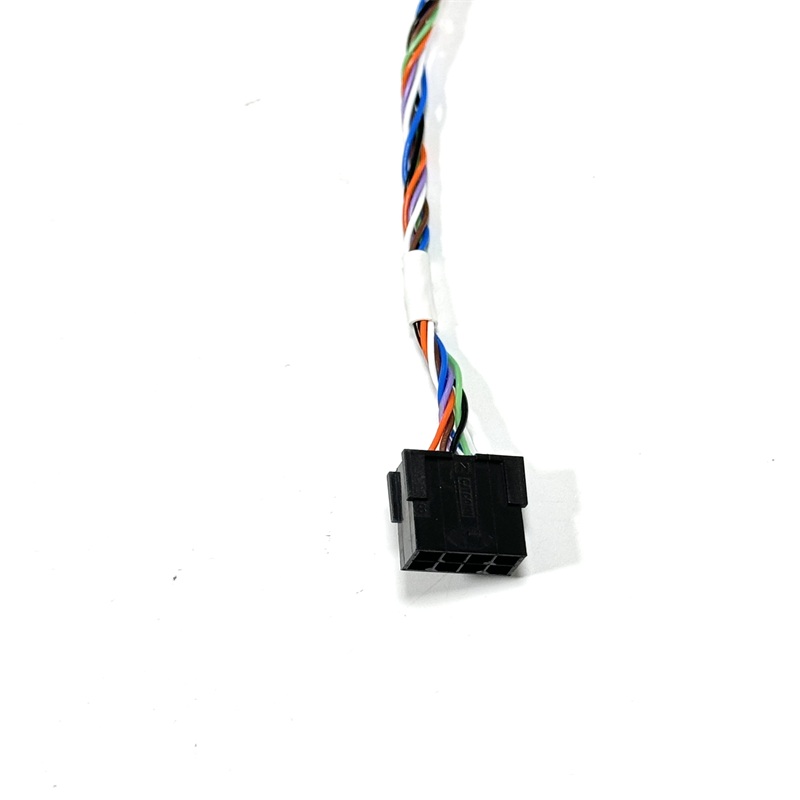

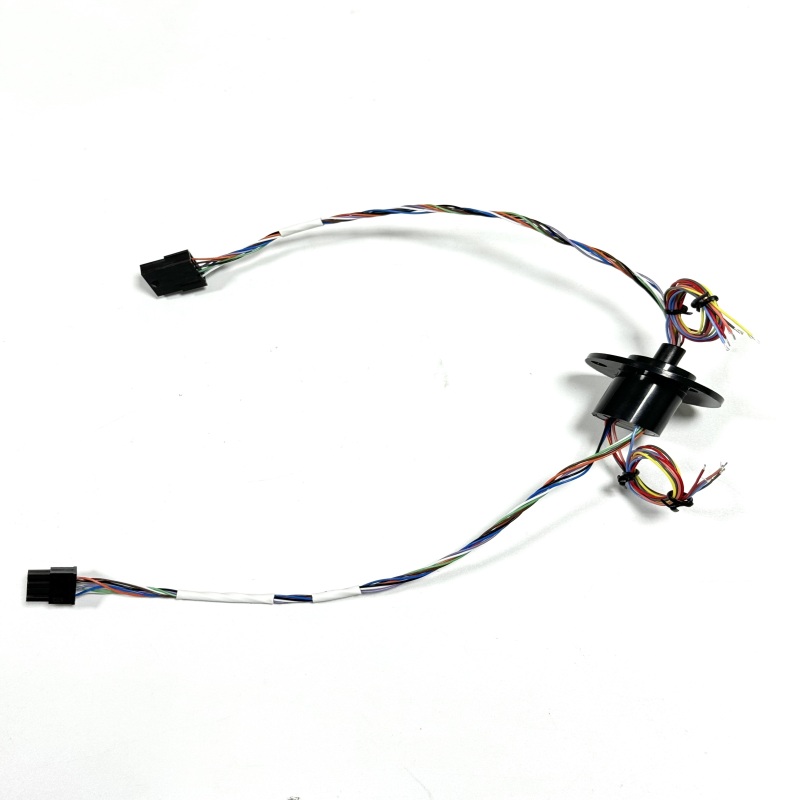

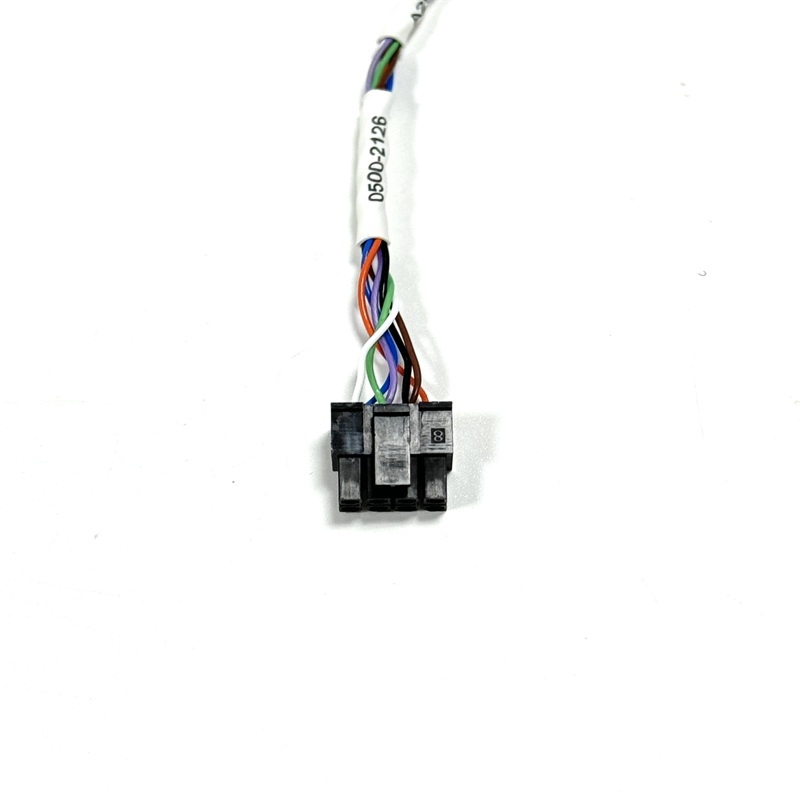

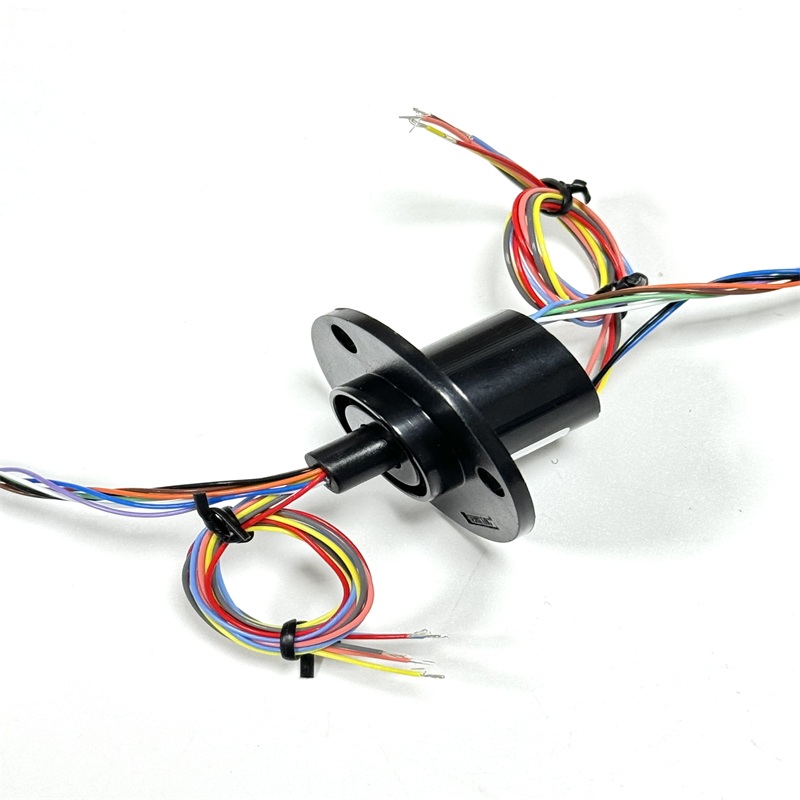

The central component adopts high-precision SenRing rotary slip ring with 7 independent signal channels, matched with multi-color twisted stranded wires including blue, purple, brown and other colors. All wires are bundled and fixed with cable ties after twisting, and marked with heat-shrinkable tubes at both ends for easy installation and line checking later. The two ends are equipped with standardized 8P male and female plastic connectors made of high-strength PA66 material, which features tight insertion and anti-loosening performance, greatly improving connection stability during mechanical rotation.

In production, we apply mature custom cable assembly and wiring harness production technology: all terminals are precisely crimped by automated equipment, and every finished product will go through strict DC 300V withstand voltage inspection. The product’s insulation resistance is controlled above 5MΩ, conduction resistance is limited below 3Ω, and 100% full inspection eliminates short circuit, open circuit and wiring dislocation problems.

Drawing on our rich experience accumulated in automotive cable assembly, we optimize the anti-fatigue and anti-vibration performance of the wire section. The twisted wiring design effectively reduces signal interference during high-speed rotation, and the wide working temperature range from -40℃ to 105℃ adapts to harsh industrial operating environments. For special equipment transformation, our professional custom cable assembly service can flexibly adjust the number of slip ring channels, single-side wire length, connector pin definition and wire color collocation according to customers’ actual equipment parameters.

This slip ring wiring harness is widely applied in PTZ surveillance cameras, industrial robotic rotating joints, automated rotary machinery, medical rotary instruments, testing rotary equipment, intelligent logistics turntables, as well as small rotating modules for new energy equipment.
