| Specification | Details |
|---|---|
| Product Model | L60W |
| Rated Application | 60W CO2 laser equipment |
| Input Voltage | AC110V / AC220V |
| Input Frequency | 47–440Hz |
| Maximum Output Voltage | 26kV |
| Maximum Output Current | 24mA |
| Efficiency | 90% |
| Cooling Method | Fan cooling |
| Open-Circuit Protection | Yes |
| Overcurrent Protection | 130% of maximum current |
| High-Level Control Voltage | ≥3V |
| Low-Level Control Voltage | ≤0.7V |
| Dimensions | 175 × 142 × 70mm |
| Working Temperature | −30°C to +65°C |
| Relative Humidity | 20–85% RH, non-condensing |
The power rating alone is not enough to determine whether this power supply is suitable for a laser machine.
Before ordering the L60W, please check:
For replacement applications, sending clear photos of the original power supply label, terminals and connectors can help with model confirmation.
The L60W power supply can be considered for:
Final compatibility must be confirmed according to the laser tube, controller, input voltage and wiring configuration.

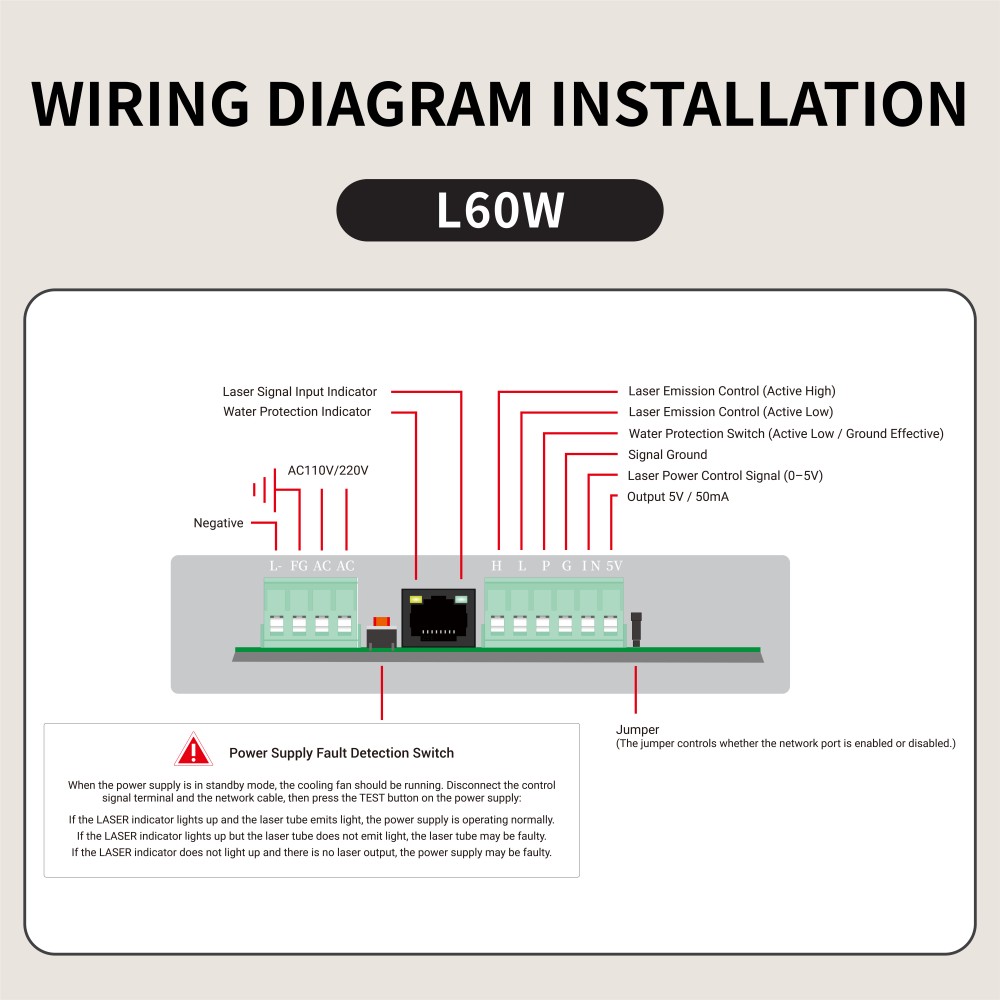

The control terminal includes connections for laser emission control, water protection, signal ground, power control and 5V output.
Both active-high and active-low laser control signals are shown in the supplied wiring diagram. The terminal layout must be checked carefully before installation, especially when replacing a different power supply model.
Do not connect the unit based only on wire color. Follow the terminal labels and the machine’s wiring diagram.
This product generates high voltage during operation.
Jinan Zhenyu Electronics Co., Ltd. supplies CO2 laser power supplies for laser machine manufacturing, replacement and maintenance requirements.
To confirm whether the L60W is suitable, customers can provide the laser tube power, input voltage, original power supply model, terminal photos and installation dimensions for comparison.
Not necessarily. Compatibility depends on the laser tube’s recommended operating current, input voltage, controller signals, wiring and installation dimensions.
AC110V and AC220V options are shown in the product information. The required input-voltage version should be confirmed before ordering.
The supplied parameter image shows a maximum output voltage of 26kV and a maximum output current of 24mA.
It may be used as a replacement when the electrical specifications, dimensions, mounting positions, connectors and control signals match. Send photos of the original unit before ordering.
The supplied image shows an external LCD controller option, but its standard inclusion has not been confirmed. Please specify whether an external display is required when requesting a quotation.
Need to confirm whether the L60W fits your laser machine?
Send us the following information:
Jinan Zhenyu Electronics Co., Ltd. will help compare the specifications before quotation.
