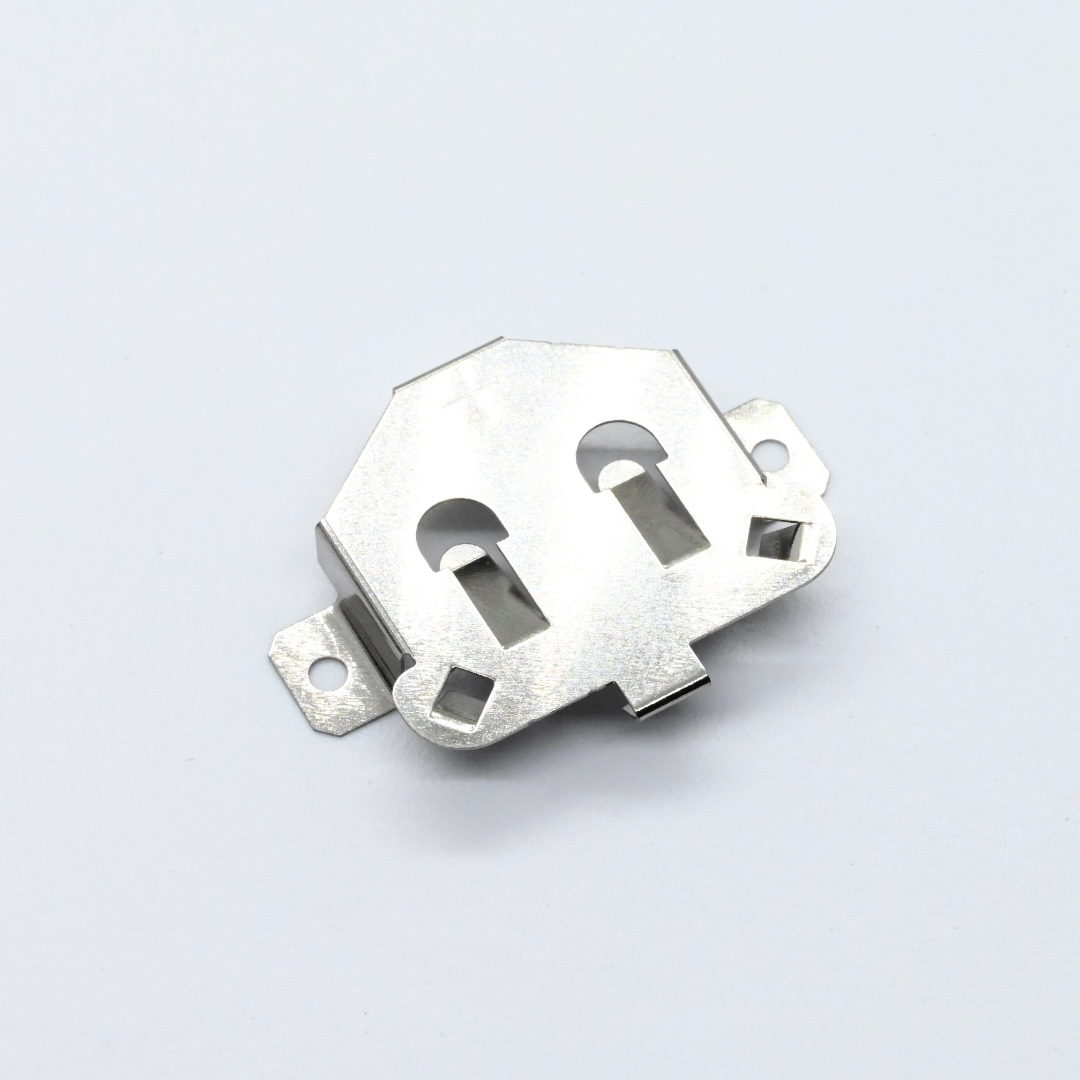

Huizhou Antenk Electronics Co., Ltd. manufactures BS-S-SI-R-11740 SMT coin cell clip specially engineered to deliver stable conductive connection and elastic clamping force for 24mm coin batteries on PCB circuits. This cell clip is fabricated from 0.25mm thick phosphor bronze raw material with standard full nickel plating, and buyers can select multiple gold plating options including gold flash 3u 5u 10u 15u and 30u gold to upgrade anti-corrosion and conductive performance for diverse working environments. It adopts SMT surface mount structure with exclusive dimensional layout matched PCB pads, supporting three packaging choices tray bag and tape reel to satisfy manual assembly and fully automatic high speed SMT production lines. This metal battery clip is widely used in digital cameras communication devices industrial control sensors smart household appliances electronic toys and precision measuring instruments. Operators shall follow official PCB dimension drawing strictly during reflow soldering, avoid over bending force to prevent permanent phosphor bronze spring deformation and store finished clips in dry warehouse to stop nickel plating oxidation. Unlike manufacturers outsourcing stamping and electroplating procedures Antenk completes full in house production workflow covering independent mold development phosphor bronze high speed stamping nickel gold electroplating and comprehensive laboratory reliability testing, with ISO9001 ISO14001 IATF16949 and UL E472792 certifications and full compliance with RoHS and REACH environmental standards. We own hundreds of self developed precision metal terminal molds, provide flexible customized plating and packaging solutions, supply round the clock professional technical support, and over seventy percent of our battery contacts are exported globally backed by our Guangdong Famous Trademark ANTENK and consistent stable batch manufacturing quality.

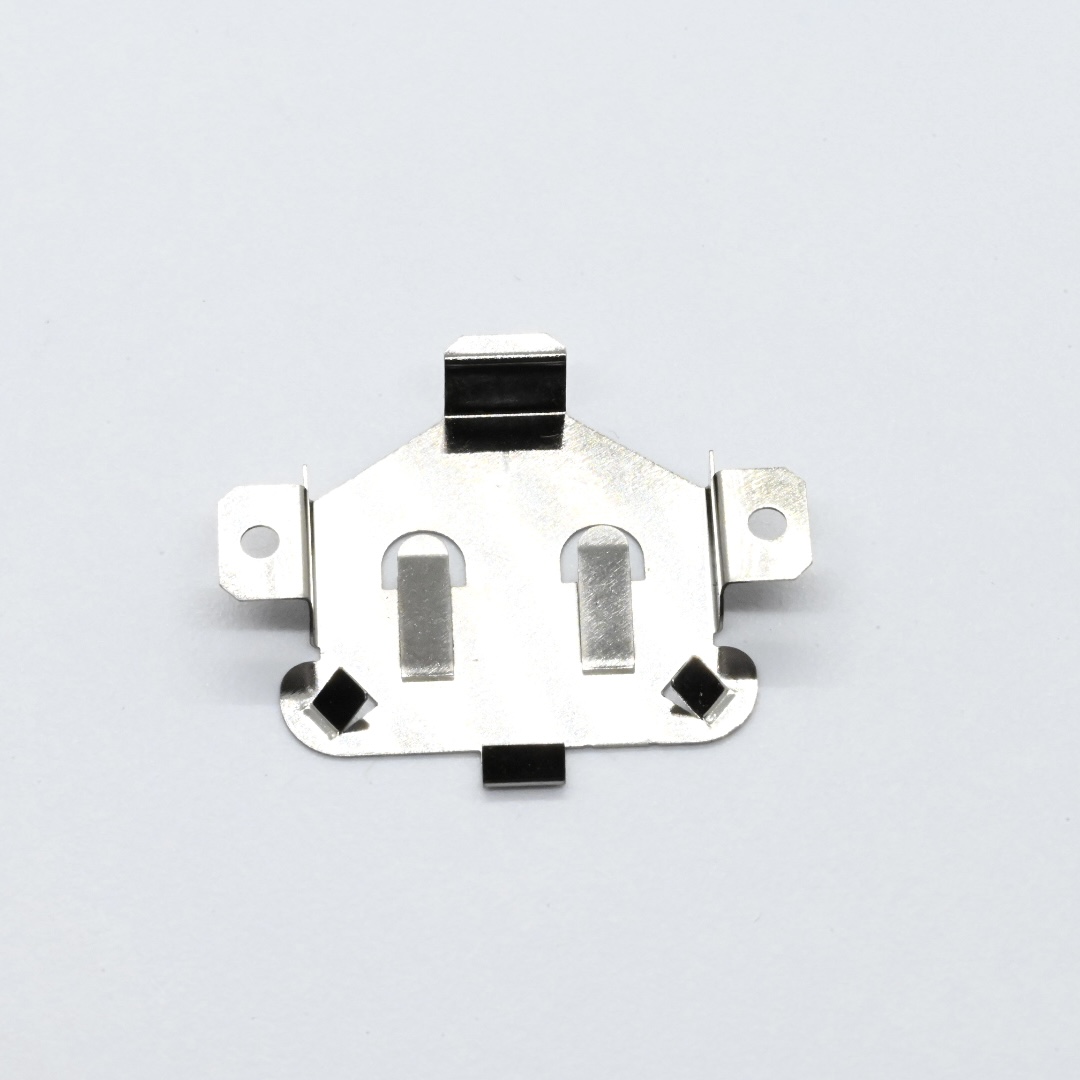

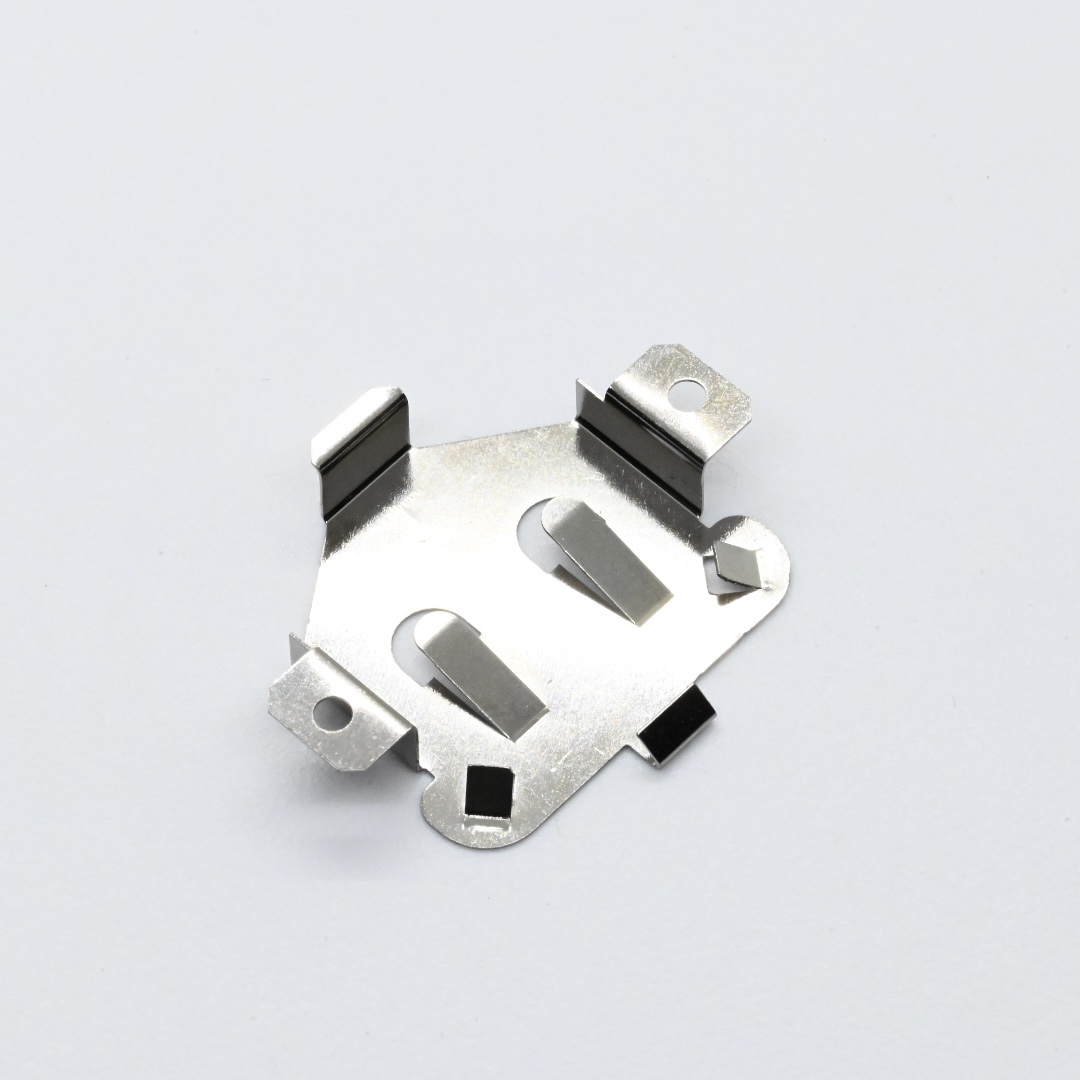

Thin Phosphor Bronze Spring Tab is made of 0.25mm thick phosphor bronze to maintain stable elastic clamping force for 24mm coin batteries after long-term repeated use.

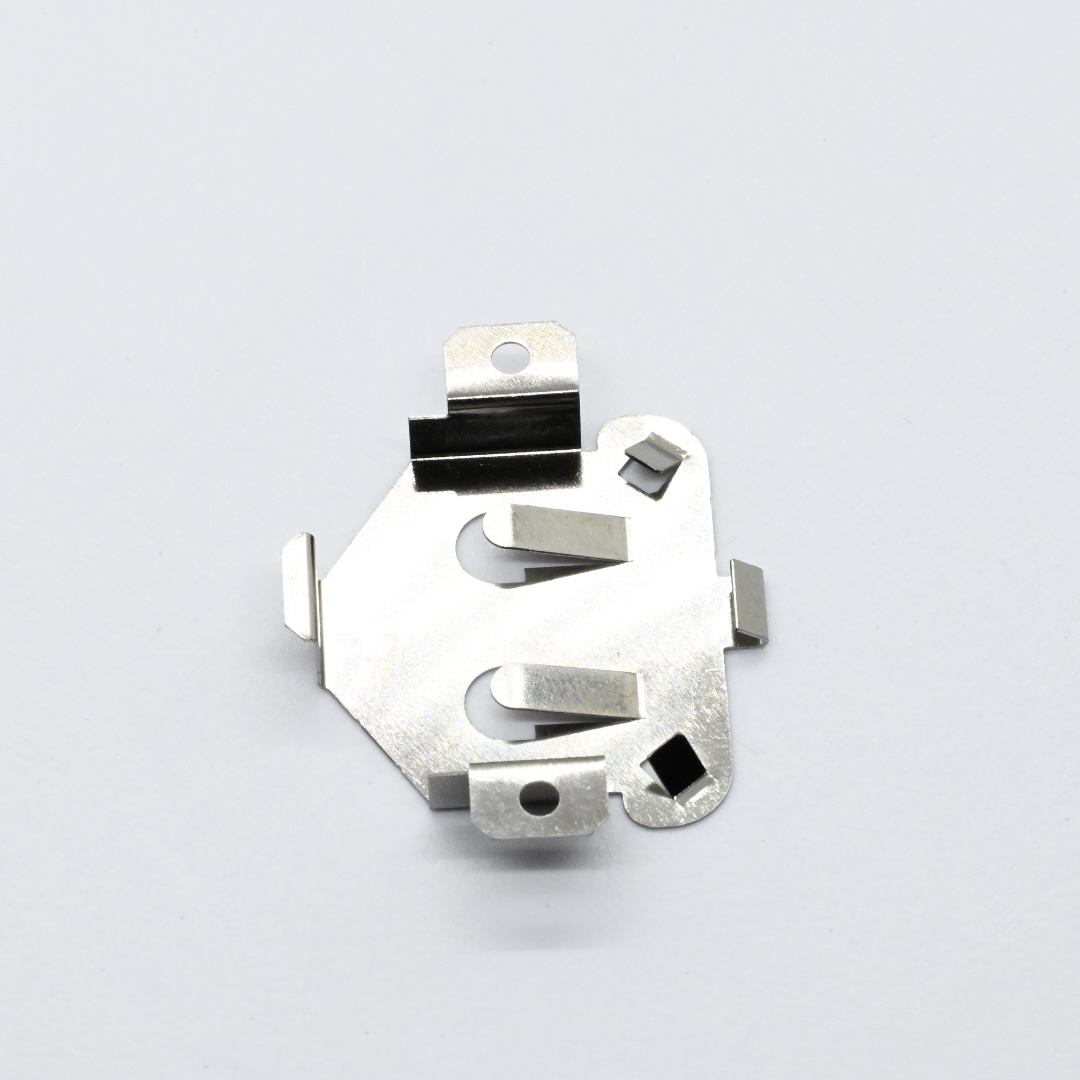

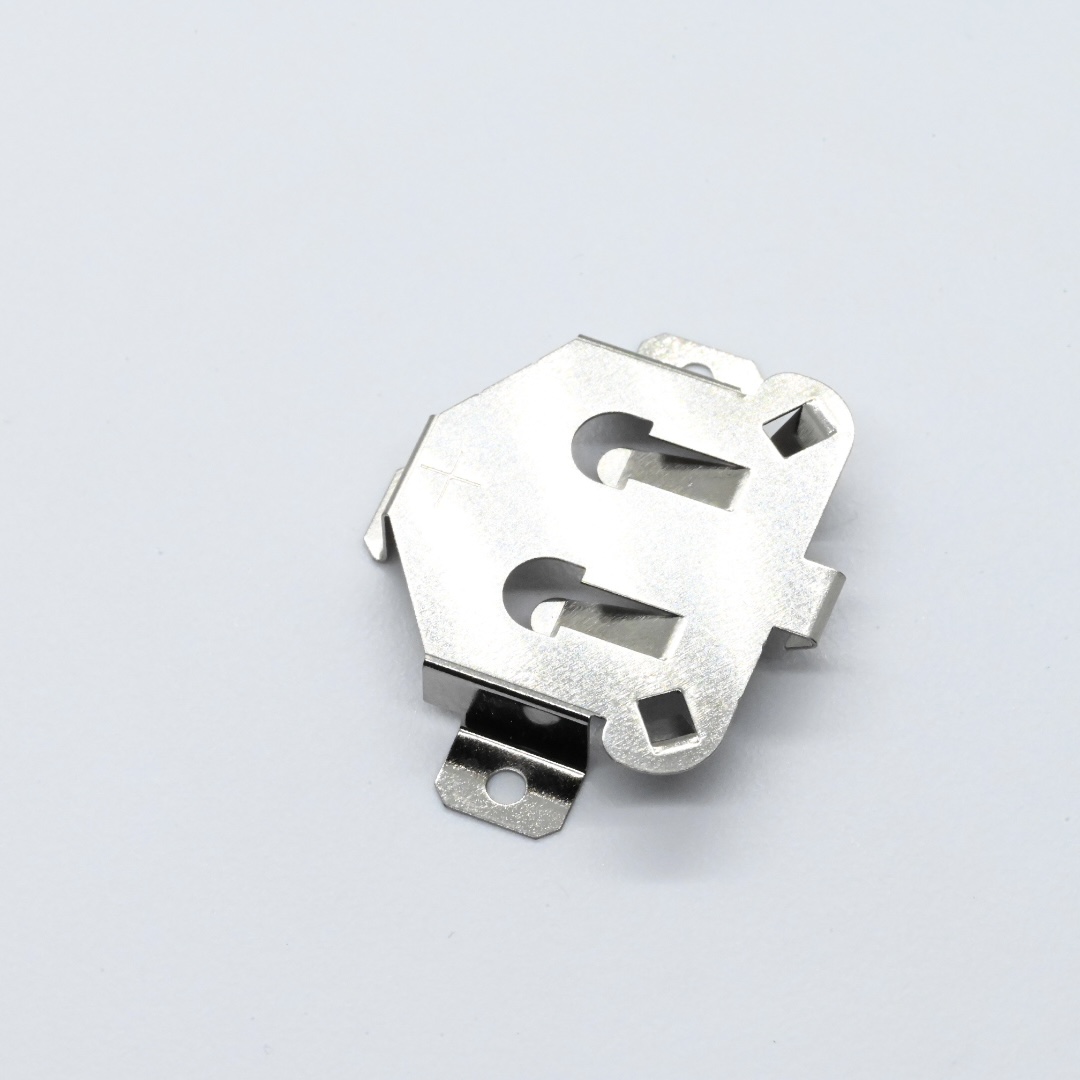

Nickel Plated SMT Battery Clip adopts full nickel surface treatment to lower contact resistance and effectively resist oxidation in various electronic application environments.

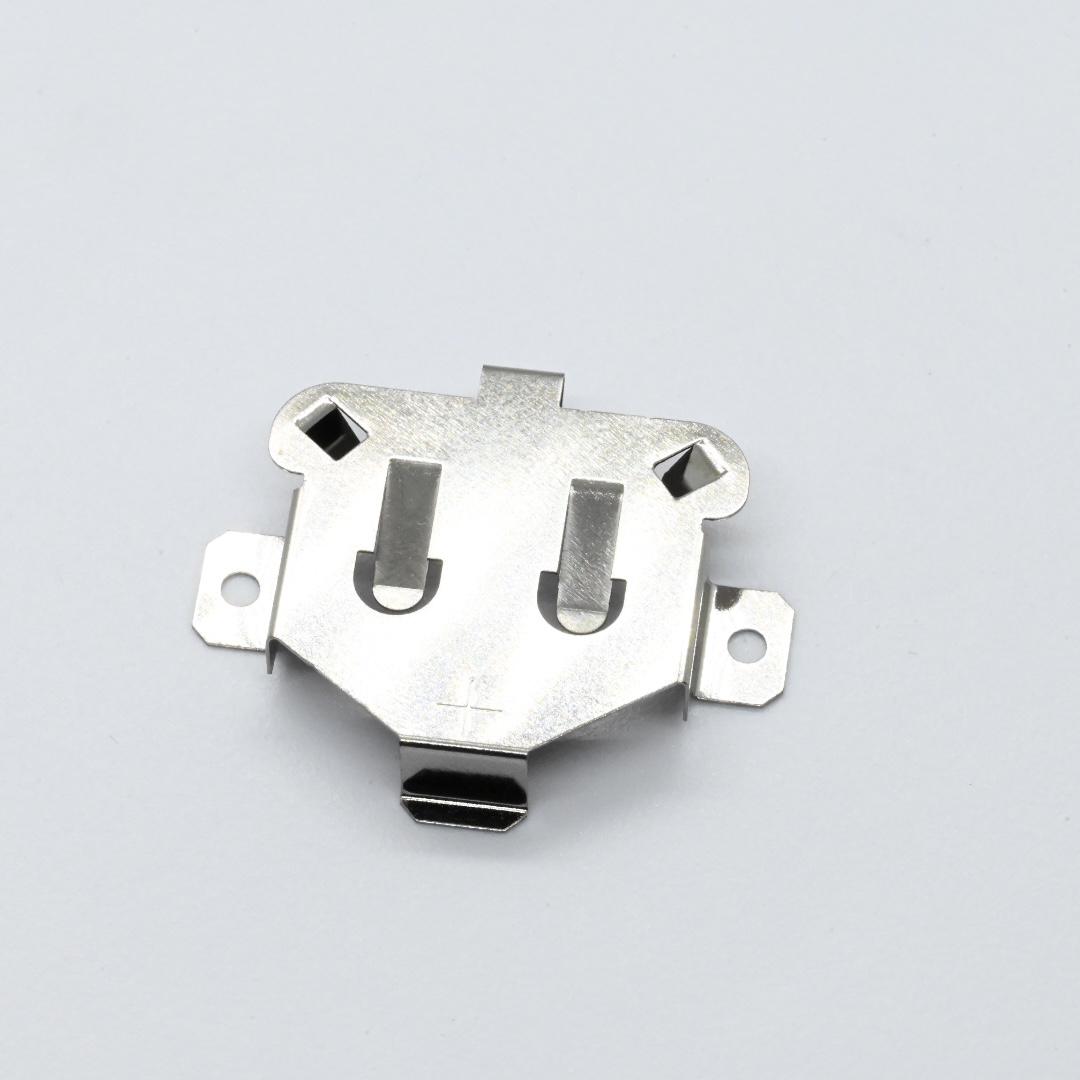

24mm Coin Cell Conduct Clip is specially sized to perfectly fit all standard 24mm coin batteries and realize reliable power conduction on PCB circuit boards.

1. Material Information

1.1 Base raw material: Phosphor Bronze, thickness 0.25mm

1.2 Standard contact plating: Nickel plate

1.3 Optional plating finishes: Gold flash, 3u",5u",10u",15u",30u" gold plating

2. Compatible Battery & Structural Type

2.1 Matching battery: 24mm coin battery

2.2 Mounting type: SMT surface mount clip

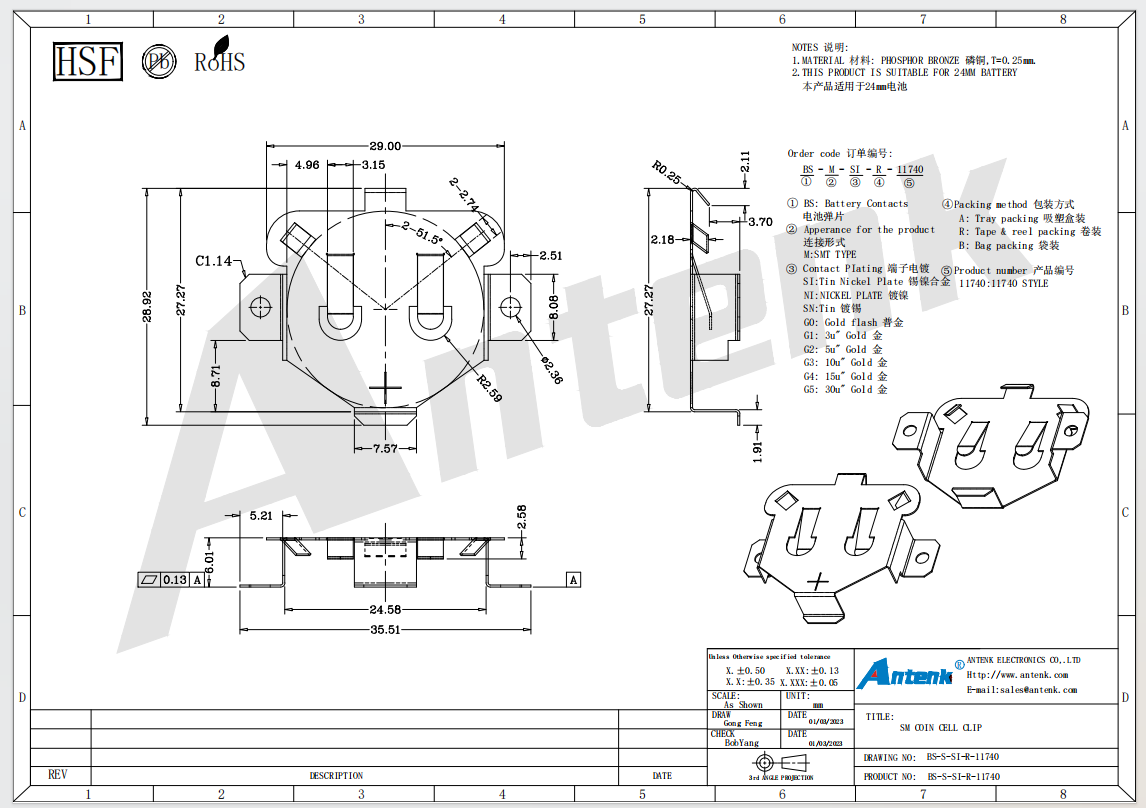

3. Dimension & Tolerance Standard (Unit: mm)

3.1 Key outline dimensions: 35.01, 29.00, 27.27, 24.68, 9.00, 7.57, 6.21, 4.90, 3.15

3.2 Dimensional tolerance rules

3.2.1 X. ±0.50

3.2.2 X.X: ±0.35

3.2.3 X.XX: ±0.13

3.2.4 X.XXX: ±0.05

4. Order Code & Packaging Options

4.1 Code definition: BS=Battery Contacts, S=SMT TYPE, SI=Nickel plate, R=Tape & reel, 11740=product style

4.2 Three available packaging modes

4.2.1 A: Tray packing

4.2.2 B: Bag packing

4.2.3 R: Tape & reel packing

5. Environmental Compliance

5.1 Meet RoHS and HSF lead-free standards

6. Application Scenarios

6.1 Digital cameras

6.2 Communication equipment

6.3 Industrial control sensors

6.4 Smart home appliances

6.5 Electronic toys

6.6 Precision measuring instruments

7. Usage Precautions

7.1 Only use with standard 24mm coin batteries

7.2 Complete reflow soldering strictly following the matched PCB layout drawing

7.3 Avoid excessive bending force to prevent permanent deformation of phosphor bronze spring

7.4 Store finished clips in dry environment to avoid oxidation of nickel plating surface
