0.30mm Phosphor Bronze 180-Type CR2032 Contact

0.30mm Phosphor Bronze 180-Type CR2032 Contact

18 hour ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Huizhou Antenk Electronics Co., Ltd. manufactures BS-S-SI-R-CR2032-2Y 180-type battery contact exclusively engineered to create steady elastic conductive contact for standard CR2032 coin batteries and PCB circuit boards. This contact is fabricated from 0.30mm thick phosphor bronze with standard nickel plating finish, and purchasers are offered diverse customizable plating solutions including tin plating gold flash and gold layers ranging from 3 micro inches up to 30 micro inches to upgrade anti oxidation ability and stable electrical conductivity in complicated working environments. It adopts special 180-type structural layout with matched dedicated PCB pad dimensions, supporting three different packaging choices tray bag and tape reel packing to satisfy manual assembly operation and fully automatic high speed SMT mass production lines. This metal battery contact is widely deployed in digital cameras communication devices industrial control sensors smart household appliances electronic toys and precision measuring instruments. Operators must strictly follow the official PCB layout drawing standards during soldering assembly, avoid applying excessive bending pressure to prevent permanent phosphor bronze spring deformation and store finished contacts inside dry warehouse space to stop corrosion of the nickel plating layer. Unlike many manufacturers outsourcing stamping and electroplating procedures Antenk completes full in house production processes covering independent precision mold research and development phosphor bronze high speed stamping nickel gold electroplating and all round laboratory performance verification testing, possessing ISO9001 ISO14001 IATF16949 and UL E472792 certifications while fully meeting RoHS HSF and REACH environmental protection regulations. We own abundant self developed precision metal terminal molds, provide personalized plating and packaging customization services, deliver round the clock professional technical support, and more than seventy percent of our battery contacts are exported globally backed by our Guangdong Famous Trademark ANTENK and consistent stable batch production quality.

Thick 0.30mm Phosphor Bronze Spring delivers stronger lasting elastic clamping force for long-term stable contact with CR2032 coin cells.

Nickel Plated 180-Type Battery Tab effectively blocks air oxidation and maintains low contact resistance on PCB soldering pads.

Multi-Pack CR2032 Conduct Terminal supports tray bag and tape reel packing to match different automated and manual assembly workflows.

1. Material & Electroplating

1.1 Base raw material: 0.30mm thick phosphor bronze

1.2 Standard plating finish: Nickel plate (SI)

1.3 Optional plating options: Tin, gold flash, 3μ",5μ",10μ",15μ",30μ" gold plating

2. Product Type & Compatible Battery

2.1 Structural form: S = 180 TYPE

2.2 Applicable battery: CR2032 coin cell

3. Dimension & Tolerance Standard (Unit: mm)

3.1 Key overall dimensions: 20.90, 20.60, 20.00, 6.60, 4.50, 3.80

3.2 PCB layout sizes: 2-2.5×0.8, 2-3.0, 0.800

3.3 Universal dimensional tolerance rules

3.3.1 Integer dimension X. : ±0.35

3.3.2 Single decimal X.X : ±0.25

3.3.3 Two decimals X.XX : ±0.20

3.3.4 Three decimals shtur : ±0.15

4. Order Code Definition & Packaging Modes

4.1 Code breakdown: BS=Battery Contacts, S=180 TYPE, SI=Nickel Plate, R=Tape & Reel Packing, CR2032-2Y=product number

4.2 Three available packaging types

4.2.1 A: Tray Packing

4.2.2 B: Bag Packing

4.2.3 R: Tape & Reel Packing

5. Environmental Compliance

5.1 Conform to Pb-free, RoHS and HSF standards

6. Application Scenarios

6.1 Digital cameras

6.2 Communication equipment

6.3 Industrial control sensors

6.4 Smart home appliances

6.5 Electronic toys

6.6 Precision measuring instruments

7. Usage Precautions

7.1 Complete soldering strictly following the official PCB layout diagram

7.2 Avoid excessive bending force to prevent permanent elastic deformation of phosphor bronze

7.3 Store finished contacts in dry warehouse to avoid oxidation damage to nickel plating layer

7.4 Only match CR2032 standard coin batteries to guarantee stable conductive performance

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

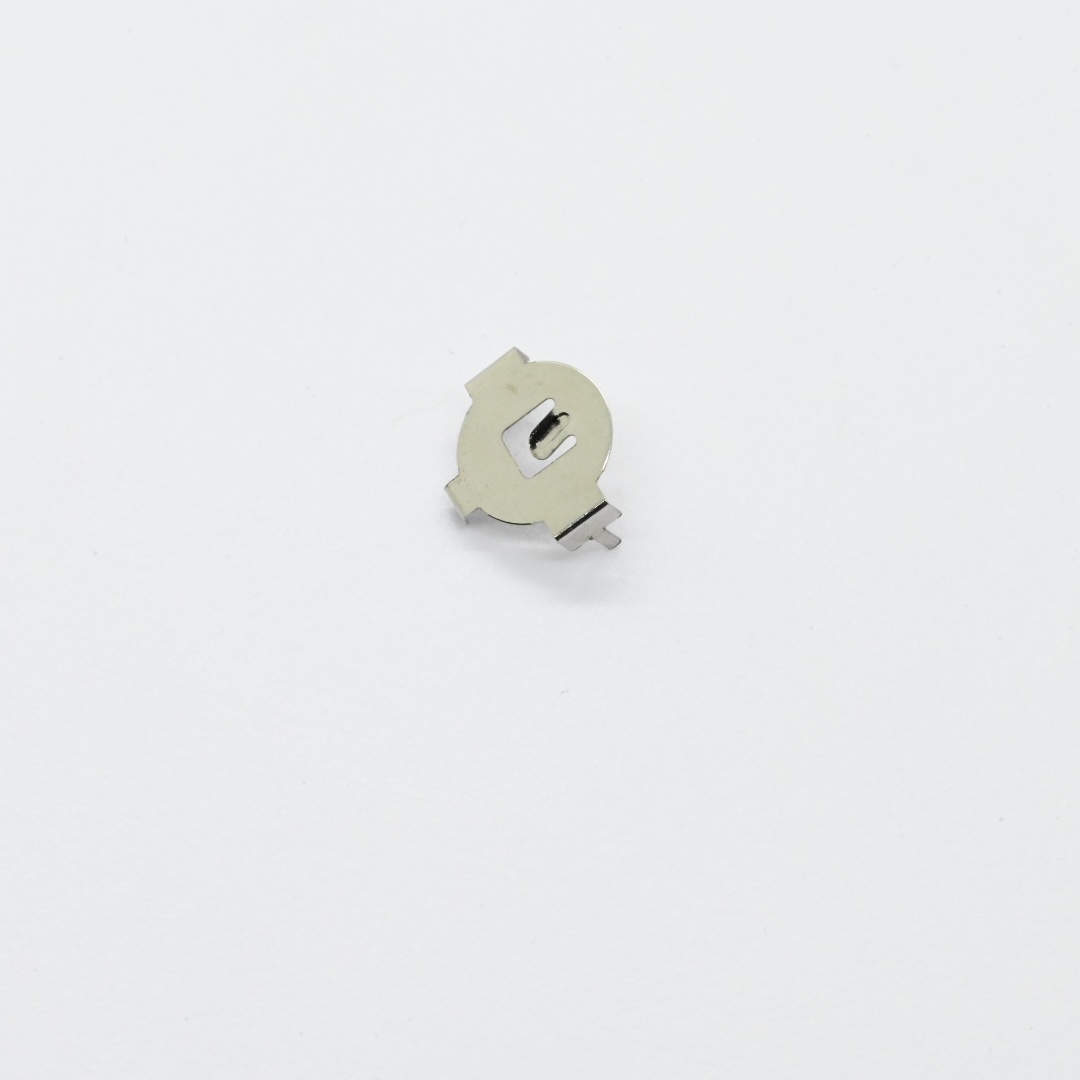

BS-S-SI-R-CR2032-2Y+BATTERY CONTACTS FOR CR2032（6）

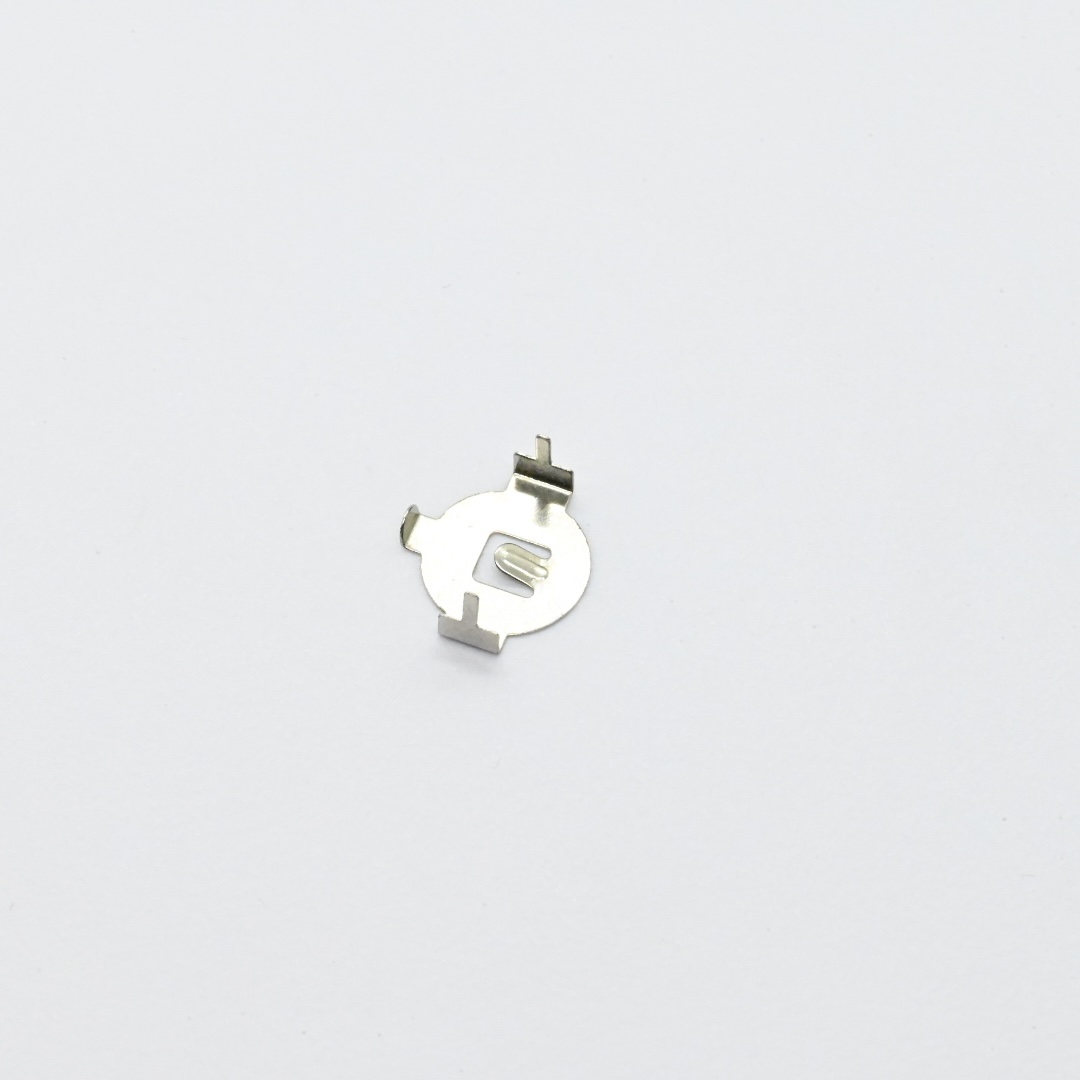

BS-S-SI-R-CR2032-2Y+BATTERY CONTACTS FOR CR2032（2）

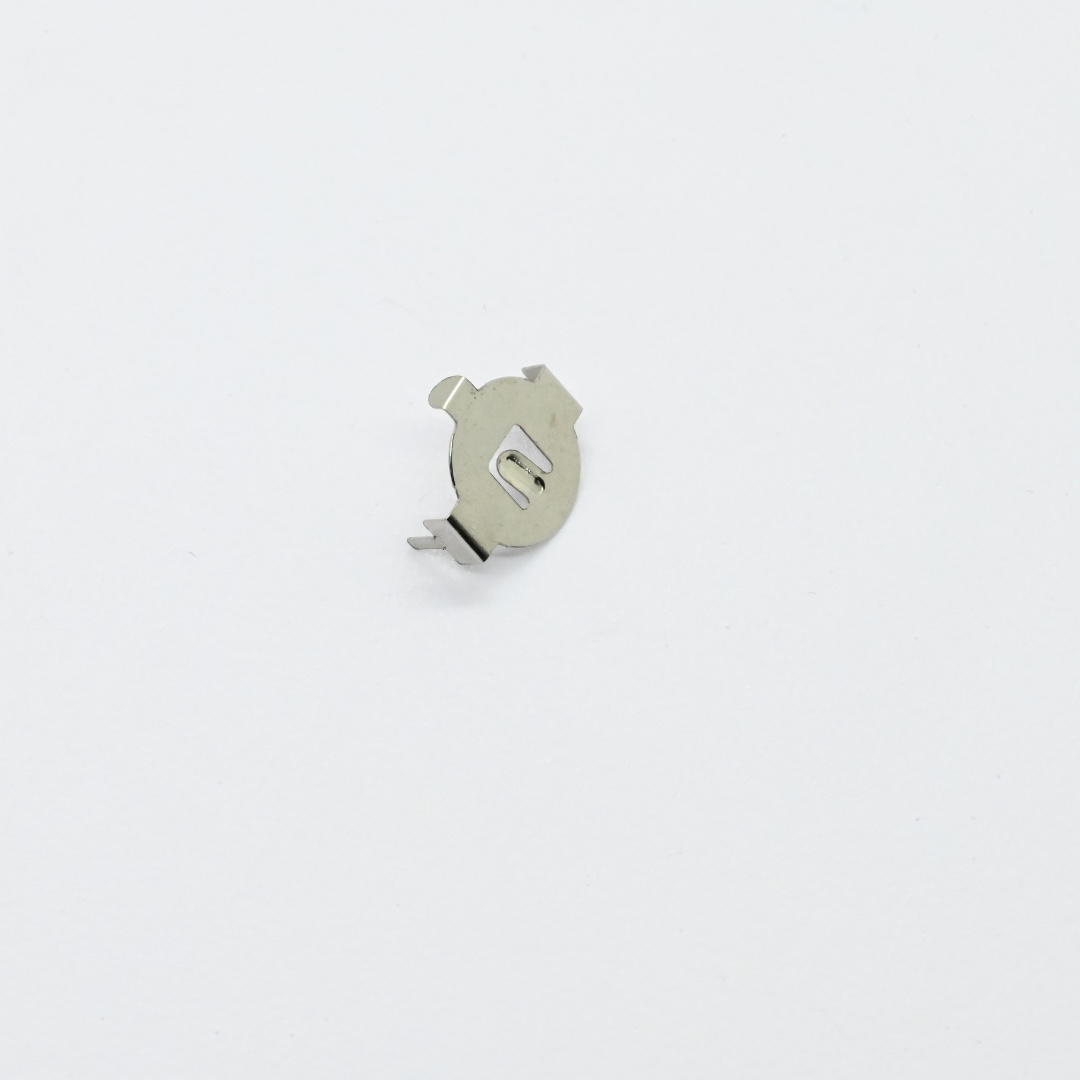

BS-S-SI-R-CR2032-2Y+BATTERY CONTACTS FOR CR2032（5）

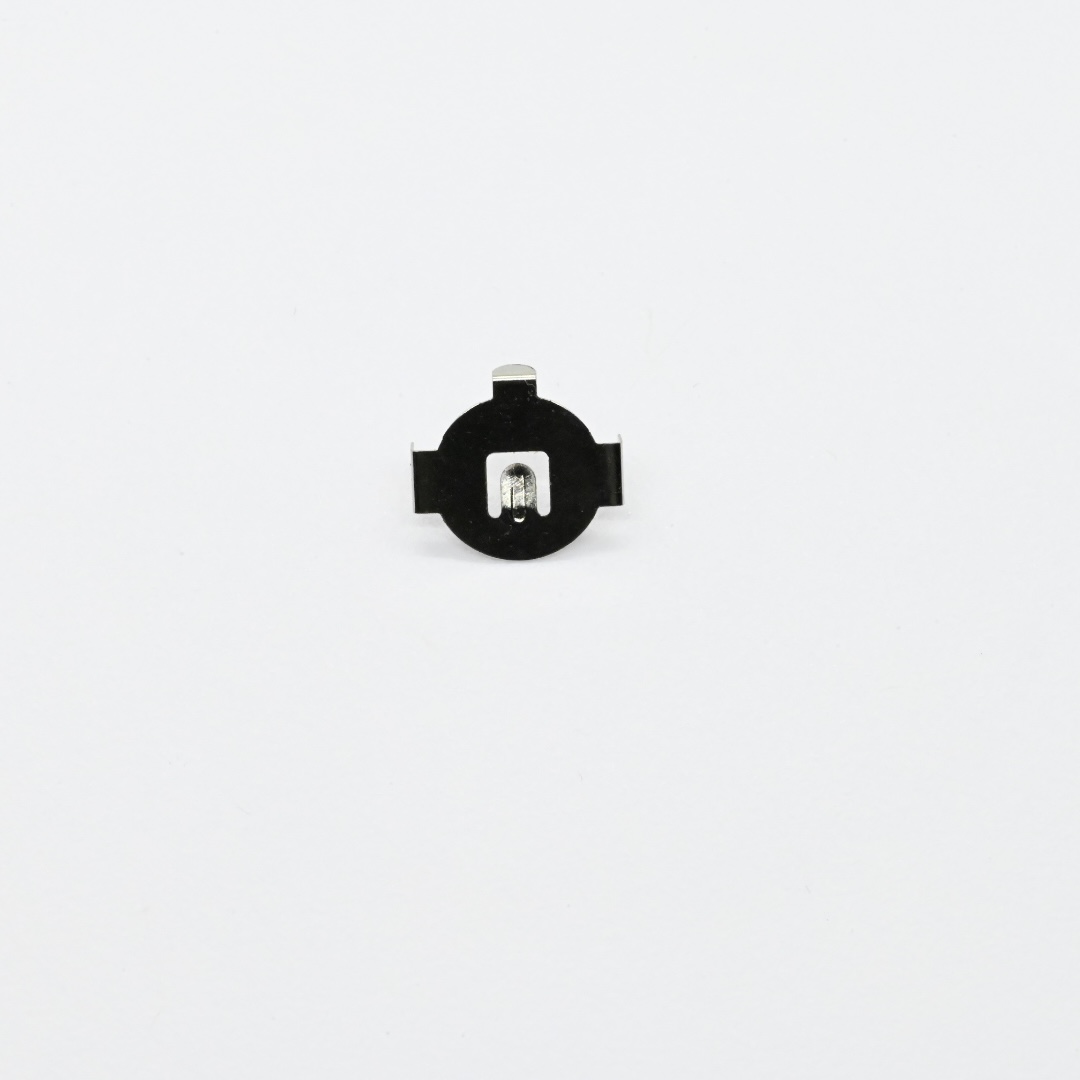

BS-S-SI-R-CR2032-2Y+BATTERY CONTACTS FOR CR2032（4）

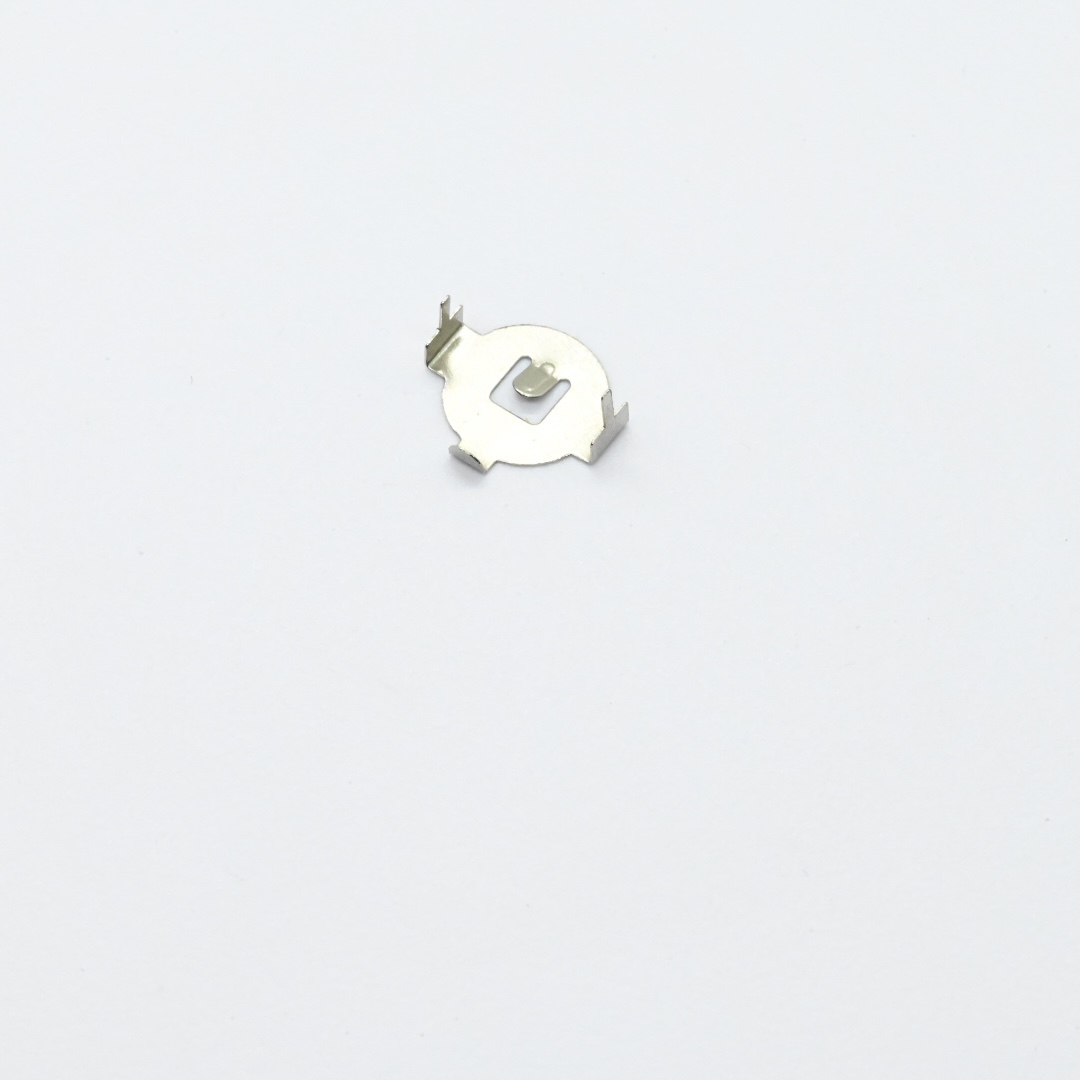

BS-S-SI-R-CR2032-2Y+BATTERY CONTACTS FOR CR2032（3）

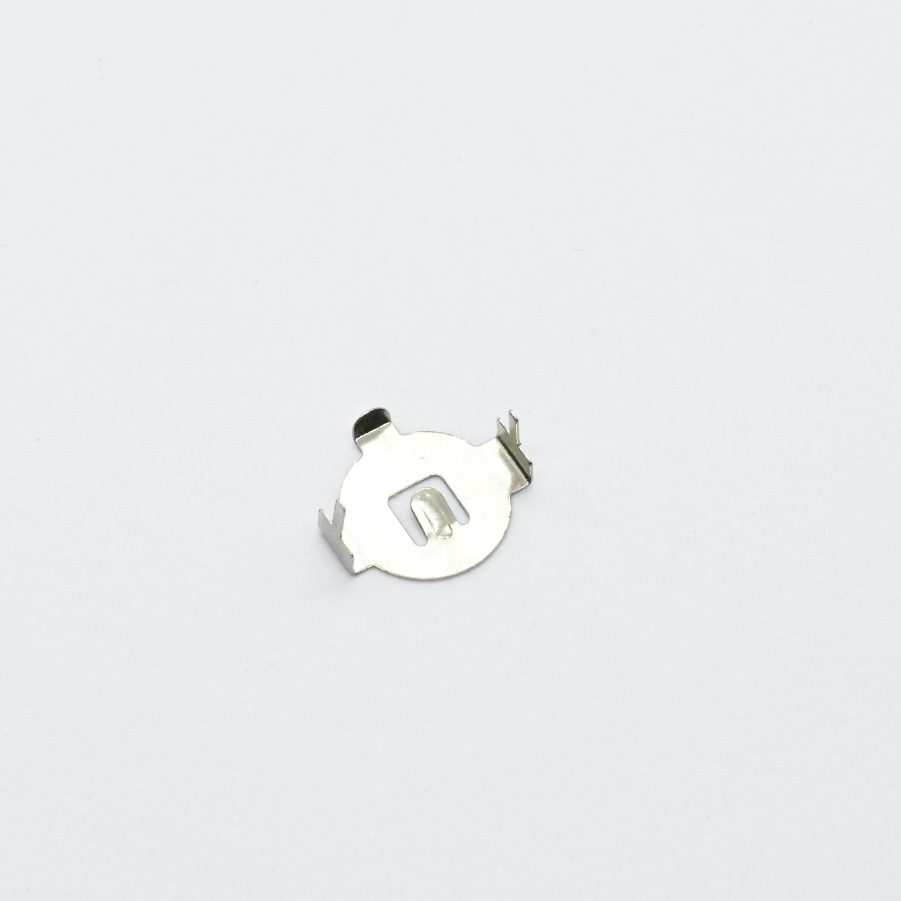

BS-S-SI-R-CR2032-2Y+BATTERY CONTACTS FOR CR2032（1）
