Multi Branch M12 Elbow Connector Braided Wiring Harness

2 month ago

4 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

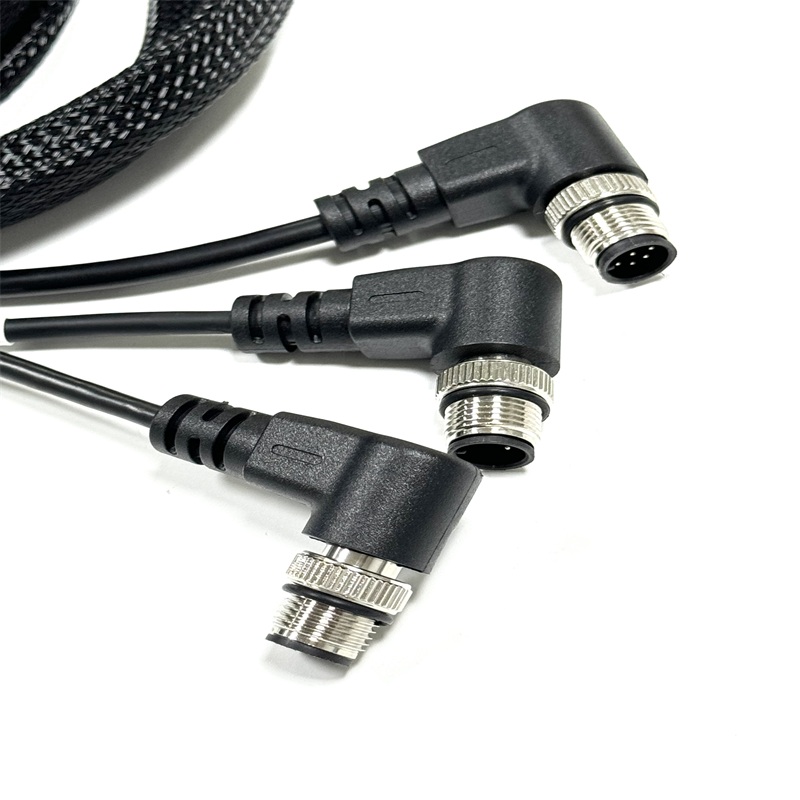

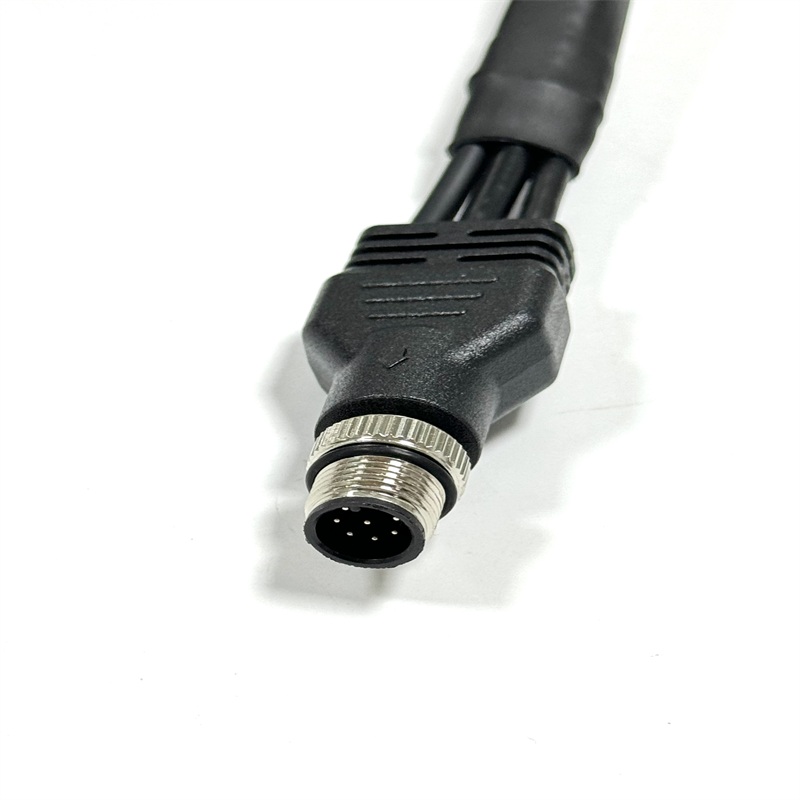

This multi-branch M12 elbow braided wiring harness is a multi-split composite wiring product developed for complex multi-signal transmission scenes, which is greatly different from single-channel fixed wiring and slip ring rotary wiring introduced before. It adopts one-main-three-branch Y-shaped split layout, equipped with straight M12 male aviation plug at the main end and three right-angle elbow M12 connectors at branch ends; diversified secondary terminals including MX3.0, XH2.54, Micro USB, RJ45 crystal head and multi-pin butt boards are reserved at the tail branches, realizing centralized wiring and shunt transmission of power supply, network and multi-group signals at the same time.

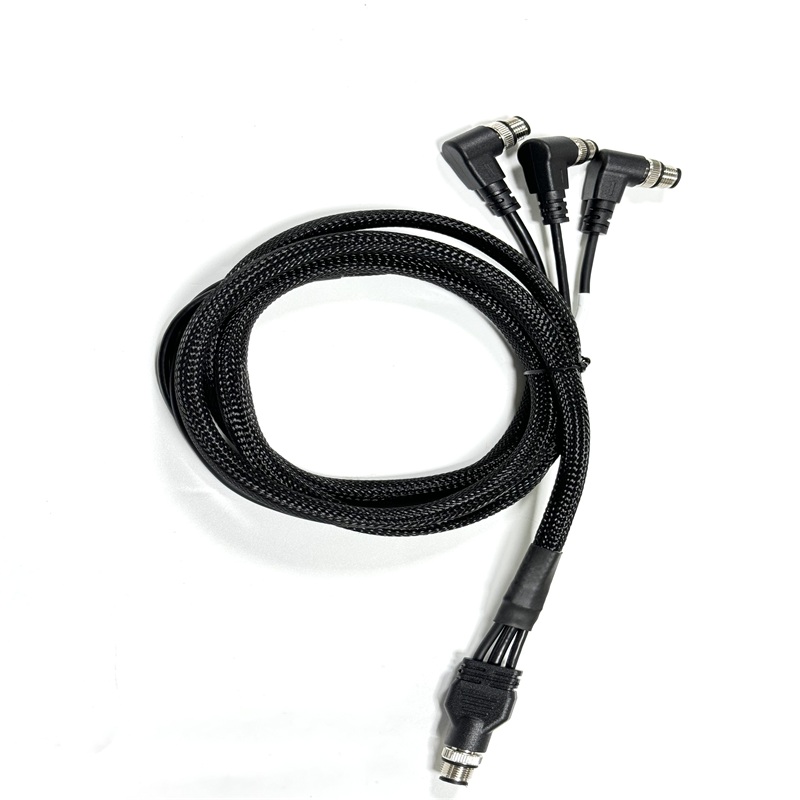

Referring to the anti-vibration and anti-interference design of mature automotive wiring harness connectors, the metal locking structure of M12 plugs is optimized to avoid loosening and poor contact under long-term equipment vibration. The whole wire is wrapped with dense black woven braided tube, which greatly improves wear resistance, scratch resistance and tensile performance, effectively avoiding wire aging and breakage during equipment movement, just like the protection design widely applied on durable car wiring cables.

Multi Branch M12 Elbow Connector Braided Wiring Harness

The internal conductor adopts UL2464 certified high-flex tinned copper wires, with 20AWG and 24AWG specifications for selective collocation; all wires are distinguished by standardized color coding, convenient for later installation inspection and circuit maintenance. In production, we draw on the mature process of customized car wiring harness, adopt automatic precision terminal crimping, built-in injection molding encapsulation and double-layer heat shrink sealing treatment at wiring joints, effectively prevent water and dust from entering the inner circuit.

Each finished harness will undergo strict full inspection: DC 300V withstand voltage test, insulation resistance ≥10MΩ, conduction resistance controlled below 2Ω, and 100% continuity detection to eliminate short circuit, open circuit and pin misalignment. The wire tensile force reaches automotive grade standard (20AWG ≥5.90kg, 24AWG ≥2.27kg), and the applicable temperature range is -40℃~+105℃, adapting to high and low temperature harsh working environments. Meanwhile, we support personalized adjustment of harness length, branch quantity, connector model and pin definition according to customers’ actual equipment parameters.

Item	Description
Product Name	Multi Branch M12 Elbow Connector Braided Wiring Harness
Type	Multi channel split industrial signal wiring harness, integrated multi-type connector assembly
Voltage	1500mm (main cable:1200±30mm, branch wire:300±20mm), fully customizable length
Main Connector	Straight M12 male aviation plug, one-to-three Y-type split design
Branch Connectors	3pcs right-angle elbow M12 aviation plugs, multiple terminal ports: MX3.0, XH2.54, Micro USB, RJ45 crystal head, 42P docking board etc.
Working Temperature	-40℃ ~ +105℃
Length	260±10mm Total Length, Custom Length Fully Supported
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Processing Technology	Automatic terminal crimping, internal mold injection molding, double-layer heat shrink sealing, wire sorting & fixed binding
Application Fields	Industrial automation equipment, intelligent monitoring equipment, sensor signal transmission, mechanical automation control, precision testing instruments, industrial camera wiring, intelligent equipment modular connection projects
Specific Shipping Cost	Please Contact Us

Application Scenarios

This split wiring harness is widely used in industrial automation sensors, industrial camera signal transmission, intelligent monitoring equipment, precision testing instruments, automated production line control modules, new energy equipment signal wiring, and can also be matched with vehicle auxiliary electronic modules as extended wiring accessories for commercial vehicles and engineering vehicles.
