Shenzhen Fubang Wiring Harness Co., Ltd. was founded in 2013, owning the authoritative IATF16949 automotive quality management certification. We focus on the research, production and customized development of automotive cable and connectors, industrial wiring assemblies and various electrical connection harnesses for a long time. Our factory has mature automated production lines, precision testing equipment and professional technical customization teams. We can independently design and produce standard and non-standard automotive wiring harness for new energy vehicles, engineering machinery, industrial control cabinets and RV equipment, and tailor exclusive customized car wiring harness solutions for global buyers according to drawings, samples and application scenarios. All raw materials strictly comply with RoHS environmental standards, and every finished product undergoes full electrical testing before delivery to guarantee stable and durable product quality.

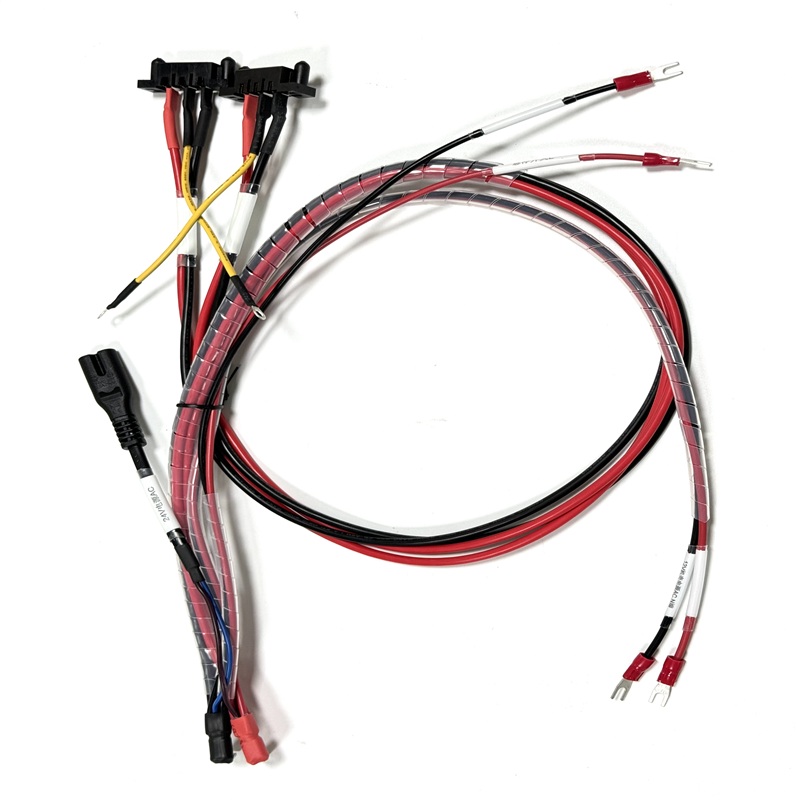

AC Lower End L/N Outlet Power Wiring Harness

This AC circuit breaker lower end L/N outlet wiring harness is one of our mainstream industrial & vehicle dual-purpose power connection products, professionally developed for cabinet power distribution, equipment power access and vehicle low-voltage power supply scenes.

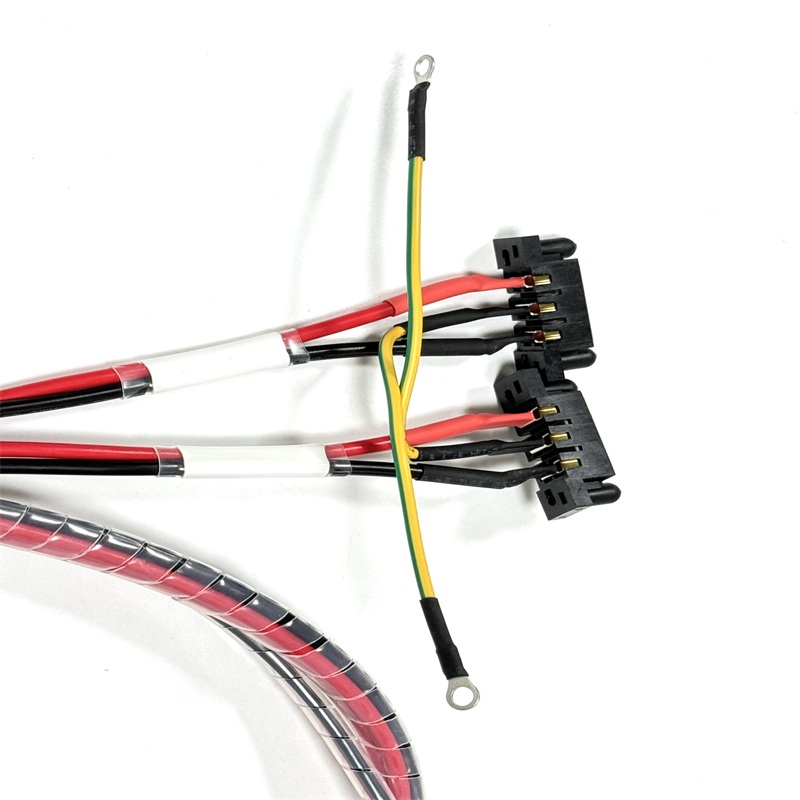

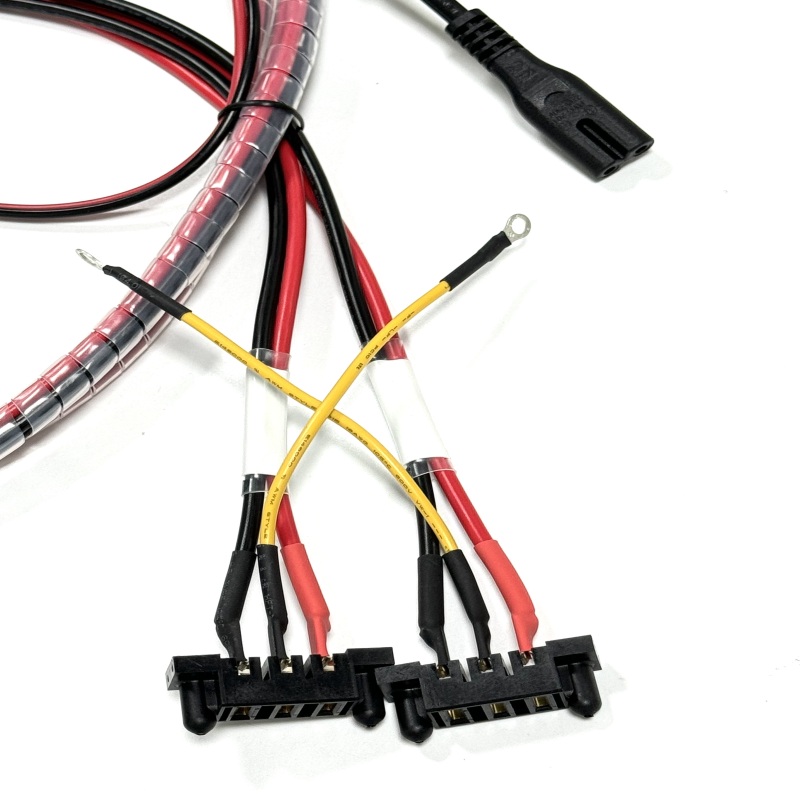

This harness adopts high-quality tinned copper UL1015 wire as the conductor, matched with industrial-grade and automotive-grade connection terminals and plastic shells, perfectly combining the stable performance advantages of mature automotive cable and connectors. The main wire length is designed to 900±20mm, with each branch wire strictly manufactured according to dimensional tolerances on engineering drawings. It is equipped with multi-type terminals including fork lugs, IEC female plugs and multi-core sockets, with segmented heat shrink tubing and spiral winding protection sleeves wrapped at joints and wire bodies, effectively resisting wear, extrusion and temperature changes.

Item	Description
Product Name	AC Lower End L/N Outlet Wiring Harness
Type	Industrial AC Power Distribution Wiring Harness, Multi-Terminal Split Power Connection Assembly
Voltage	DC 300V, 10ms High Voltage Withstand Test
Terminal Configuration	MXTLOX 03P Female Socket, IEC C8 Female Power Inlet Plug, RNB1.25-4S Fork-Shaped Round Terminals, U-Shaped Wiring Lugs, Dual Group GPR4850D AC Input Terminals
Wire Specification	UL1015 12AWG & 18AWG Tinned Copper Wires; Insulation Colors Include Red, Black, Brown, Blue; Standard Color-Coded Wiring Identification
Working Temperature	-40℃ ~ +105℃, Customized Temperature Resistance Available
Length	Main Cable Length: 900±20mm, Each Branch Wire Length Customized According to Drawing Standards, Full Length Customizable
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Processing Technology	Automatic Terminal Crimping, Heat Shrink Sealing, Wire Sorting Binding, Customized Printed Identification Heat Shrink Sleeves
Application Fields	Industrial Power Distribution Cabinets, Equipment Circuit Breaker Wiring, Switching Power Supply Input Connection, Automation Equipment Power Harness, Cabinet Electrical Internal Wiring, New Energy Equipment Low-Voltage Power Connection
Specific Shipping Cost	Please Contact Us

Referring to the mature manufacturing experience of standard automotive wiring harness, our production process applies automatic precision crimping, sealed heat-shrink packaging and neat wire binding technology. The finished product passes 100% conduction detection, with insulation resistance ≥10MΩ and conduction resistance ≤2Ω, capable of enduring DC 300V instantaneous pressure test, working stably in the range of -40℃~+105℃.

Different from conventional simple power cords, this assembly supports personalized size, wire gauge and terminal adjustment, belonging to our classic customized connection product series. Just like our diversified customized car wiring harness development service, we can flexibly adjust wire length, wire color, connector type and protection scheme according to customers’ on-site installation conditions. It is widely applied in industrial distribution cabinets, automotive modified power circuits, new energy device internal wiring, RV low-voltage power systems and automated equipment power access, featuring anti-breakage, anti-short-circuit, easy installation and long service life.
