14AWG Black Jumper Wire Harness with Quick Disconnect Terminals Length 16 Inch

2 month ago

4 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

This single-strand jumper wire harness is a miniature short-distance bridging cable, positioned for narrow space wiring and simple circuit connection, completely different from the long-distance shielded waterproof harness introduced earlier. It abandons complex multi-core structure and thickened sealed protection, focusing on lightweight, flexible layout and convenient quick plug connection, specially used for circuit jumpers, temporary wiring replacement and small-power equipment docking.

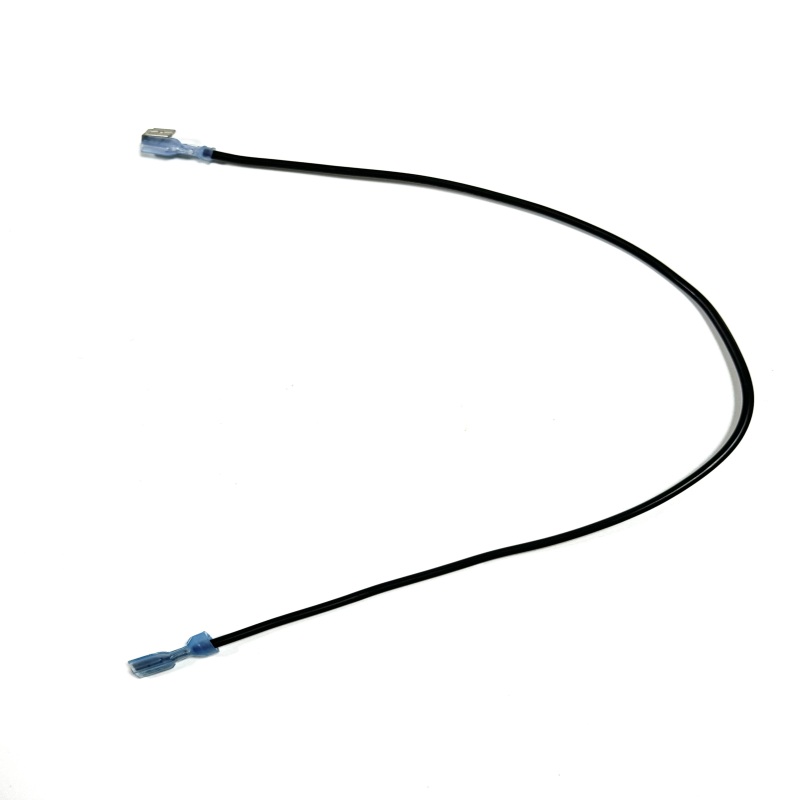

14AWG Black Jumper Wire Harness with Quick Disconnect Terminals Length 16 Inch

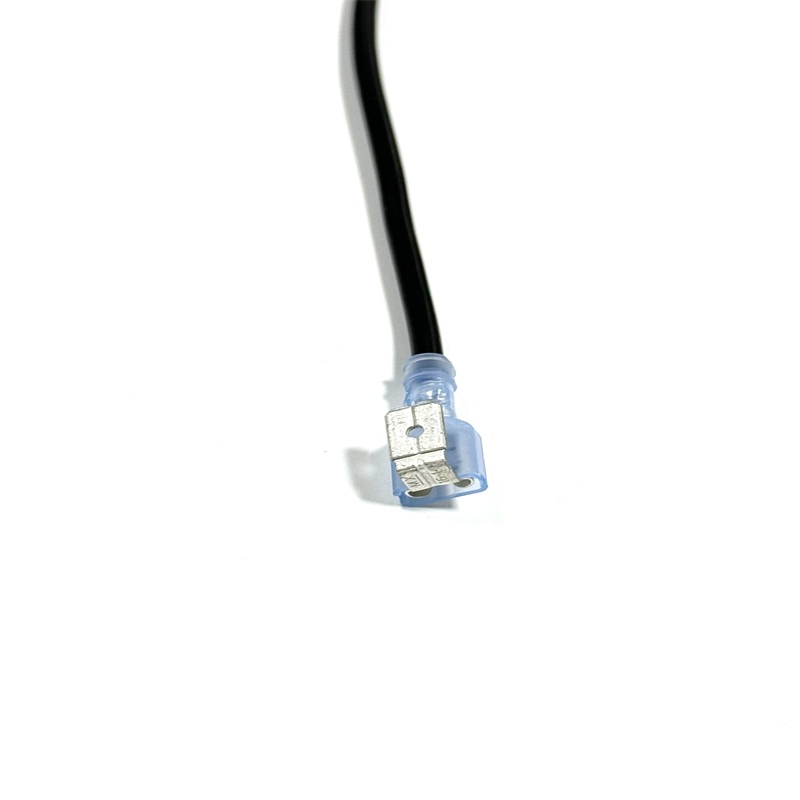

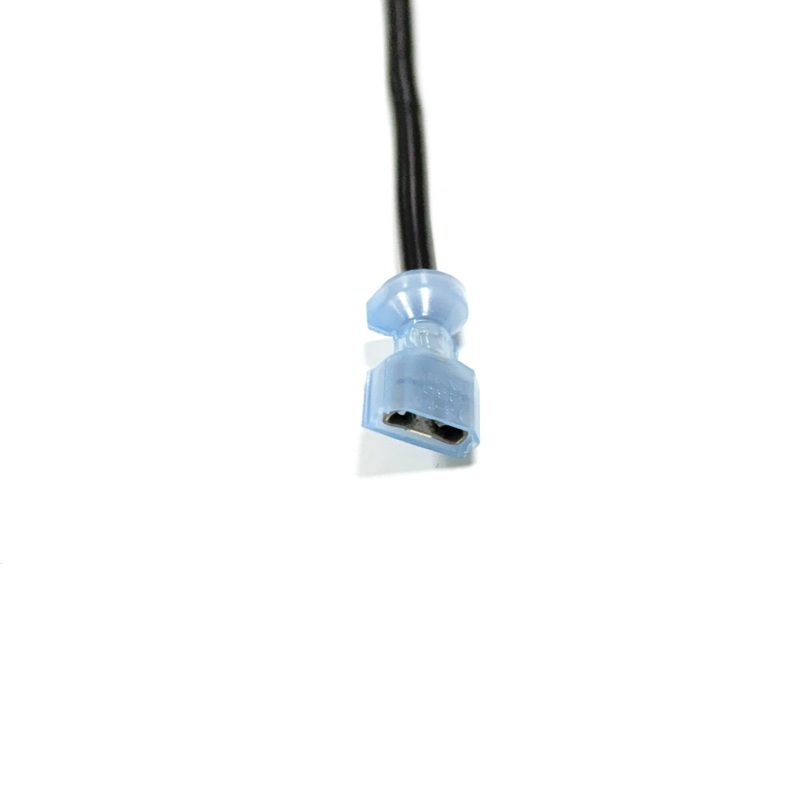

The main conductor selects UL1015 14AWG black single-strand wire, composed of 41 fine tinned copper wires with 0.254mm diameter, paired with wear-resistant PVC outer insulation with an outer diameter of 3.5mm. The material can adapt to long-term use under -40℃~+105℃ temperature fluctuation, and the soft wire body is easy to bend and arrange in dense, narrow equipment gaps. Both ends are precisely crimped with standard quick-disconnect female spade terminals (TE and Molex general models, compatible with 14~16AWG wire), matched with transparent blue insulating casings. The crimping section is pressed by fully automatic equipment, with uniform pressure and strong tensile resistance, effectively avoiding terminal loosening and poor contact under mechanical vibration; the insulating casing isolates exposed metal parts to prevent accidental short-circuit during on-site wiring.

Item	Description
Product Name	14AWG Black Jumper Wire Harness with Quick Disconnect Terminals Length 16 Inch
Type	Single Conductor Jumper Wiring Harness / Quick Disconnect Terminal Power Cable
Voltage	DC 300V Test Voltage, Low Voltage Power Application, Custom Voltage Available
Pins Material	Tin-Plated Brass Quick Disconnect Female Terminals (TE 3-520140-2 / MOLEX 19013-0029, 16-14AWG)
Plug Material	Blue Insulated Quick Disconnect Terminal Housings, Black UL1015 PVC Insulated Wire
Working Temperature	-40℃ ~ +105℃, Industrial & Automotive Grade
Length	407±20mm (16 Inches), Custom Length Fully Supported
Minimum Insulation Resistance	≥5MΩ
Maximum Conduction Resistance	≤3Ω
Compliance Standard	RoHS Environmental Compliance
Application Fields	Automotive internal jumper wiring, household appliance power connection, industrial control equipment internal wiring, DIY electronic project power cable, RV and marine low-voltage circuit wiring, electrical equipment maintenance replacement wire
Specific Shipping Cost	Please Contact Us for Accurate Quotation

The fixed standard size is 407±20mm, and length customization is one of our basic service items in custom cable assembly and wiring harness, supporting arbitrary shortening or lengthening according to customers’ actual wiring spacing.

Drawing on the mature standardized production experience accumulated from large quantities of electrical harness assembly, we set strict access standards for this jumper wire before delivery. Each piece will go through full inspection one by one: 100% conduction scanning to exclude open circuit, short circuit and misconnection; DC 300V 10ms high voltage withstand detection, with insulation resistance guaranteed above 5MΩ and conduction resistance controlled below 3Ω. Appearance inspection strictly checks for wire surface scratches, terminal rust, peeling and plastic casing deformation; unqualified products will be eliminated directly to ensure consistent batch quality.

Compared with heavy engineering wiring harnesses, this jumper wire has obvious advantages of low cost and easy installation. Relying on our rich experience in custom wire harness assembly, we can provide diversified modifications: replace terminal styles, switch wire colors, upgrade high-temperature resistant wire materials, add heat-shrinkable tube protection, etc. Its applicable scenarios are concentrated on auto internal circuit jumpers, vehicle electronic refitting wiring, small industrial control equipment internal bridging, RV low-voltage auxiliary circuit arrangement, household electrical maintenance wiring and electronic DIY assembly. With stable electrical performance, compact size and convenient plug-in use, it has become a cost-effective conventional connecting accessory widely used in low-voltage small-power connection fields.
