Product details

Our factory is equipped with automated crimping stations, precision wire cutting equipment and professional aging testing laboratories, capable of mass production of standardized finished wires as well as personalized customized development.

We have rich practical experience in designing and manufacturing mature automotive wiring harness for whole-vehicle matching, which covers vehicle main wiring, electronic module wiring and various auxiliary jumper wires. For customers with non-standard layout requirements, we provide flexible custom auto wiring harness development service, tailoring wire specifications, terminal models and structural styles according to on-site installation conditions. Meanwhile, standardized batch production of professional electrical harness assembly is one of our core businesses, guaranteeing stable consistency of finished product quality for bulk orders from global clients. All finished products are inspected in full process and meet RoHS environmental protection and automotive electrical safety requirements.

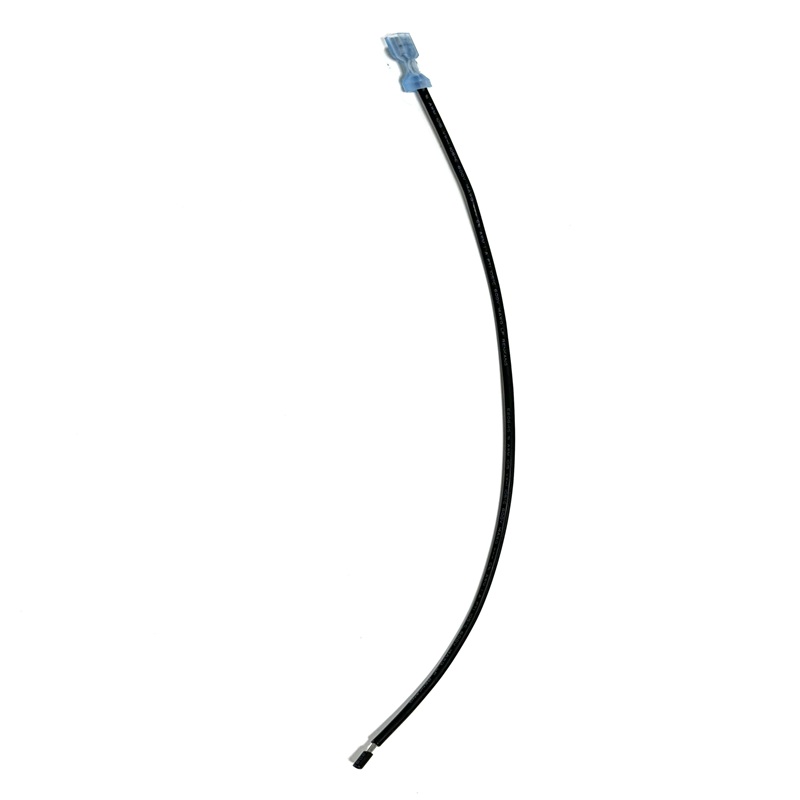

14AWG Black Jumper Wiring Harness with TE Quick Disconnect Terminal, 12 Inch Single-End Cable

This black single-core jumper harness is a compact short-distance connecting cable newly optimized for narrow installation spaces, which is clearly differentiated from the longer white jumper wire previously launched. It is designed for compact equipment layout scenes such as vehicle built-in small modules and miniature industrial controllers, focusing on convenience of quick plug-in and stable conduction in confined spaces.

Item	Description
Product Name	14AWG Black Jumper Wiring Harness with TE Quick Disconnect Terminal, 12 Inch Single-End Cable
Type	Short-distance Low-Voltage Jumper Cable / Lightweight Single-core Wiring Harness
Voltage	DC 300V (10ms withstand voltage test), low-voltage DC application support
Pins Material	TE original tin-plated brass female quick-disconnect terminal (Model: 5-520140-2), tinned copper bare wire end
Insulation & Housing Material	Transparent blue insulating terminal sleeve, UL1015 black PVC wire insulation
Working Temperature	-40℃ ~ +105℃, automotive & industrial general temperature range
Length	319±10mm (12 inches), open end stripped length:7.5mm, customized length available
Minimum Insulation Resistance	≥5MΩ
Maximum Conduction Resistance	≤3Ω
Appearance & Packaging Standard	No scratch, deformation, burr and rust defects; independent PE bag packaging, carton bulk shipment
Application Fields	Automotive internal circuit jump connection, vehicle electronic refitting wiring, industrial control small equipment wiring, RV & yacht low-voltage circuit arrangement, electrical maintenance wiring, electronic DIY assembly projects
Specific Shipping Cost	Please Contact Us for Accurate Quotation

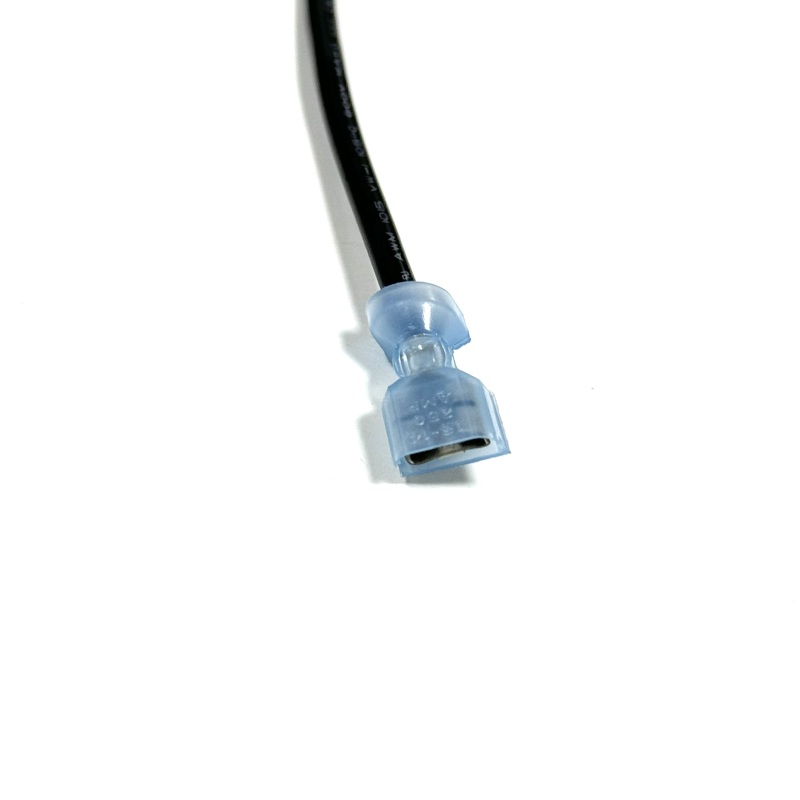

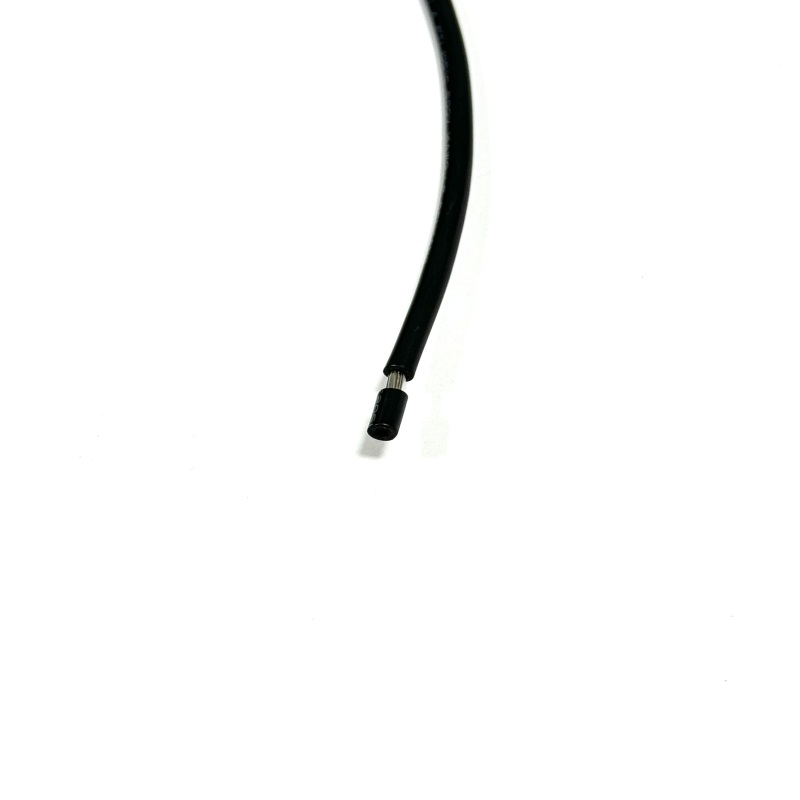

The wire body selects UL1015 standard 14AWG black stranded tinned copper wire, composed of 41 strands of 0.254mm fine copper wires, with an outer diameter of 3.5mm thickened insulating layer. The PVC insulation material features strong oil resistance, bending resistance and anti-aging performance, adapting to long-term use in the temperature range of -40℃ to 105℃, and can cope with the temperature fluctuation and slight vibration inside vehicle cabins and equipment casings. One end adopts original TE tin-plated brass quick-disconnect female terminal, matched with transparent blue insulating protective sleeve; automated constant-pressure crimping technology is adopted to ensure firm combination between terminal and wire, effectively avoiding terminal loosening, wire shedding and poor contact caused by long-term mechanical vibration. The other end reserves a 7.5mm standard stripped bare wire end, which supports direct welding, winding and screw locking connection, bringing diverse wiring choices for construction personnel.

The standard finished length is controlled at 319±10mm (12 inches), shorter and more portable than conventional long jumpers. When customers have special size demands, we can adjust the overall length and stripping length through the customized scheme of custom auto wiring harness, to fit diversified installation spacing. Drawing on the mature process specifications accumulated from large-scale electrical harness assembly production, every finished wire will go through strict pre-delivery testing: 100% full conduction detection to eliminate open circuit, short circuit and instantaneous disconnection; unified DC 300V 10ms voltage withstand test, with insulation resistance kept above 5MΩ and conduction resistance controlled below 3Ω. Appearance inspection strictly screens defective products with scratches, burrs, deformation and rust, to guarantee neat appearance and reliable quality.

Different from large integrated automotive wiring harness used for whole-vehicle circuit layout, this lightweight jumper cable is positioned as auxiliary circuit connection accessories, with outstanding advantages of small size, easy bending and low cost. It is widely applied to automobile electronic refitting, vehicle sensor short-distance bridging, industrial small control circuit wiring, RV low-voltage circuit arrangement, equipment maintenance wiring and electronic DIY assembly. With stable quality and flexible customization, it has become a practical matching accessory favored by auto modification factories and automation equipment manufacturers.
