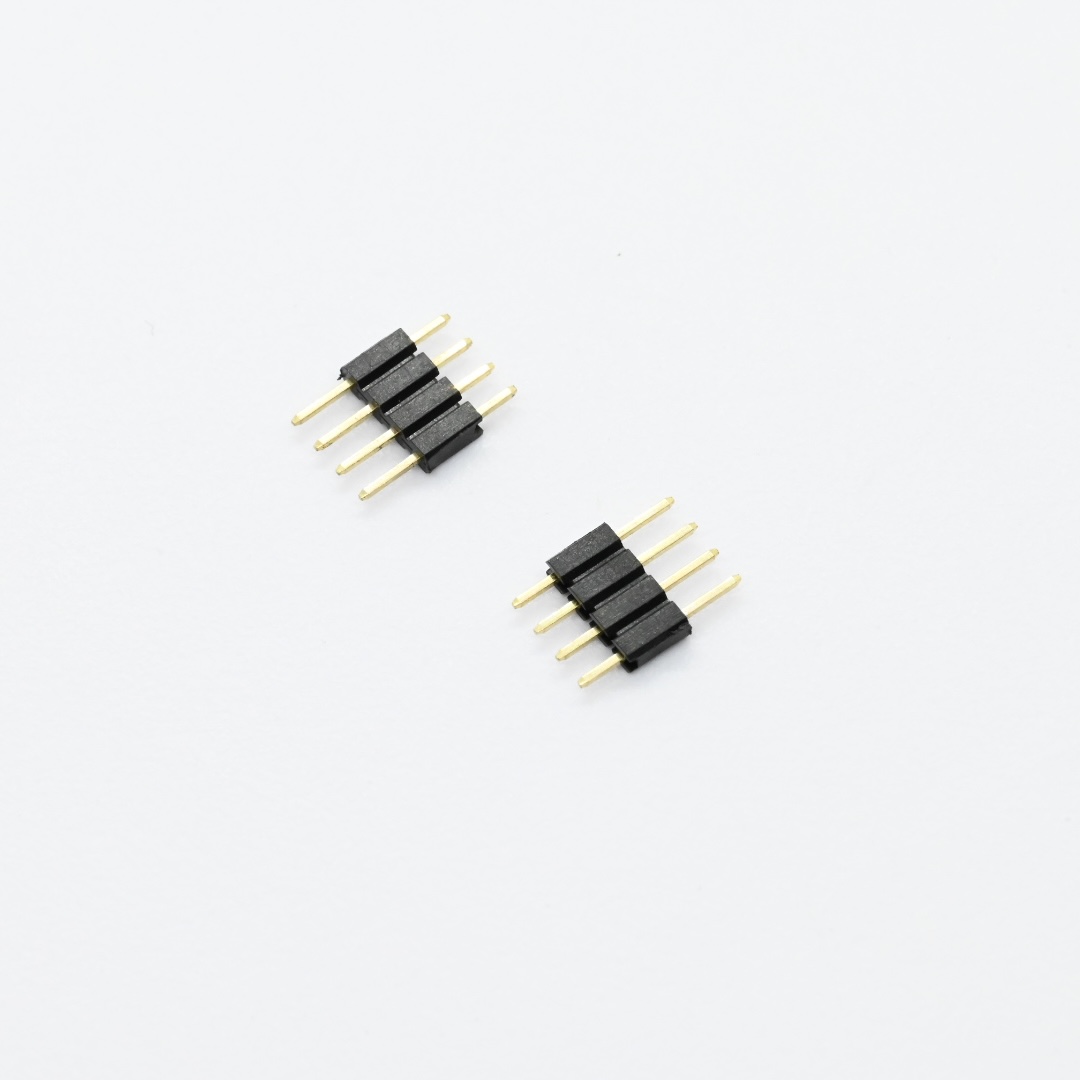

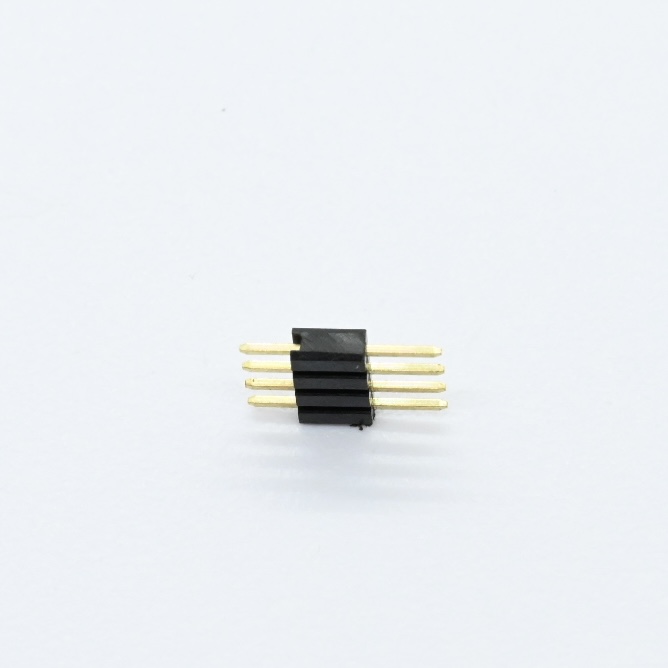

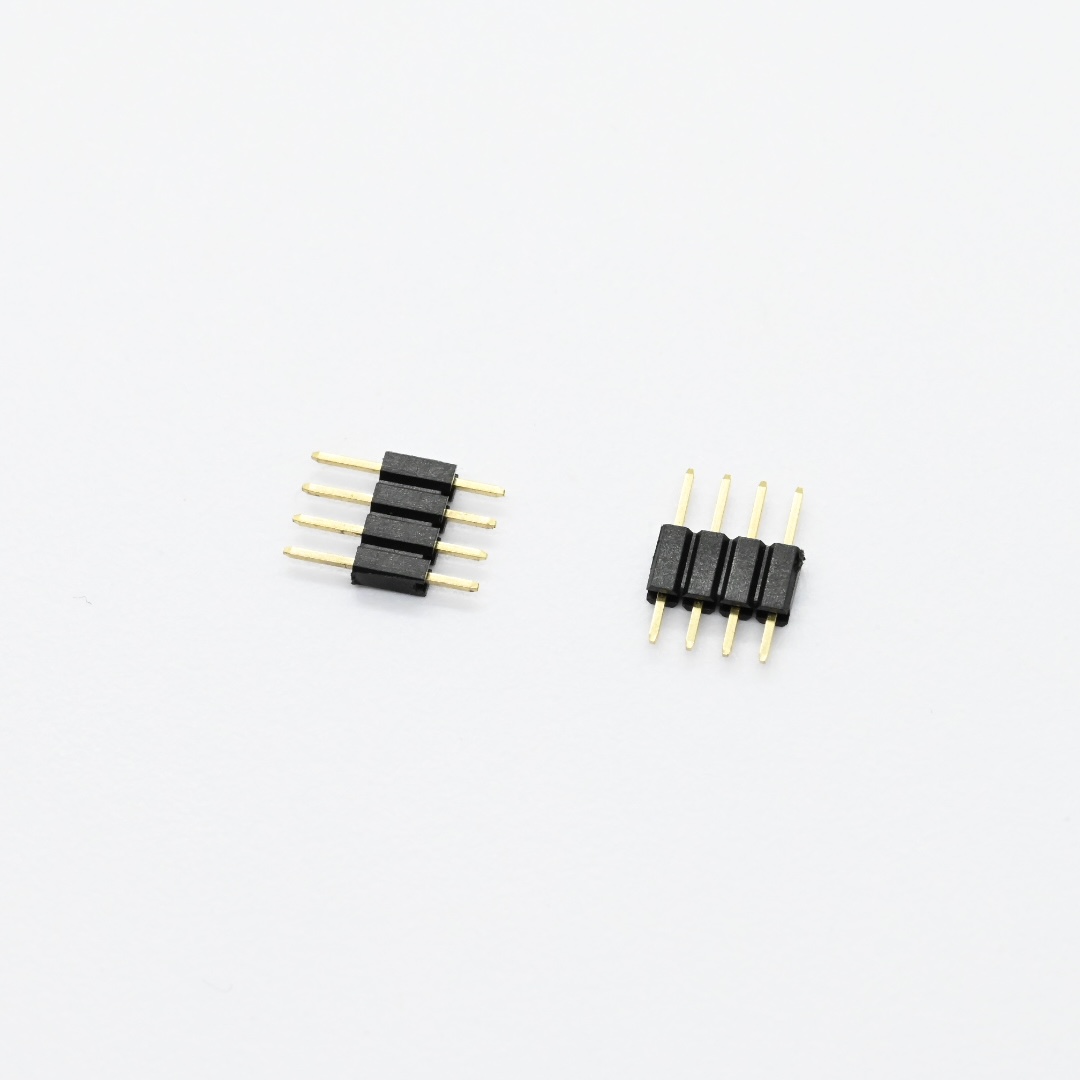

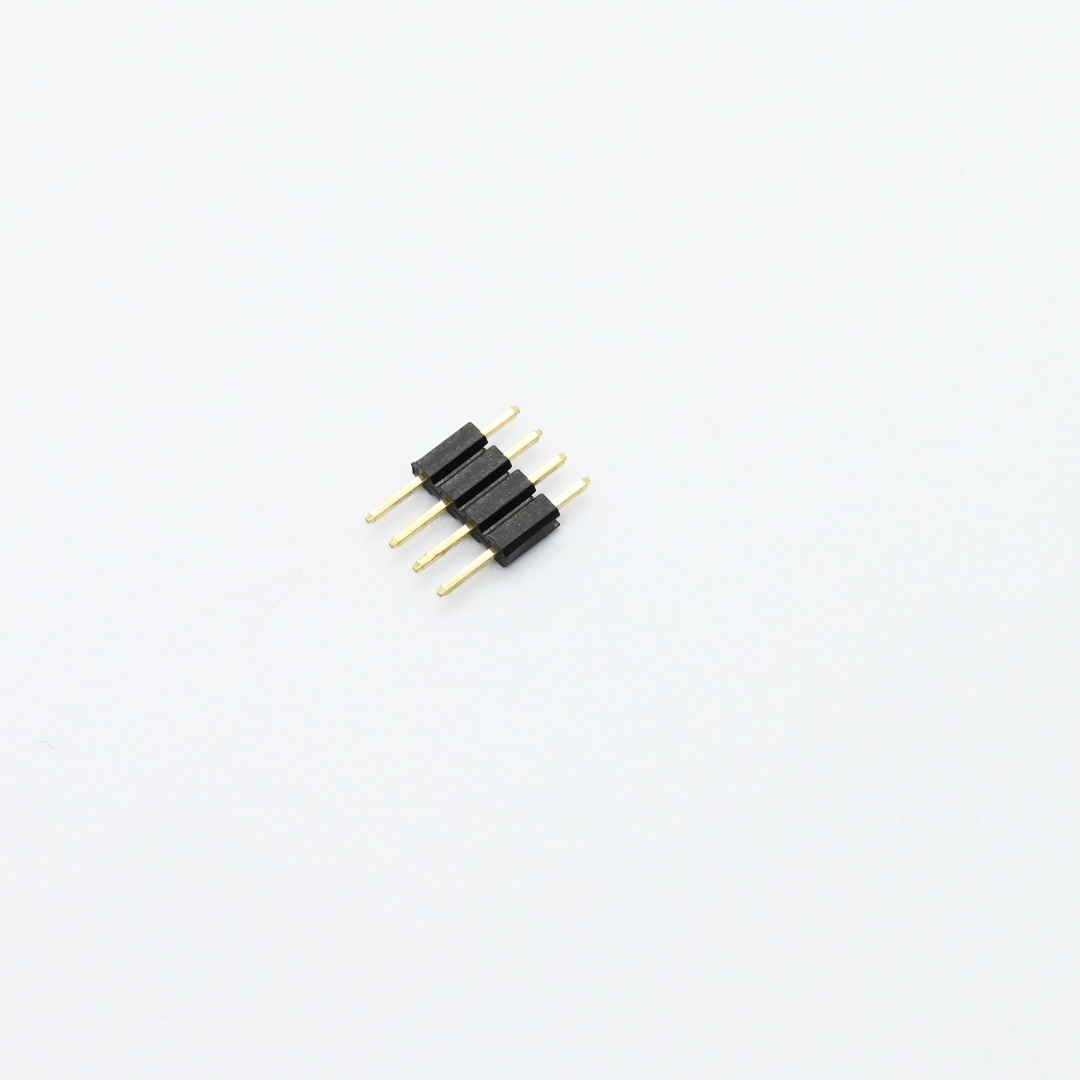

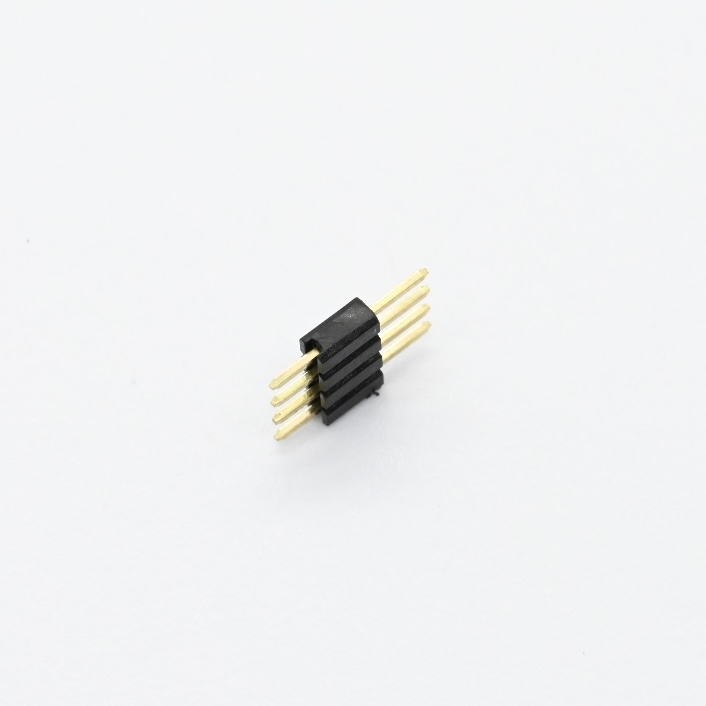

2.00mm Single Row Straight 4.0H Pin Header

2.00mm Single Row Straight 4.0H Pin Header

3 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Huizhou Antenk Electronics Co., Ltd. manufactures PHDS02-XXS 2.00mm single row straight pin header with 4.0mm insulator height for stable low power signal and small current PCB internal connection in compact electronic modules. This pin header adopts flame retardant black PA6T UL94V0 plastic insulator matched with 0.50 square brass pins, supporting diversified surface plating solutions including tin flash and selective gold layers ranging from 3 micro inch to 30 micro inch, with fixed 2.00mm pin pitch and customizable contact pin counts from 1 pin to 40 pins, two optional pin length specifications of 4.00mm and 2.80mm, unified dimensional tolerance standards to fit automatic PCB through hole soldering. Its electrical parameters include 1.5A rated current, maximum 20 milliohms contact resistance, minimum 1000 megohms insulation resistance, 500V AC dielectric withstanding voltage and operating temperature range from minus 65 degree Celsius to plus 125 degree Celsius, fully compliant with HSF and RoHS environmental standards. This miniature pin header is widely used in liquid crystal display equipment digital cameras communication modules industrial control units digital household appliances electronic toys computer peripherals and precision measuring instruments. Operators must select matched pin length and plating type based on PCB thickness requirements, strictly follow official PCB layout drawing during soldering, avoid excessive bending of thin brass pins to prevent terminal fracture and store finished pin headers in dry dust free warehouse to stop oxidation of plating layers. Unlike competitors outsourcing mold production and metal stamping Antenk implements full independent production workflow covering self developed precision plastic and metal mold manufacturing brass high speed stamping PA6T injection molding multi layer electroplating and comprehensive laboratory electrical reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications while complying with RoHS HSF and REACH international environmental standards. We own hundreds of self developed precision molds, provide customized pin number plating and packaging options including bag tube tape and reel packaging, deliver round the clock professional engineering technical support, and over seventy percent of our pin header series connectors are exported globally relying on our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.

Black UL94V0 PA6T Insulator Block offers superior high temperature resistance and flame retardant performance for compact PCB connection assemblies.

0.50SQ Brass Straight Contact Pin delivers steady conductive performance and stable signal transmission under 1.5A rated operating current.

Multi Thickness Selective Gold Header satisfies different cost and durability demands of various consumer and industrial electronic PCB modules.

1. Material & Surface Plating

1.1 Insulator Housing: Black PA6T, UL94V-0 flame retardant

1.2 Contact Pin Material: Brass, 0.50SQ pin size

1.3 Optional Contact Plating

1.3.1 Gold flash

1.3.2 Selective gold: 3μ",5μ",10μ",15μ",30μ"

1.3.3 Full gold: 3μ",5μ",10μ",15μ",30μ"

1.3.4 Tin plating

1.4 Connector Form: Single straight type

2. Electrical & Temperature Parameters

2.1 Rated Current: 1.5 Amp

2.2 Min Insulation Resistance: 1000 Megohms

2.3 Max Contact Resistance: 20 milliohms

2.4 Dielectric Withstanding Voltage: 500V AC

2.5 Operating Temperature Range: -65°C ~ +125°C

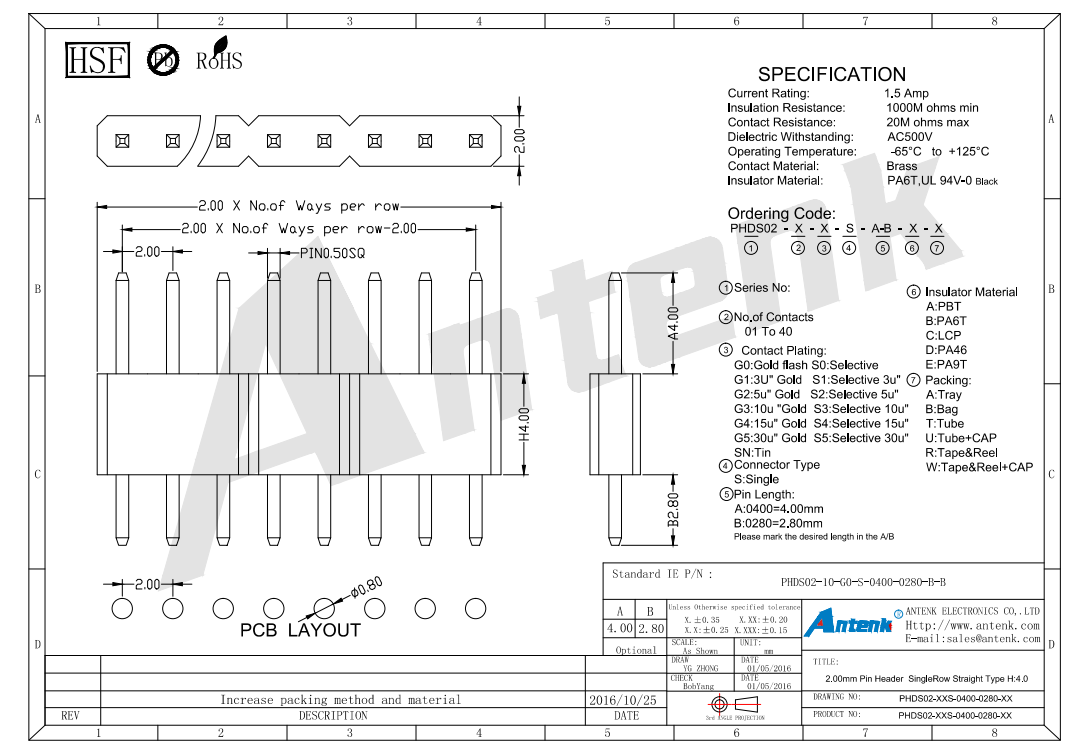

3. Dimension Specifications (Unit: mm)

3.1 Standard Pin Pitch: 2.00

3.2 Insulator Height H: 4.00

3.3 Two available pin lengths

3.3.1 A: 4.00

3.3.2 B: 2.80

3.4 Optional Contact Quantity: 01P to 40P

3.5 Dimensional tolerance rule: X.XX ±0.20, X.X ±0.25

4. Packaging Options

4.1 Bag packing

4.2 Tube packing

4.3 Tape & Reel with CAP packing

5. Environmental Standard

5.1 Compliant with HSF and RoHS lead-free requirements

6. Application Scenarios

6.1 Liquid crystal display devices

6.2 Digital cameras

6.3 Communication circuit modules

6.4 Industrial control equipment

6.5 Digital household appliances

6.6 Electronic toys

6.7 Computer peripheral equipment

6.8 Precision measuring instruments

7. Usage Precautions

7.1 Select proper pin length according to PCB thickness

7.2 Operate soldering strictly following official PCB layout drawing

7.3 Avoid excessive bending of thin brass pins to prevent terminal breakage

7.4 Store finished pin headers in dry dust-free warehouse to prevent plating oxidation

7.5 Match plating and packaging type according to actual production demand

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
