Huizhou Antenk Electronics Co., Ltd. manufactures U3.1FM09-SLXXXX 24Pin USB 3.1 Type C female receptacle without rear cover with 6.20mm insertion depth for high speed data transmission and stable 5A power charging between PCB and Type C plugs. This USB receptacle adopts black LCP thermoplastic insulator, brass signal contacts and stainless steel outer shell, equipped with multi-layer plating structure including 40 to 80 micro inch nickel underplate, 30 micro inch palladium nickel plus 2 micro inch selective gold on contact surface and lead free tin ranging from 100 to 200 micro inch for solder tails, with two optional solder tail lengths of 1.5mm and 1.9mm matching 1.0mm and 1.6mm thick PCBs respectively. Its electrical parameters include maximum 5A rated current, 20V operating voltage, 100V AC one minute dielectric withstand voltage and minimum 100 megohms insulation resistance, supporting up to 10000 plug and unplug cycles within minus 40 degree Celsius to plus 105 degree Celsius working temperature and fully complying with HSF Sony SS-00259 and RoHS environmental standards. This compact Type C female socket is widely used in digital cameras liquid crystal displays communication modules industrial control devices digital household appliances mobile storage equipment computer peripherals and precision measuring instruments. Operators need to select suitable solder tail length based on PCB thickness, strictly follow official PCB layout drawing during SMT soldering, avoid violent plugging to reduce contact abrasion and store finished products in waterproof packaging with desiccants to prevent plating rust. Unlike competitors that outsource mold making and metal stamping Antenk runs full independent production processes including self developed plastic and metal mold fabrication brass high speed stamping LCP injection molding multi layer precision electroplating and complete electrical cycle reliability lab testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications while meeting RoHS HSF and REACH international environmental standards. We own hundreds of self designed precision molds, customize plating and packaging options including tray bag tube and tape reel with 700 pieces per reel, provide round the clock professional engineering technical support, and over seventy percent of our USB connector series are exported globally relying on our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.

LCP Black Thermoplastic USB Insulator delivers outstanding heat resistance and dimensional stability under long-term high-temperature charging and data transmission conditions.

Pd-Ni Selective Gold Brass Contact maintains ultra-low signal loss and anti-corrosion performance after thousands of Type C plugging cycles.

Stainless Steel Shell USB C Socket offers robust structural protection and reliable electromagnetic shielding for compact consumer electronic circuit boards.

1. Material & Plating Configuration

1.1 Insulator: Black LCP thermoplastic

1.2 Contact Material: Brass; optional phosphor copper

1.3 Outer Shell Material: Stainless steel

1.4 Plating Structure

1.4.1 Underplate: 40μ"-80μ" nickel

1.4.2 Contact surface: 30μ" Pd-Ni + 2μ" selective gold

1.4.3 Solder tail: 100μ"-200μ" lead-free tin

1.5 Optional contact gold plating thickness: Gold flash, 3μ",5μ",10μ",15μ",30μ"

2. Electrical Performance Parameters

2.1 Max Rated Current: 5A

2.2 Operating Voltage: 20V

2.3 Dielectric Withstanding Voltage: 100V AC for 1 minute

2.4 Min Insulation Resistance: 100 Megohms under 100V DC

3. Mechanical & Environmental Performance

3.1 Insertion Depth: 6.20mm

3.2 Durability: Minimum 10000 plug-unplug mating cycles

3.3 Operating Temperature Range: -40°C ~ +105°C

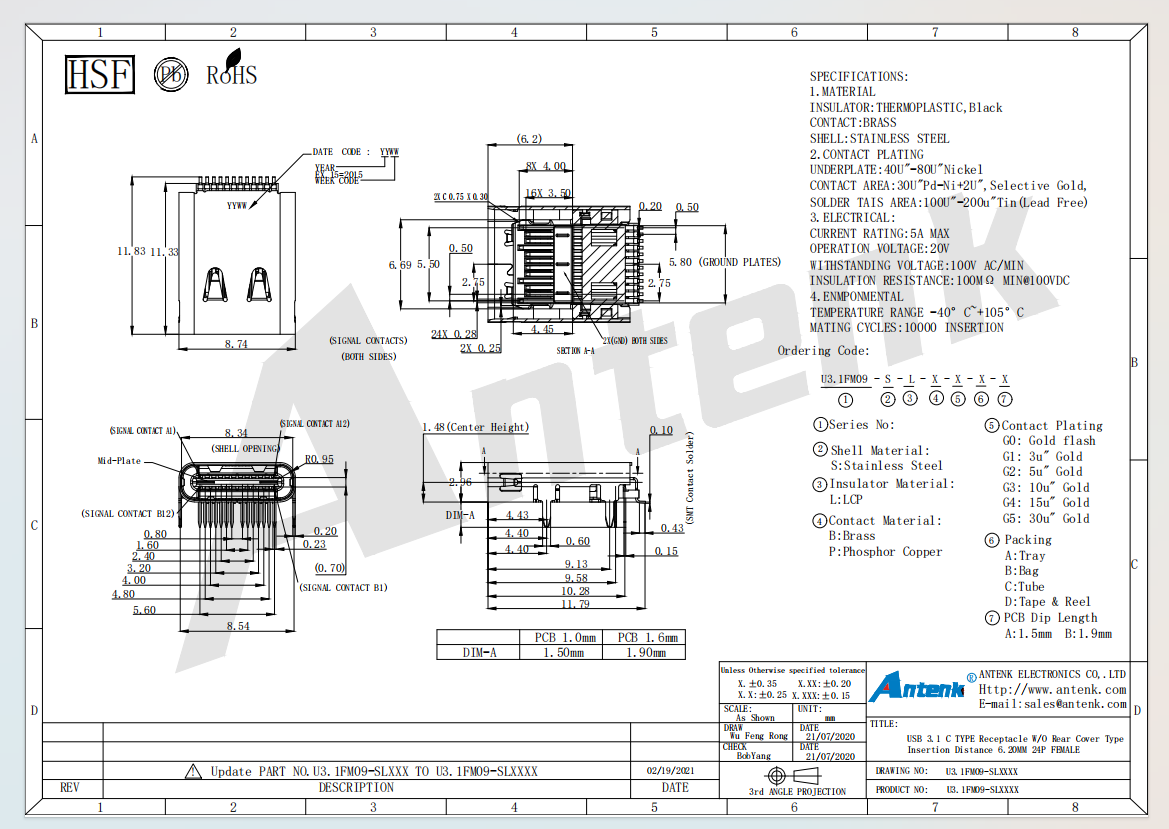

4. Dimension & PCB Matching Info (Unit: mm)

4.1 Two solder tail length options

4.1.1 1.50mm solder tail: Matches 1.0mm thick PCB

4.1.2 1.90mm solder tail: Matches 1.6mm thick PCB

4.2 PCB layout tolerance: ±0.05

4.3 General dimensional tolerance rules

4.3.1 X. : ±0.35

4.3.2 X.X : ±0.25

4.3.3 X.XX : ±0.20

4.3.4 X.XXX : ±0.15

4.4 Pin count: Total 24 pins with complete Type C signal pinout including GND, VBUS, CC, SBU, high-speed differential signal pins

5. Packaging Modes

5.1 Optional packing: Tray, bag, tube, tape & reel

5.2 Tape reel standard spec: 700 pieces per reel, 6300 pieces per export carton

5.3 Export package requirements: Corrugated base board, triangular corner supports, waterproof bag, desiccant, reel labels upward

6. Environmental Compliance Standards

6.1 Comply with RoHS, HSF and Sony SS-00259 substance control standards

7. Application Scenarios

7.1 Digital cameras & liquid crystal display equipment

7.2 Communication modules & industrial control panels

7.3 Digital home appliances & mobile storage devices

7.4 Computer peripherals & precision measuring instruments

8. Operation & Storage Precautions

8.1 Select solder tail length corresponding to actual PCB thickness

8.2 Complete SMT soldering strictly following official PCB layout drawing

8.3 Avoid violent plugging to reduce abrasion of gold contact layers

8.4 Store finished connectors in waterproof packaging with desiccants to prevent plating oxidation

8.5 Keep reel labels facing up during warehouse storage and carton packing

8.6 Control dimensional tolerance within specified range during incoming inspection

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

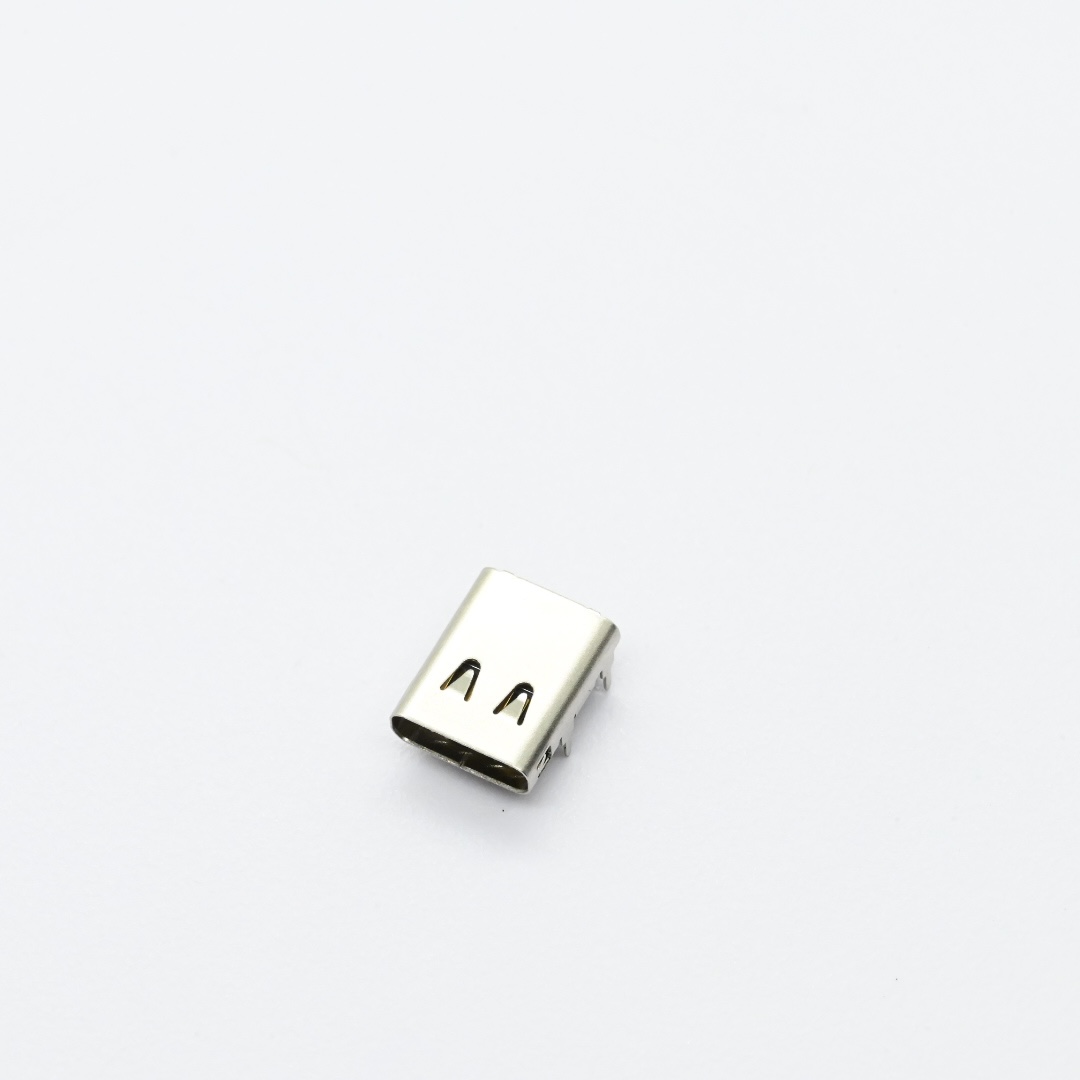

U3.1FM09-GLBGODA+USB 3.1 C TYPE Receptacle Rear Cover Type Insertion Distance 6.20MM 24P FEMALE（5）

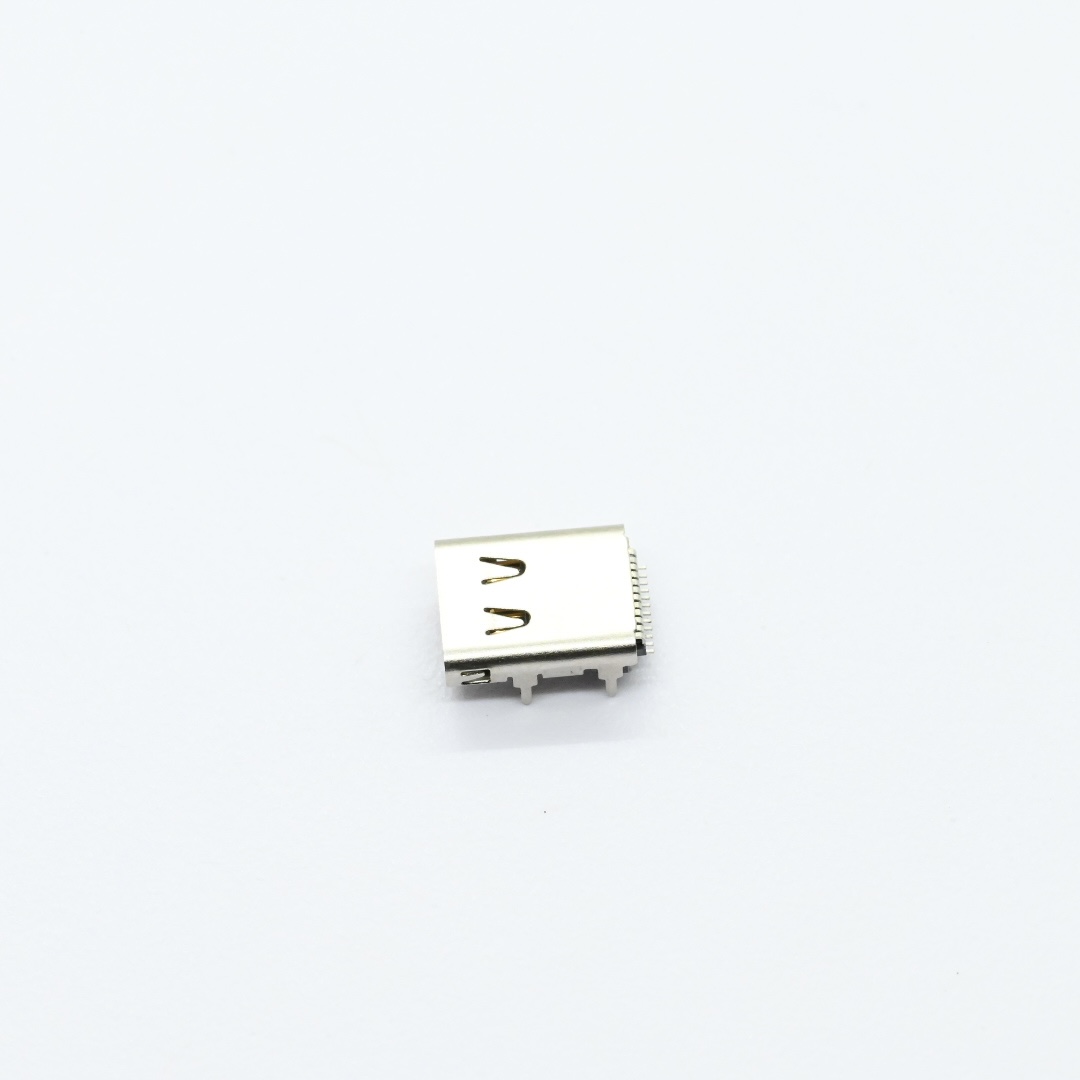

U3.1FM09-GLBGODA+USB 3.1 C TYPE Receptacle Rear Cover Type Insertion Distance 6.20MM 24P FEMALE（4）

U3.1FM09-GLBGODA+USB 3.1 C TYPE Receptacle Rear Cover Type Insertion Distance 6.20MM 24P FEMALE（6）

U3.1FM09-GLBGODA+USB 3.1 C TYPE Receptacle Rear Cover Type Insertion Distance 6.20MM 24P FEMALE（3）

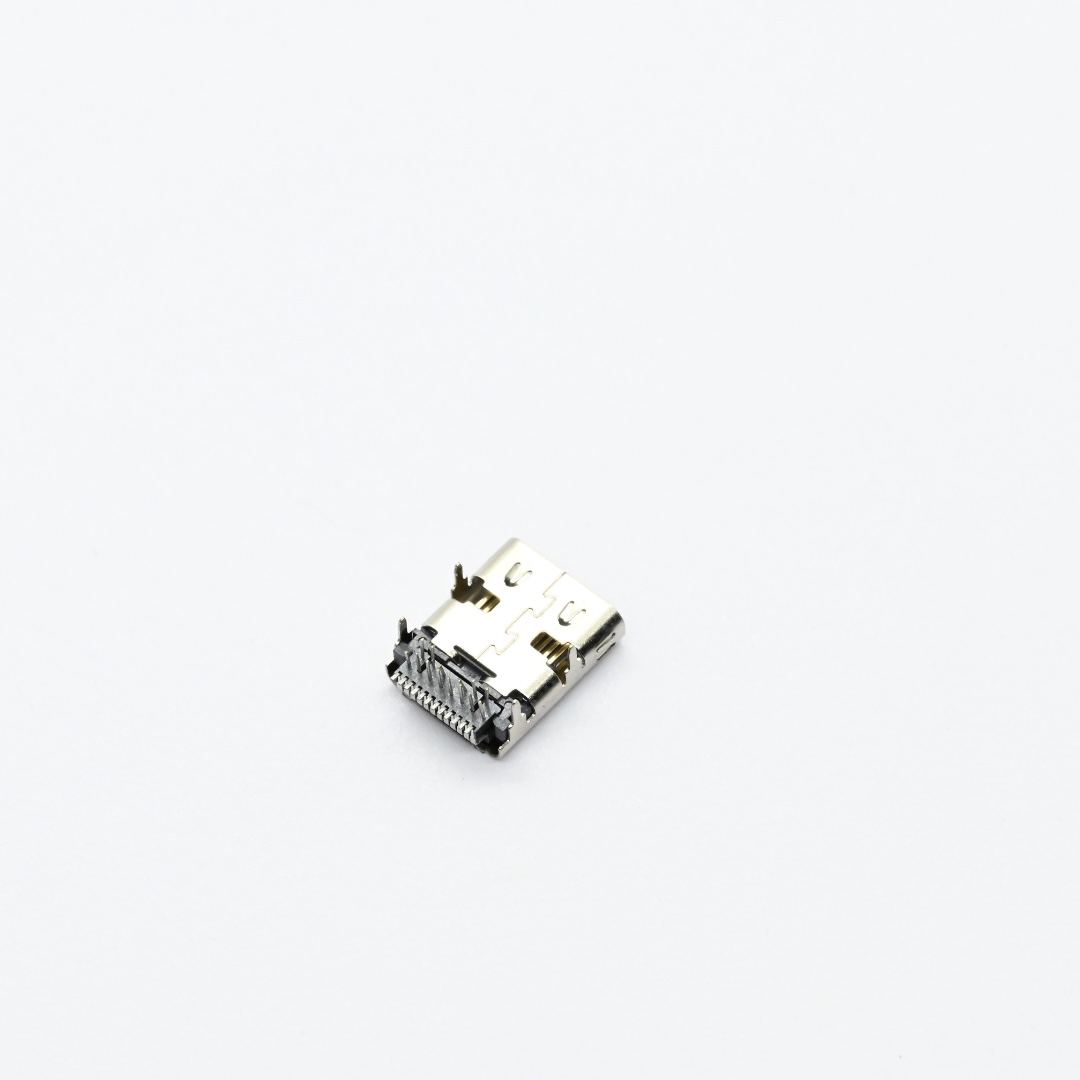

U3.1FM09-GLBGODA+USB 3.1 C TYPE Receptacle Rear Cover Type Insertion Distance 6.20MM 24P FEMALE（2）

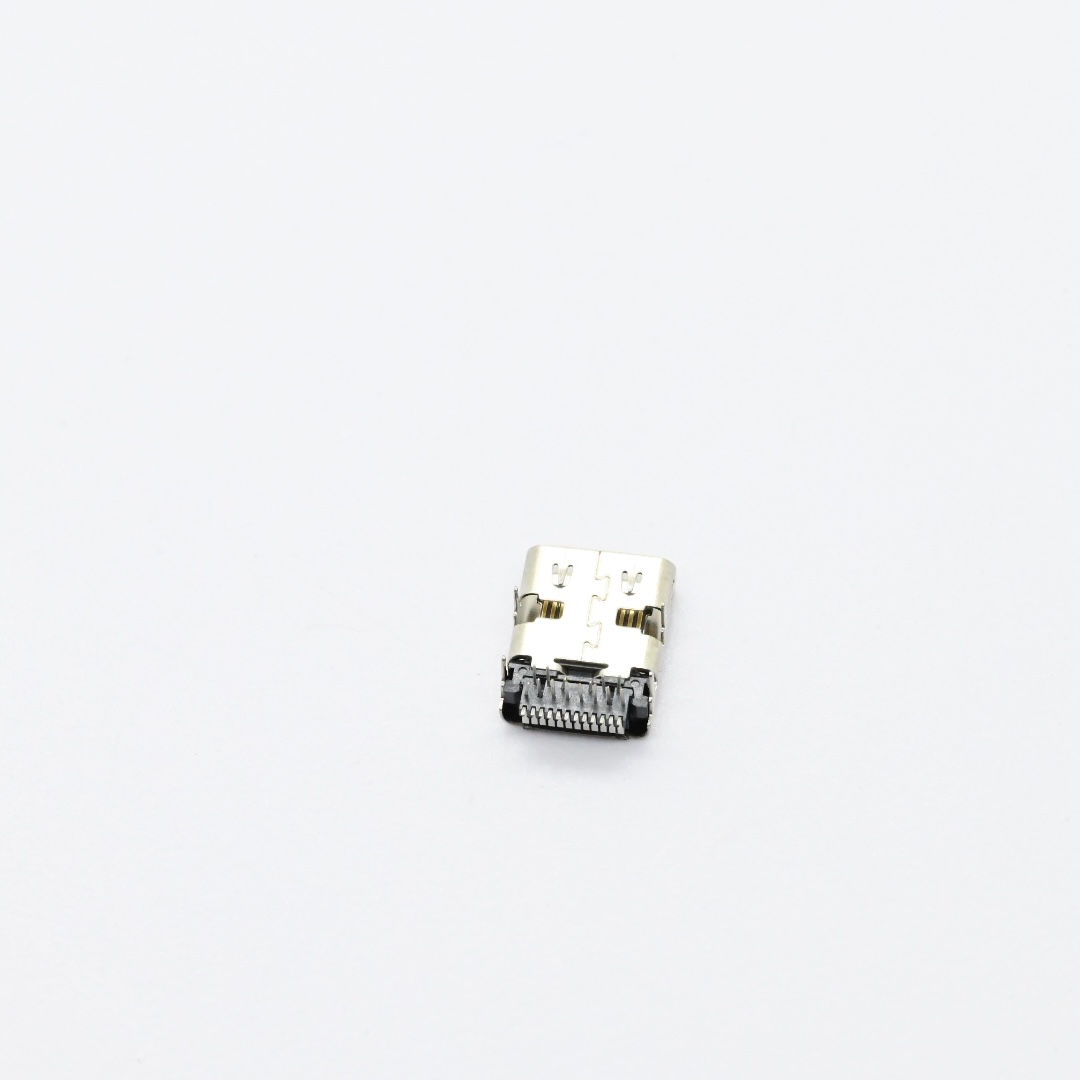

U3.1FM09-GLBGODA+USB 3.1 C TYPE Receptacle Rear Cover Type Insertion Distance 6.20MM 24P FEMALE（1）
