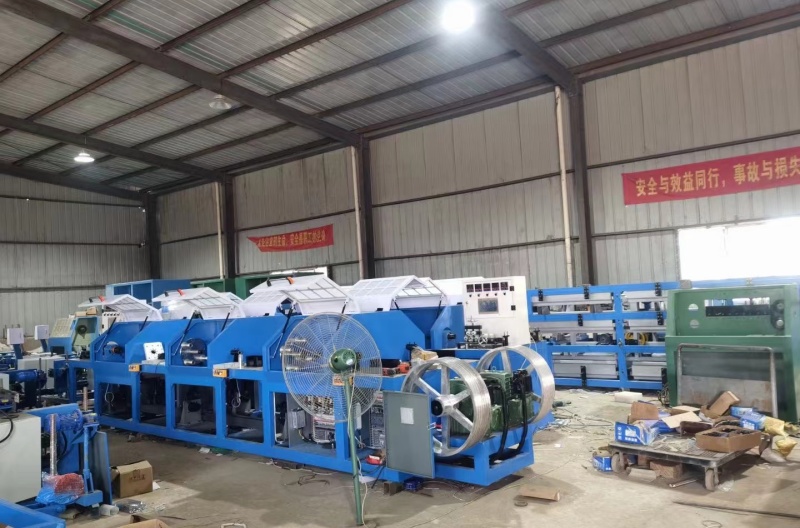

Concentric Fiberglass Taping Machine
High Speed Fiberglass Taping Machine for Industrial Use is a cutting-edge solution designed to streamline the taping process in various industrial and construction applications. This advanced fiberglass taping machine for construction offers an efficient and reliable way to apply fiberglass tape, ensuring precision, consistency, and durability. As an automatic fiberglass taping system, it significantly reduces manual labor, enhances productivity, and improves overall workflow efficiency. Whether used in large-scale manufacturing or on-site construction projects, this fiberglass tape application equipment delivers exceptional performance and ease of use.
1. Equipment Overview
One machine has two production lines, can produce double fiberglass covered wire, film double fiberglass covered wire, etc.
(1) Production Range
1) Bare wire parameter
Conductor width( b side): 3～18mm
Conductor Thickness( a side): 1～4mm
Sectional area: 3～60mm²
Width / thickness ratio: 0.4~12
Round wire diameter: 1.5~6.5mm
2) Insulation material: glass-fiber, polyester, film are suitable.
3) Glass-fiber/polyester yarn roll size:
Inner hole size: ф45mm
Roll length: 75mm
Tube length: 95mm
4) Pitch range of film taping head: 4～30
5) Pitch range of fiberglass taping head: 3～12
2. Equipment Dimension
1) Host width: 1210mm
2) Host length: 6200mm
3) Overall length: about 23000mm
4) Power: the user should provide AC380V/50HZ;
5) Total power supply: 55KW.
6) Installation: The user should tell in advance the wire and pipe laying, ground laying or aerial bridge laying.
If you are interested in the product, contact 2bvideo.com for more information for more information
