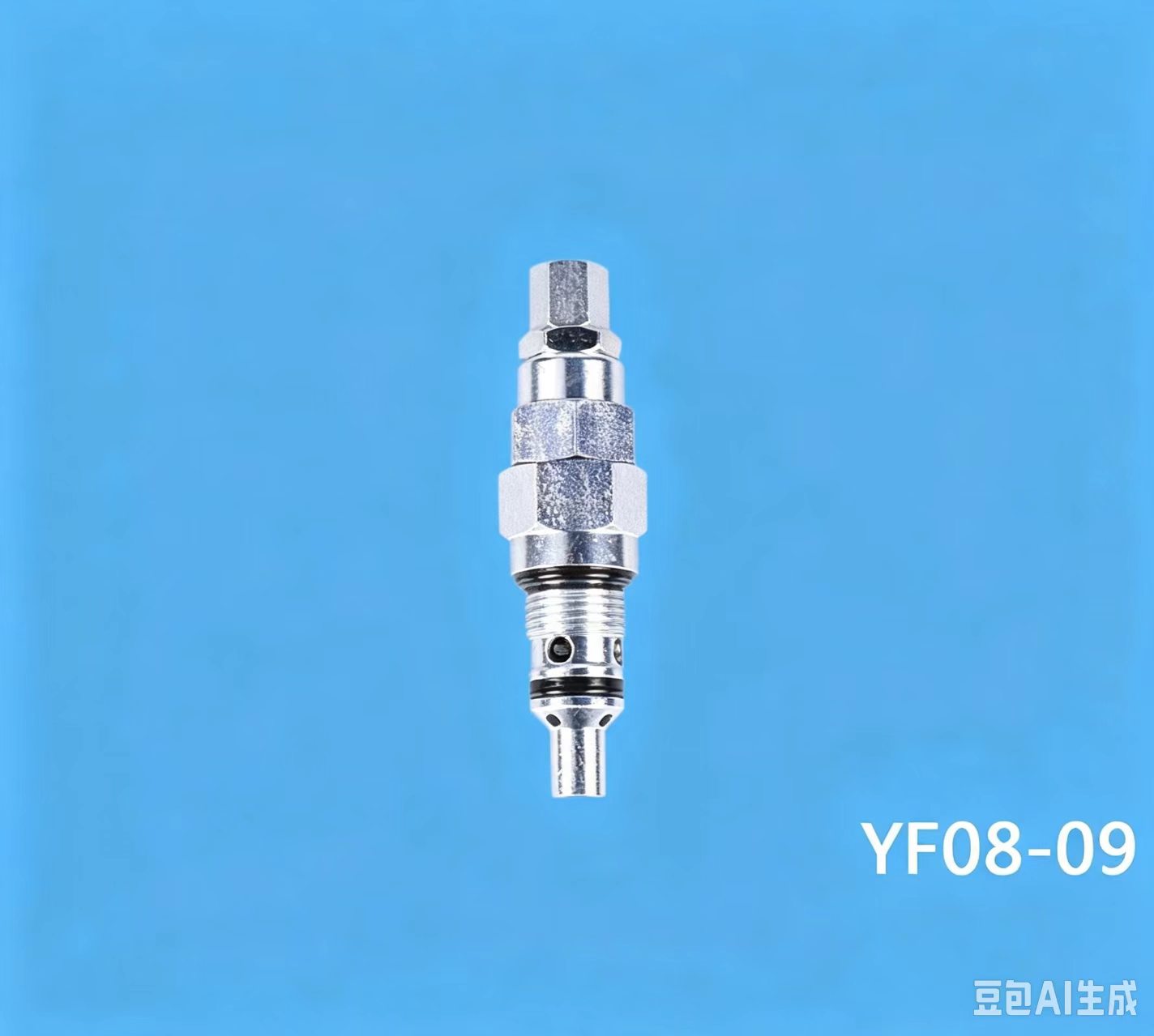

YF08-09 Threaded Cartridge Valve

1. Product Overview

YF08-09 is a direct-acting threaded cartridge relief valve of standard 08 port size, designed for compact integrated hydraulic manifold installation. It adopts screw-in mounting to save valve block space, core functions include system overload pressure limiting, peak pressure suppression and circuit constant-pressure protection. Widely used in mini excavators, small loader auxiliary oilways, portable hydraulic clamping jigs, agricultural machinery and compact hydraulic power packs, to protect pumps, cylinders and pipelines from pressure surge damage。

YF08-09 Threaded Cartridge Valve is a precision pressure control Hydraulic valve. As a screw-in CARTRIDGE VALVE, it functions as a vital safety component within the hydraulic system. This threaded CARTRIDGE VALVE can be directly screwed into integrated manifold blocks, eliminating messy external pipelines and optimizing layout to make the whole hydraulic system compact and simplified. This Hydraulic valve undertakes pressure limiting and overflow tasks to avoid pressure overload and ensure secure operation of the hydraulic system

2. Core Technical Specifications

Parameter Specification

Mounting Cavity Standard 08-size threaded cartridge hole (SAE 08 common cavity)

Nominal Working Pressure 21 MPa (210 bar), peak withstand pressure up to 35 MPa (350 bar)

Max Applicable Flow 35 L/min

Adjustable Pressure Range 4–35 MPa (tunable via the top adjustment screw, lockable after setting)

Seal Material Oil-resistant nitrile rubber (NBR)

Recommended Hydraulic Oil ISO VG32 / VG46 anti-wear mineral hydraulic oil

Operating Temperature -30℃ ~ 110℃

Installation Direct screw-in mounting for standard 08-series valve manifolds

Internal Leakage ≤0.25 mL/min at 80% set pressure (low-leakage poppet sealing)

3. Working Principle

Under normal operating pressure, the preset spring presses the precision poppet tightly against the seat to close the overflow passage. When inlet hydraulic pressure exceeds the calibrated spring threshold, fluid force pushes the poppet open, diverting excess flow back to the tank to cap the maximum system pressure. Once pressure drops below the set value, the spring automatically resets the poppet and cuts off overflow. The hardened poppet sealing structure reduces internal leakage, realizing stable long-term pressure control and fast response to pressure fluctuations。

4. Key Advantages

1. Compact threaded layout fits narrow valve blocks, ideal for modular stacking of mini hydraulic circuits

2. External adjustable structure supports quick on-site pressure tuning, the adjustment knob can be locked to avoid accidental shift

3. Hardened valve core delivers outstanding abrasion & vibration resistance, adapting to harsh outdoor construction and farm operating environments

4. Universal 08-size cavity is interchangeable with mainstream brands for easy part replacement and maintenance

5. Aging-resistant NBR seals extend service intervals, cut daily maintenance workload and long-run operating costs

5. Typical Applications

- Overload safety protection for portable hydraulic jacks, clamping fixture loops

- Auxiliary circuit pressure limiting for mini excavators, compact loaders and agricultural machinery

- Pressure stabilization for small electric/manual hydraulic power units

- Peak pressure buffering for small cylinder drive hydraulic systems
