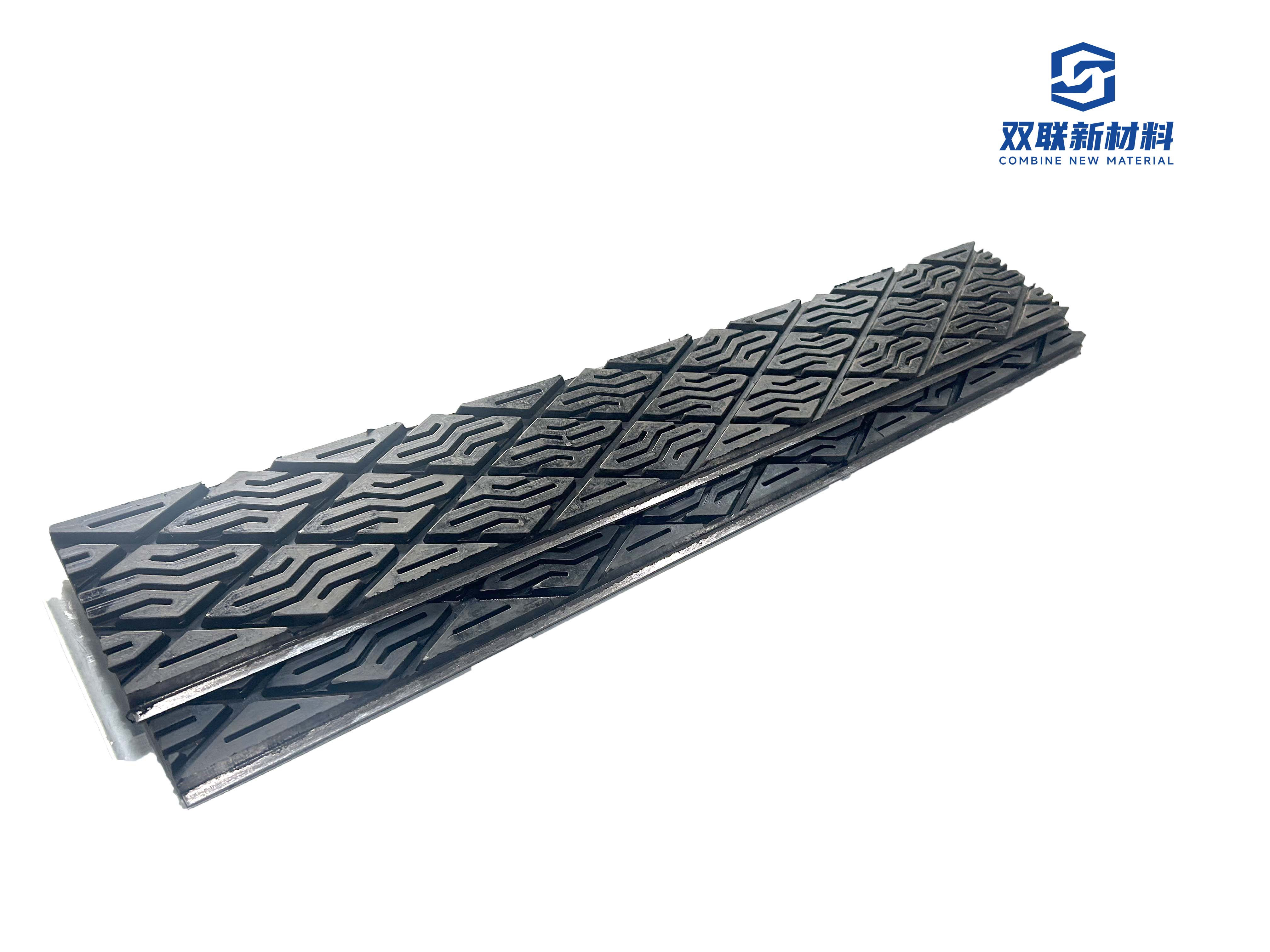

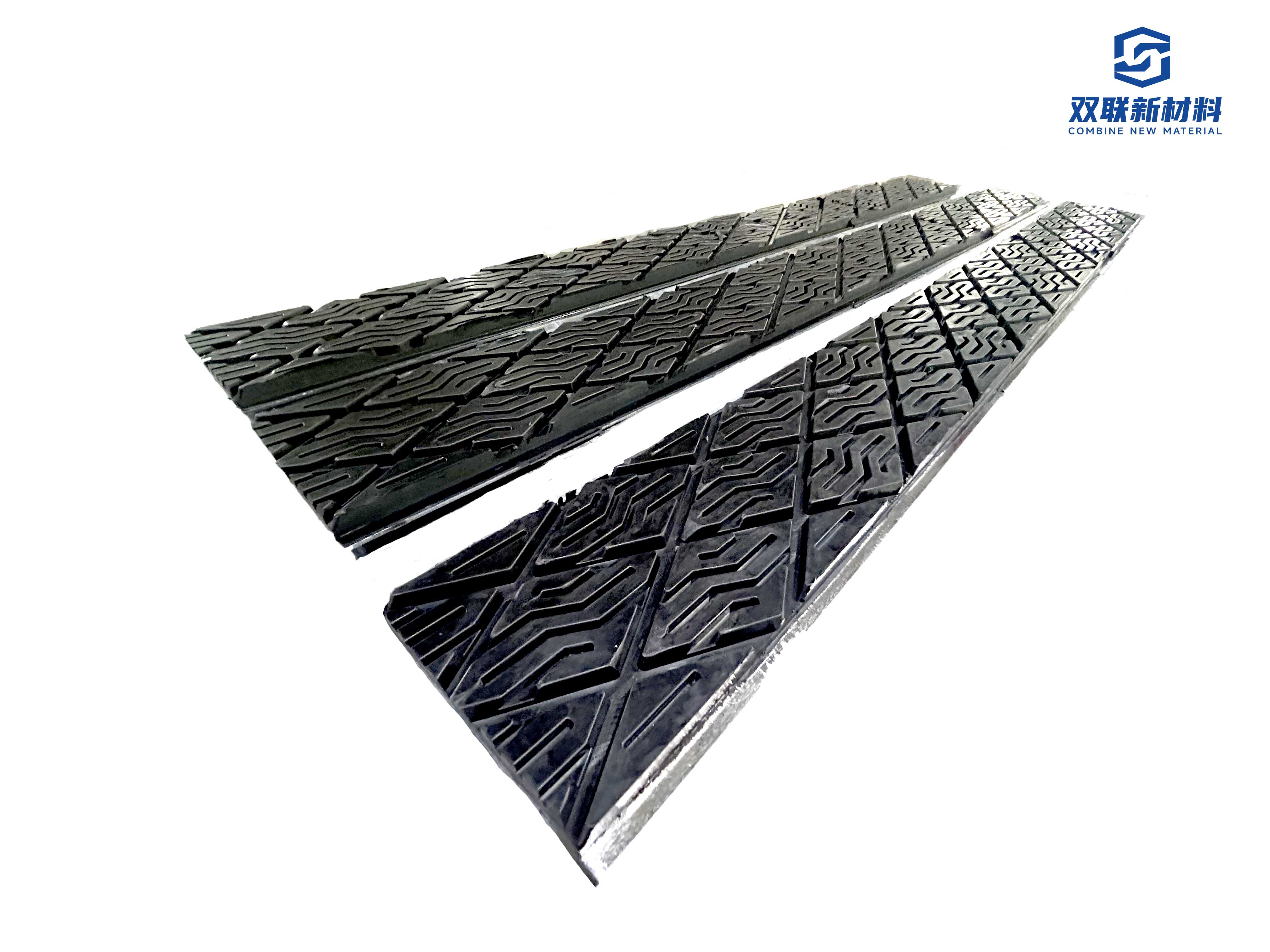

Replaceable Rubber Pulley Lagging is a high-performance wear protection solution designed for conveyor belt systems, conveyor pulleys, and heavy-duty material handling applications. It features a modular rhombic rubber plate design, providing excellent traction, wear resistance, and belt tracking performance while allowing convenient replacement when the lagging surface is worn.
The product uses a high-quality rubber compound with a 13 mm rubber thickness and a 2 mm steel plate. The rhombic surface pattern increases friction between the pulley and conveyor belt, helping reduce belt slippage and improve driving efficiency. The modular design also makes maintenance and replacement easier than traditional bonded pulley lagging.

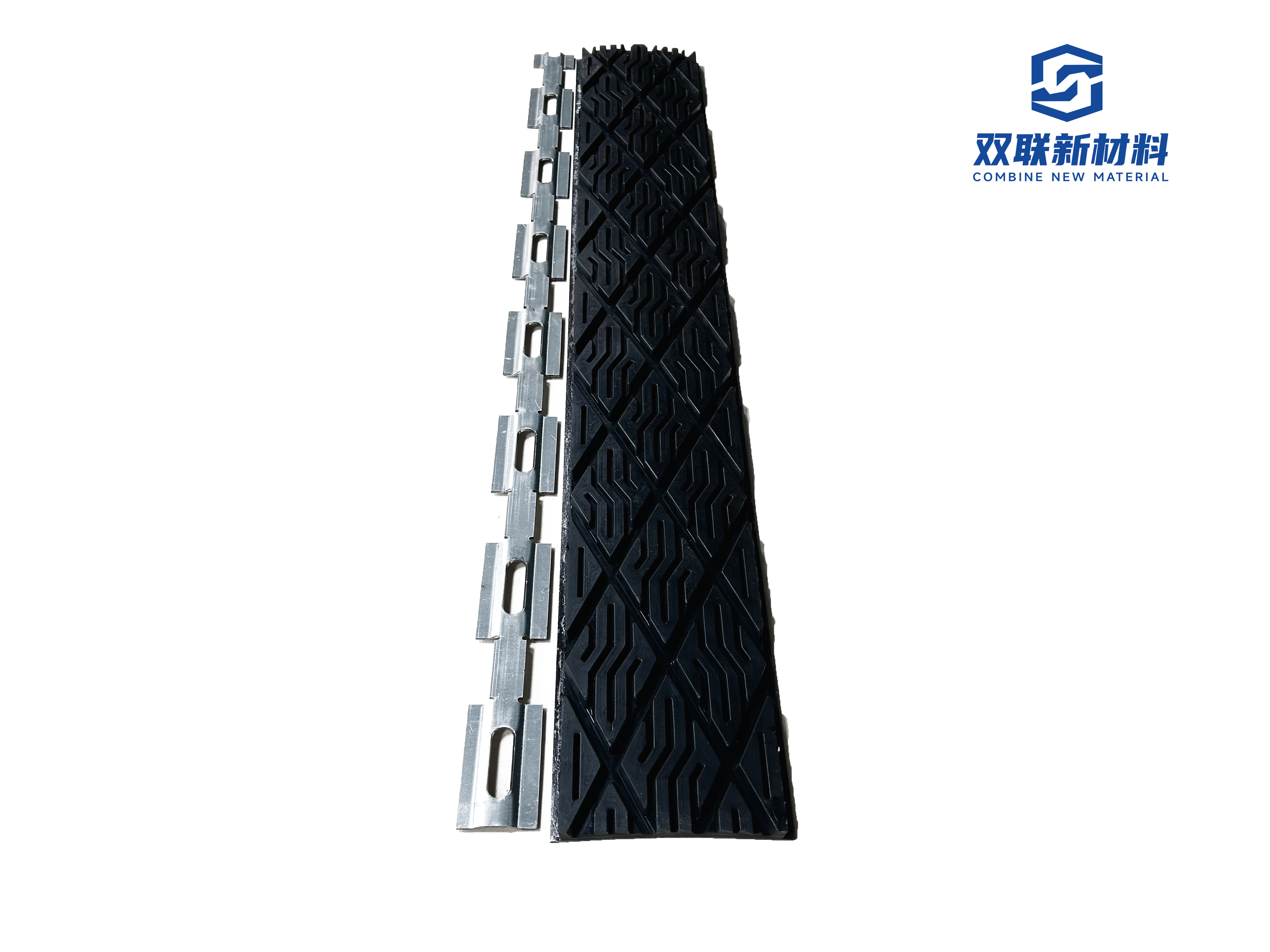

The rhombic rubber plate is combined with an insert strip and pressure bar to form a reliable composite liner structure. With a 13.8 mm insert strip width and 45 mm pressure bar width, the system provides secure mechanical fixing and stable operation under demanding working conditions.
This rhombic rubber sheet design is suitable for conveyor pulley applications where high traction, wear resistance, and easy maintenance are required. Compared with conventional smooth rubber sheet solutions, the rhombic pattern provides improved friction and better contact with the conveyor belt.
| Item | Specification |
|---|---|
| Product Name | Replaceable Rhombic Rubber Pulley Lagging |
| Type | Rubber Pulley Lagging / Composite Liner |
| Rubber Thickness | 13 mm |
| Steel Plate Thickness | 2 mm |
| Insert Strip Width | 13.8 mm |
| Pressure Bar Width | 45 mm |
| Surface Pattern | Rhombic |
| Installation | Welding Fixing |
| Design | Customizable |
Replaceable Design – Individual lagging sections can be replaced when worn, reducing maintenance time and costs.
High Traction – The rhombic pattern provides excellent friction between the pulley and conveyor belt.
Wear Resistance – High-quality rubber provides reliable protection against abrasion during continuous operation.
Improved Belt Grip – Helps reduce belt slippage and improve power transmission efficiency.
Easy Maintenance – The modular design allows convenient replacement of worn sections.
Customizable – Dimensions, pattern configuration, and overall design can be customized according to pulley specifications.
Reliable Fixing – Welding fixing provides a secure connection for demanding conveyor applications.
Replaceable Rubber Pulley Lagging is widely used on conveyor systems in:
Mining
Coal handling
Steel plants
Cement plants
Power plants
Ports and terminals
Aggregate processing
Bulk material handling
It is suitable for drive pulleys, bend pulleys, head pulleys, tail pulleys, and other conveyor pulleys requiring improved traction and wear protection.

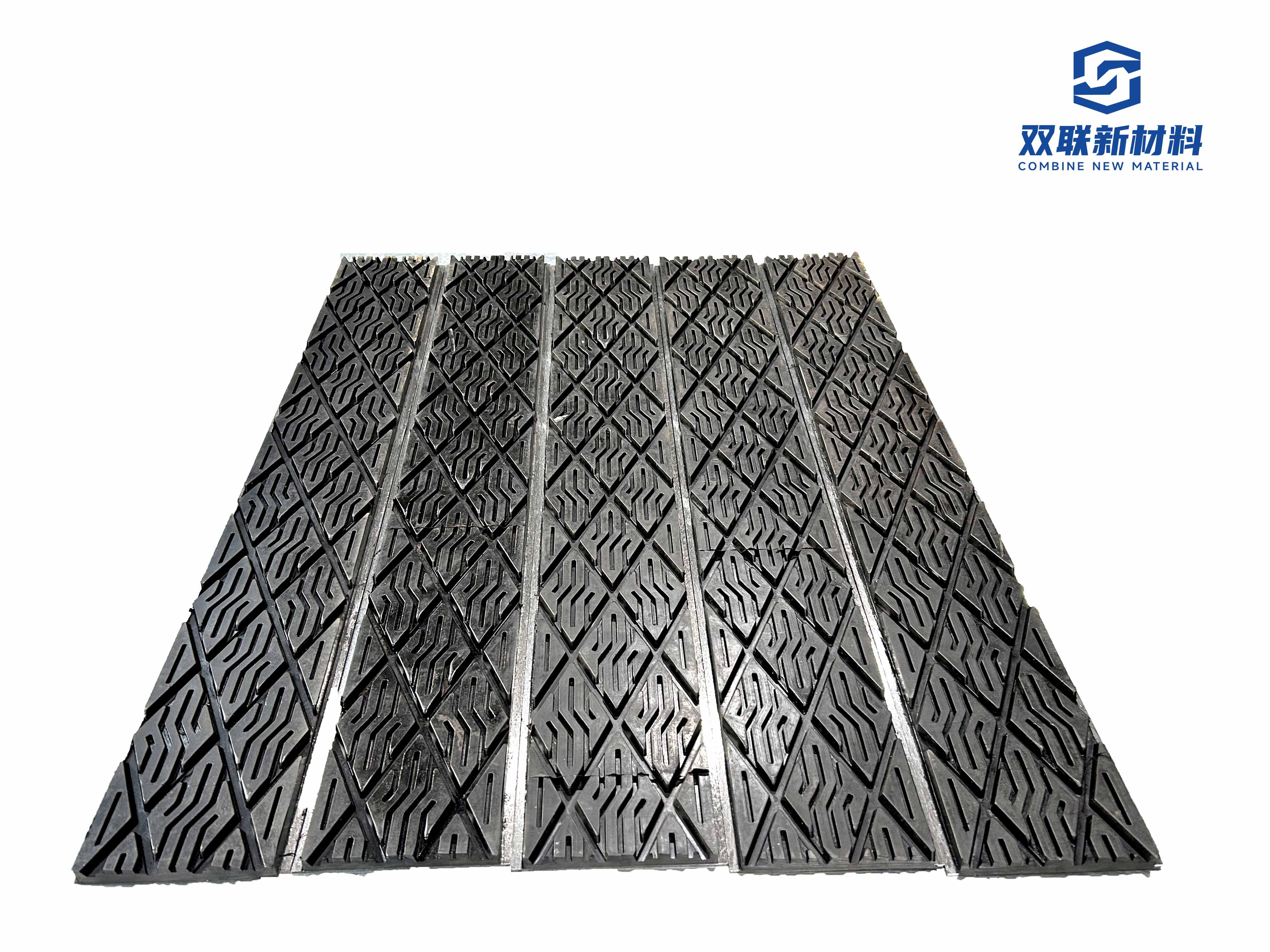

The combination of rhombic rubber plate, steel support, insert strip, and pressure bar creates a durable composite liner solution for heavy-duty conveyor systems. The rhombic rubber sheet surface improves friction and helps maintain stable contact with the conveyor belt, while the replaceable design simplifies maintenance.
High Wear Resistance · Excellent Traction · Replaceable Design · Reliable Fixing · Customizable Dimensions · Long Service Life
