Shantui official SE245LC hydraulic excavators and diggers prices in japan
The SHANTUI SE245LC combines speed, efficiency, and power. Designed especially for small mine operations, it can travel powerfully on rugged and gradient roads, featuring higher working condition adaptability, higher digging height, larger digging radius, flexible and smooth controls, and high mine working efficiency
| Engine | Model | Cummins QSB7 |
| Type |
High pressure and common rail, water cooling, in-line ,6 cylinders, turbocharging |
|
| Quantity of cylinders | 6 | |
| Bore x stroke | 107 X 124 mm | |
| Displacement | 6.7 L | |
| Power output | 150 kW/2050 rpm | |
| Maximum torque | 825N.m | |
| Hydraulic System | Pump | Imported |
| Type | Variable piston pump | |
| Maximum discharge flow | 238x2+19 L/min | |
| Travel System | Travel motor | Variable axial piston motor |
| Travel brakes | Lubricated double-disc | |
| Parking brake | Pressure release | |
| Travel shoes | 2 x51 | |
| Travel speed | 3.5/5.1 km/h | |
| Drawbar pulling force | 274kN | |
| Gradeability | 70% | |
| Minimum ground clearance | 465mm | |
| Oil Capacity | Fuel tank | 330 L |
| Cooling system | 28 L | |
| Engine oil | 22 L | |
| Hydraulic oil tank | 270L | |
| System capacity | 400 L | |
| Swing System | Brake | Pressure Release Mechanical Braking |
| Swing speed | 11 rpm | |
| Tail swing radius | 3000 mm | |
| Arm digging force | 115(RA)/125(RB) KN | |
| Bucket digging force | 160(RA)/172(RB) KN | |
| Bucket | Bucket capacity | Backhoe bucket 1.2 m3 (SAE) |
| Number of bucket teeth | 5 | |
| Bucket width | 1424 mm | |
| Arm length | 3.045 m | |
|
Maximum digging reach/ Maximum digging reach at ground level |
10.2 m/10.015 m | |
| Maximum digging depth/height | 6.864 m/10.18 m | |
| Maximum dumping height | 7.2 m | |
| Minimum swing radius | 3.276 m |
Increased productivity

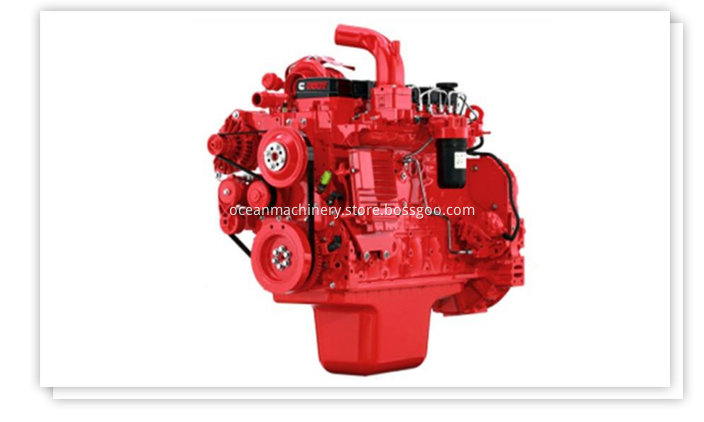

Confidence comes from power. Equipped with Cummins QSB7 engine, SHANTUI SE245LC offers a precise combination of lower engine speed and large hydraulic pump pressure and flow delivers more work per unit of fuel.
Designed for Operators

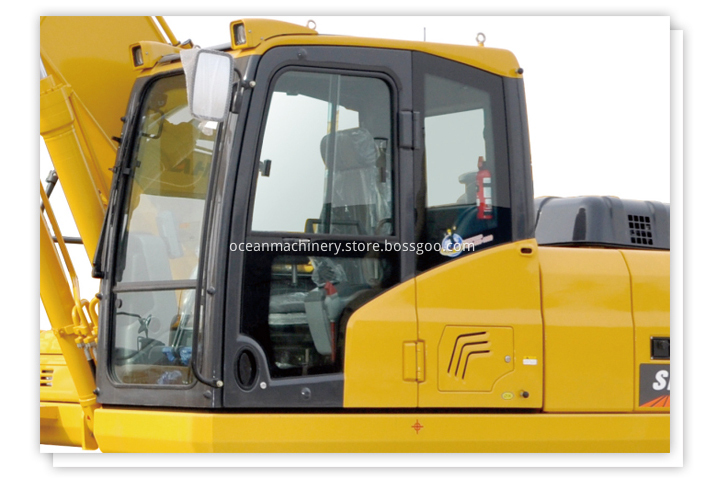

The full size ROPS certified cab is quiet and comfortable. Fully adjustable suspension seat can maximize comfort levels and reduces operator fatigue.
ROPS and FOPS certified cab provides a safe work environment. The hydraulic activation level locks out all the hydraulic functions. Enter and exit the cab and walk on the upper structure safely with handrails, anti-skid plating and countersunk bolts which are meant to reduce slipping and tripping. Rear-view camera is also optional to protect working from all around.
It will be work smoothly together with our bulldozers wheel loaders ,motor graders ,road rollers etc.
