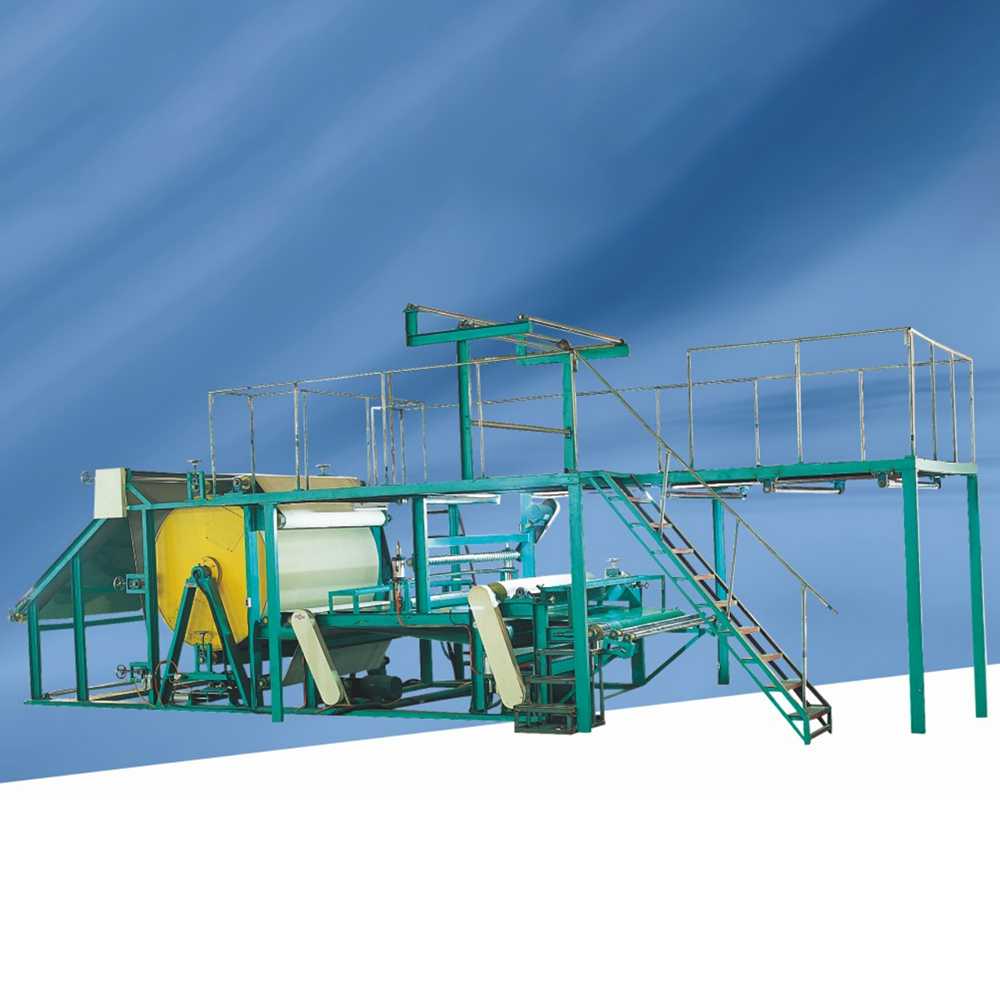

Industrial Neoprene SBR CR Laminating Machine

Keep Flexible Materials Under Control

The Industrial Neoprene SBR CR Laminating Machine uses spreading rollers to open the fabric on the upper platform, while a conveyor belt carries the SBR forward. This feeding arrangement helps keep the material from stretching too much before bonding, which is especially useful when working with elastic rubber and fabric layers.

Item	Specification 1	Specification 2
Drum diameter * width	Φ1500 × 1800mm	Φ2000 × 1800mm
Fit speed	0‑40m/min	0‑40m/min
Heater power	32KW	36KW
Total motor power	11.5HP	11.5HP
Overall dimensions (L × W × H)	9000 × 2400 × 2200mm	9000 × 2400 × 2300mm

This setup suits Laminating Machines for rubber shoe material as well as SBR and fabric bonding for wetsuits, diving products and sports goods. It gives manufacturers a practical way to handle flexible materials without putting unnecessary tension on the layers during feeding.

Pneumatic Rollers and Adjustable Glue Coating

The glue coating unit has a fine adjustment mechanism, allowing the operator to control adhesive application according to the material and bonding requirement. Two sets of laminating rollers are placed before heating to press the layers together, while pneumatic pressure rollers make pressure adjustment easier during operation.

The machine can therefore be used as a Pneumatic Neoprene Laminating Machine for SBR, CR and fabric bonding. With a working speed of 0-40 m/min, it is also suitable for continuous production where adhesive coverage and roller pressure need to remain consistent.

Two Working Widths for Different Production Lines

The machine is available with two drum specifications: Φ1500 × 1800 mm and Φ2000 × 1800 mm. Heater power is 32 kW and 36 kW respectively, while both models use an 11.5 HP total motor power. The overall dimensions are 9000 × 2400 × 2200 mm and 9000 × 2400 × 2300 mm.

For wider material rolls or higher-volume production, customers can consider a large laminating machine or large laminator configuration. The equipment can also be used as an industrial SBR CR fabric laminating equipment solution for footwear, sports equipment, bags and wetsuit materials.

Why Choose Guocheng Precision Hydraulic Machinery

Guocheng Precision has been manufacturing industrial machinery since 1995, with experience in equipment used for footwear, sports products, bags and other material-processing applications. For this machine, the design focuses on three practical points: keeping SBR deformation low during feeding, controlling adhesive quantity and maintaining pressure through the laminating rollers.

The two working-width options and 0-40 m/min speed give manufacturers room to match the machine with different material sizes and production volumes. If you need an industrial laminator machine for SBR, CR, neoprene or rubber-fabric bonding, Guocheng can provide a configuration based on your actual material and lamination process.
