OBD Y Cable (24V) with Kia OBD Female, Molex 20P & BMW 10P Connector

2 month ago

4 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

Shenzhen Fubang Wiring Harness Co., Ltd. specializes in the design, development and volume production of custom automotive wiring harness assemblies for aftermarket vehicle services and diagnostic hardware manufacturers. Relying on standardized production workflows and comprehensive electrical verification processes, we focus on developing differentiated multi-branch wiring solutions that adapt to complex vehicle testing scenarios. Our engineering team can carry out targeted harness development strictly based on customer technical drawings, pin definitions and assembly requirements, supporting sample verification and mass production for global automotive industry clients.

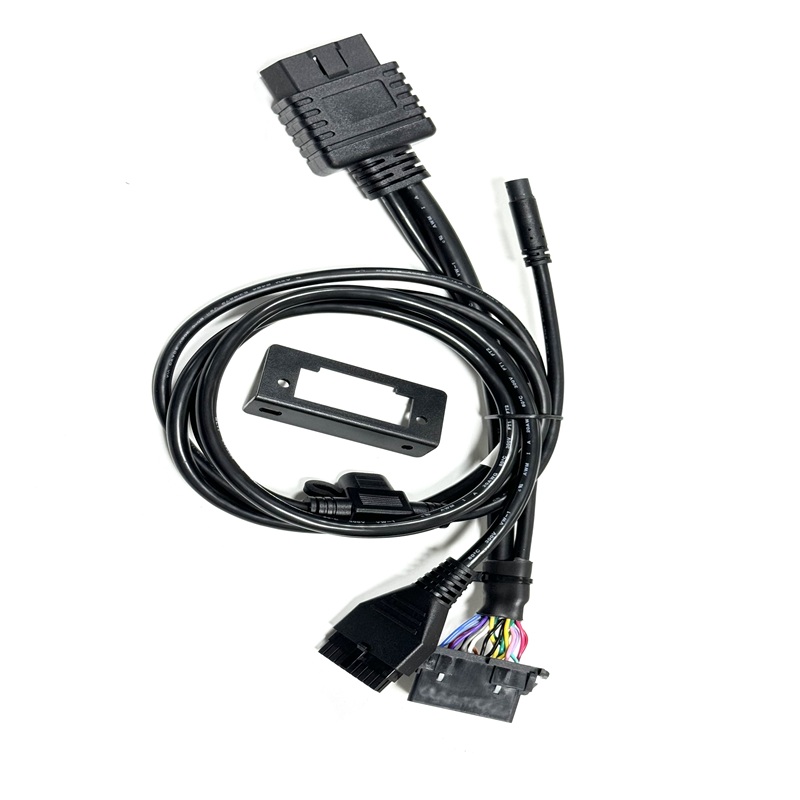

OBD Y Cable (24V) with Kia OBD Female, Molex 20P & BMW 10P Connector

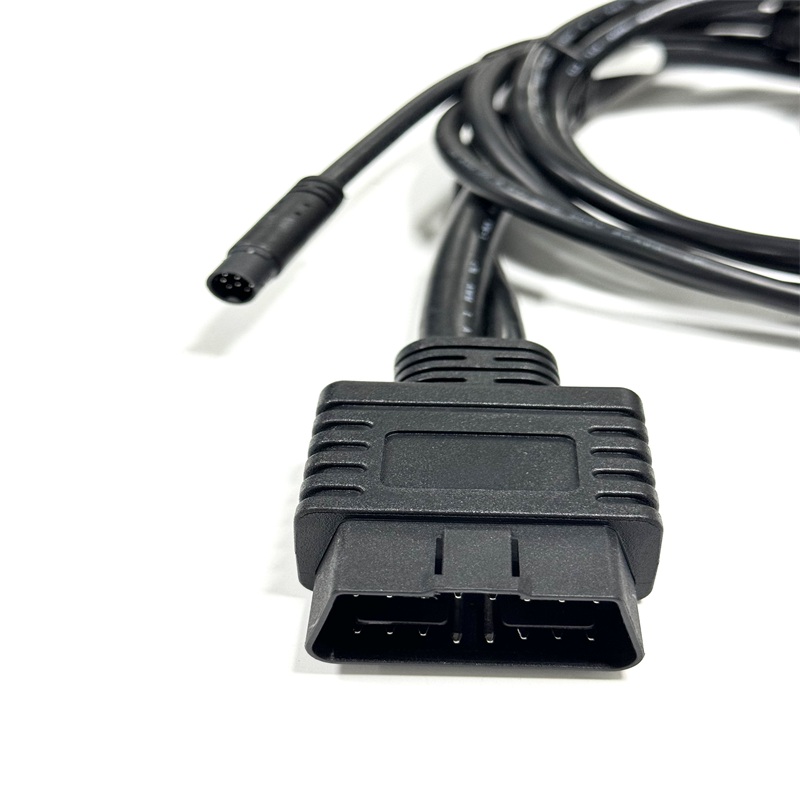

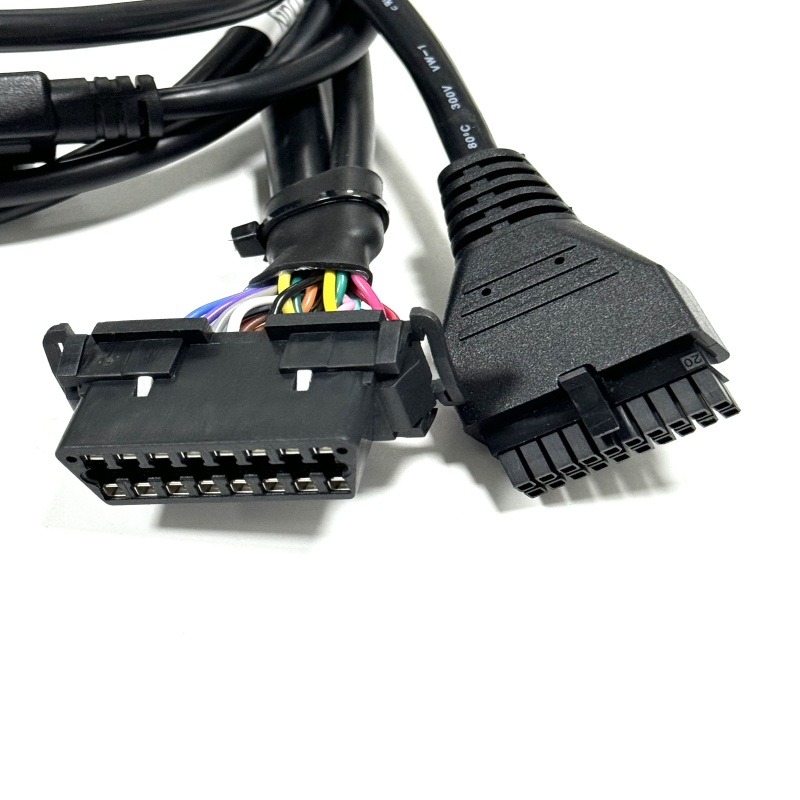

Designed for cross-brand vehicle diagnostic operations, this Y-split multi-port OBD diagnostic cable breaks the limitation of traditional single-channel diagnostic wires. Acting as a multi-interface conversion OBD diagnostic adapter, this harness converges OBDII 16P male, Kia OBD female, BMW 10P male and Molex 20P connectors within one integrated wiring assembly. It enables technicians to switch between multiple vehicle protocols without frequently replacing connecting cables, greatly streamlining daily vehicle inspection workflows.

Item	Description
Product Name	OBD Y Cable (24V) with Kia OBD Female, Molex 20P & BMW 10P Connector
Type	Automotive Diagnostic OBD Wiring Harness
Voltage	DC 300V 10MS, 24V Automotive Application
Pins Material	Nickel-Plated Brass Terminals
Plug Material	PA66 Nylon Automotive Grade Connector Housing
Working Temperature	-40℃ ~ +105℃ Or Customized
Length	1000±30mm / 300±20mm, Custom Length Available
Minimum Insulation Resistance	≥10MΩ%
Maximum Conduction Resistance	≤2Ω
Accessories	OBDII 16P Plastic Mount Bracket (Black)
Application Fields	Automotive diagnostic equipment, vehicle ECU testing, car modification, on-board electronic equipment connection, Kia/BMW vehicle diagnostic wiring projects
Specific Shipping Cost	Please Contact Us

Built with UL-certified automotive PVC cables and nickel-plated brass contact terminals, this robust vehicle diagnostic OBDII cable delivers stable anti-interference signal transmission during long-duration ECU data reading and fault code scanning. Each finished harness passes full 100% electrical testing to eliminate open circuits, short circuits and miswiring. The product complies with DC 300V test standards, featuring insulation resistance ≥10MΩ and conduction resistance ≤2Ω to guarantee consistent performance under continuous working conditions.

Supplied with a dedicated black OBDII plastic mounting bracket, the harness supports neat fixed installation within vehicle interiors. Unlike ordinary straight diagnostic cables that only support one-to-one connection, this multi-way branched wiring harness realizes simultaneous access to Kia and BMW vehicle diagnostic interfaces. It serves as an ideal accessory for auto repair garages, diagnostic scanner brands and vehicle ECU modification projects.

All raw materials meet RoHS environmental compliance requirements. Beyond the standard dimensions shown on the drawing, we offer flexible customization covering cable length, wire gauge, pin assignment and connector configuration. Feel free to share your technical documents if you require custom harness samples and commercial quotations.
