1.27mm Straight Full Plastic Male Plug

1.27mm Straight Full Plastic Male Plug

2 week ago

1 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Huizhou Antenk Electronics Co., Ltd. manufactures HPZTD-MXX 1.27mm straight full plastic male plugs for stable board-to-board signal matching with supporting female receptacles, covering pin specifications ranging from 20P to 100P and adopting unified dimensional calculation formula 1.27xn=A±0.15 plus standardized dimensional tolerances, with split mounting hole layouts separately designed for 30P 50P and other pin counts to achieve precise PCB through-hole assembly. This male plug adopts black LCP plus 30 percent glass fiber insulator with outstanding heat resistance, internal pins are made of durable phosphor bronze and equipped with multiple selective gold plating options including 15u and 30u gold to adapt to different plugging cycle frequencies, electrically rated for 1A maximum working current, 500 megohms minimum insulation resistance, 35 milliohms maximum contact resistance and 500V AC one minute dielectric withstand voltage, operating stably from minus 40 degrees Celsius to plus 105 degrees Celsius and fully complying with HSF lead-free and RoHS environmental standards. This compact full plastic male plug is widely applied in liquid crystal display modules, digital cameras, communication equipment, industrial control panels, portable storage devices, digital household appliances, electronic toys, computer peripherals, automotive electronic assemblies and precision measuring instruments that need matched multi-pin board connection. Operators should select proper pin count and gold plating thickness according to circuit signal transmission demands, conduct standard PCB soldering strictly following official layout drawings, avoid strong squeezing force to prevent LCP housing cracking and phosphor bronze pin deformation, and store finished plugs in dry sealed packaging to delay gold plating oxidation. Different from competitors who outsource mold development and metal stamping Antenk implements a complete independent production flow including self-designed plastic and metal precision mold production, high-speed phosphor bronze pin stamping, high temperature LCP injection molding, selective gold electroplating and full environmental reliability laboratory testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications and meeting REACH global environmental regulations. We own more than two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide customizable pin numbers plating standards and structural sizes, offer round-the-clock professional engineering technical support, and over seventy percent of our male plug products are exported worldwide relying on our Guangdong Famous Trademark ANTENK and stable consistent mass production quality.

High Temp LCP Male Plug Housing delivers reliable flame retardant and heat resistant performance under long duration high temperature operating environments.

Multi-Grade Selective Gold Pin maintains low contact resistance and stable signal transmission for frequent plug and unplug cycles.

20P-100P Full Plastic Board Plug covers all mainstream multi-pin specifications to match diverse PCB board-to-board connection requirements.

1. Electrical Performance

1.1 Rated Current: 1AMP

1.2 Minimum Insulation Resistance: 500MΩ

1.3 Maximum Contact Resistance: 35mΩ

1.4 Dielectric Withstanding Voltage: 500V AC for 1 minute

2. Raw Material Configuration

2.1 Insulator Housing: LCP+30%G/F, black color

2.2 Contact Pin: Phosphor bronze

3. Contact Plating Specifications

3.1 S4: 15u" Selective Gold Plating

3.2 S5: 30u" Selective Gold Plating

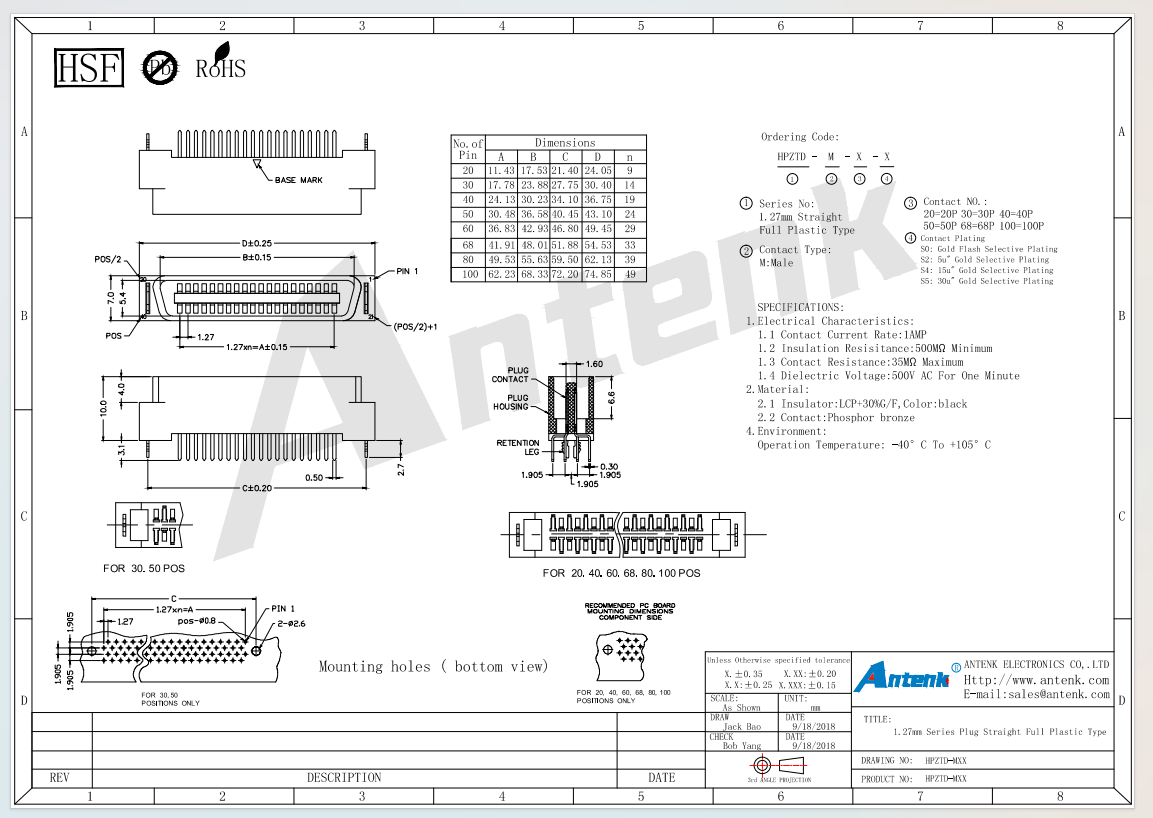

4. Dimension & Structural Parameters (Unit: mm)

4.1 Fixed Pitch: 1.27

4.2 Pin Count Options: 20P, 30P, 40P, 50P, 60P, 68P, 80P, 100P

4.3 Length Calculation Rule: 1.27 × n = A ±0.15

4.4 Dimensional Tolerance: X.XX ±0.20, D±0.25, B±0.15, C±0.20

4.5 Mounting Hole Layout: Separate layout design for 30P/50P and 20P/40P/60P/68P/80P/100P

4.6 Structure Type: Straight full plastic male board plug with retention legs

5. Environmental Working Condition

5.1 Operating Temperature Range: -40°C ~ +105°C

6. Environmental Compliance Standard

6.1 Meet HSF, Lead-free and RoHS requirements

7. Application Scopes

7.1 Liquid crystal display modules, digital cameras

7.2 Communication equipment, industrial control panels

7.3 Portable storage devices, digital household appliances

7.4 Electronic toys, computer peripheral equipment

7.5 Automotive electronic modules, precision measuring instruments

8. Operation & Storage Precautions

8.1 Select appropriate pin count and selective gold plating thickness according to circuit design

8.2 Complete through-hole soldering strictly follow official PCB layout drawing

8.3 Avoid excessive extrusion force to prevent LCP housing crack and phosphor bronze pin deformation

8.4 Store finished male plugs in dry sealed packages to prevent oxidation of gold plating surface
