Product details

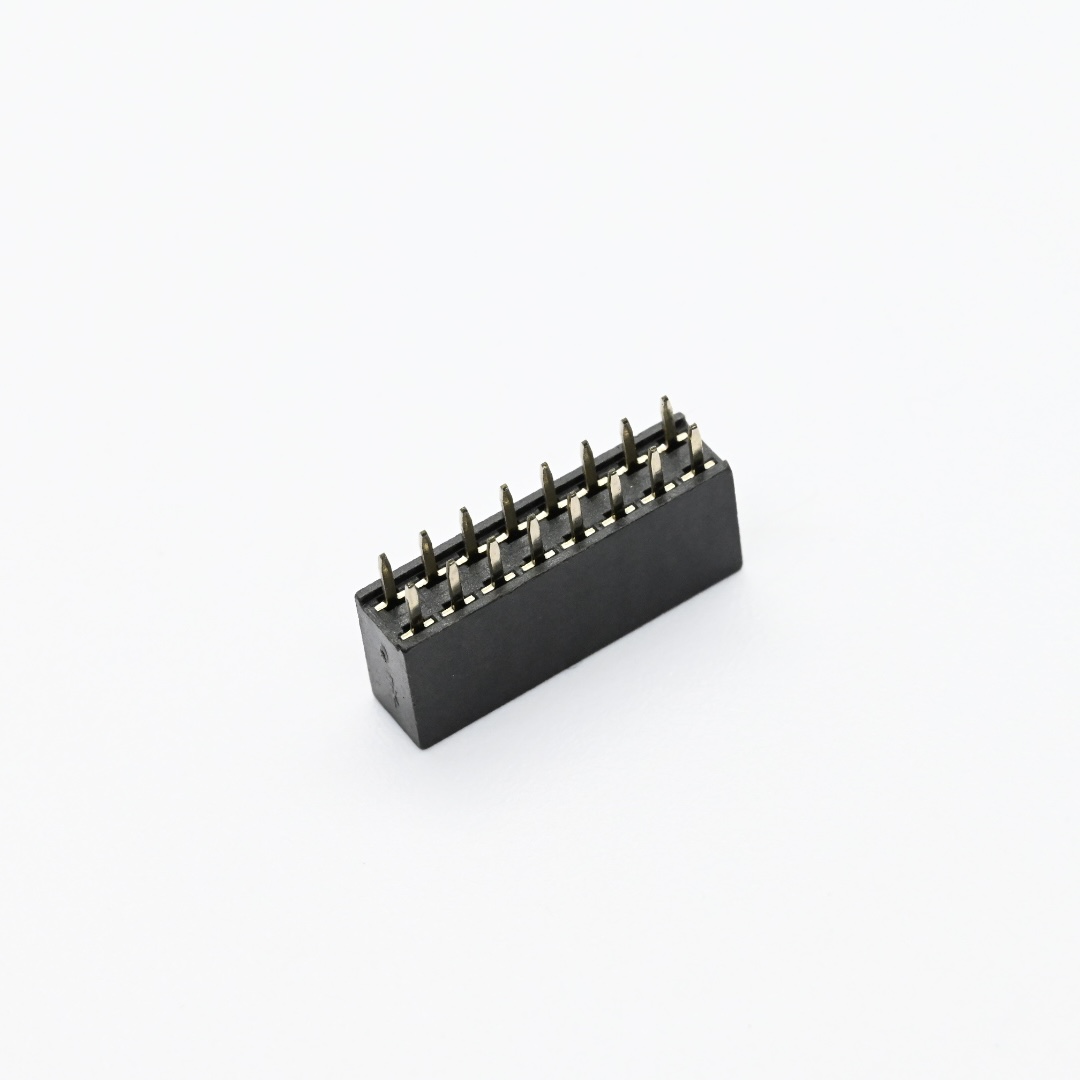

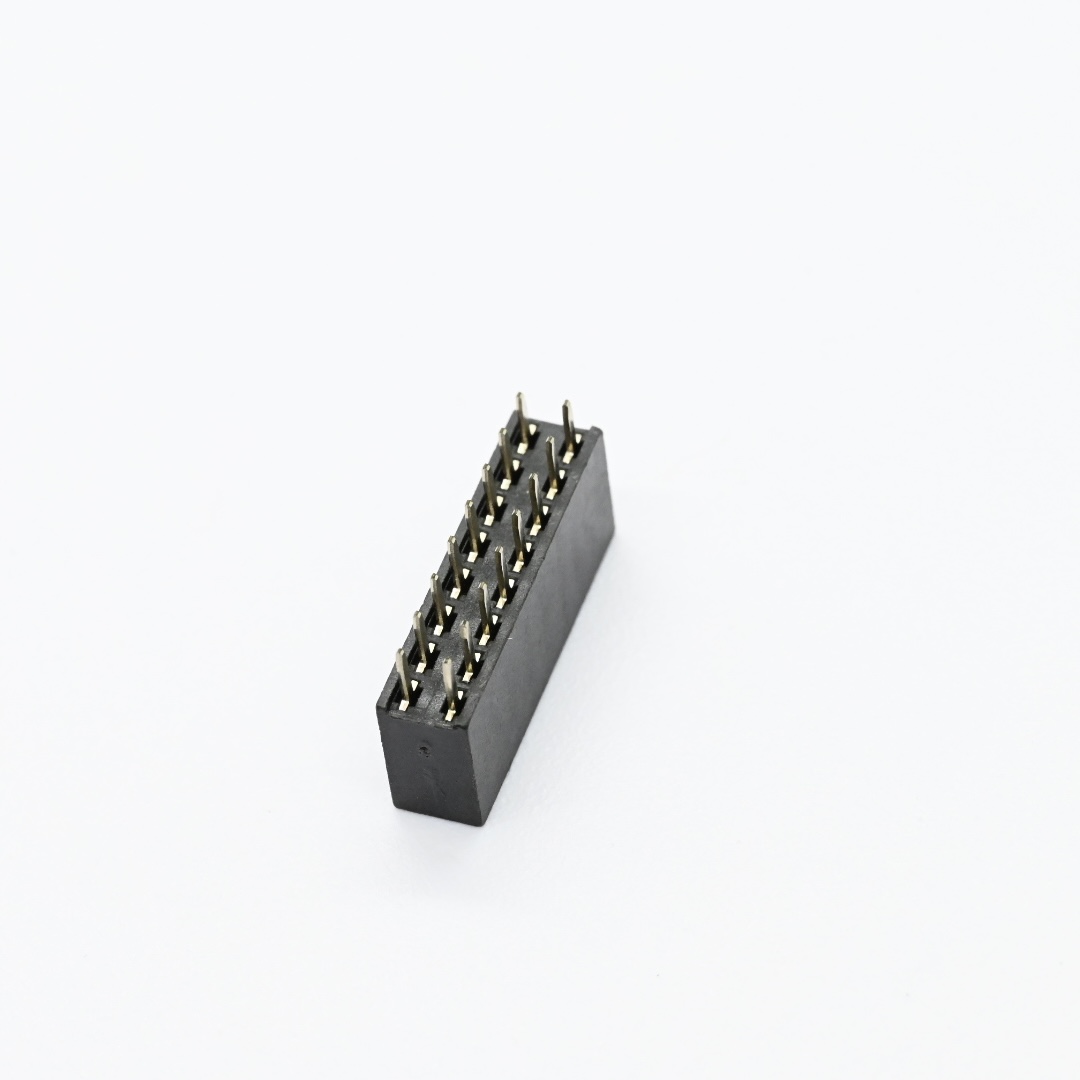

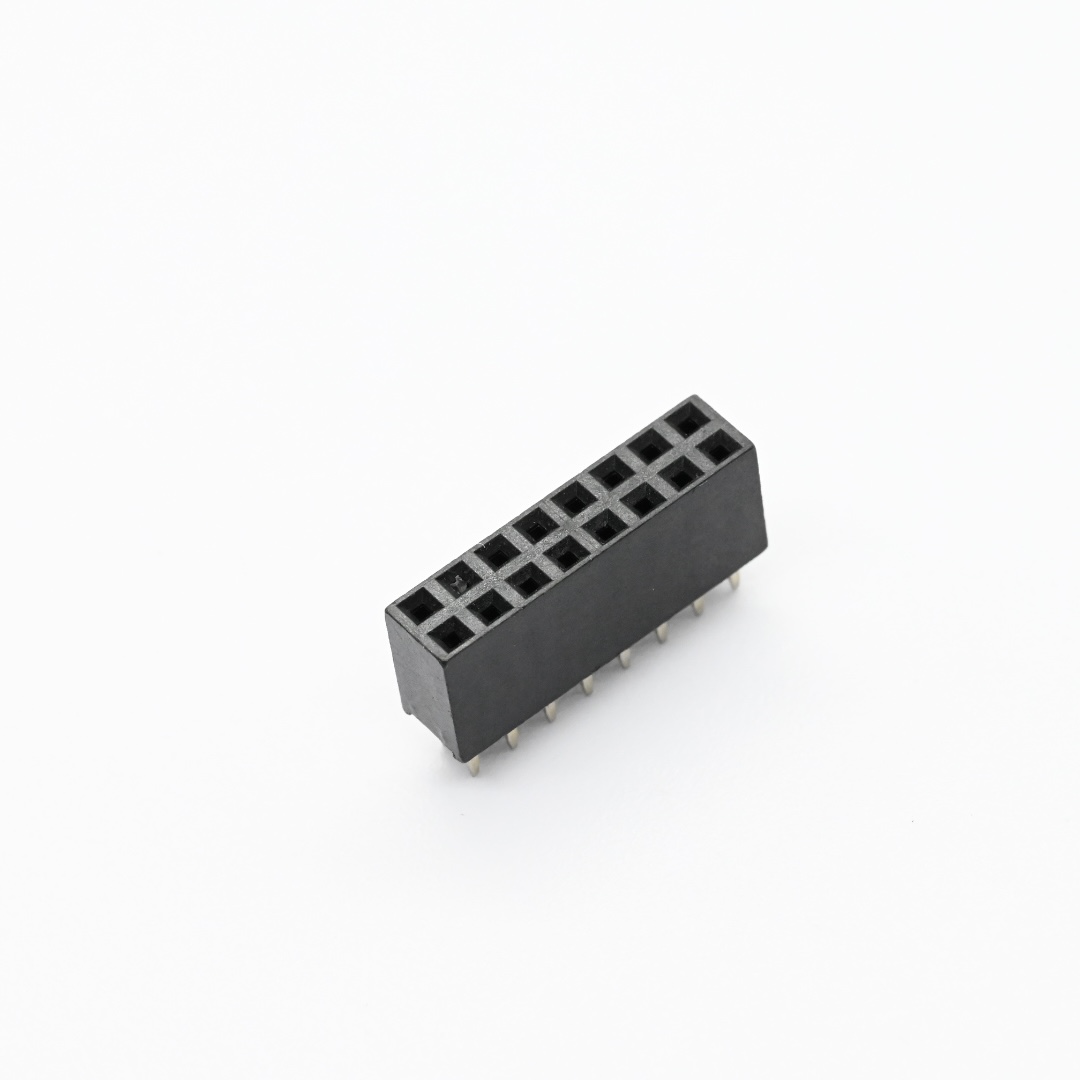

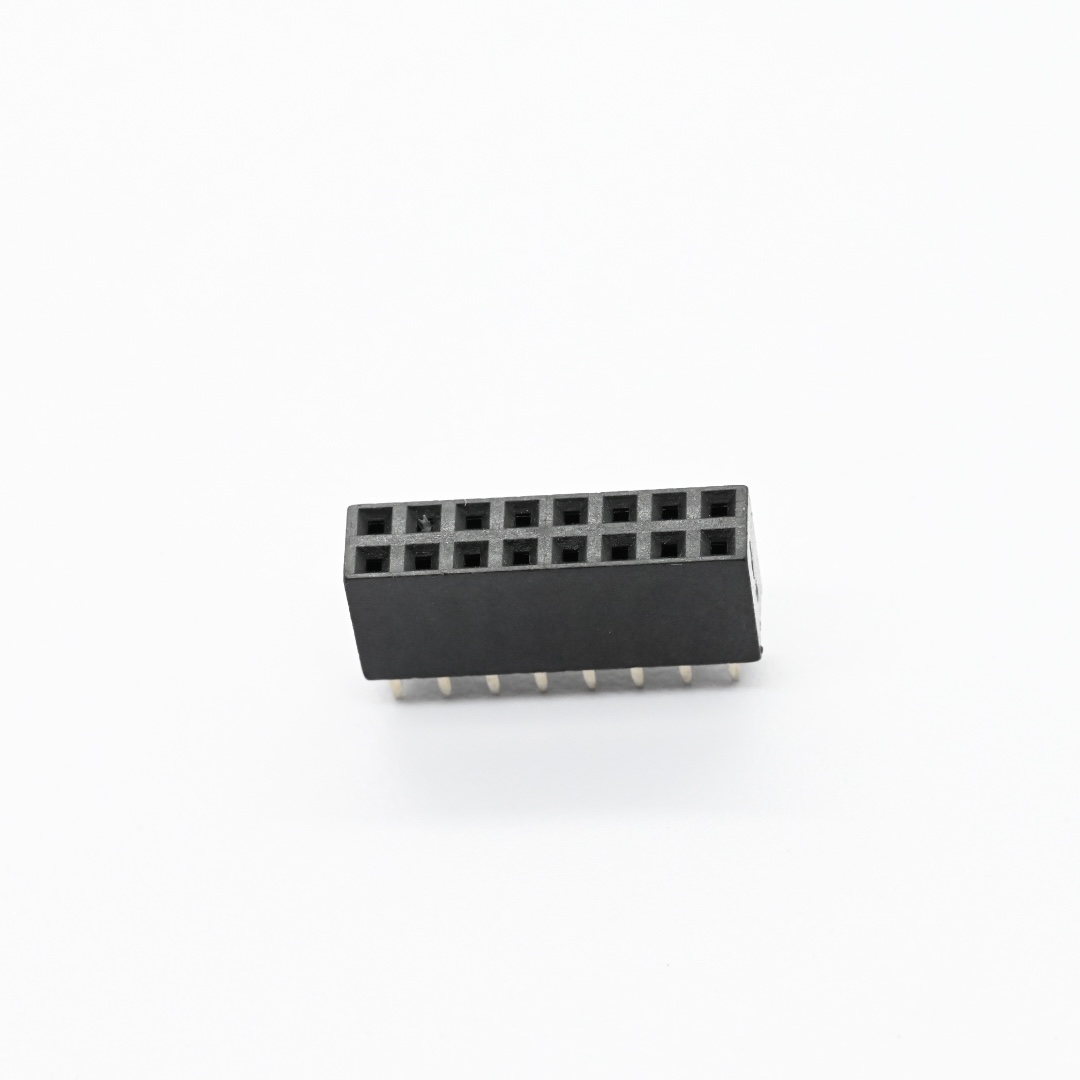

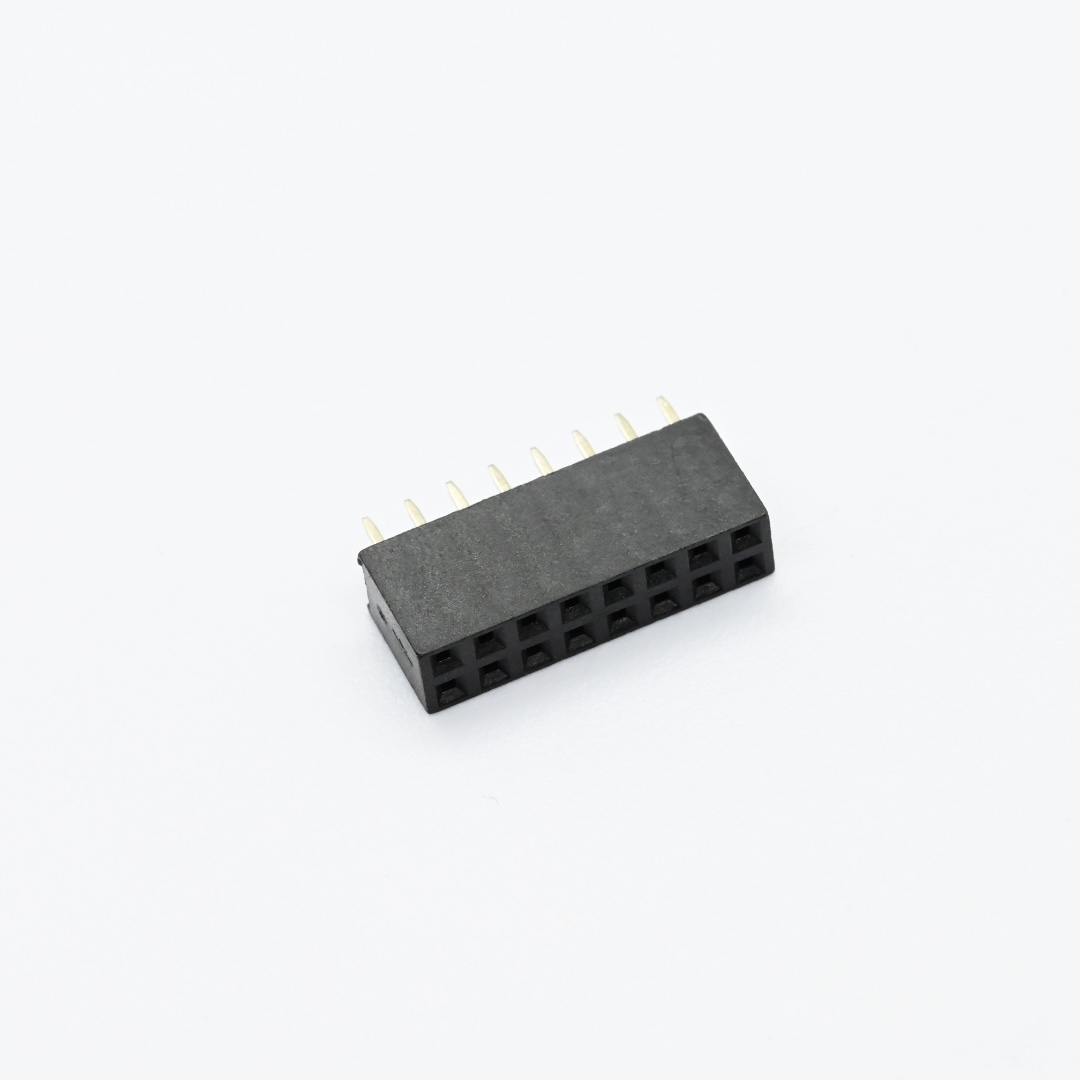

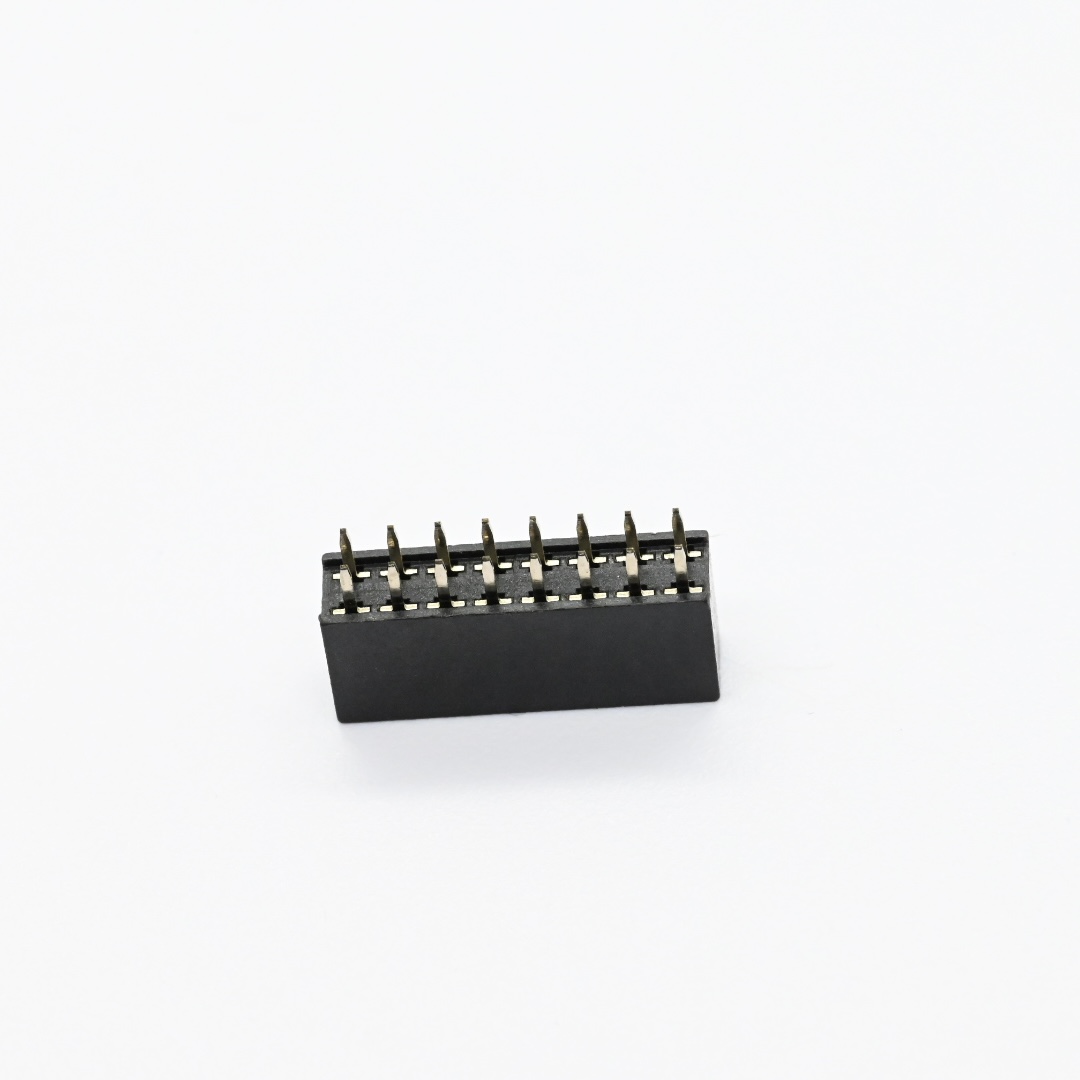

Huizhou Antenk Electronics Co., Ltd. manufactures FHES11 series 2.54mm dual row straight female headers with fixed width 5.0mm and plastic height 8.5mm to realize stable vertical board-to-board pluggable connection, supporting contact pin quantities ranging from 02P to 80P and multiple customizable insulator raw materials including PBT PA6T LCP PA46 and PA9T, matched with unified PCB layout and standardized multi-level dimensional tolerances to guarantee precise through-hole soldering operation. This female header adopts black UL94V0 PBT as standard insulator material with excellent flame retardant performance, internal conductive terminals are made of high ductility brass equipped with comprehensive plating options covering gold flash, 3u to 30u full gold plating, 3u to 30u selective gold plating and pure tin plating, electrically rated for 3A maximum working current, 1000 megohms minimum insulation resistance, 20 milliohms maximum contact resistance and 500V AC one minute dielectric withstand voltage, operating steadily between minus 65 degrees Celsius and plus 125 degrees Celsius while fully complying with HSF lead-free and RoHS green electronic standards, with diverse packaging solutions including tray bag tube tube with cap tape reel and tape reel with cap to adapt to automatic mass production lines. This straight dual row female header is widely applied in liquid crystal display modules, digital cameras, communication devices, industrial control panels, portable storage hardware, digital household appliances, electronic toys, computer peripherals, automotive electronic assemblies and precision measuring instruments requiring frequent plugging connection. Operators shall select suitable contact count insulator material gold plating thickness and packaging mode according to circuit transmission requirements, complete standard through-hole soldering strictly following official PCB layout drawings, avoid excessive plugging force to prevent PBT insulator deformation and brass terminal elastic fatigue, and store finished female headers in dry sealed packages to prevent plating layer oxidation. Different from competitors who outsource mold development and electroplating Antenk implements complete independent production procedures including self-developed plastic and metal precision mold manufacturing, high-speed brass terminal stamping, high temperature plastic injection molding, multi-grade gold electroplating and full range high low temperature reliability laboratory testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications and meeting REACH international environmental regulations. We own more than two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, offer customizable structural dimensions plating specifications and packaging styles, provide round-the-clock professional engineering technical support, and over seventy percent of our female header products are exported globally relying on our Guangdong Famous Trademark ANTENK and stable consistent mass production quality.

UL94V0 Black PBT Insulator delivers superior flame retardant and high temperature resistant performance for long-term PCB connection use.

Multi-Thickness Gold Brass Terminal maintains ultra-low contact resistance and consistent signal transmission under repeated plugging cycles.

5.0W 8.5H Dual Female Header features fixed dimension design to match standard dual-row 2.54mm pin header mating requirements.

1. Electrical Performance

1.1 Rated Current: 3.0 Amp

1.2 Minimum Insulation Resistance: 1000MΩ

1.3 Maximum Contact Resistance: 20mΩ

1.4 Dielectric Withstanding Voltage: 500V AC

2. Material Options

2.1 Standard Insulator: Black PBT UL94V-0

2.2 Optional Insulator Materials: PA6T, LCP, PA46, PA9T

2.3 Contact Material: Brass

3. Contact Plating Specifications

3.1 Full Gold Plating: G0 Gold Flash, G1 3u", G2 5u", G3 10u", G4 15u", G5 30u"

3.2 Selective Gold Plating: S0 Gold Flash, S1 3u", S2 5u", S3 10u", S4 15u", S5 30u"

3.3 Tin Plating: SN Pure Tin

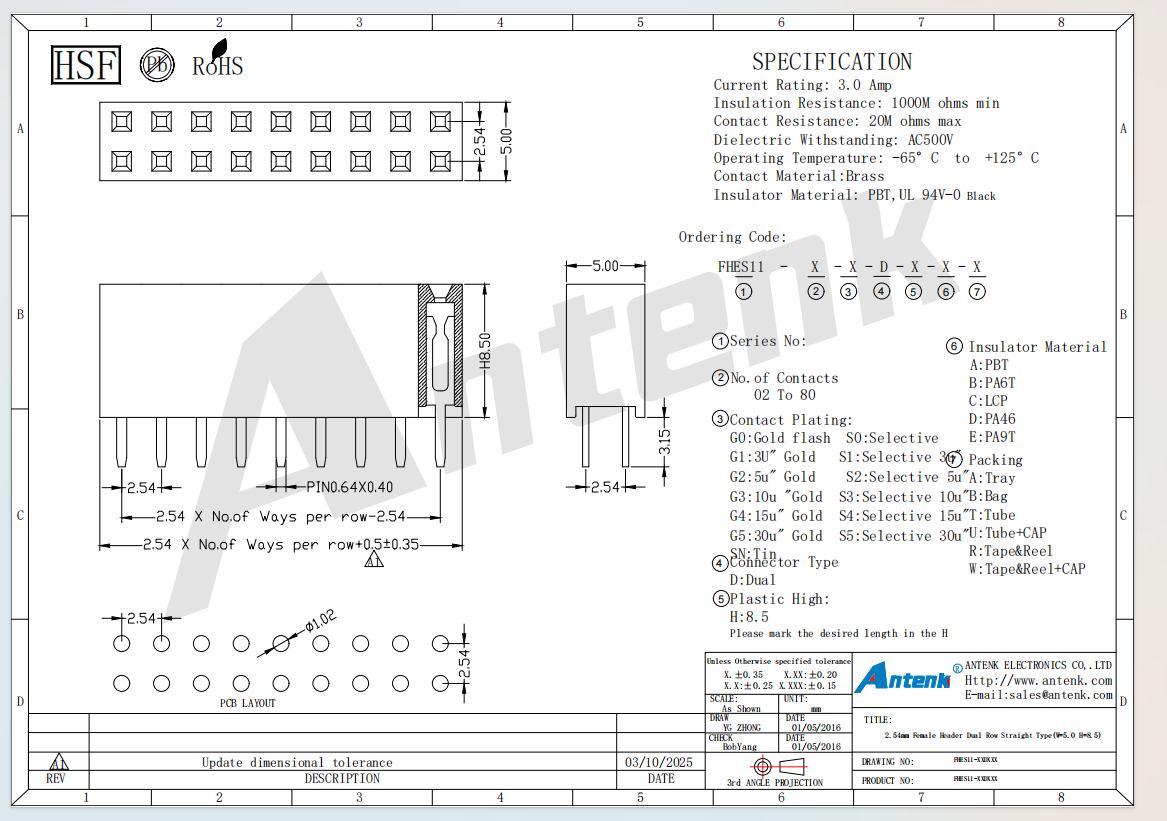

4. Dimension & Structural Parameters (Unit: mm)

4.1 Pitch: 2.54 dual row pitch

4.2 Fixed Size: Width W=5.0, Plastic Height H=8.5

4.3 Pin Size: 0.64×0.40

4.4 Contact Range: 02P to 80P

4.5 Dimensional Tolerance: X.±0.35, X.X±0.25, X.XX±0.20, X.XXX±0.15

4.6 Structure Type: Dual row straight through-hole female header

5. Packaging Modes

5.1 A: Tray

5.2 B: Bag

5.3 T: Tube

5.4 U: Tube with CAP

5.5 R: Tape&Reel

5.6 W: Tape&Reel with CAP

6. Environmental Performance

6.1 Operating Temperature: -65°C ~ +125°C

7. Compliance Standards

7.1 HSF, Lead-free, RoHS compliant

8. Application Scenarios

8.1 Liquid crystal display modules, digital cameras

8.2 Communication equipment, industrial control panels

8.3 Portable storage devices, digital home appliances

8.4 Electronic toys, computer peripherals

8.5 Automotive electronics, precision measuring instruments

9. Operation & Storage Precautions

9.1 Select contact count, insulator material, plating type and packaging per circuit requirements

9.2 Complete through-hole soldering strictly follow official PCB layout drawings

9.3 Avoid excessive plugging force to prevent brass terminal fatigue and PBT insulator deformation

9.4 Store finished headers in dry sealed packages to prevent plating oxidation
