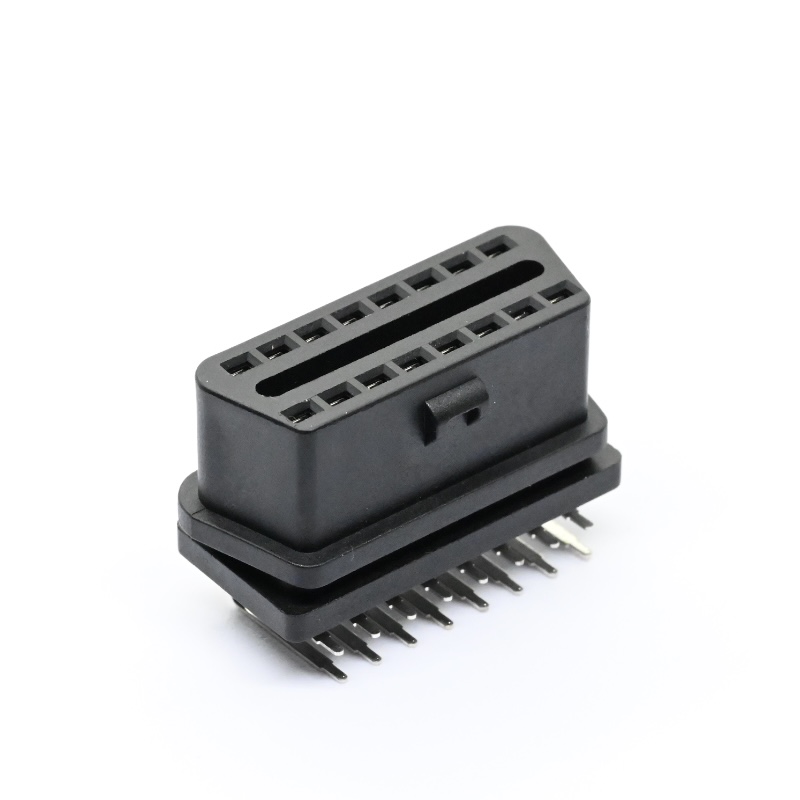

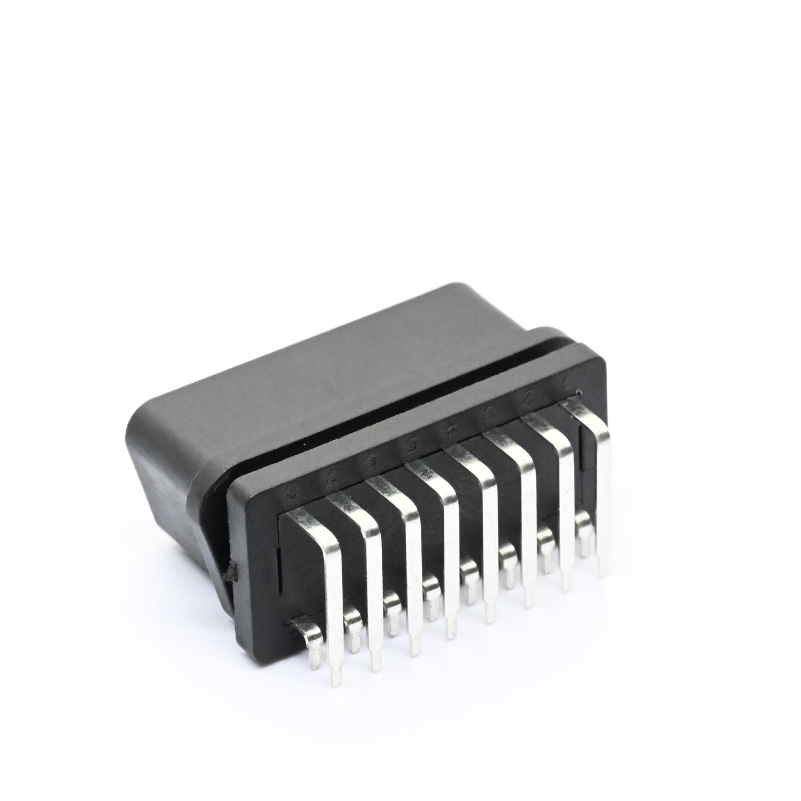

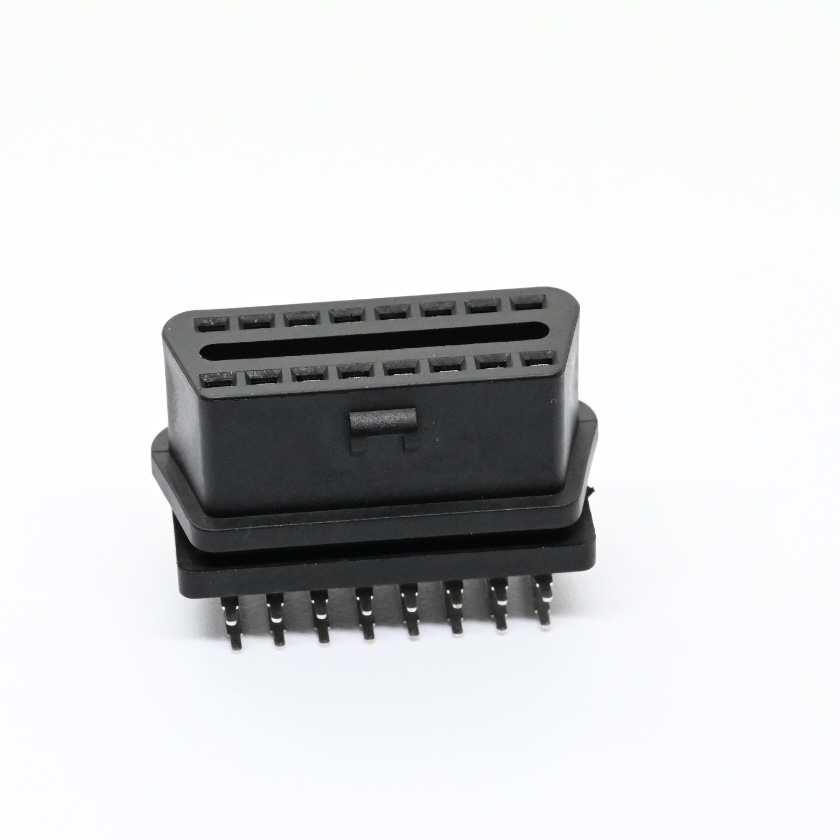

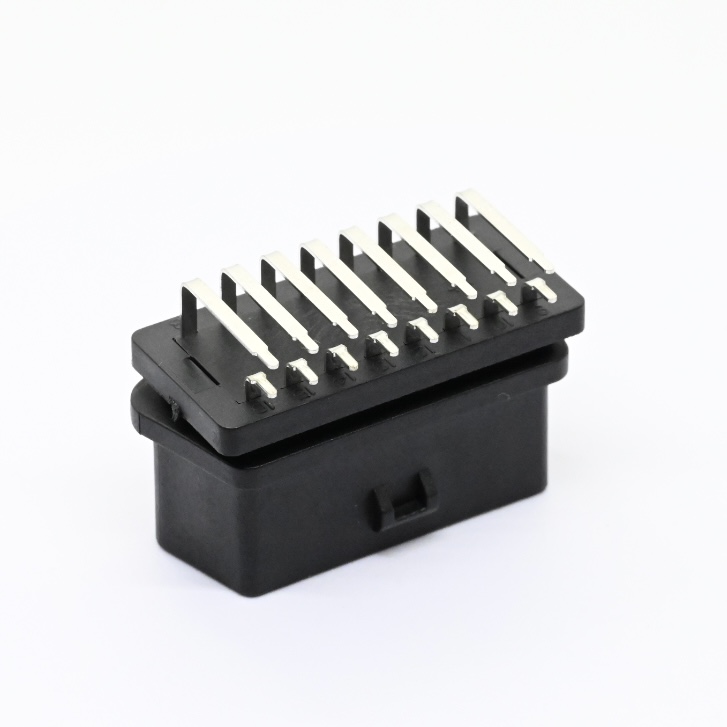

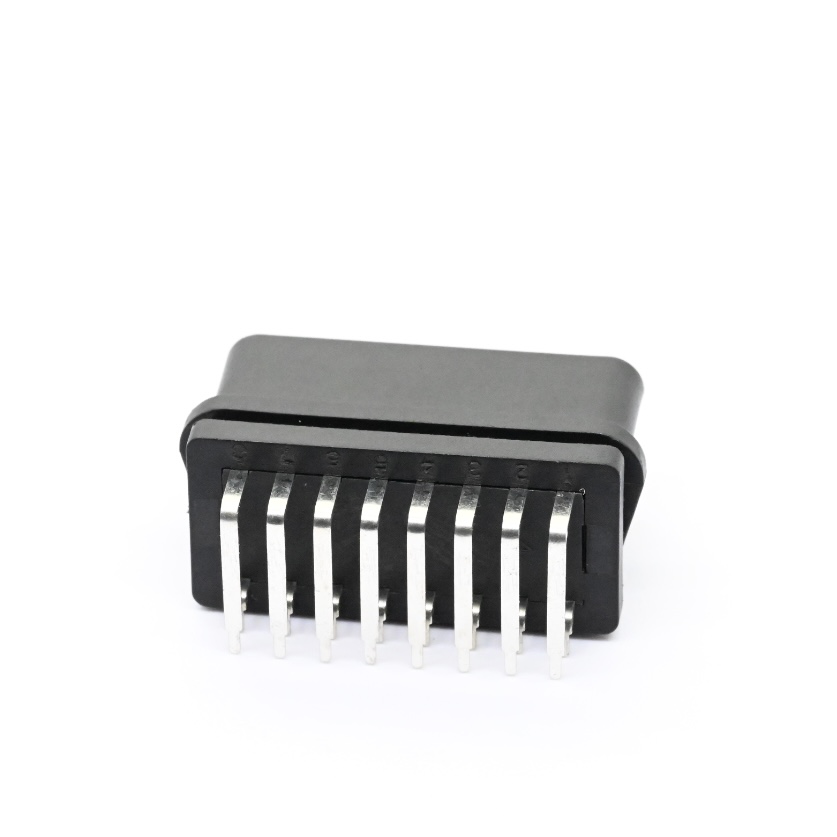

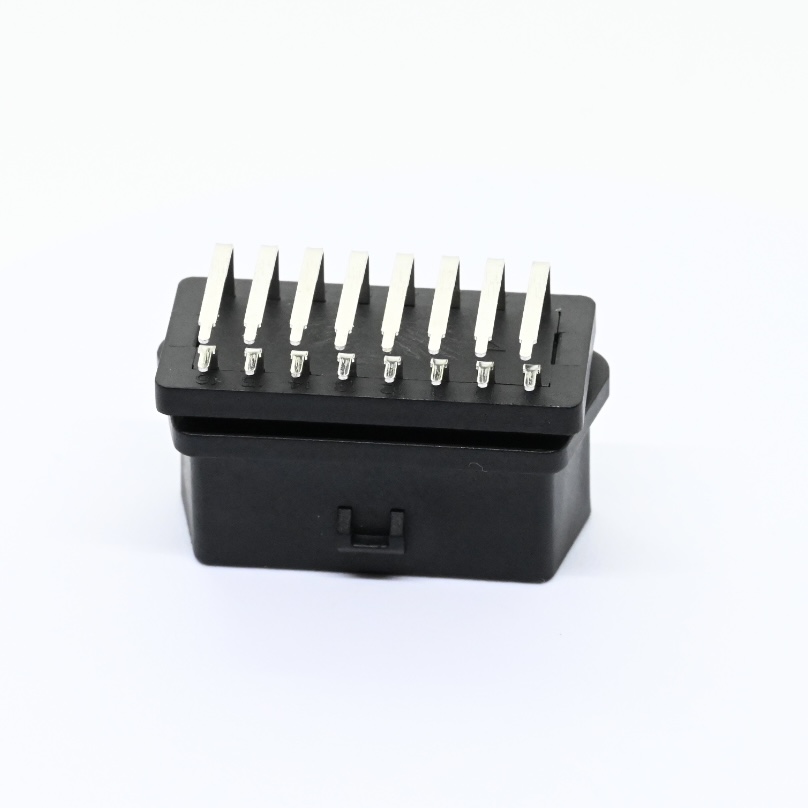

1.Product Description：
Huizhou Antenk Electronics Co Ltd manufactures standard OBD sixteen position angle male connector with thirteen point nine millimeter lock dimension for dependable vehicle diagnostic signal transmission on printed circuit assemblies. This angle male plug adopts black PA66 plus fifteen percent glass fiber insulator housing and brass gold plated terminals, terminal width measures one point five millimeter while special pins four and five feature ten point zero millimeter extended height, it supplies diverse plating grades including gold flash multiple gold thickness options and tin plating, full dimension parameters can be obtained from engineering drawing for PCB footprint reference, it delivers five amp rated current, thirty volt maximum rated voltage, one thousand volt AC dielectric strength for one minute, insulation resistance no less than one hundred megaohm under five hundred volt direct current and contact resistance below one hundred milliohm and performs reliably from minus forty degree Celsius to plus eighty five degree Celsius. Users complete through hole soldering following official PCB drawing and mate with matching counterpart connector to build stable signal links for automotive diagnostic hardware. Operators must comply with drawing dimensional tolerances for PCB layout avoid excessive mating force to prevent brass terminal deformation and keep products in dry storage space to stop plating layer oxidation. Different from competitors buying external components Antenk implements full in house workflow including plastic molding terminal stamping assembly and complete laboratory performance validation. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent finished goods export worldwide. This male plug fits automotive diagnostic scanners on board monitoring devices and auto related test instruments. Please provide your plating choice packing type and project specifications for free sample evaluation and full technical document support.
Glass Filled OBD Plug delivers enhanced mechanical strength and high temperature resistance for automotive electronic assemblies.
Automotive PCB Plug achieves stable signal transmission and reliable board connection inside vehicle control modules.
Gold Plated OBD Terminal resists surface oxidation and guarantees consistent electrical contact under harsh vehicle operating conditions.
2.Detailed Specifications of OBD‑A‑16‑G0‑A‑F‑X‑PG002‑C OBD 16P Angle Male Connector
1. Mechanical Specifications
1.1 Product type: OBD 16 position angle male automotive connector
1.2 Measurement unit: millimeter
1.3 Key dimension: Lock dimension is 13.9 millimeter, terminal width is 1.5 millimeter, bend length is 13.65 millimeter. Pin 4 and Pin 5 have extended height of 10.0 millimeter out of plastic housing. Multiple packing options include tray and bag packaging. Refer to engineering drawing for full outline dimension and dedicated PCB layout dimensions. Follow general tolerance ±0.3mm and drawing specified dimensional tolerances for printed circuit board design.
1.4 Assembly method: Perform through hole soldering onto printed circuit board, mate with matching counterpart connector to realize automotive diagnostic signal transmission.
1.5 Ordering feature: Multiple contact plating grades including gold flash various gold thickness and tin plating, optional packing forms to meet different automotive project requirements.
1.6 CTA: Contact our engineering team to obtain complete dimension drawings and ordering specifications for your hardware design validation.
2. Material Construction
2.1 Contact Terminal: Brass with gold plating
2.2 Insulator Housing Material: PA66 plus fifteen percent glass fiber, black color
3. Electrical & Environmental Performance Parameters
3.1 Rated current: 5 Amps
3.2 Maximum rated voltage: 30 Volt
3.3 Dielectric strength: 1000 Volt AC for one minute
3.4 Insulation resistance: Minimum 100 Megaohm under 500 Volt DC
3.5 Maximum contact resistance: 100 milliohm
3.6 Operating temperature range: Minus 40 degree Celsius to plus 85 degree Celsius
3.7 Compliance: Meets RoHS and HSF environmental requirements
4. Usage Method
4.1 Assembly mode: Complete through hole soldering following official PCB layout drawing, connect with matched counterpart connector to achieve stable automotive diagnostic signal transmission. Suitable wire insulation outer diameter ranges from 1.2 millimeter to 2.6 millimeter.
4.2 Operation tip: Adopt PCB layout dimension data shown on engineering drawing for circuit board layout development.
5. Application Scenarios
5.1 Signal connection for automotive on‑board diagnostic equipment
5.2 PCB interface for vehicle diagnostic scanner hardware
5.3 Signal port for automobile on‑board monitoring modules
5.4 Connection for auto related test and measurement instruments
6. Operation & Storage Precautions
6.1 Strictly follow drawing dimensional tolerances for PCB footprint design
6.2 Avoid excessive mating force to prevent permanent deformation of brass plated terminals
6.3 Prevent scratches dirt and mechanical impact on plastic housing and terminals before assembly
6.4 Store products in dry environment to avoid oxidation of plated terminal surfaces
6.5 Confirm plating grade and packing type before placing purchase order
6.6 CTA: Submit your hardware requirement plating option packing selection and project information, we provide free sample evaluation and professional technical consultation services.
3.FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

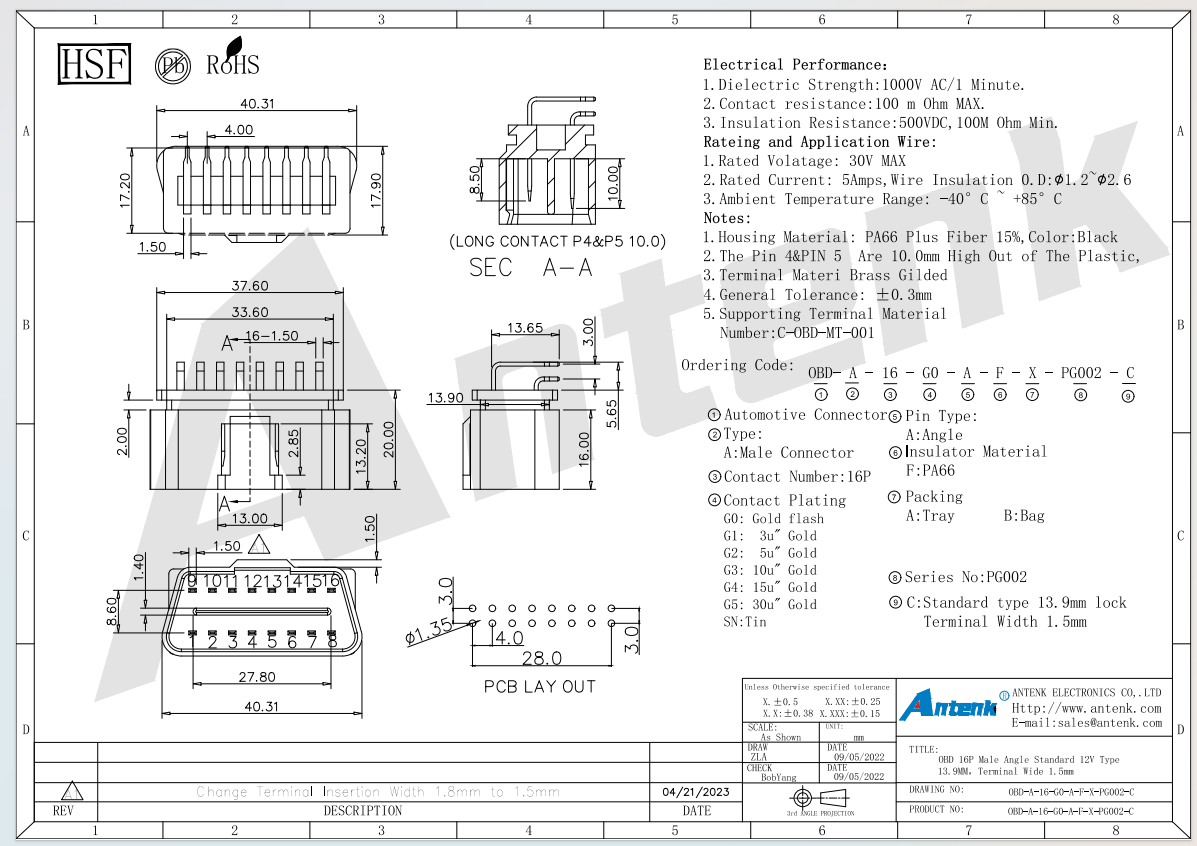

4.Product Drawing：
