Custom 4P Male Connector to Cigarette Lighter Plug Wiring Harness

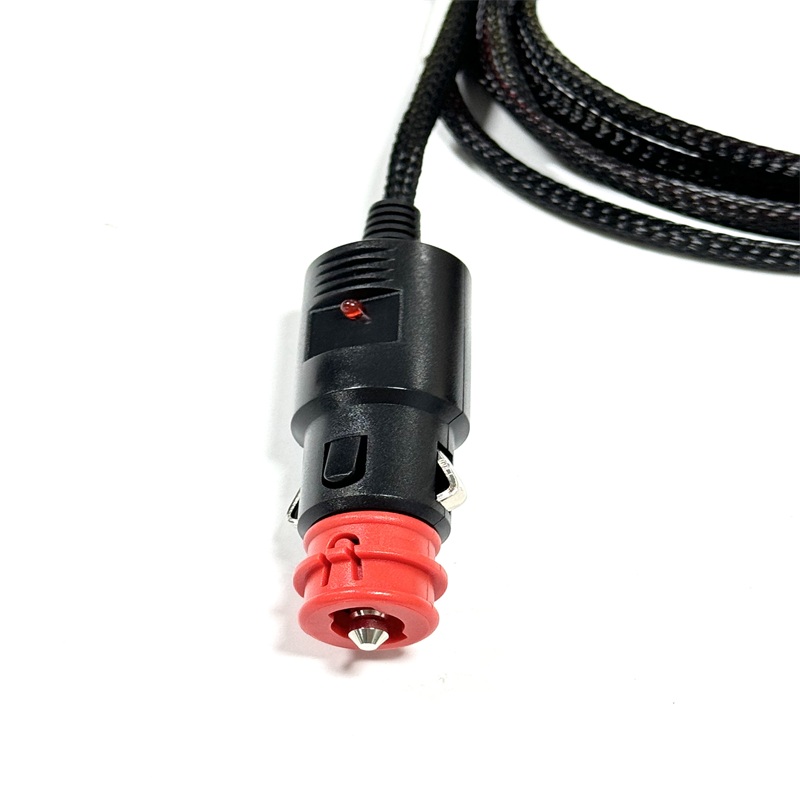

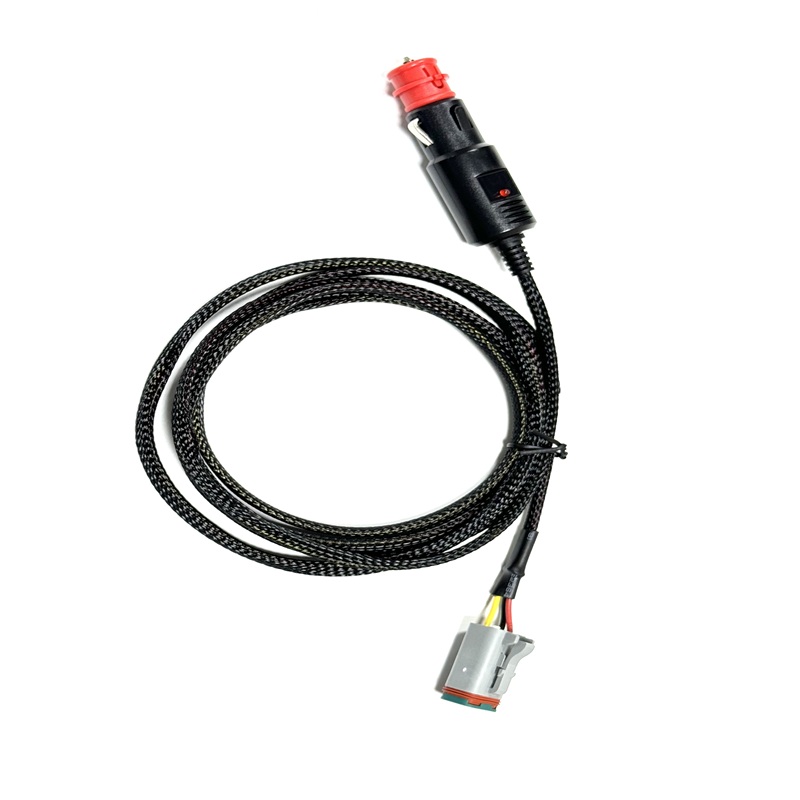

This 4P male connector to cigarette lighter plug assembly is one of our high-performance automotive wiring harness options, specially designed for onboard low-voltage power supply applications. One end adopts Deutsch-style 4-pin male connector with female terminals, supporting reliable plug-and-play connection for matched electronic devices; the other end is a European-style cigarette lighter plug with red protective cap, built-in 10A fuse for overload protection. A 2.2kΩ resistor is pre-installed inside the cigarette lighter plug to fulfill special circuit signal requirements.

Item	Description
Product Name	Custom 4P Male Connector to Cigarette Lighter Plug Wiring Harness
Type	12V Automotive / Industrial Power Wiring Harness
Voltage	12V DC, Customized Available
Pins Material	Nickel-Plated Brass Terminals, Gold-Plating Optional
Plug Material	PA66+GF Automotive Grade Connector Housing (Deutsch DT Series)
Working Temperature	-40°C ~ +105°C or Customized
Length	2100±30mm / Customized Length Available
Minimum Insulation Resistance	≥10MΩ (DC 500V)
Maximum Conduction Resistance	≤2Ω
Continuity Test	100% Tested, No Short / Open Circuit
Application Fields	Automotive power supply, truck & heavy-duty vehicle wiring, on-board electronic device connection, industrial low-voltage electrical equipment, custom wiring projects, marine & RV low-voltage power systems
Specific Shipping Cost	Please Contact Us

The harness uses UL1007 18AWG automotive-grade PVC wires, covered by wear-resistant black woven braided sleeve to effectively prevent abrasion, chemical corrosion and mechanical damage during long-term vehicle vibration. All soldering and crimping positions are reinforced with heat shrink tubing, optimizing the bending resistance and connection stability of the whole assembly. Each finished harness will pass 100% electrical testing, covering continuity check, insulation resistance and voltage withstand testing to avoid short circuit, open circuit and misalignment issues.

This wiring assembly fits heavy-duty trucks, recreational vehicles, onboard monitoring systems and industrial low-voltage electrical equipment. Apart from the existing specification with overall length 2100±30mm, we support flexible modification on cable length, wire specification and connector configuration. Whether you need minor adjustments to existing products or brand-new development, we are capable of building qualified customized electrical harnesses matching your project parameters. If you are looking for a trustworthy supplier to develop durable custom automotive wire harness, we can provide professional technical support from sample verification to mass production, delivering cost-effective and dependable automotive wiring harness solutions for your global business.
