Custom FIRE3 DB26 to TIS Midnodes Breakout Cable

2 month ago

3 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

Supported by complete production facilities and strict quality management standards, we have accumulated rich experience in developing high-performance custom automotive wire harness for test bench, ECU calibration and on-board electronic testing systems. Our engineering team provides full-cycle technical support, covering schematic evaluation, sample development, FAI validation and bulk production. We are able to select suitable car wiring cables and matching connectors based on customers’ pin assignments, installation space and anti-interference demands, delivering reliable one-stop wiring customization solutions for global equipment manufacturers.

Custom FIRE3 DB26 to TIS Midnodes Breakout Cable

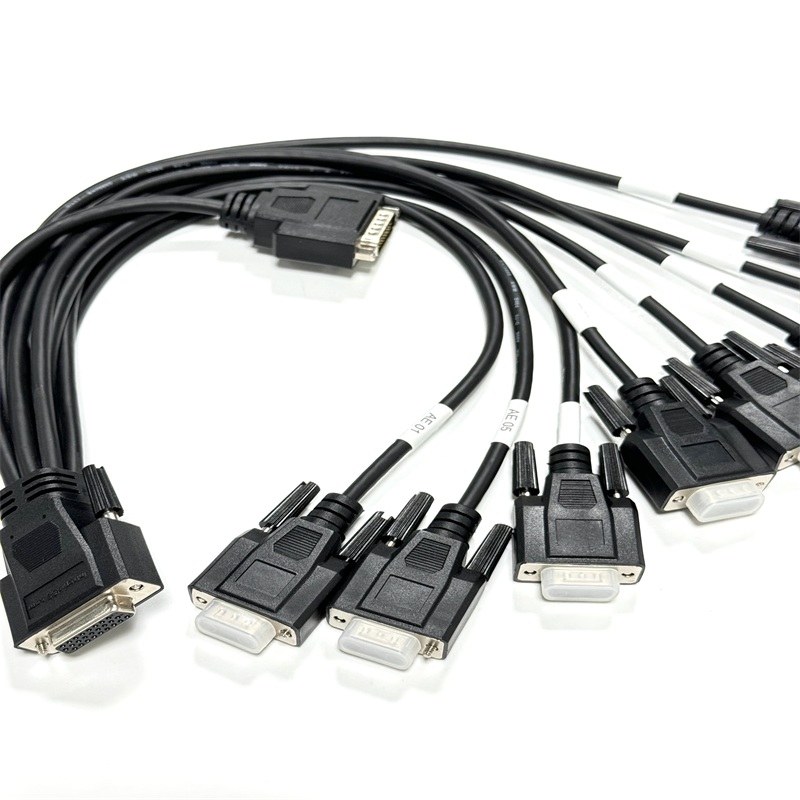

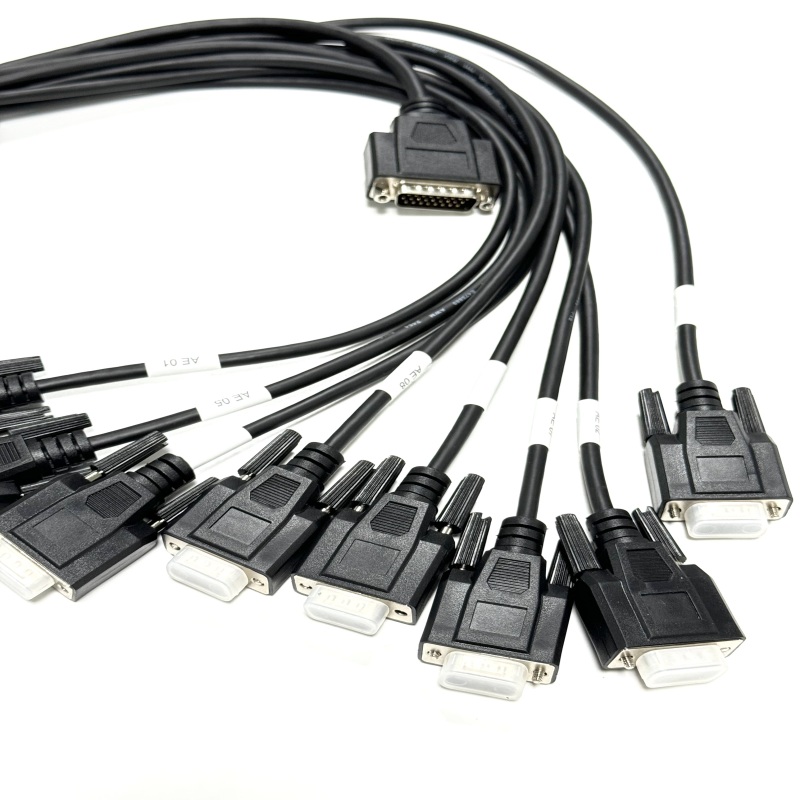

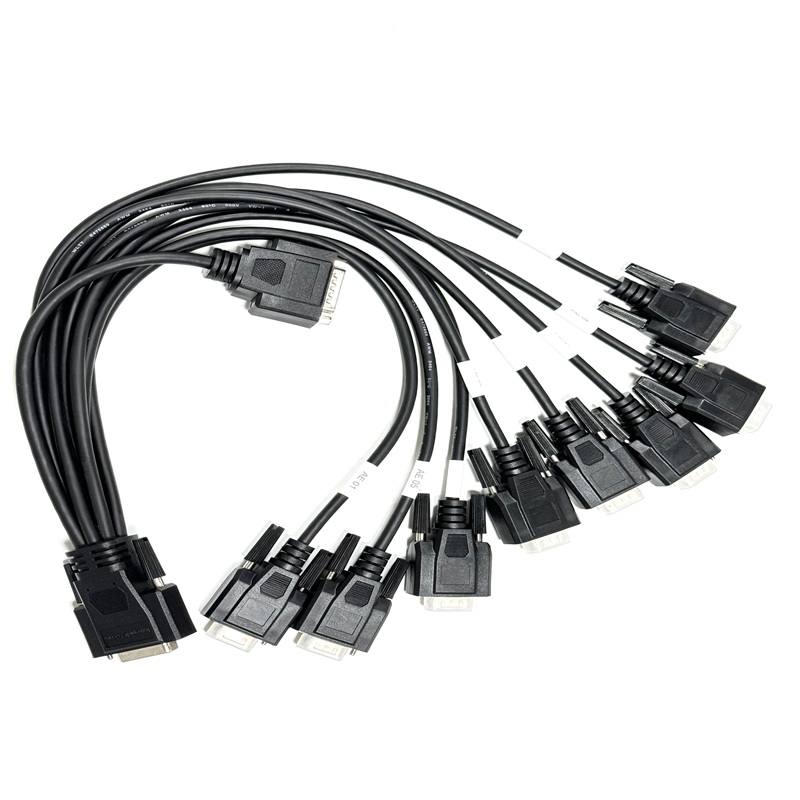

This FIRE3 DB26 to TIS Midnodes breakout cable is a multi-channel signal splitter harness specially developed for automotive diagnostic testing platforms. Unlike ordinary power connection wiring assemblies, this cable adopts DB26 D-Sub connector as the main interface, dividing one main signal channel into eight independent DB9 branch ports to realize synchronous multi-channel signal acquisition and data transmission. The assembly applies UL2464 shielded communication wire, and carries out internal copper foil shielding treatment at the overmolding position of connectors. This optimized shielding design greatly reduces electromagnetic interference, effectively avoiding signal distortion and data loss during long-duration vehicle electronic testing.

Item	Description
Product Name	Custom FIRE3 DB26 to TIS Midnodes Breakout Cable
Type	Multi Channel Signal Breakout Wiring Harness / DB26 to 8×DB9 Splitter Cable
Voltage	DC 500V 10MS Test Voltage, Customized Working Voltage Available
Pins Material	Nickel-Plated Brass Terminals, Gold-Plating Optional
Plug Material	PA66+GF Automotive Grade D-Sub Connector Housing, DB26 Female/Male & DB9 Male Connectors
Working Temperature	-40℃ ~ +105℃ Or Customized
Length	Main Cable 200±10mm, Branch Cables 457±30mm, Customized Length Available
Minimum Insulation Resistance	≥5MΩ
Maximum Conduction Resistance	≤3Ω
Application Fields	Automotive diagnostic systems, vehicle ECU testing, industrial control signal distribution, multi-channel data acquisition, TIS midnodes connection, automotive test bench wiring, signal transmission breakout projects
Specific Shipping Cost	Please Contact Us

Every finished harness undergoes comprehensive standardized electrical inspection before delivery. The test items include 100% continuity check, DC 500V voltage withstand test, insulation resistance testing and conduction resistance measurement to rule out hidden troubles such as open circuits, short circuits and wrong pin connections. This breakout cable can perfectly match mainstream automotive test bench equipment, and can work together with various car OBDII cable to build a complete vehicle fault diagnosis and signal testing system. We support flexible personalized modification on cable overall length, branch wire length, wire color definition and connector pinout layout. For complex testing environments with strong electromagnetic noise, we can further upgrade the shielding grade and adjust the specifications of car wiring cables to achieve stable low-noise signal transmission.

All raw materials used in production comply with RoHS environmental directives. The internal nickel-plated brass terminals feature stable electrical conductivity and outstanding anti-oxidation capability, enabling continuous long-hour operation in laboratories and workshop testing environments. Clear identification labels are pre-attached on each branch cable for convenient wiring sorting and equipment maintenance. As a vital auxiliary wiring component for vehicle electronic testing, this breakout harness is widely adopted in automotive ECU testing, multi-channel signal collection, TIS midnodes connection and bench calibration projects.

If you have customized demands for signal split wiring assemblies, whether you need modified custom automotive wire harness dedicated to automotive testing equipment, supporting car OBDII cable for diagnostic tools, or other special signal transmission wiring solutions, you are welcome to provide technical drawings and specifications. Our team can offer professional technical consultation, sample service and competitive quotations to satisfy your unique wiring requirements.
