Dual Row Straight D SUB Female Connector

Dual Row Straight D SUB Female Connector

7 day ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures DP01 FXXXXX series dual row straight D SUB PCB female connectors with stamped pins to deliver stable signal transmission for standard DIP PCB layouts, supporting pin counts of 09pin 15pin 25pin and 37pin with dedicated dimension values for each pin variant and unified multi level dimensional tolerances to guarantee reliable through hole soldering assembly. This D SUB female connector adopts PBT plus glass fiber UL94V 0 thermoplastics as insulator housing, brass or bronze stamped contacts and 0.35T full area nickel plated steel shell, electrically rated for 5A working current, maximum 20 milliohms contact resistance, 500V AC one minute withstanding voltage and minimum 1000 megohms insulation resistance, operating stably from minus 55 degrees Celsius to plus 105 degrees Celsius and complying with RoHS and HSF environmental standards. It supplies multiple housing color selections, diverse contact plating options and rich mounting accessory choices to satisfy different project customization demands. This industrial grade connector is widely applied in liquid crystal display modules, digital cameras, communication hardware, industrial control panels, digital household appliances, computer peripherals, automotive electronic assemblies and precision measuring instruments requiring durable serial interface connection. Operators should select correct pin count plating grade and accessories according to circuit demands, complete DIP soldering following official PCB layout, avoid excessive thermal load to prevent housing damage, and store finished connectors in dry sealed packages to prevent contact plating corrosion. Unlike competitors outsourcing mold and stamping processes Antenk implements full in house production workflow covering self developed precision plastic and metal mold manufacturing, brass bronze contact stamping, high temperature PBT injection molding, varied gold and nickel electroplating plus comprehensive reliability lab testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH rules. We own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide custom solutions and round the clock engineering support, and over seventy percent of our D SUB connector products are exported globally backed by ANTENK brand and stable mass production quality.

1、PBT GF D SUB Housing provides superior flame retardant performance and thermal stability for long term DIP soldering and industrial working conditions.

2、Stamped Pin D SUB Contact ensures consistent electrical performance under 5A rated current for frequent plug and disconnect operations.

3、Nickel Plated Steel Shell delivers effective electromagnetic shielding and mechanical protection for D SUB PCB female connector assemblies.

Detailed Specifications：

1. Electrical Parameters

1.1 Rated Current: 5A

1.2 Maximum Contact Resistance: 20 milliohms

1.3 Dielectric Withstanding Voltage: 500V AC for 1 minute

1.4 Minimum Insulation Resistance: 1000 Megohms

2. Material & Surface Plating Options

2.1 Housing: PBT plus glass fiber, UL94V‑0 flame retardant thermoplastic

2.2 Contact Material: Brass or Bronze (stamped pin)

2.3 Shell: 0.35T steel with full area nickel plating

2.4 Contact Plating: Selective gold in multiple thickness grades, gold over base metal, gold flash

2.5 Housing Color Options: White, Blue, Black, Grey

3. Structural & Matching Specifications

3.1 Type: Dual Row Straight DIP PCB female connector with stamped pin

3.2 Available Pin Counts: 09pin, 15pin, 25pin, 37pin

3.3 Mounting & Accessories: Multiple mounting selections; diverse rivet, stand‑off and screw accessory options

4. Dimensional Standards (Unit: mm)

4.1 Exclusive A, B, C dimension values for each pin number variant

4.2 General tolerance rule: X.±0.35, X.X±0.25, X.XX±0.20, X.XXX±0.15

4.3 Dedicated recommended PCB layout for DIP through‑hole soldering

5. Environmental Performance

5.1 Operating Temperature Range: ‑55°C ~ +105°C

6. Compliance Standard

6.1 Compliant with RoHS and HSF requirements

7. Application Scenarios

7.1 Liquid crystal display modules, digital cameras

7.2 Communication hardware, industrial control panels

7.3 Digital household appliances, computer peripherals

7.4 Automotive electronic assemblies, precision measuring instruments

8. Operation & Storage Precautions

8.1 Select appropriate pin count, plating grade, housing color and accessories based on actual circuit requirements

8.2 Complete through‑hole DIP soldering strictly following official recommended PCB layout

8.3 Avoid excessive soldering heat to prevent housing deformation or damage

8.4 Store finished connectors in dry sealed packages to prevent contact plating corrosion and contamination

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

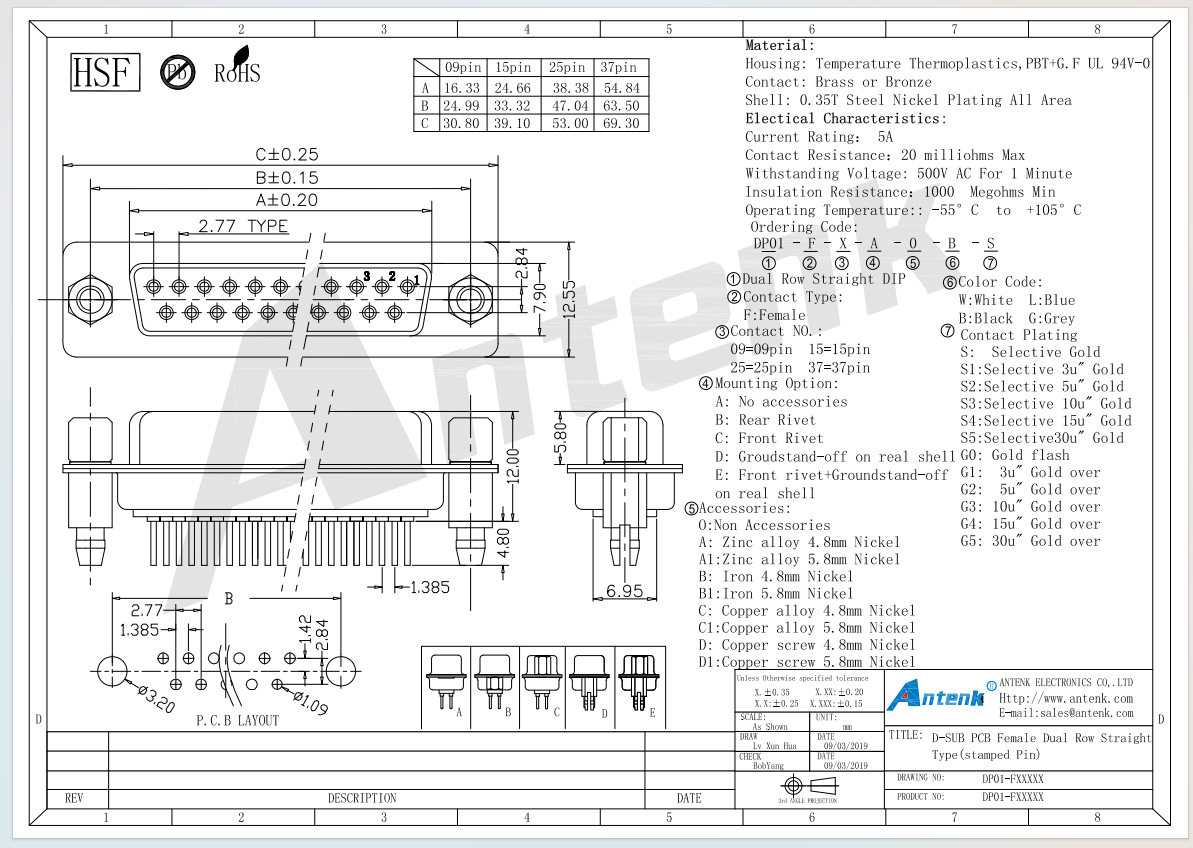

Product Drawing：

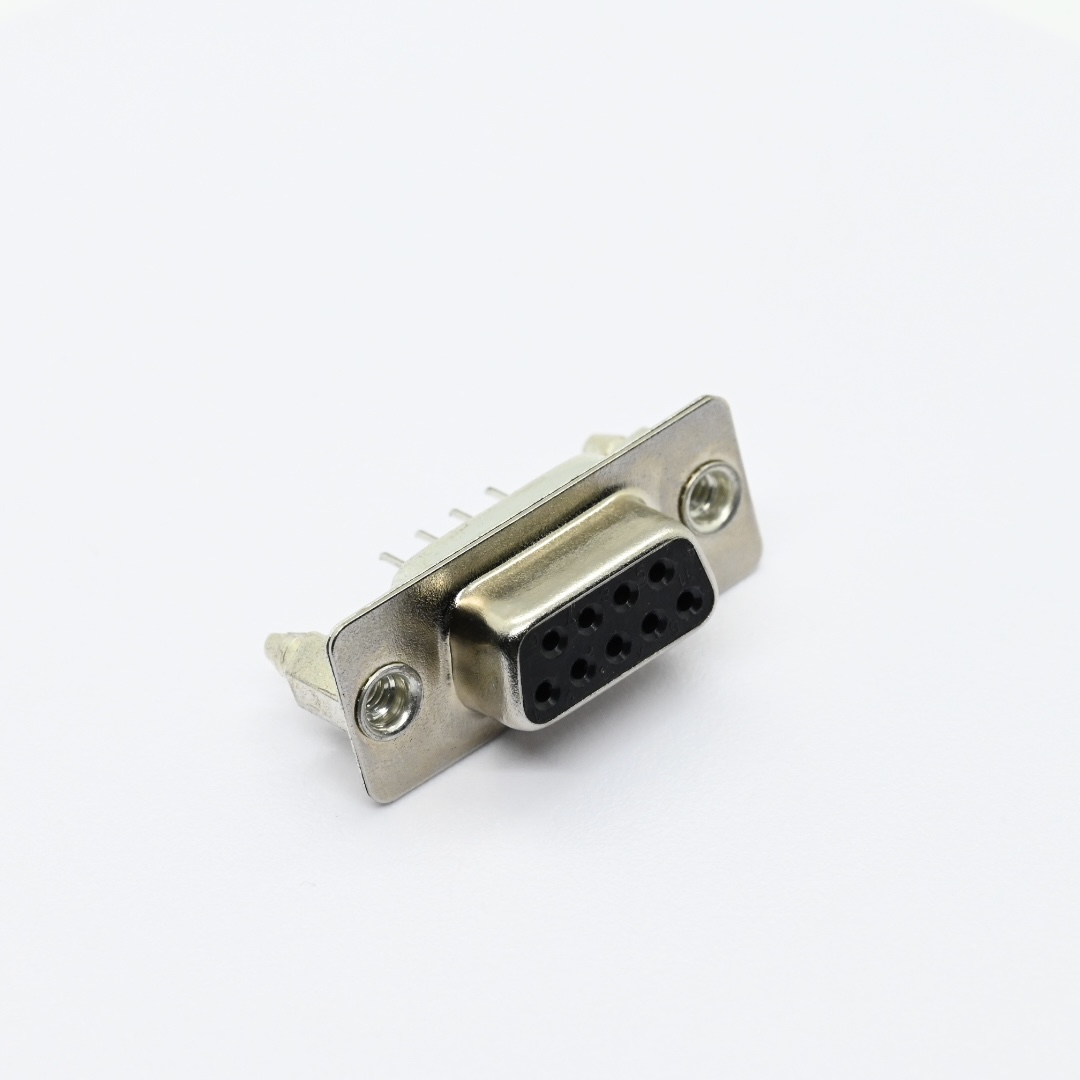

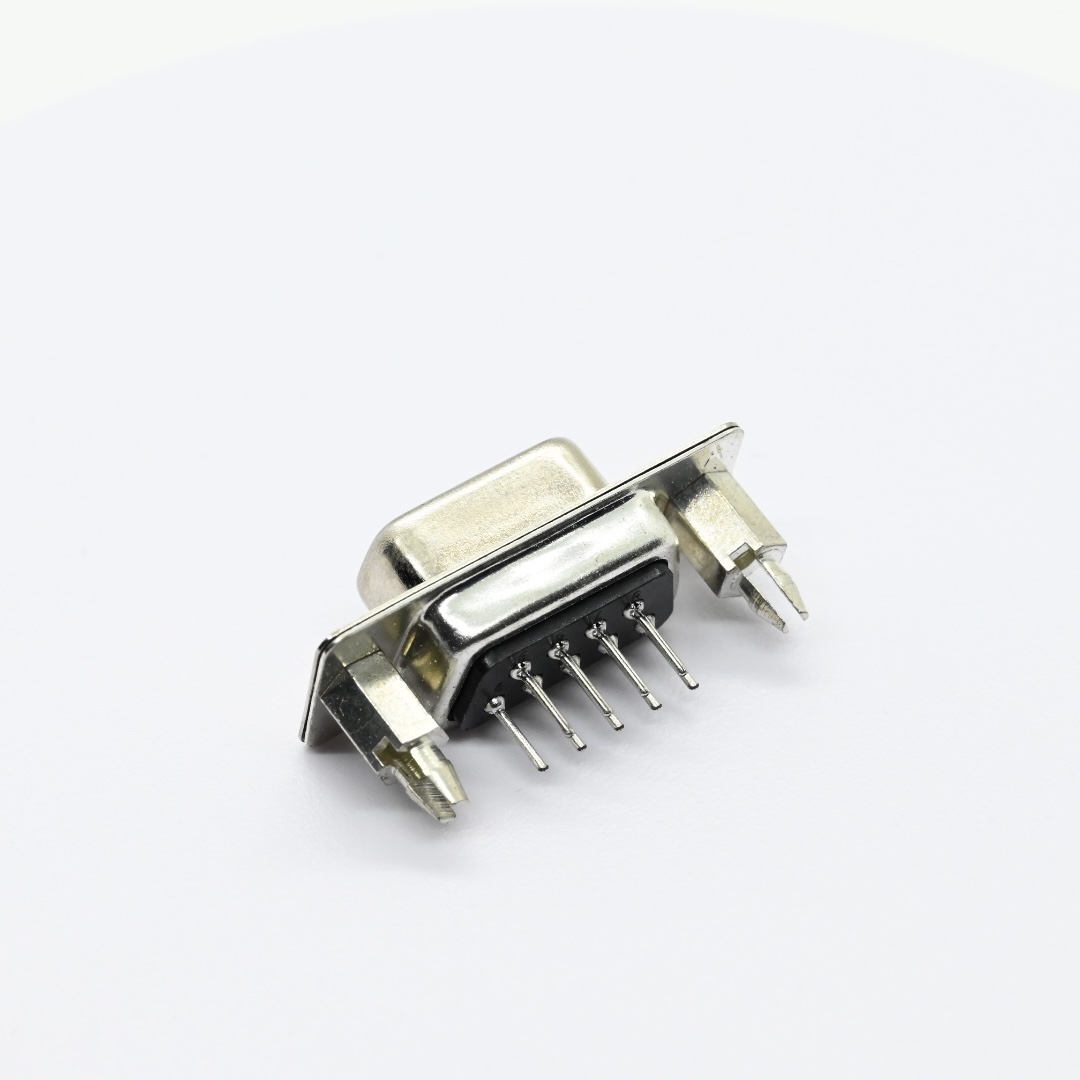

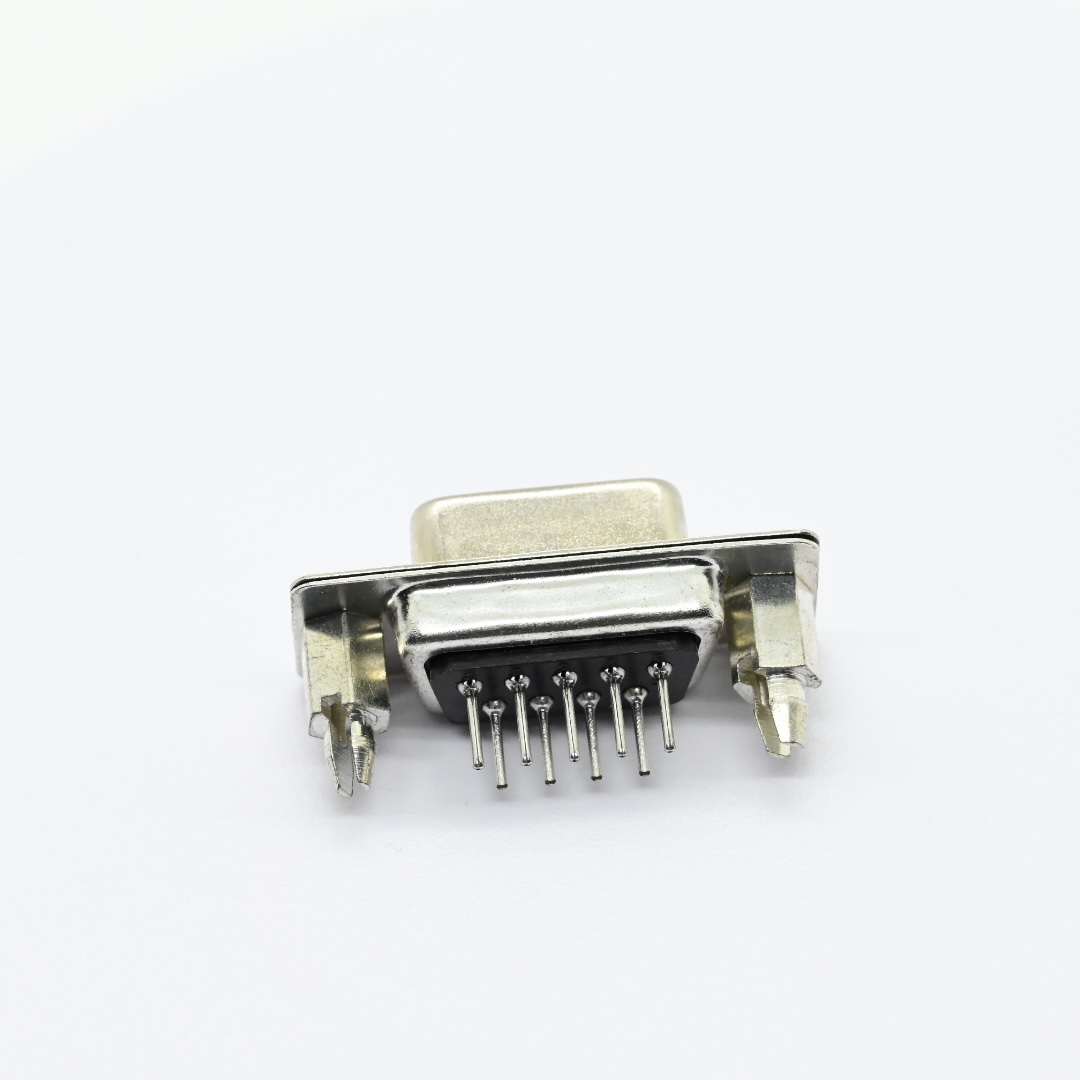

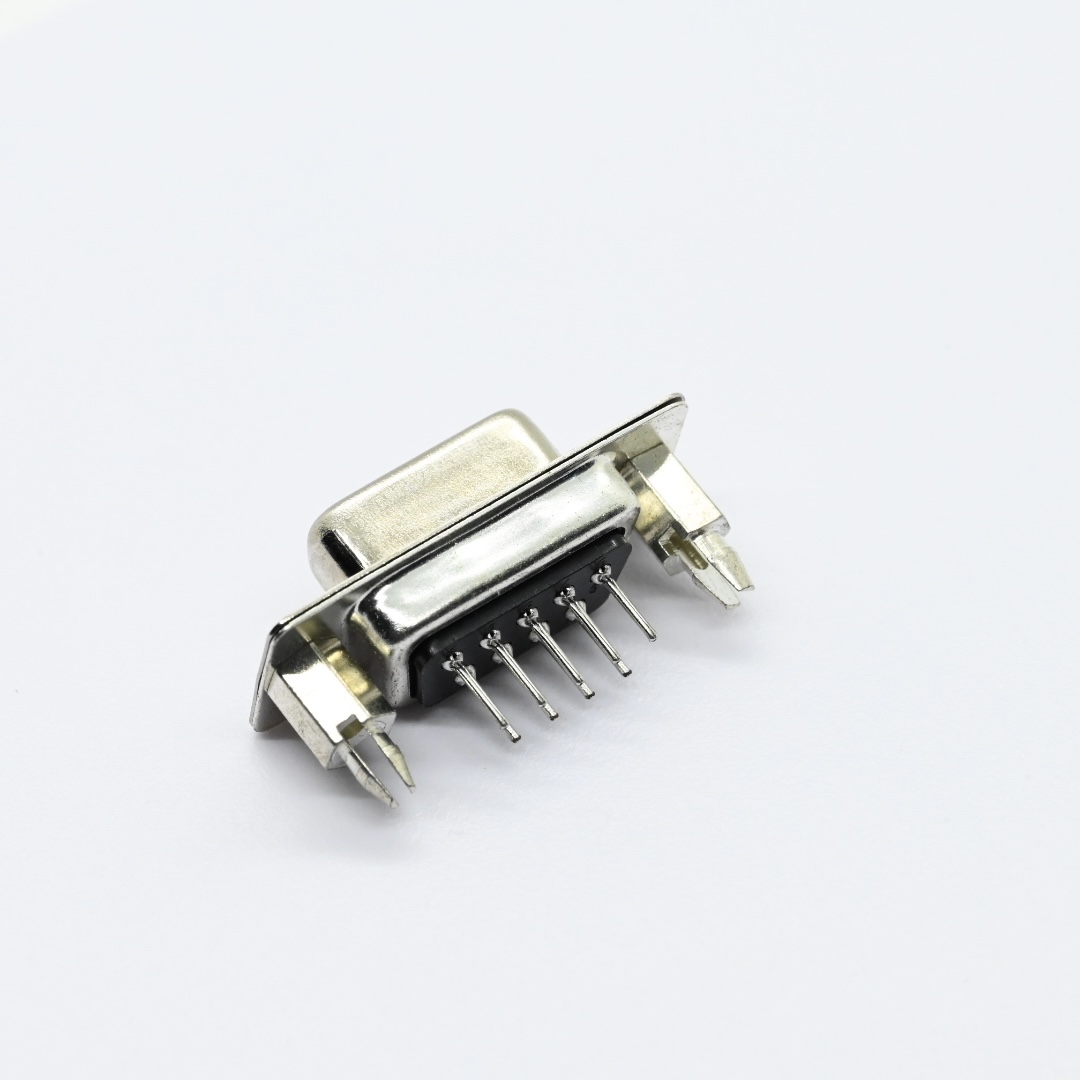

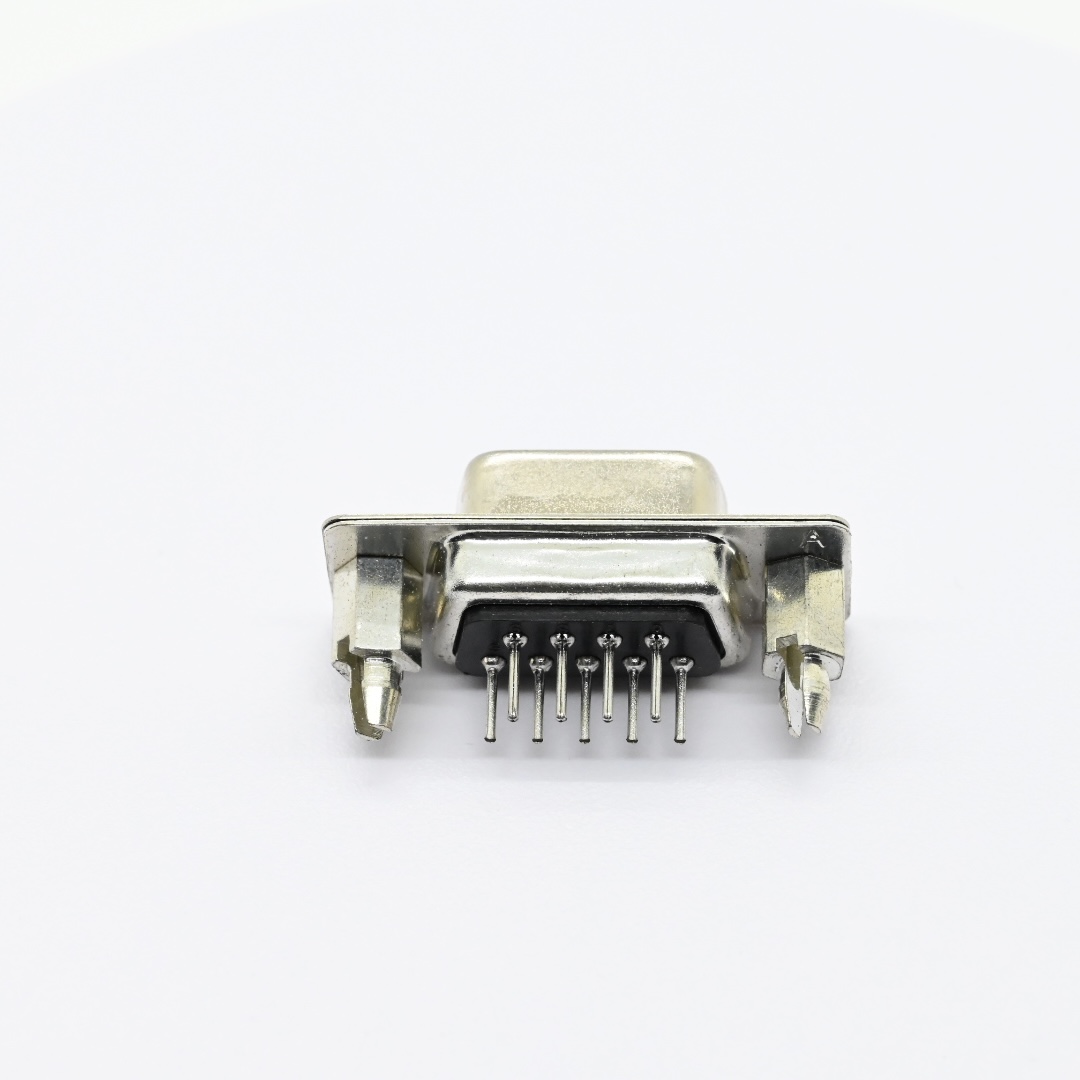

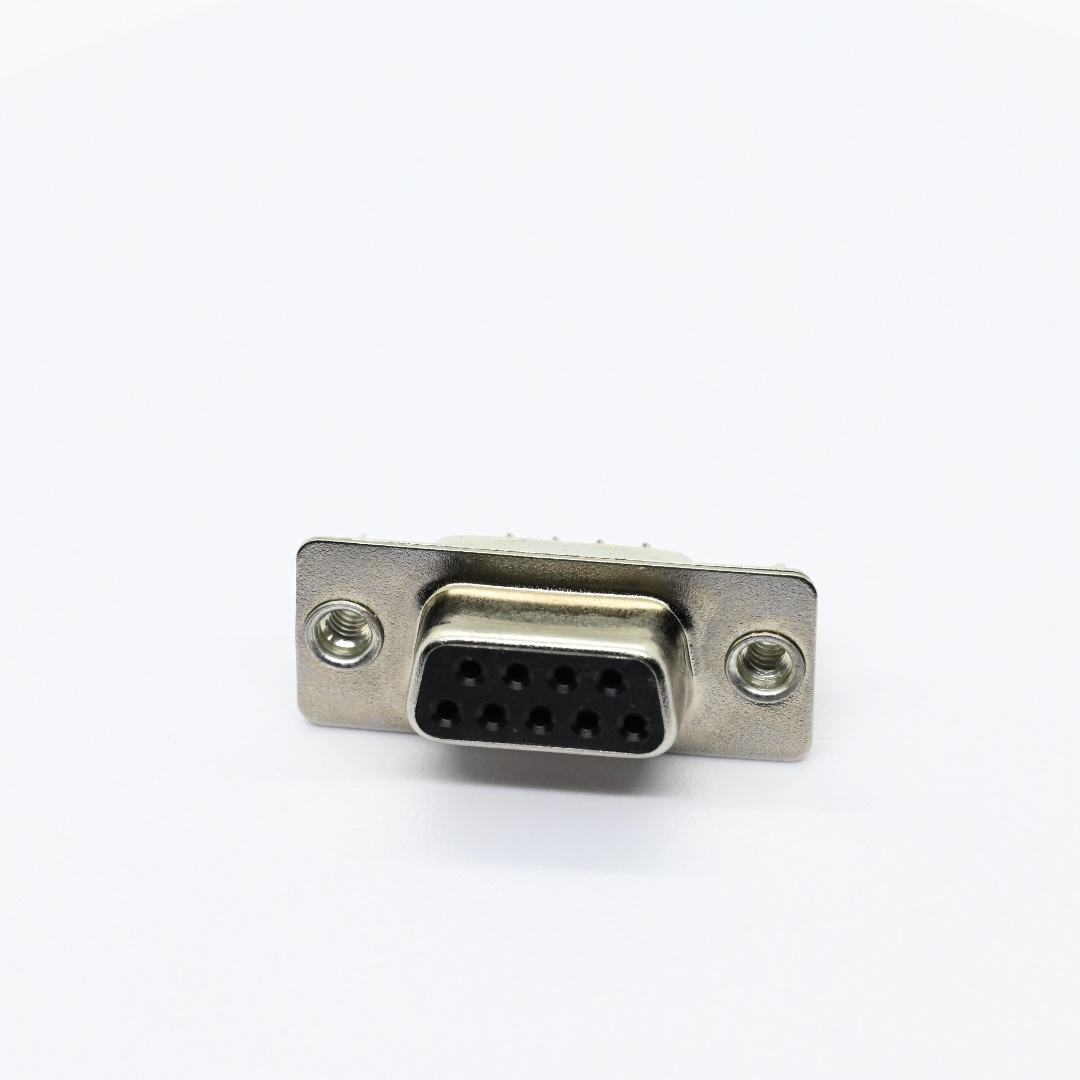

DP01-F09D0BS+D-SUB PCB Female Dual Row Strai Type(stamped Pin)（6）

DP01-F09D0BS+D-SUB PCB Female Dual Row Strai Type(stamped Pin)（5）

DP01-F09D0BS+D-SUB PCB Female Dual Row Strai Type(stamped Pin)（1）

DP01-F09D0BS+D-SUB PCB Female Dual Row Strai Type(stamped Pin)（3）

DP01-F09D0BS+D-SUB PCB Female Dual Row Strai Type(stamped Pin)（2）

DP01-F09D0BS+D-SUB PCB Female Dual Row Strai Type(stamped Pin)（4）
