Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures AW2547R NP series 2.54mm pitch 90 degree right angle wafer connectors to achieve stable wire to board electrical interconnection for standard PCB layouts, supporting pole numbers ranging from 02 poles to 20 poles with corresponding dimension specifications and unified drawing tolerances to ensure accurate PCB mounting performance. This wafer connector uses Nylon 66 plus 15 percent glass fiber UL94V 0 material for insulator housing and brass pins finished with gold flash plating, electrically rated for 3A current and 250V AC DC voltage, maximum 20 milliohms contact resistance, 1500V AC per minute withstanding voltage and minimum 1000 megohms insulation resistance, operating reliably within minus 25 degrees Celsius to plus 85 degrees Celsius and complying with RoHS environmental standards. This cost effective right angle connector is widely deployed in liquid crystal display modules, digital cameras, communication hardware, industrial control panels, digital household appliances, electronic toys, computer peripherals, automotive electronic assemblies and precision measuring instruments requiring compact wire board connection. Operators need to select correct pole count according to circuit requirements, complete assembly following recommended PCB layout drawing, avoid excessive insertion force to prevent pin bending or housing cracking, and store finished connectors inside dry sealed packages to protect gold flash plating against oxidation. Unlike competitors outsourcing mold stamping and plating work Antenk performs complete in house production workflow covering self developed precision plastic and metal mold fabrication, brass pin high speed stamping, high temperature nylon injection molding and gold flash electroplating together with full set laboratory reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH rules. We own more than two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, deliver custom solutions and round the clock professional engineering support, and over seventy percent of our wafer connector products are exported globally supported by ANTENK brand and consistent stable mass production quality.

1. Nylon 66 Wafer Housing delivers reliable flame retardant performance and mechanical strength for right angle wire to board connection scenarios.

2. Gold Flash Wafer Pin maintains low contact resistance and good anti‑oxidation property under 3A rated current for daily plug in operations.

3. Right Angle Wafer Terminal realizes compact space saving wire‑to‑board interconnection for standard PCB mounting applications.

Detailed Specifications ：

1. Electrical Parameters

1.1 Rated Voltage: 250V AC/DC

1.2 Rated Current: 3A AC/DC

1.3 Dielectric Withstanding Voltage: 1500V AC per minute

1.4 Minimum Insulation Resistance: 1000 Megohms

1.5 Maximum Contact Resistance: 20 milliohms

2. Material & Surface Finishing

2.1 Housing: Nylon 66 plus 15% glass fiber, UL94V‑0 flame retardant grade

2.2 Pin Material: Brass

2.3 Pin Plating: Gold flash

3. Structural Specifications

3.1 Pitch: 2.54mm

3.2 Orientation: 90 degree right angle type

3.3 Available Pole Range: 02‑20 poles

4. Dimensional Standards (Unit: mm)

4.1 Key dimension tolerance: 2.54±0.1, 3.30±0.2, 5.50±0.3, 0.64±0.05

4.2 General tolerance rule: XXX±0.20, X.XXX±0.15

4.3 Dedicated PCB layout for board mounting

5. Environmental Performance

5.1 Operating Temperature Range: ‑25°C ~ +85°C

6. Compliance Standard

6.1 Meet RoHS environmental requirements

7. Application Scenarios

7.1 Liquid crystal display modules, digital cameras

7.2 Communication hardware, industrial control panels

7.3 Digital household appliances, electronic toys

7.4 Computer peripherals, automotive electronic assemblies

7.5 Precision measuring instruments

8. Operation & Storage Precautions

8.1 Select proper pole quantity according to actual circuit requirements

8.2 Complete PCB mounting following official PCB layout specification

8.3 Avoid excessive insertion force to prevent pin deformation or housing cracking

8.4 Keep finished connectors in dry sealed packages to prevent gold flash plating oxidation

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

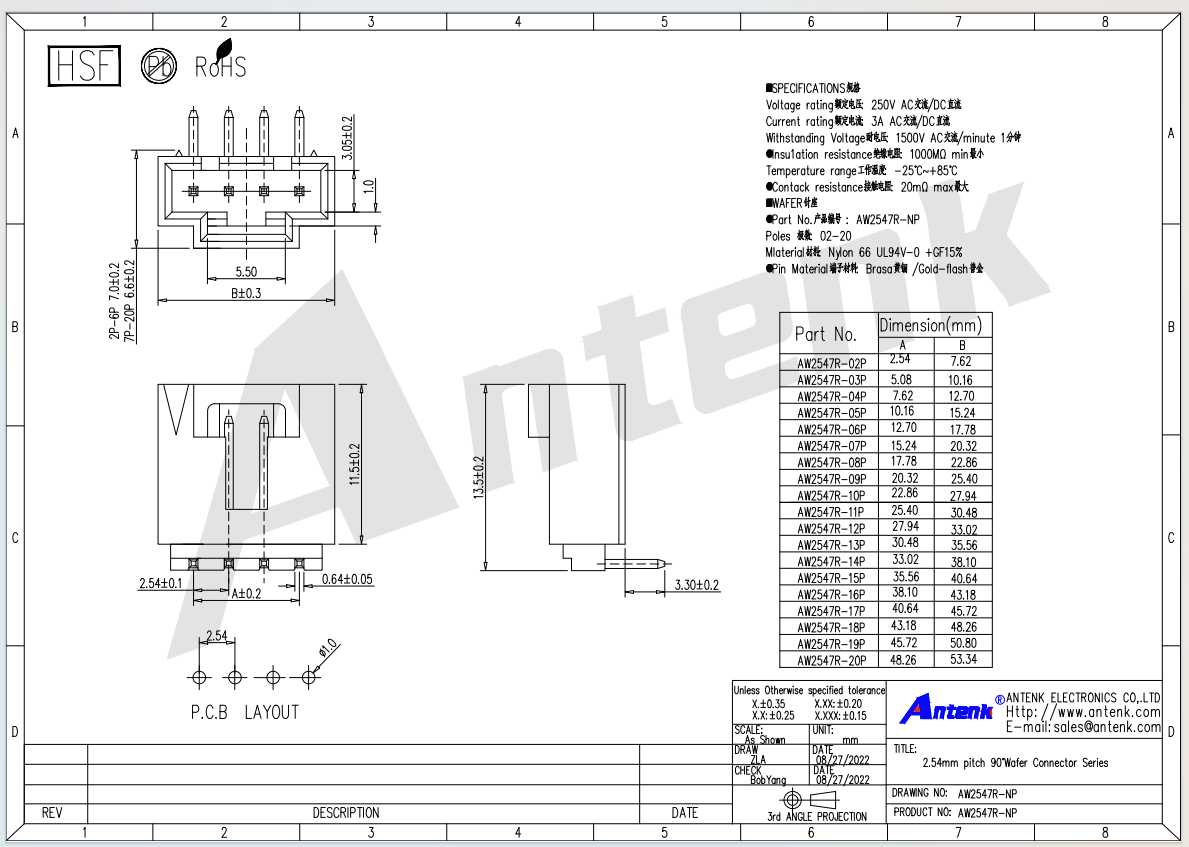

Product Drawing：

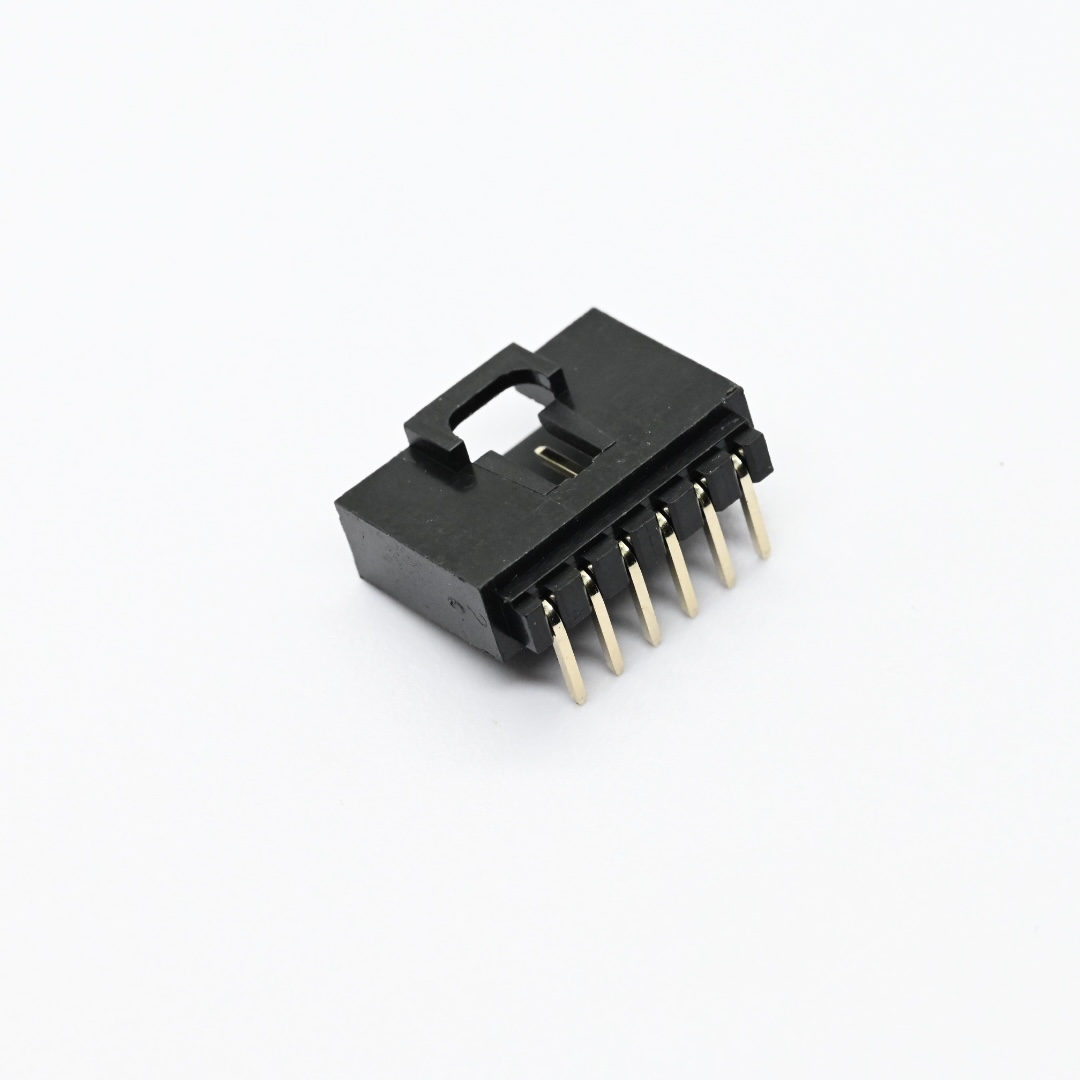

AW2547R-06P+2.54mm pitch 90 Wafer Connector Series（2）

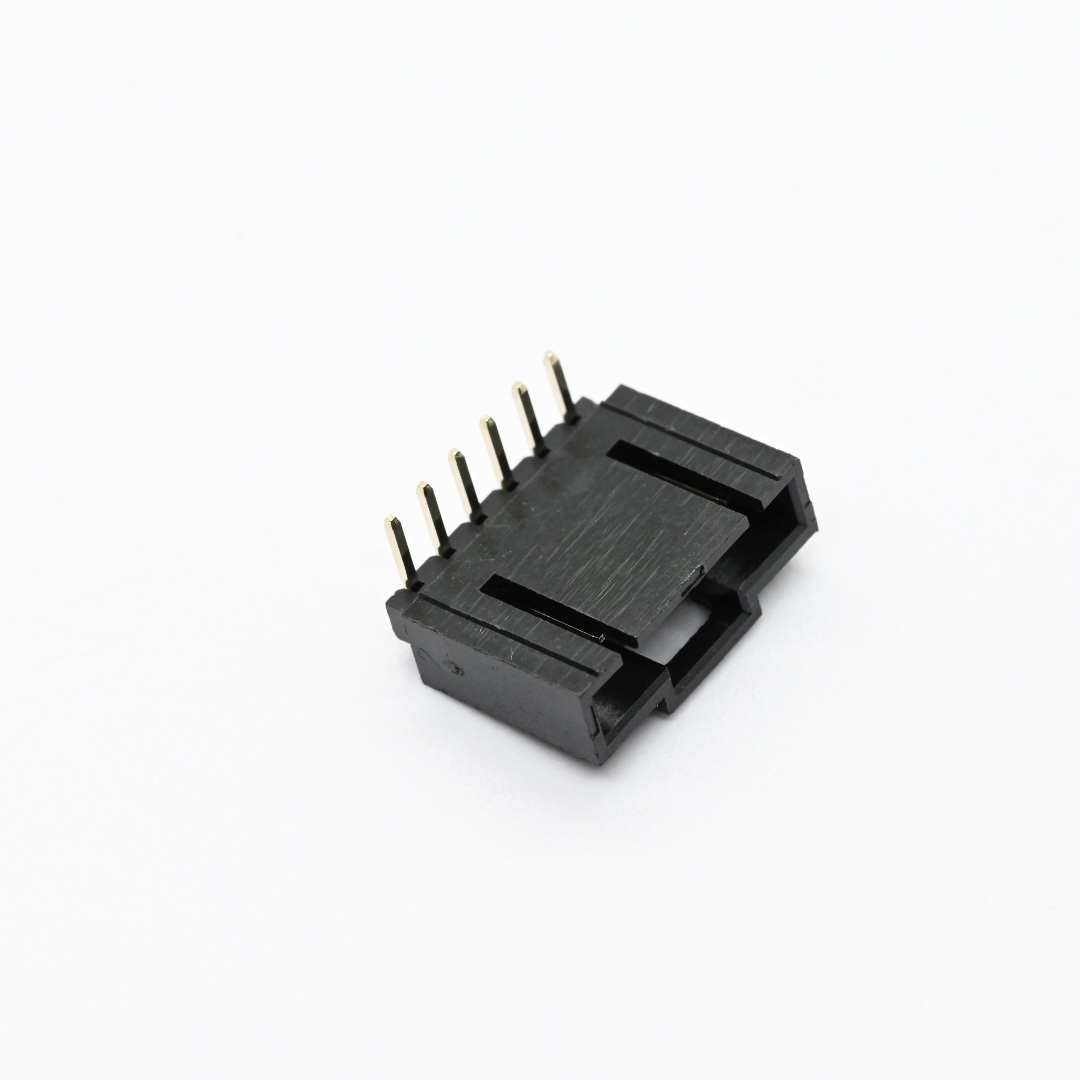

AW2547R-06P+2.54mm pitch 90 Wafer Connector Series（6）

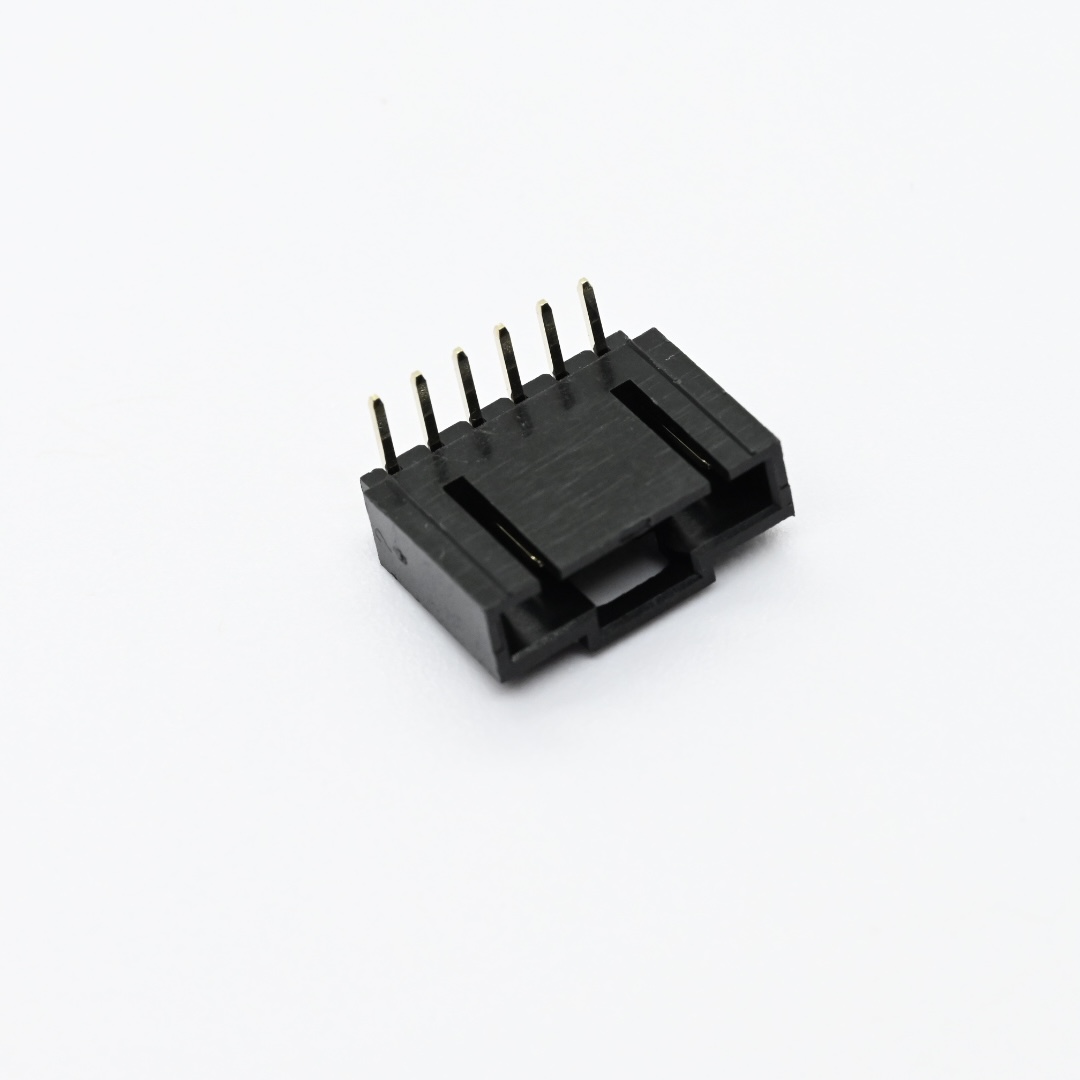

AW2547R-06P+2.54mm pitch 90 Wafer Connector Series（5）

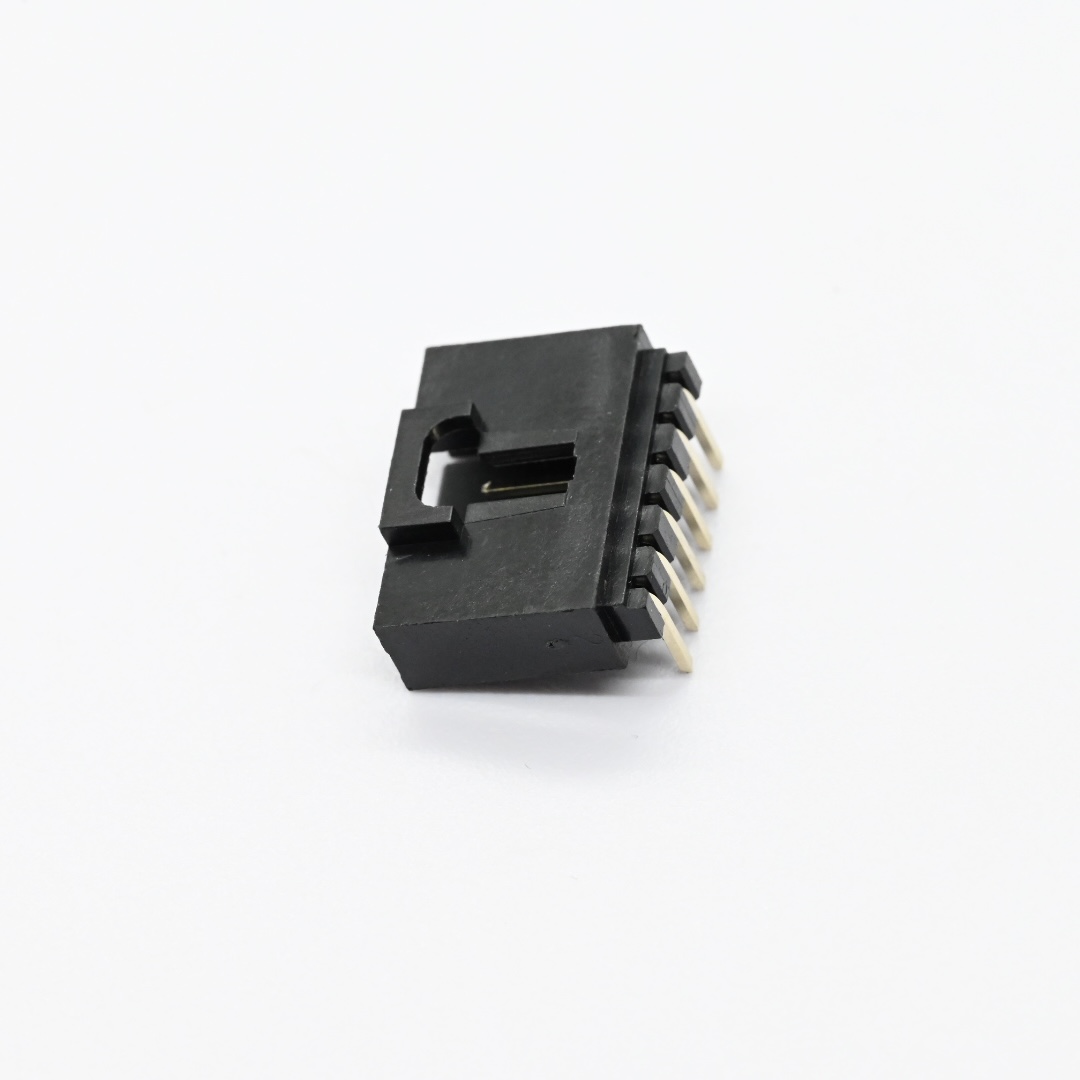

AW2547R-06P+2.54mm pitch 90 Wafer Connector Series（3）

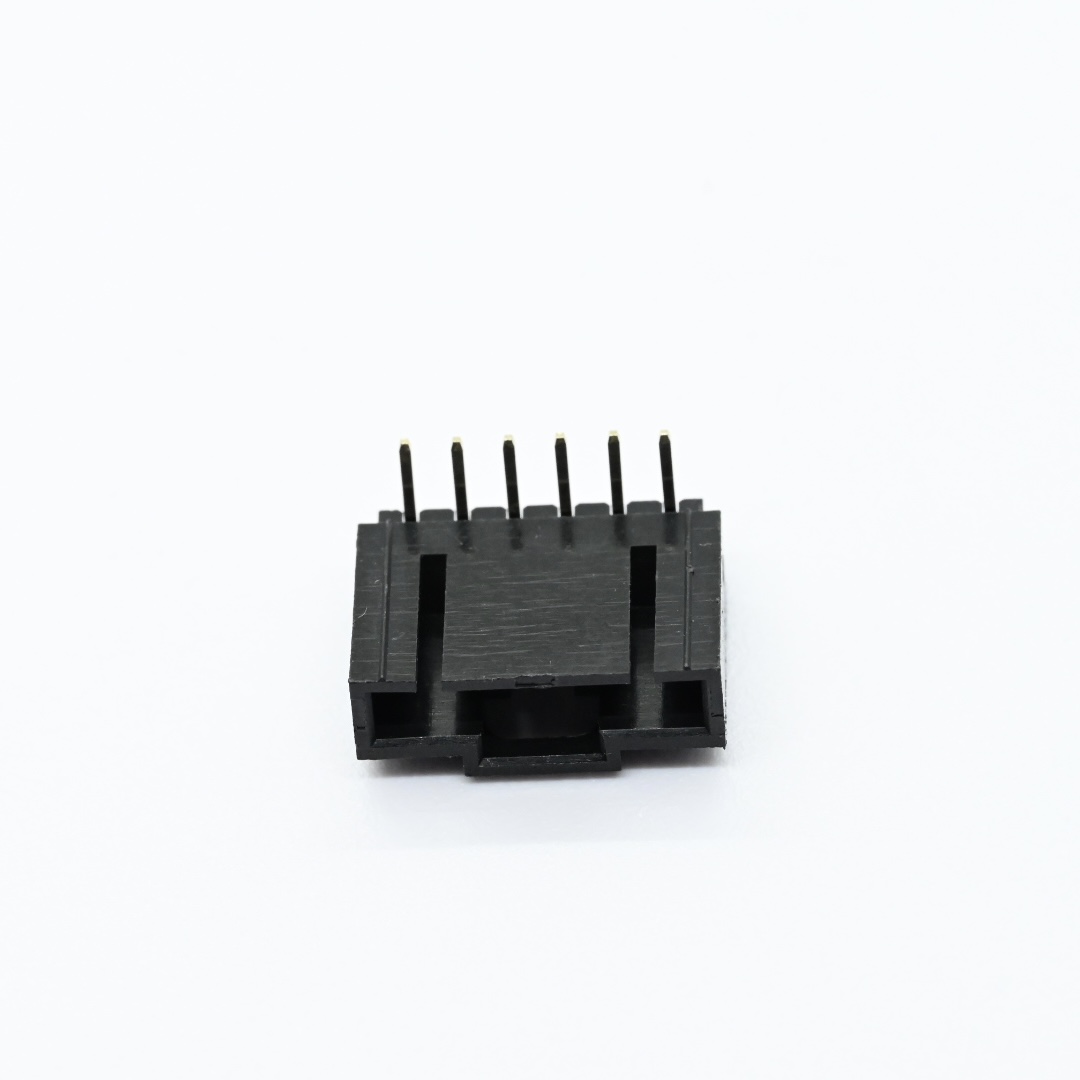

AW2547R-06P+2.54mm pitch 90 Wafer Connector Series（4）

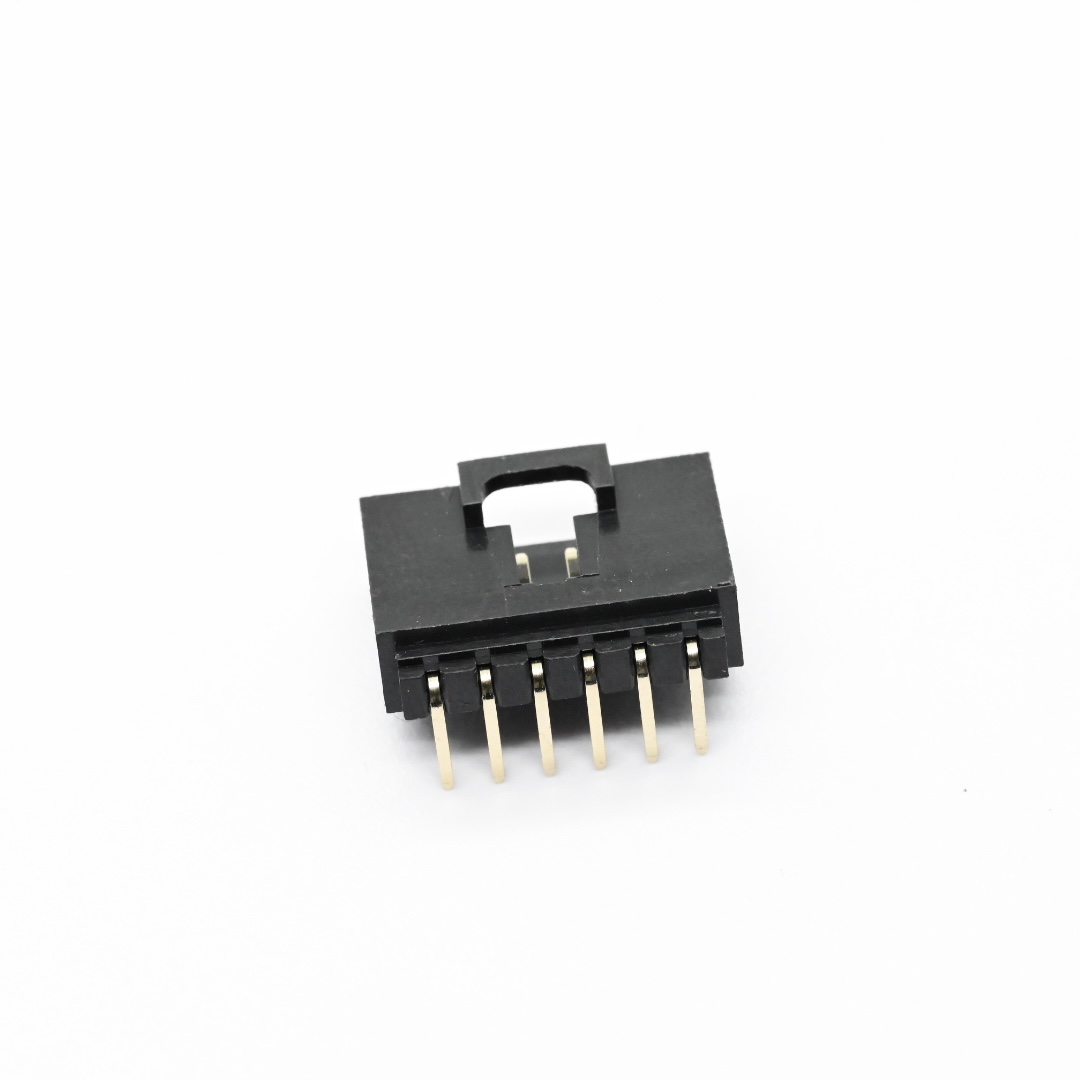

AW2547R-06P+2.54mm pitch 90 Wafer Connector Series（1）
