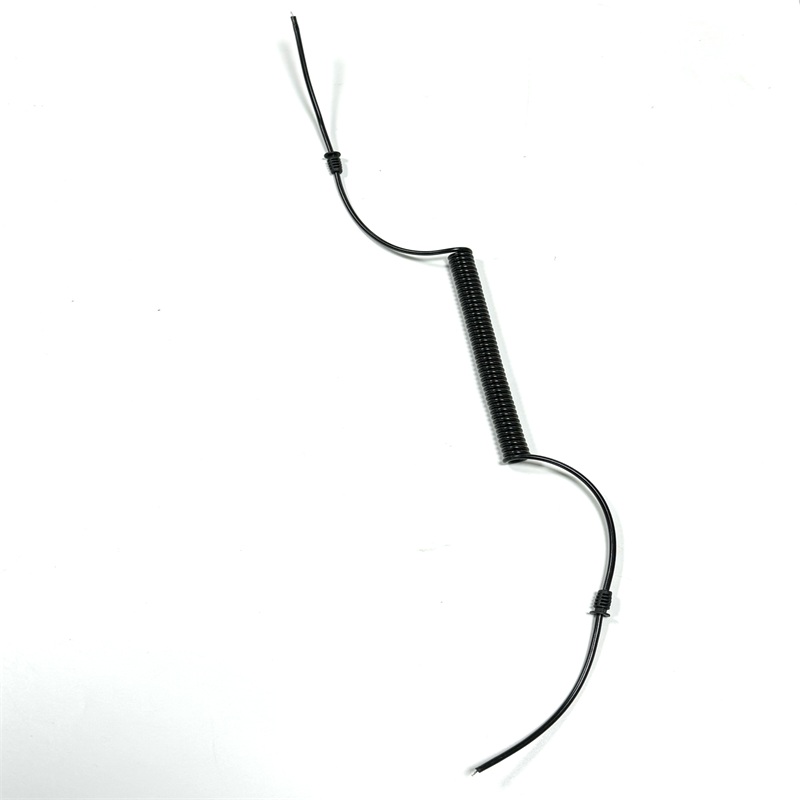

Custom TPU Coiled Spring Wire, Open End to Open End Cable

This TPU coiled spring wire is a telescopic open-end cable built for frequent stretch-and-retract usage. Different from Y-type splitter harnesses and ordinary straight wiring products, its spiral spring structure enables automatic retraction after stretching, preventing wire tangling and saving installation space. The cable uses 24AWG black 90A medium-gloss TPU wire with polyester outer jacket. The coiled molding process is precisely controlled to avoid looseness or permanent deformation after forming. Straight wire sections are reserved at both ends, and conductors are stripped and pre-tinned 3mm, making direct soldering to sensors or circuit boards quick and convenient.

All raw materials meet RoHS compliance standards. Each finished cable passes comprehensive electrical tests: full continuity check, DC 500V withstand voltage test, insulation resistance and loop resistance verification to rule out broken wires and poor conduction. The TPU outer layer delivers outstanding abrasion resistance, bending resistance and anti-aging capability, suitable for long-term repeated movement. Products are bundled in standard quantities for easy warehouse management and transportation.

Item	Description
Product Name	Custom TPU Coiled Spring Wire, Open End to Open End Cable
Type	Retractable Spring Coil Wiring Cable / Flexible Telescopic Signal Wire
Rated Test Voltage	DC 500V, 10MS Test Duration, Working Voltage Customizable
Wire Gauge	1*24AWG, Black 90A TPU Medium Gloss Wire
Insulation Material	Non-flame retardant TPU polyester outer jacket
Working Temperature	-40℃ ~ +105℃ Or Customized
Length	Total stretched length: 1500mm; straight wire reserved at both ends; both ends stripped & tinned 3mm
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤3Ω
Application Fields	Mobile detection equipment, handheld measuring instruments, automotive portable equipment, industrial sensor connection, small electronic device signal transmission, medical portable equipment, automated telescopic mechanism wiring
Specific Shipping Cost	Please Contact Us

The retractable spring cable is commonly used for handheld measuring devices, mobile inspection equipment, industrial sensors and telescopic automation mechanisms, undertaking low-current power supply and signal transmission tasks. If you need to modify wire thickness, maximum stretched length, surface material or end processing form, we can adjust parameters to create exclusive custom cable assembly matching your equipment layout. We continuously optimize the fatigue resistance of every electrical harness assembly under continuous movement conditions. Alongside telescopic spring cables, we offer a full range of customized car wiring harness for commercial vehicle portable diagnostic tools and on-board electronic accessories. Please send your technical specifications to us for sample confirmation and favorable pricing.
