Custom HDB26 Male to Female Extension Cable

4 week ago

3 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

We have accumulated abundant practical experience developing automotive diagnostic cables for professional garage testing equipment, and we continuously expand supporting connection accessories to meet the upgrading demands of vehicle fault diagnosis systems. In addition to diagnostic connecting wires, we provide professionally engineered customized car wiring harness for on-board electronic modules and mobile testing equipment. To enrich the supporting solution for vehicle inspection tools, we also design and produce various styles of OBD diagnostic adapter that match mainstream diagnostic host devices on the market.

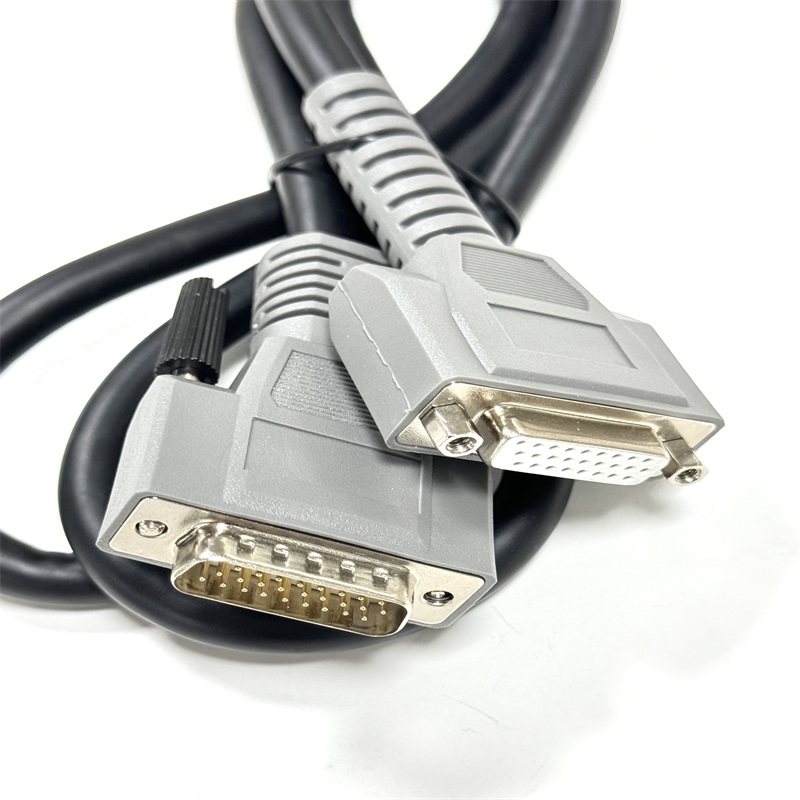

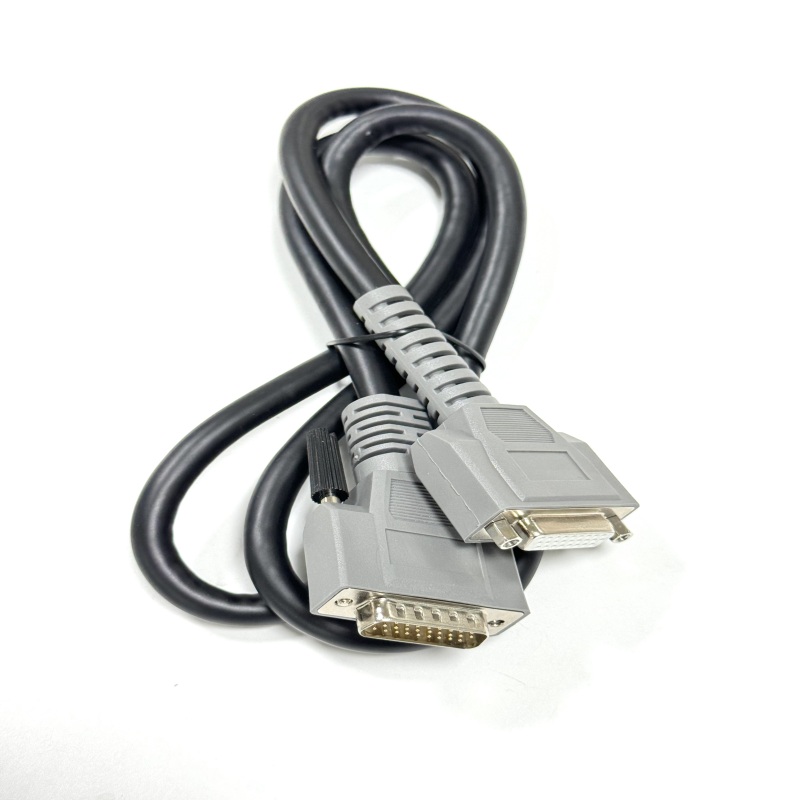

Custom HDB26 Male to Female Extension Cable

This HDB26 male to female extension cable is a high-density D-Sub 26Pin signal extension harness specially developed for multi-channel synchronous data transmission. Different from retractable TPU spring cables and simple DC power harnesses, this cable adopts a mixed wire gauge internal structure, combining 18AWG and 26AWG color-coded conductors to simultaneously satisfy low-power supply and multi-channel signal transmission requirements. Both ends are fitted with gray HDB26 high-density D-Sub male and female connectors built with gold-plated terminals, which effectively reduce signal attenuation and resist oxidation during long-term repeated plugging. The connector tail features integrated strain relief overmolding to disperse bending force, greatly lowering the risk of internal wire breakage caused by frequent pulling and twisting. The standard finished length is 1200±50mm, and we support flexible adjustments on total length, wire specification and pin assignment according to actual equipment installation space. The cable outer jacket is made of high-gloss PVC material with stable mechanical performance, resisting ordinary wear and surface aging under indoor working conditions.

Item	Description
Product Name	Custom HDB26 Male to Female Extension Cable
Type	HDB26 D-Sub High-Density Signal Extension Wiring Harness / 26Pin Data Transmission Cable
Rated Test Voltage	DC 300V 10MS Test Voltage, Customized Working Voltage Available
Pins Material	Gold-Plated Brass Machined Pins 1U", Nickel-Plating Optional
Plug Material	PA66+GF Automotive Grade Gray D-Sub Connector Housing, HDB26 Male & Female Connectors
Working Temperature	-40℃ ~ +105℃ Or Customized
Length	1200±50mm, Customized Length Available
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤2Ω
Application Fields	Industrial control signal transmission, data acquisition equipment, CNC machine connection, test bench wiring, multi-channel signal extension, automotive diagnostic equipment, electronic instrument connection, automation system communication wiring
Specific Shipping Cost	Please Contact Us

Every finished cable undergoes rigorous multi-stage quality inspection before shipment. The 100% continuity test eliminates hidden risks such as open circuits, short circuits and pin misalignment. The product passes DC 300V withstand voltage testing, with insulation resistance maintained above 10MΩ and maximum conduction resistance controlled within 2Ω. All raw materials fully comply with RoHS environmental standards. Strict appearance inspection screens out defective items with shell deformation, peeling, bubble marks and damaged pins. The packaging method is standardized; the cable is bundled neatly and packed into individual PE bags, avoiding scratches and extrusion damage during transit and storage. The whole assembly is designed for stable long-term continuous operation inside test benches and control cabinets.

This HDB26 D-Sub extension cable is widely deployed in industrial control systems, data acquisition instruments, CNC processing equipment, multi-channel detection platforms and automotive diagnostic main units. It acts as a reliable extension medium to connect diagnostic hosts and external testing modules, ensuring stable and consistent data communication during vehicle fault scanning. If you have special requirements on cable length, connector plating, outer sheath material or custom pin definition, our engineering team can design exclusive wiring solutions for your equipment. Our product lineup covers not only high-density D-Sub signal transmission cables, but also a full range of automotive diagnostic cables for professional vehicle inspection equipment. We keep improving the bending resistance and signal stability of connecting lines used in frequent mobile diagnostic scenarios. Cooperated with different types of OBD diagnostic adapter, these cables can form a complete wiring supporting system for repair shop diagnostic tools. Beyond diagnostic series products, we also deliver tailor-made customized car wiring harness to handle special connection needs of commercial vehicle and new energy vehicle testing equipment. Welcome to send over technical drawings, pin definitions or sample requests for detailed evaluation, sample development and competitive quotation.
