Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures FHDS13‑XXDXXX series 2.00mm pitch dual row straight female header with W4.0 H6.35 dimension to deliver stable board to board signal transmission for printed circuit board assembly, supporting wide contact quantity range with strict drawing dimensional tolerances to guarantee accurate soldering and reliable mating performance. This female header uses PA6T black insulator housing with UL94V 0 flame retardant grade and brass contact material, provides multiple plating selections including gold flash full gold and selective gold plating, electrically rated for 1.5 Amp current and AC500V dielectric withstanding voltage, maximum 20 milliohms contact resistance and minimum 1000 megohms insulation resistance, operating temperature ranges from minus 65 degree Celsius to plus 125 degree Celsius and complies with RoHS environmental requirements. Multiple packing choices such as tray bag tube and tape and reel satisfy diverse production demands. This precision PCB header is widely applied in liquid crystal display modules, communication hardware, industrial control panels, digital household appliances, computer peripherals, automotive electronic assemblies and precision measuring instruments. Operators need to select correct pin count plating finish and packing form based on project requirements, follow PCB layout specification during soldering operation, avoid excessive heat to prevent insulator damage, and store finished headers inside dry sealed packages to protect contact plating from oxidation. Unlike competitors outsourcing stamping molding and plating work Antenk completes full in house production workflow covering self developed precision plastic and metal mold fabrication, brass contact high speed stamping, high temperature PA6T injection molding and multi specification electroplating plus comprehensive laboratory reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH rules. We own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, deliver custom solutions and round the clock professional engineering support, and over seventy percent of our header products are exported globally backed by ANTENK brand and consistent stable mass production quality.

1. PA6T Black Insulator Housing offers excellent high temperature resistance and flame retardant property for harsh PCB assembly environments.

2. Brass Female Header Contact ensures stable electrical conductivity and good mechanical elasticity for frequent plug and mate operations.

3. Selective Gold Plated Pin delivers superior anti oxidation performance and low contact resistance for high reliability signal transmission scenarios.

Detailed Specifications:

1. Electrical Parameters

1.1 Rated Current: 1.5 Amp

1.2 Dielectric Withstanding Voltage: AC500V

1.3 Maximum Contact Resistance: 20 milliohms

1.4 Minimum Insulation Resistance: 1000 Megohms

2. Material & Plating Options

2.1 Contact Material: Brass

2.2 Insulator Material: PA6T, UL94V‑0 flame retardant grade, black color

2.3 Plating Options: Gold flash, full gold plating, selective gold plating, tin plating

2.4 Contact range: 02‑80 contacts

3. Structural Specifications

3.1 Product Type: Dual Row Straight Female Header

3.2 Pitch: 2.00 mm

3.3 Dimension: W4.0, H6.35 mm

4. Dimensional Standards (Unit: mm)

4.1 Dimension tolerance rule: A±0.1, B±0.2

4.2 Corresponding A and B dimension values for 12‑60 contacts are listed on specification table

5. Environmental Performance

5.1 Operating Temperature Range: ‑65°C ~ +125°C

6. Compliance Standard

6.1 RoHS and HSF compliant

7. Packing Selections

7.1 Available packing: Tray, Bag, Tube, Tube plus CAP, Tape and Reel, Tape and Reel plus CAP

8. Application Scenarios

8.1 Liquid crystal display modules and communication hardware

8.2 Industrial control panels and digital household appliances

8.3 Computer peripherals, automotive electronic assemblies

8.4 Precision measuring instruments

9. Operation & Storage Precautions

9.1 Select proper contact count plating finish and packing method according to project requirements

9.2 Follow official PCB layout data during soldering process

9.3 Avoid excessive soldering heat to prevent insulator damage

9.4 Store female headers in dry sealed packages to prevent contact surface oxidation

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

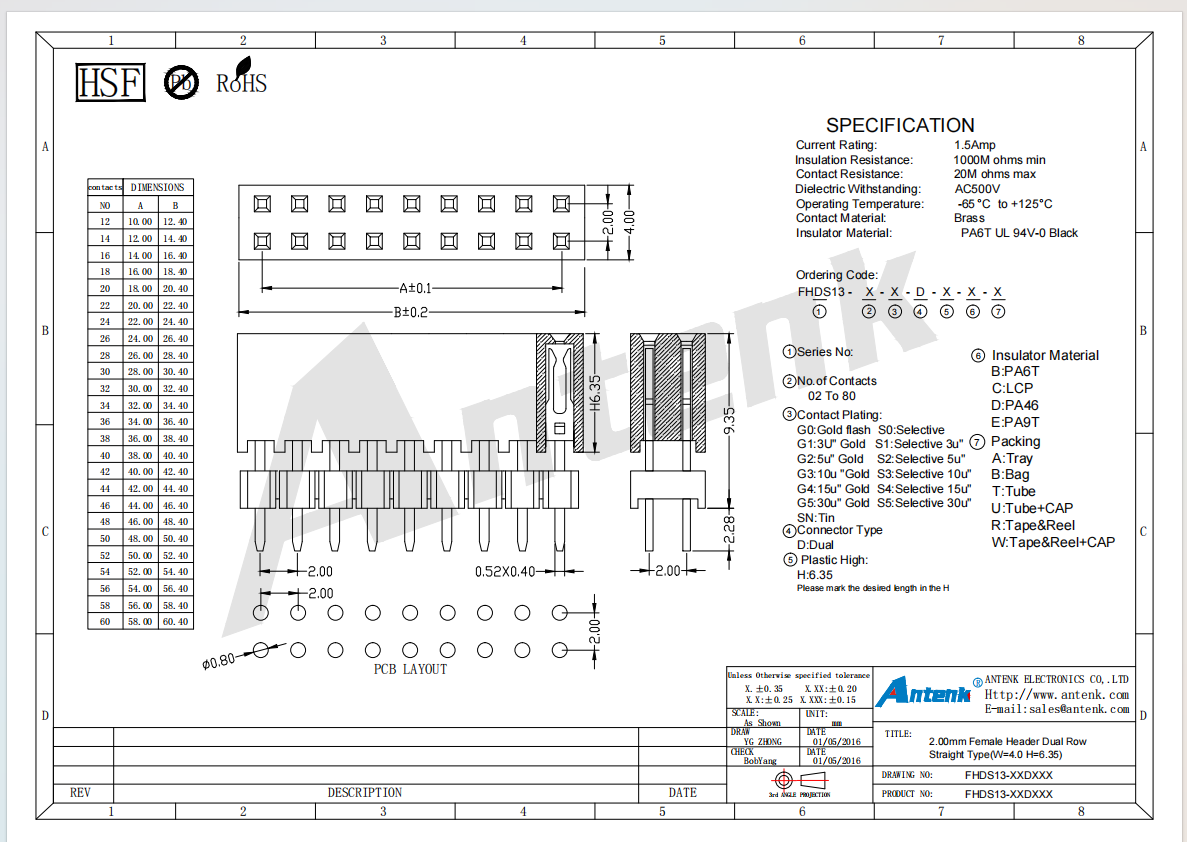

Product Drawing：

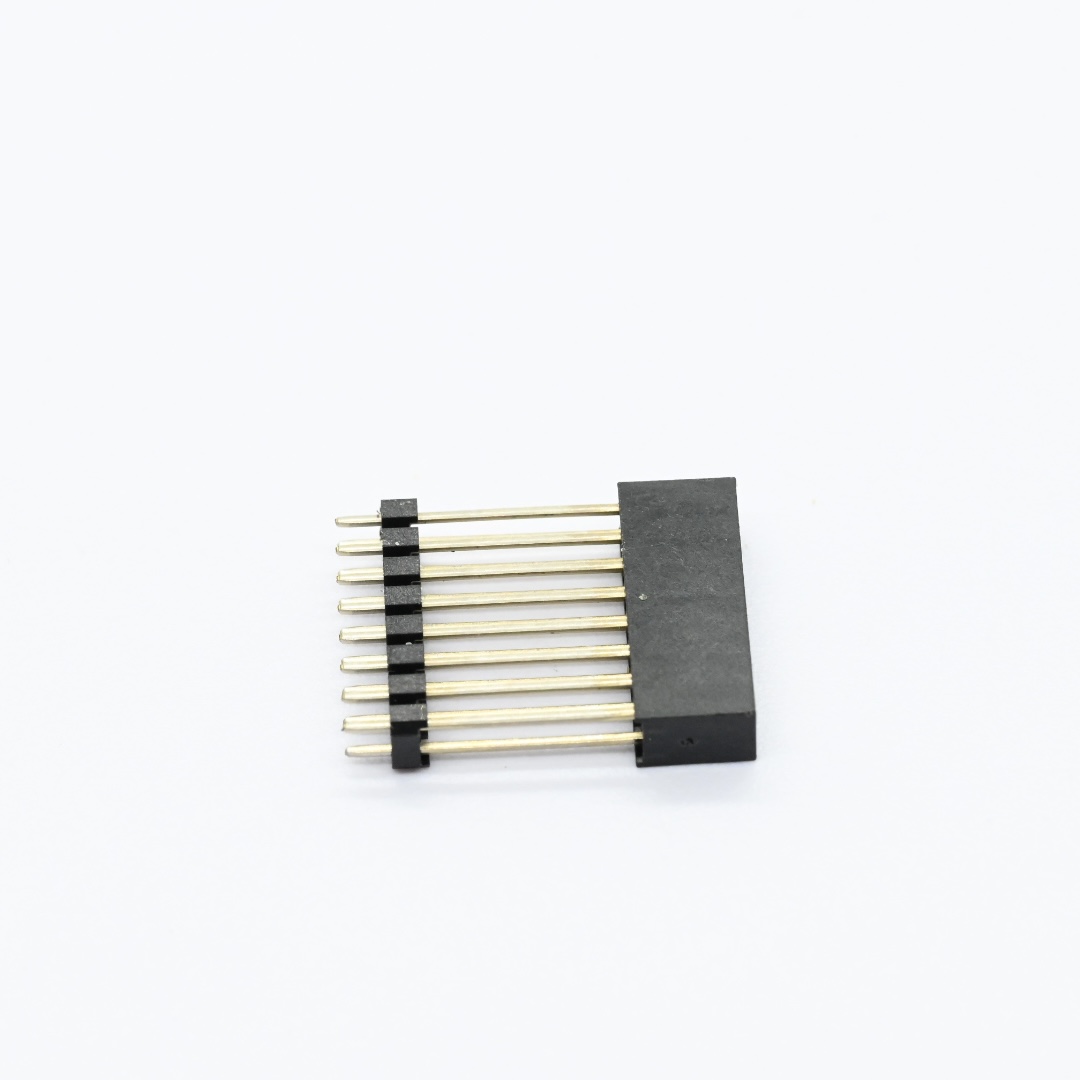

FHDS13-16-G0-D-D-B-T+2.00mm Female Header Dual Row Straight Type(W=4.0 H=6.35)（2）

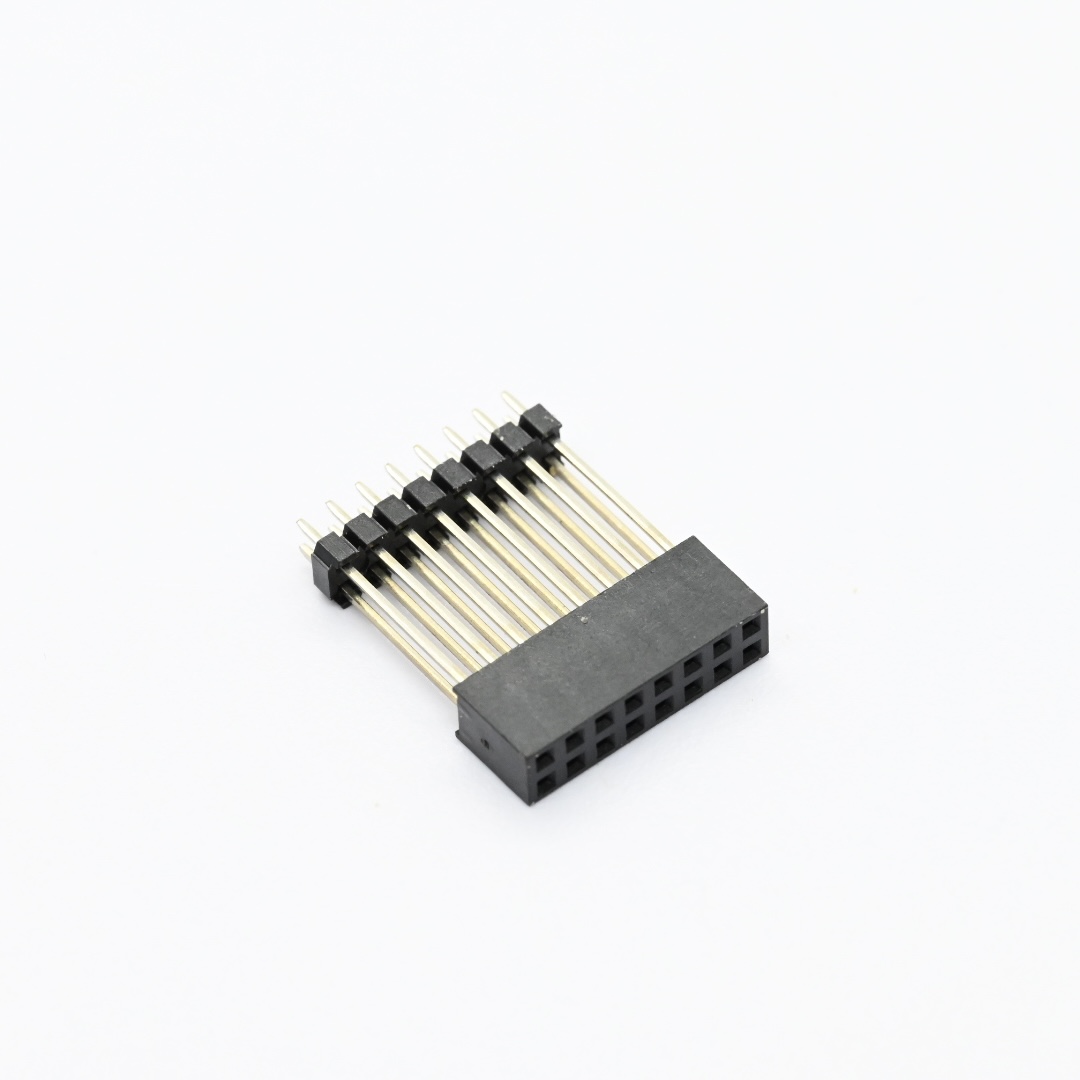

FHDS13-16-G0-D-D-B-T+2.00mm Female Header Dual Row Straight Type(W=4.0 H=6.35)（6）

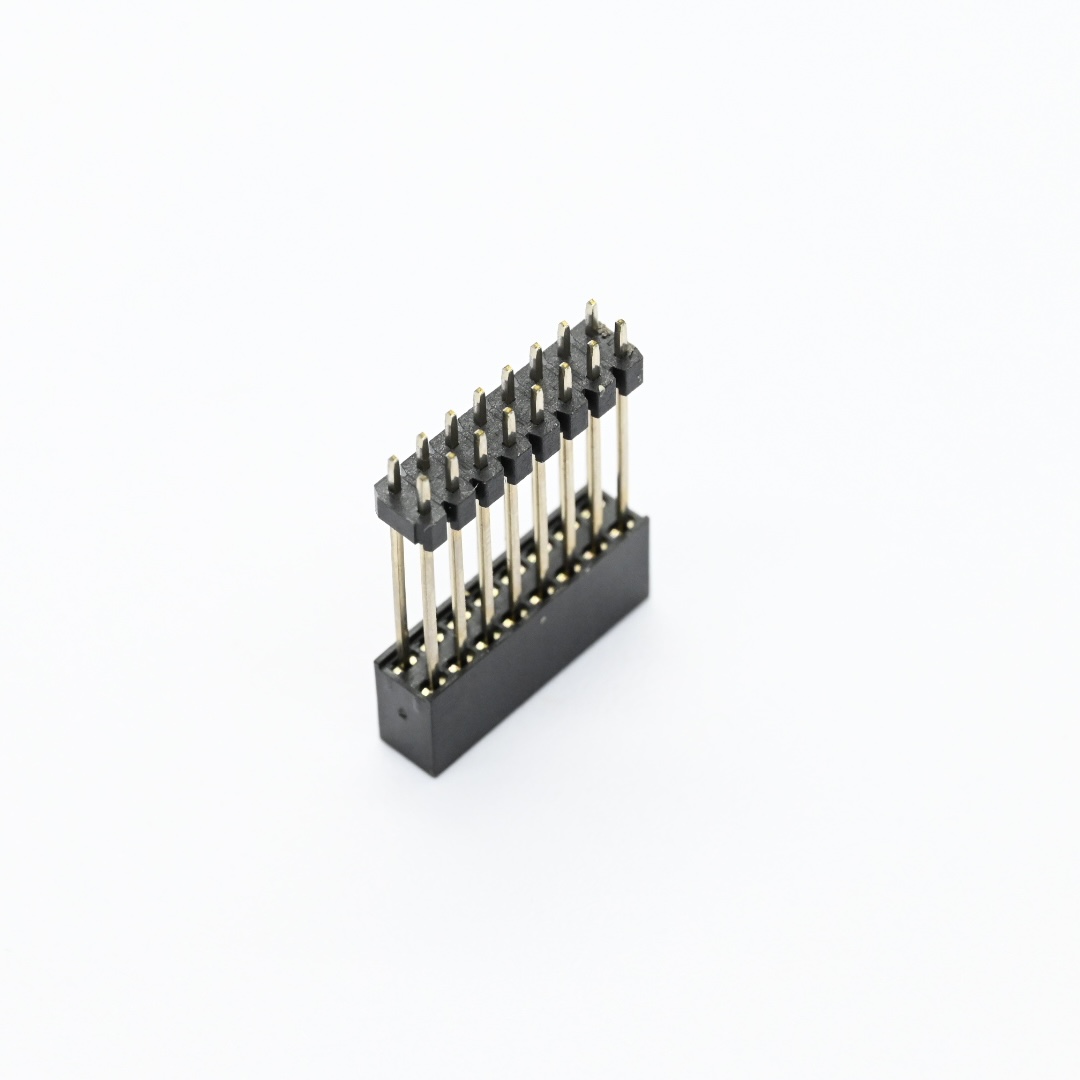

FHDS13-16-G0-D-D-B-T+2.00mm Female Header Dual Row Straight Type(W=4.0 H=6.35)（3）

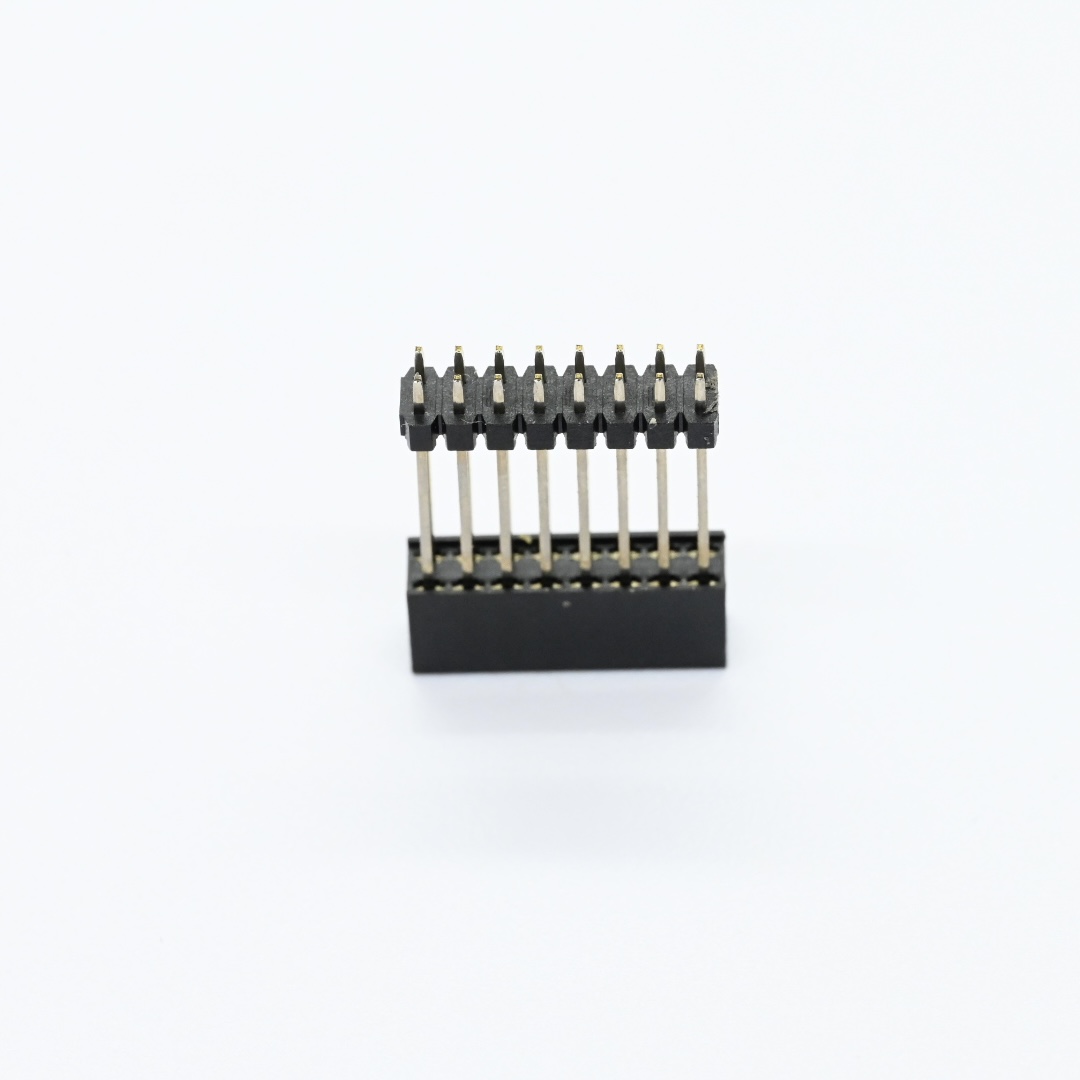

FHDS13-16-G0-D-D-B-T+2.00mm Female Header Dual Row Straight Type(W=4.0 H=6.35)（5）

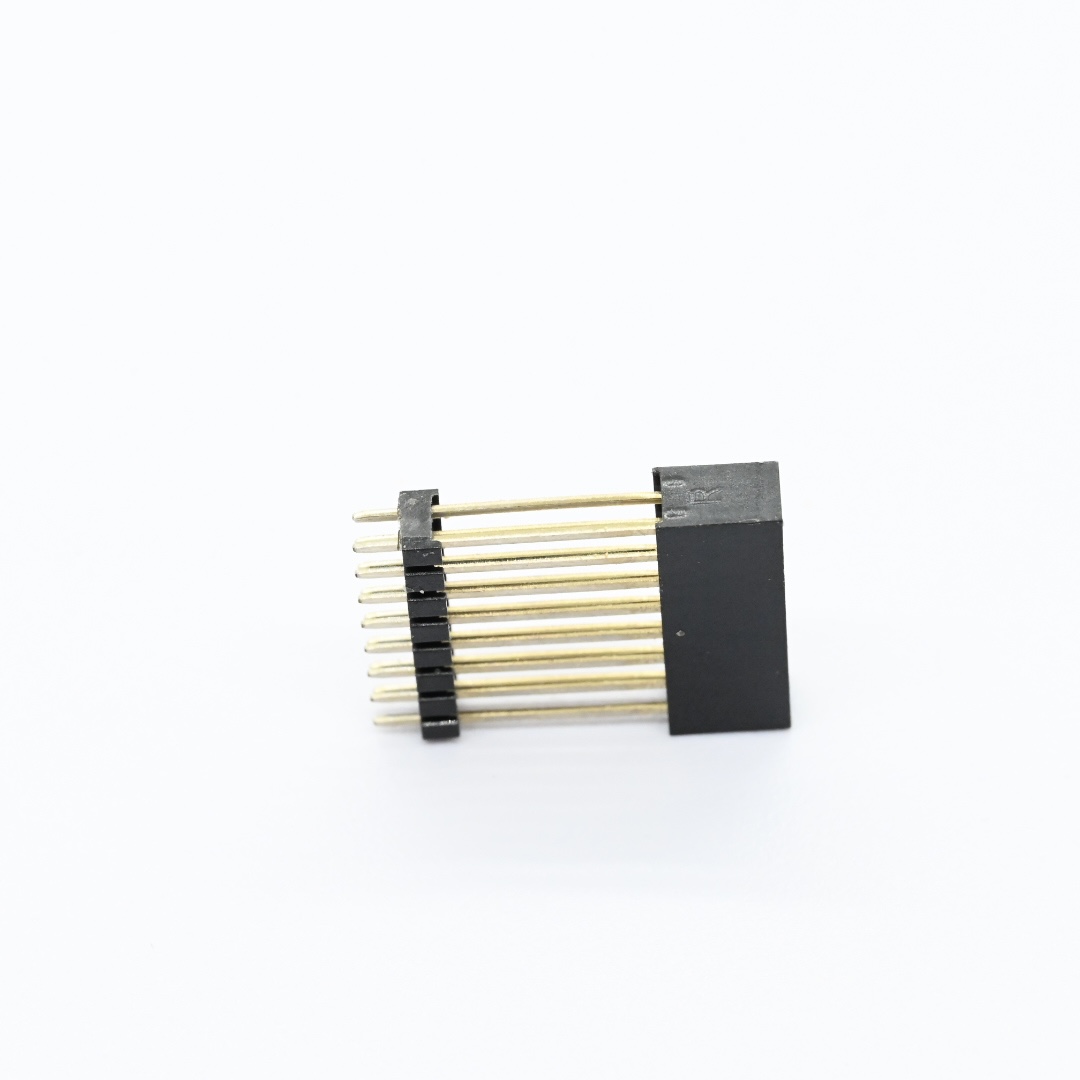

FHDS13-16-G0-D-D-B-T+2.00mm Female Header Dual Row Straight Type(W=4.0 H=6.35)（4）

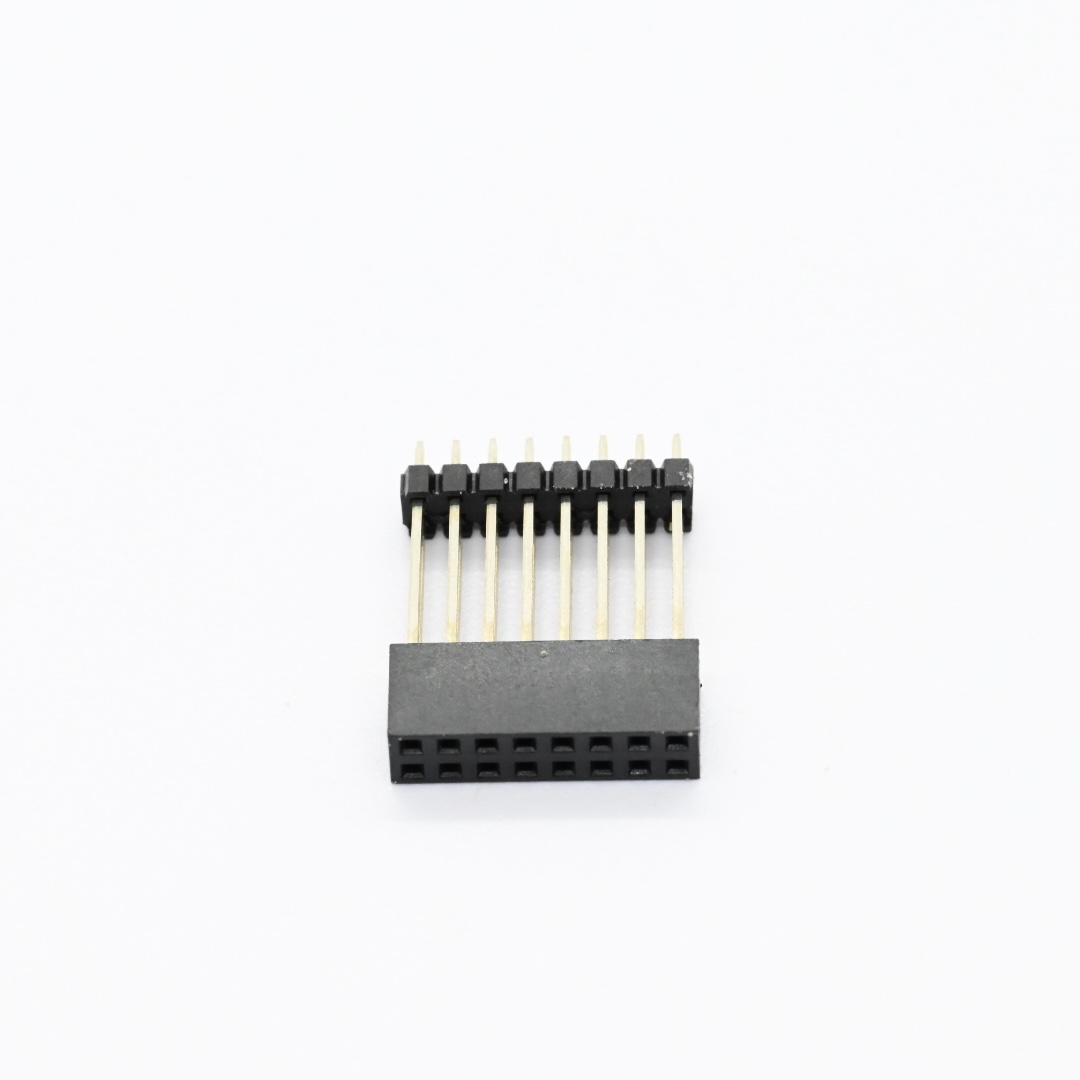

FHDS13-16-G0-D-D-B-T+2.00mm Female Header Dual Row Straight Type(W=4.0 H=6.35)（1）
