We have accumulated rich experience in developing Customized Electrical Connectors And Harnesses for harsh working environments, and can adjust connector types, wire specifications and sealing structures according to customer drawings and actual installation conditions. Our product portfolio covers diverse custom wiring harness for industrial control modules, sensor signal transmission and vehicle electronic systems. We also provide standard and tailored automotive wiring harness for aftermarket modification and on-board equipment connection, fully complying with RoHS environmental standards and strict quality inspection procedures.

Custom M11 8Pin Female to Deutsch 12Pin Female Waterproof Cable

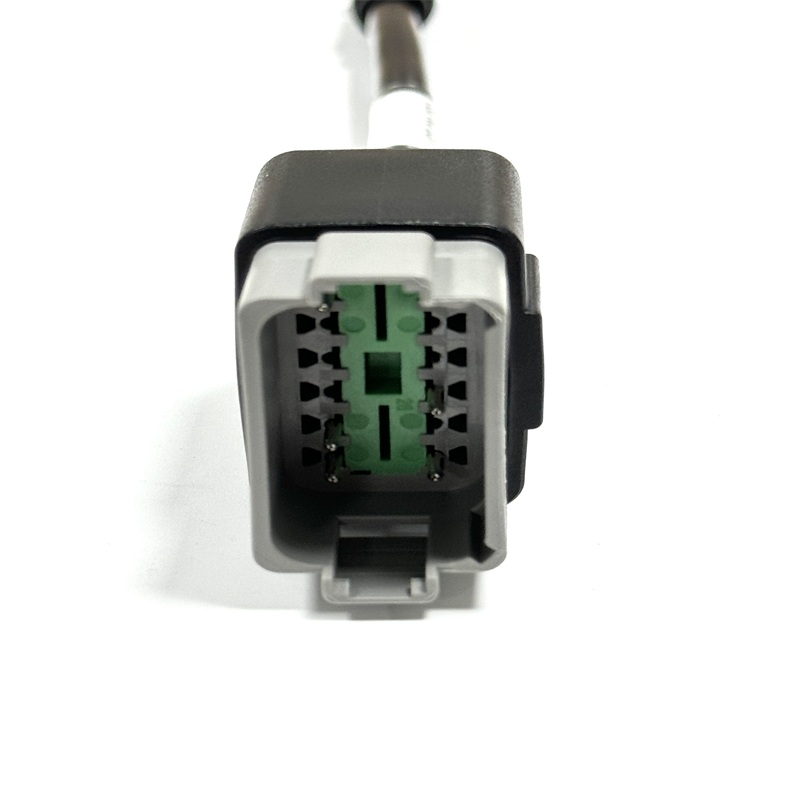

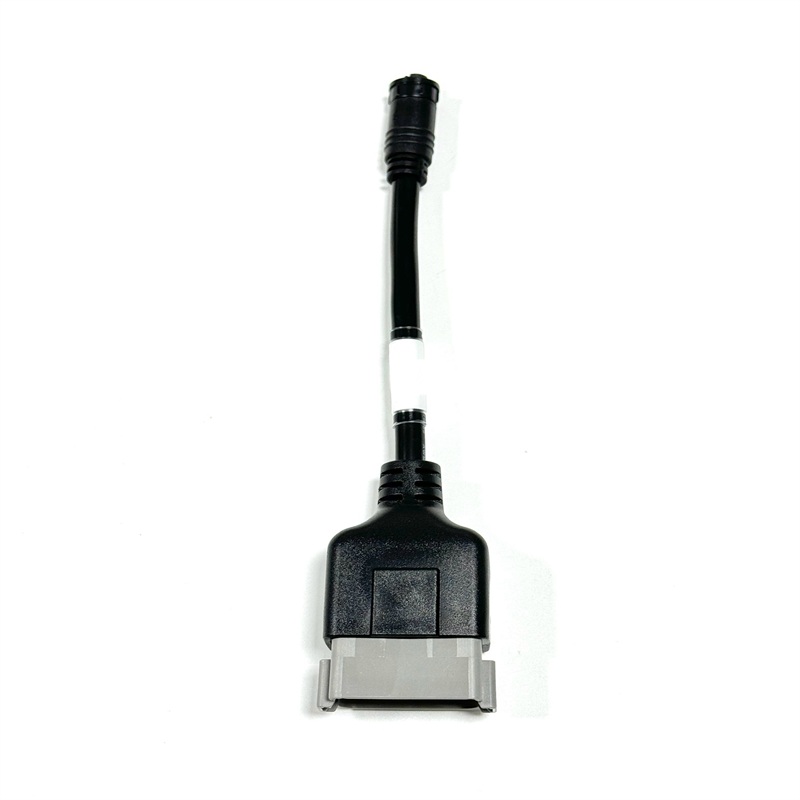

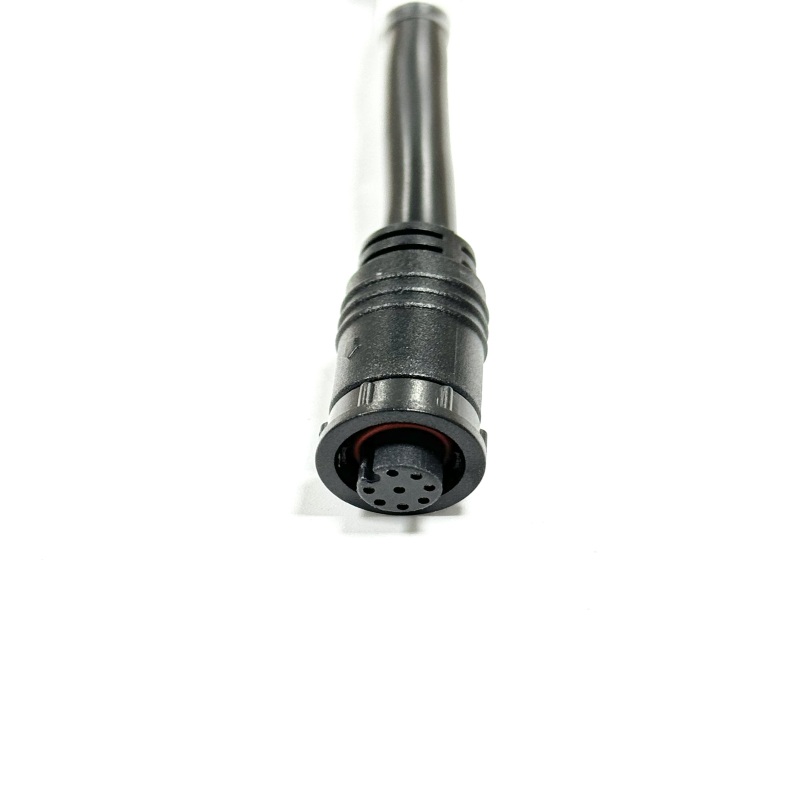

This M11 8Pin female to Deutsch 12Pin female waterproof conversion cable is a compact short-distance signal transfer harness specially engineered for equipment requiring reliable waterproof connection. Different from long extension cables and multi-branch diagnostic harnesses, this product focuses on concise connector-to-connector conversion within limited installation space. The overall length is controlled at 100±20mm, making it ideal for internal wiring of equipment enclosures and narrow connection positions where long cables would cause unnecessary clutter. One end adopts M11 series waterproof 8Pin female connector with threaded locking structure, delivering stable sealing performance against moisture and dust intrusion. The other end is fitted with Deutsch DT series 12Pin female connector equipped with PIN plug blind cap structure, which effectively protects unused pins from oxidation and foreign object contamination.

Item	Description
Product Name	Custom M11 8Pin Female to Deutsch 12Pin Female Waterproof Cable
Type	Waterproof Signal Wiring Harness / Industrial Connector Conversion Cable
Rated Test Voltage	DC 500V 10MS Test Voltage, Working Voltage Customizable
Pins Material	Nickel-Plated Brass Terminals, Gold-Plating Optional
Plug Material	PA66+GF Automotive Grade Connector Housing, Deutsch DT 12Pin & M11 Waterproof 8Pin Connectors
Working Temperature	-40℃ ~ +105℃ Or Customized
Length	100±20mm, Customized Length Available
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤3Ω
Compliance	RoHS Compliant
Application Fields	Industrial equipment signal connection, waterproof outdoor wiring, automotive electronic control, marine equipment connection, construction machinery wiring, sensor signal transmission, harsh environment industrial control projects
Specific Shipping Cost	Please Contact Us

The internal conductor adopts UL2464 certified 20AWG 6-core shielded cable with yellow PVC outer jacket, integrating aluminum foil shielding layer to suppress external electromagnetic interference and guarantee stable signal transmission. The cable is resistant to oil, abrasion and mild chemical corrosion, suitable for long-term operation in industrial workshops and outdoor equipment environments. Every finished harness undergoes strict 100% electrical testing before delivery, including continuity inspection, DC 500V withstand voltage test, insulation resistance measurement and conduction resistance verification to eliminate open circuits, short circuits and pin misalignment. The insulation resistance is maintained above 10MΩ while maximum conduction resistance is controlled within 3Ω, ensuring consistent electrical performance under continuous working conditions.

All raw materials fully comply with RoHS environmental requirements. The connector housings are made of high-strength PA66+GF engineering plastic, featuring excellent mechanical strength, vibration resistance and temperature stability within -40℃ to +105℃ working range. Heat shrink tubes are applied at cable-to-connector transition positions for reinforced sealing and strain relief, preventing wire breakage caused by frequent bending and pulling. The product is packaged in bend-resistant PE bags with carton outer protection, convenient for storage and long-distance transportation.

This waterproof conversion cable is widely applied in industrial sensor connection, outdoor monitoring equipment wiring, construction machinery electronic control, marine instrument signal transfer, automotive modification accessory connection and harsh-environment industrial control projects. It serves as a reliable bridging medium between devices with different interface standards. If you need to adjust cable length, wire gauge, pin assignment or connector configuration, our engineering team can develop exclusive custom wiring harness to match your equipment layout. We continuously optimize the waterproof sealing and anti-vibration performance of every product in our Customized Electrical Connectors And Harnesses lineup to satisfy demanding outdoor and industrial application requirements. Beyond industrial conversion cables, we also offer various automotive wiring harness for commercial vehicle aftertreatment systems, on-board diagnostic equipment and vehicle electronic modification projects. Welcome to send technical drawings, pin definitions or sample requests for detailed evaluation, sample development and competitive quotation.
