Product details

Product Description:

Huizhou Antenk Electronics Co., Ltd. manufactures USB A Type Plug SMT to deliver stable high speed data transmission and power supply connection for surface mount printed circuit board assembly, following strict drawing dimensional tolerances to ensure accurate SMT reflow soldering and durable plugging performance during frequent mating cycles. This USB A type plug adopts high temperature resistant plastic housing suitable for reflow soldering environment, durable copper alloy contact material and tin plated metal shell, supports diversified contact plating choices to satisfy different reliability requirements, and completes strict electrical performance inspection to meet standard USB working parameters. This surface mount USB plug complies with RoHS and REACH environmental standards and supports multiple packing forms to fit customers automated mass production demands. This precision USB plug is widely applied in liquid crystal display modules, digital cameras, communication hardware, industrial control panels, digital household appliances, computer peripherals, automotive electronic assemblies and precision measuring instruments. Operators need to select proper plating finish and packing mode according to project requirements, follow official PCB footprint specification in SMT soldering process, avoid excessive reflow temperature to prevent plastic housing damage, and store finished USB plugs in dry sealed packages to keep metal components away from oxidation. Unlike competitors outsourcing stamping molding and plating services Antenk implements full in house production workflow covering self developed precision plastic and metal mold fabrication, copper alloy high speed stamping, high temperature plastic injection molding and multi grade electroplating plus comprehensive laboratory reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications. We own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide custom solutions and round the clock professional engineering support, and over seventy percent of our USB connector products are exported globally supported by ANTENK brand and consistent stable mass production quality.

1. High Temperature USB Plug Housing withstands high reflow soldering heat and maintains structural integrity during SMT assembly operations.

2. Copper Alloy USB Plug Contact offers excellent spring tension and stable electrical performance for repeated plug and unplug cycles.

3. Surface Mount USB Connector enables compact PCB layout and supports high efficiency automated SMT production processes.

Detailed Specifications:

1. Electrical Parameters

1.1 Maximum Rated Current: 1.5A

1.2 Maximum Contact Resistance: 30 milliohms

1.3 Dielectric Withstanding Voltage: 500V AC

1.4 Minimum Insulation Resistance: 1000 Megohms

2. Material & Plating Options

2.1 Insulator Material: PBT plus 30% GF or LCP, UL94V‑0 flame retardant grade

2.2 Contact Material: Phosphor copper or brass (copper alloy, thickness 0.20mm)

2.3 Shell Material: Stainless steel, brass or iron (iron thickness 0.30mm, nickel plated)

2.4 Contact Plating: Gold flash, 3u Gold, 5u Gold, 10u Gold,15u Gold,30u Gold; gold on mating area, tin on solder tails

2.5 Insulator Color Options: White, Black

3. Structural Specifications

3.1 Product Type: USB A Type Plug SMT Mid‑Mounting

3.2 Mid‑mount height: 3.13mm

3.3 Two product versions: Type1, Type2

4. Dimensional Standards (Unit: mm)

4.1 Key dimensions: 11.71, 7.00, 4.60, 14.80, 18.80

4.2 PCB layout dimension: 11.70±0.2, 12.85±0.2

4.3 General drawing tolerance: X.0.35, X.XX ±0.20

5. Compliance Standard

5.1 RoHS and HSF compliant

6. Packing Selections

6.1 Available packing: Tray, Bag, Tube, Tape & Reel

7. Application Scenarios

7.1 Liquid crystal display modules, digital cameras

7.2 Communication hardware, industrial control panels

7.3 Digital household appliances, computer peripherals

7.4 Automotive electronic assemblies, precision measuring instruments

8. Operation & Storage Precautions

8.1 Select suitable insulator material color shell material and contact plating according to project requirements

8.2 Follow official PCB layout drawing for SMT surface mount soldering

8.3 Control reflow temperature to avoid high temperature damage to thermoplastic insulator

8.4 Choose correct packing form for automated assembly production

8.5 Store USB plugs in dry sealed packages to prevent oxidation of metal contacts and shell

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

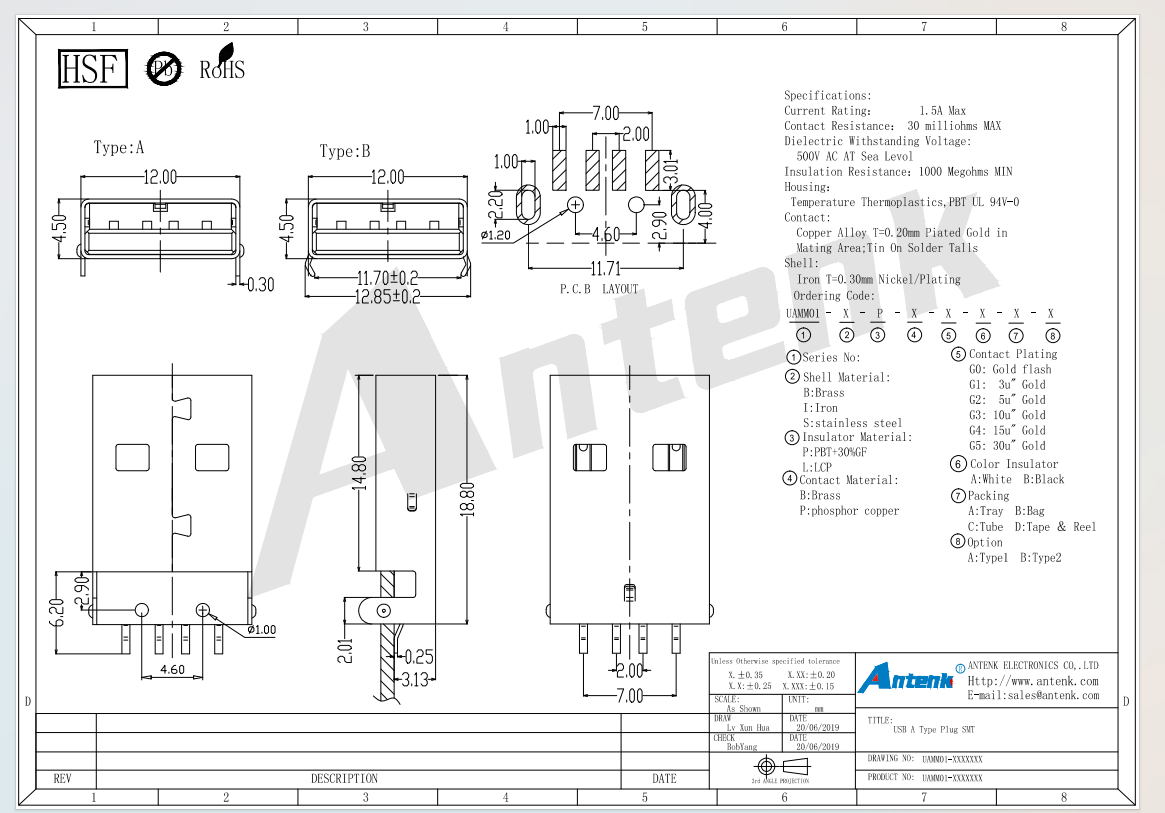

Product Drawing:

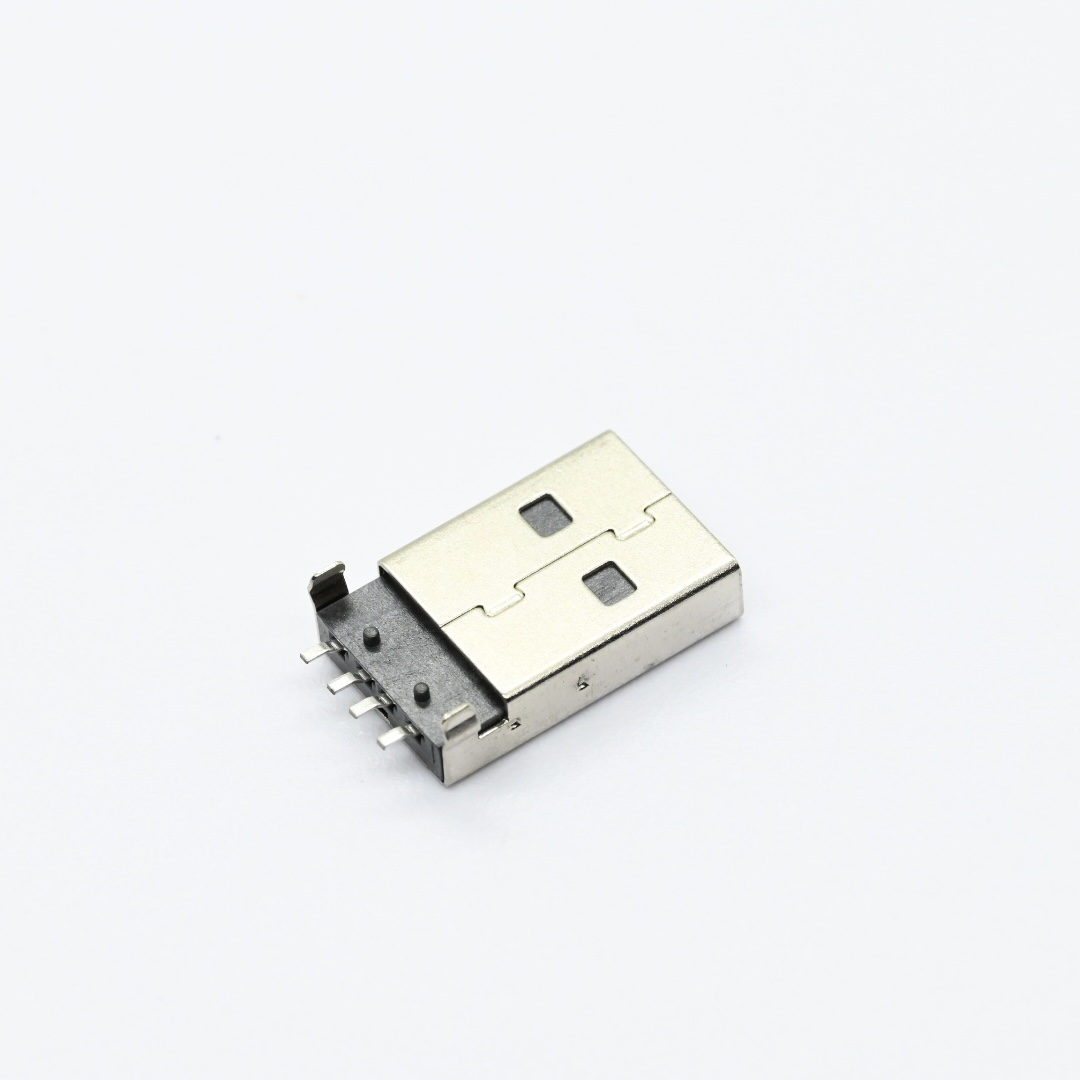

UAMM01-I-L-B-G0WAX+USB A Type Plug SMIT（4）

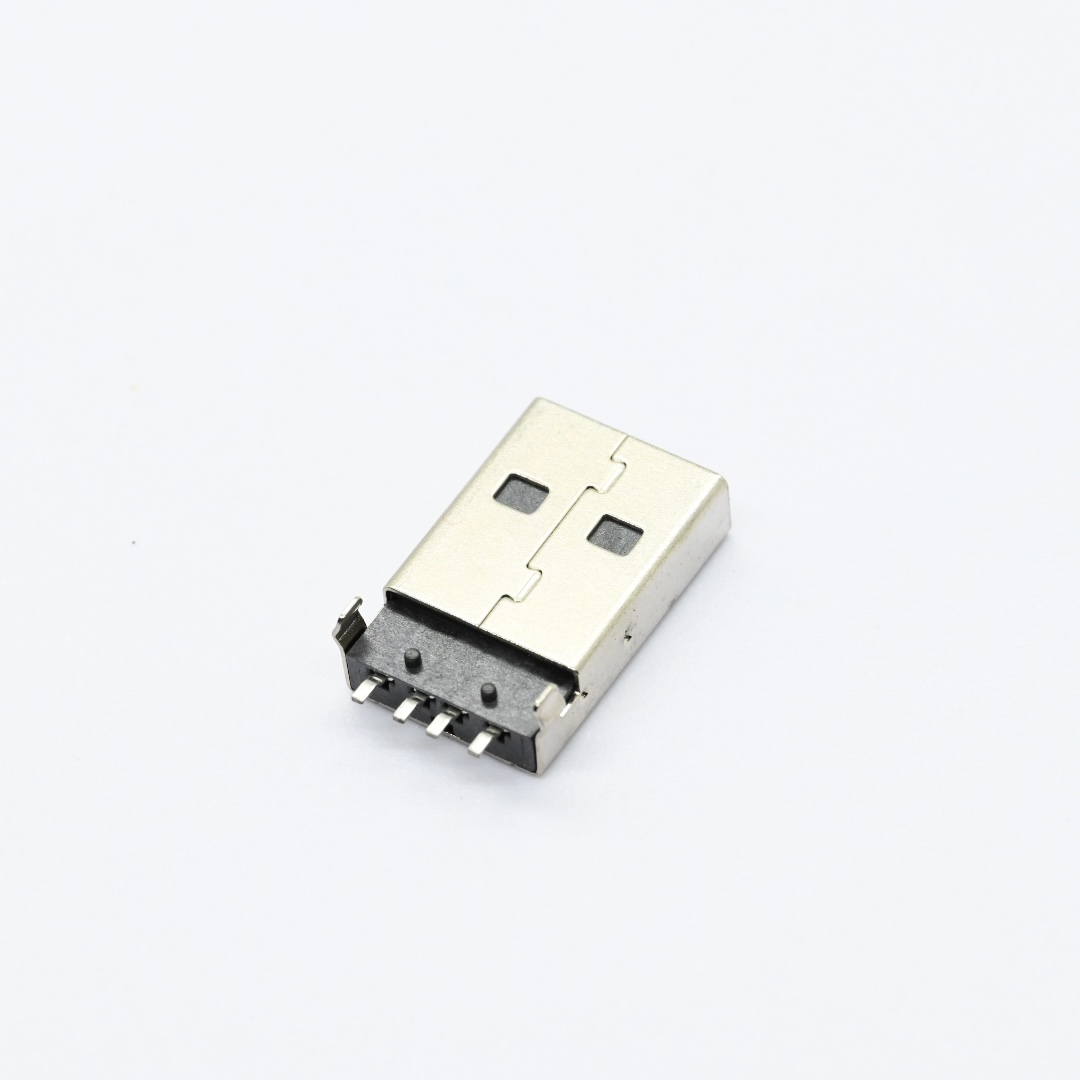

UAMM01-I-L-B-G0WAX+USB A Type Plug SMIT（5）

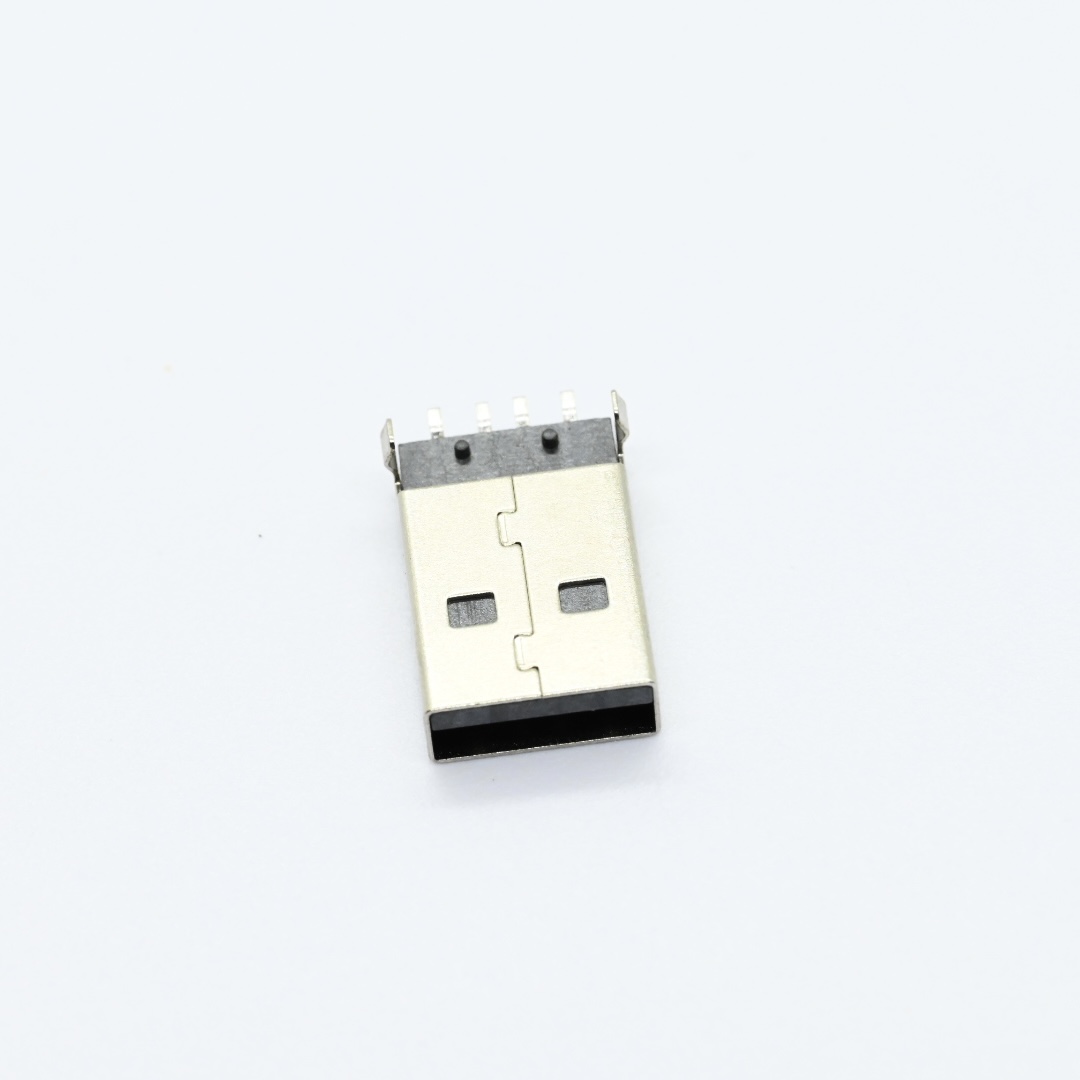

UAMM01-I-L-B-G0WAX+USB A Type Plug SMIT（6）

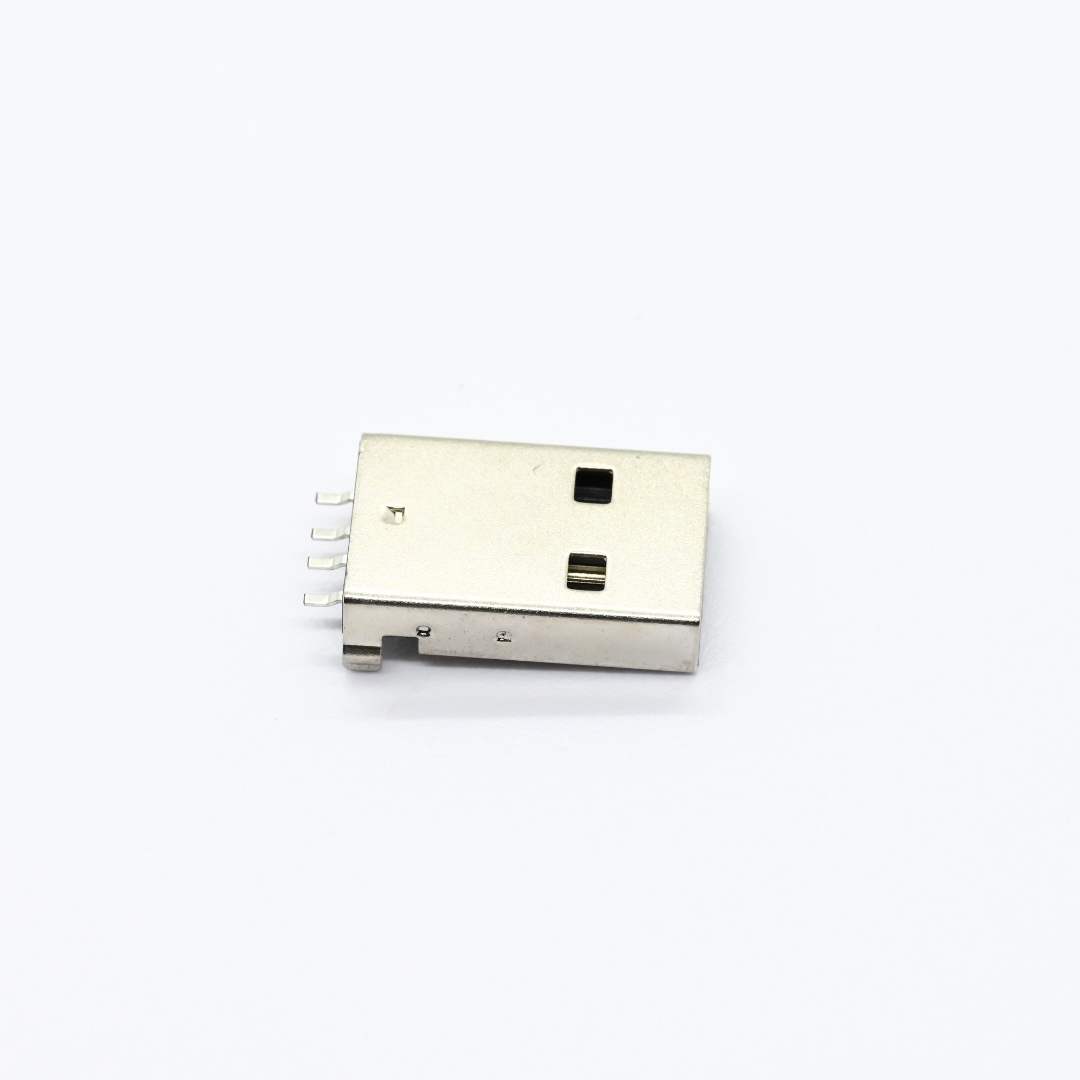

UAMM01-I-L-B-G0WAX+USB A Type Plug SMIT（1）

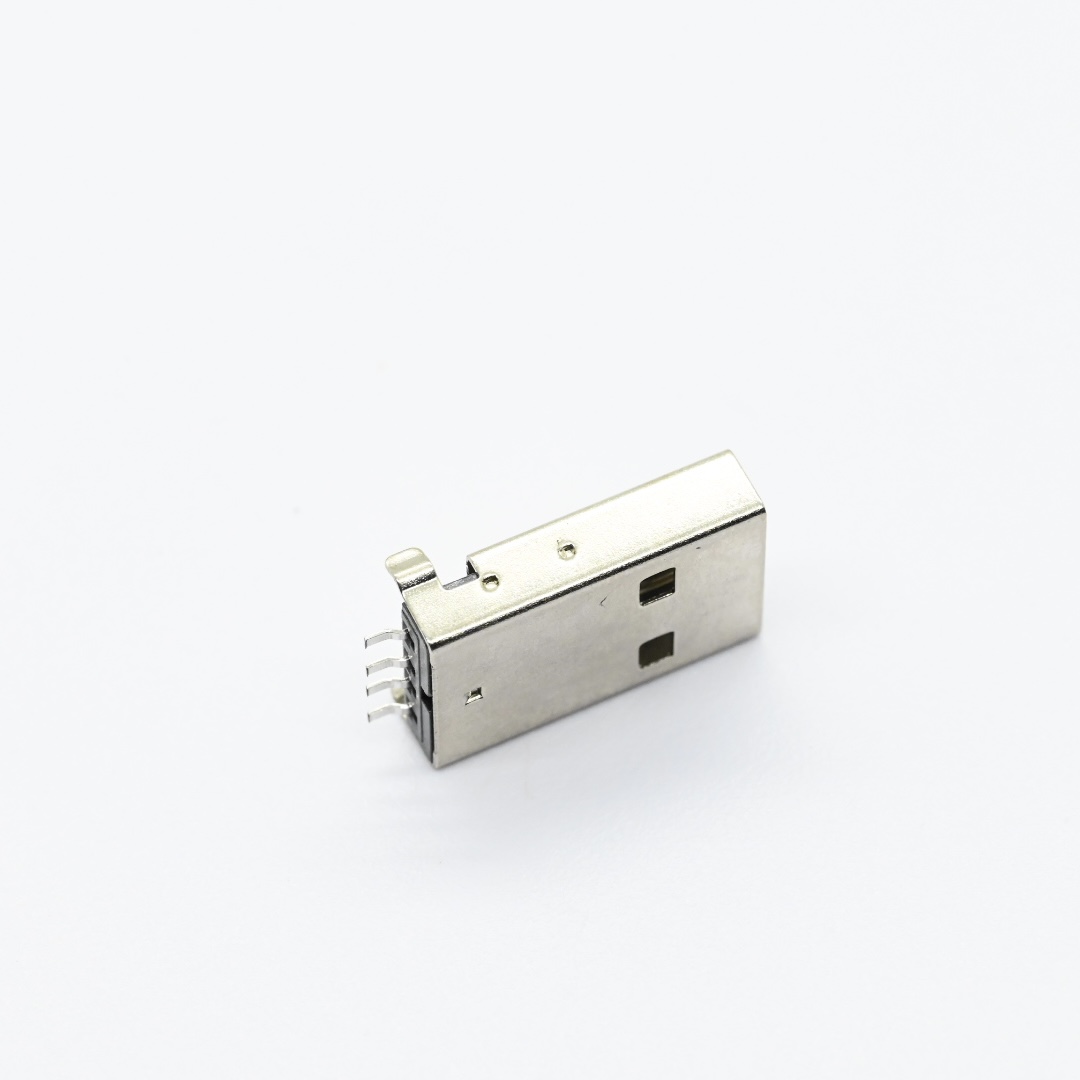

UAMM01-I-L-B-G0WAX+USB A Type Plug SMIT（3）

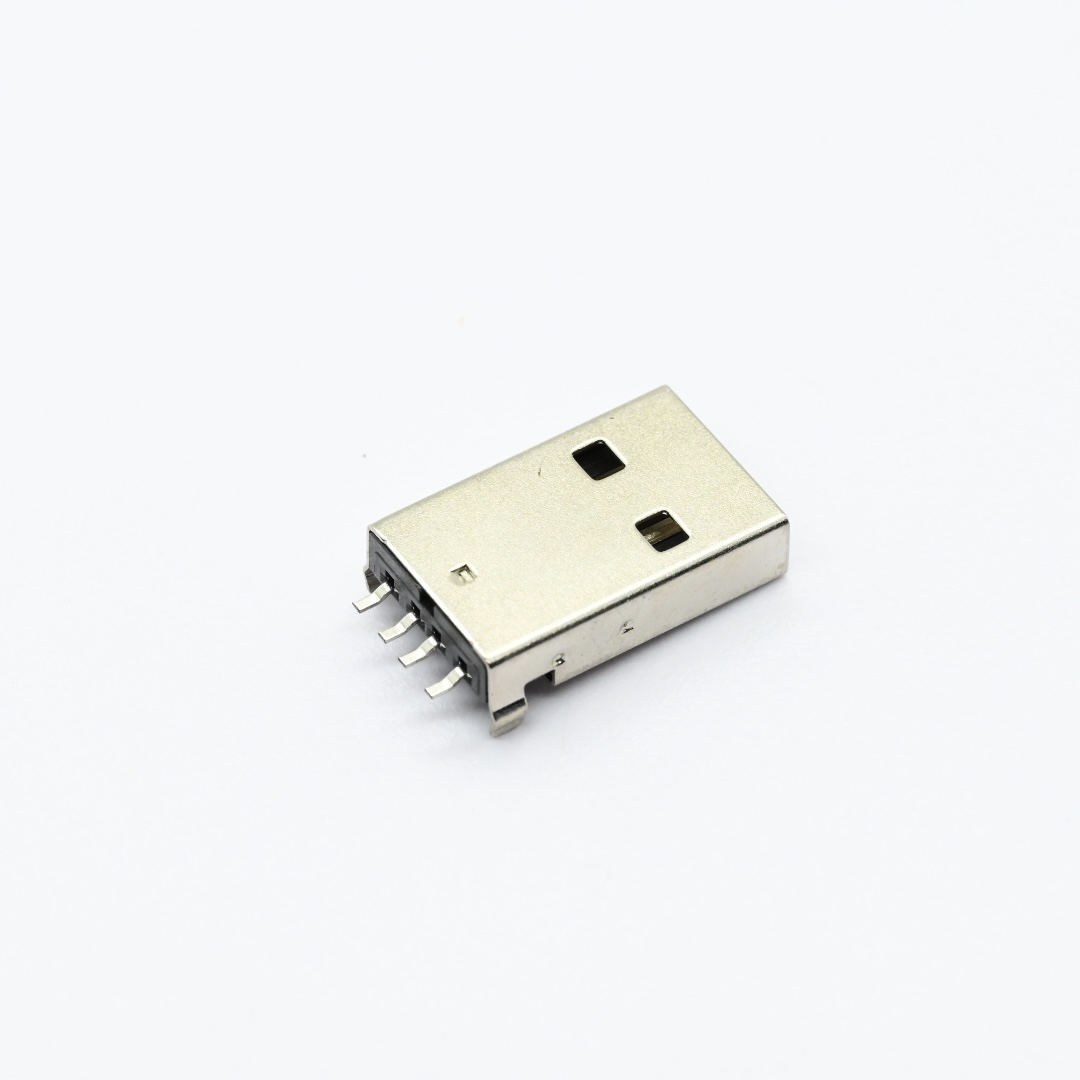

UAMM01-I-L-B-G0WAX+USB A Type Plug SMIT（2）
