ZF Gear Selector Switch OE 0501216208 Heavy Duty

ZF Gear Selector Switch OE 0501216208 Heavy Duty

2 month ago

0 0

COMOTECH ASIA PACIFIC (HANGZHOU)CO.,LTD

 9 year year

Product details

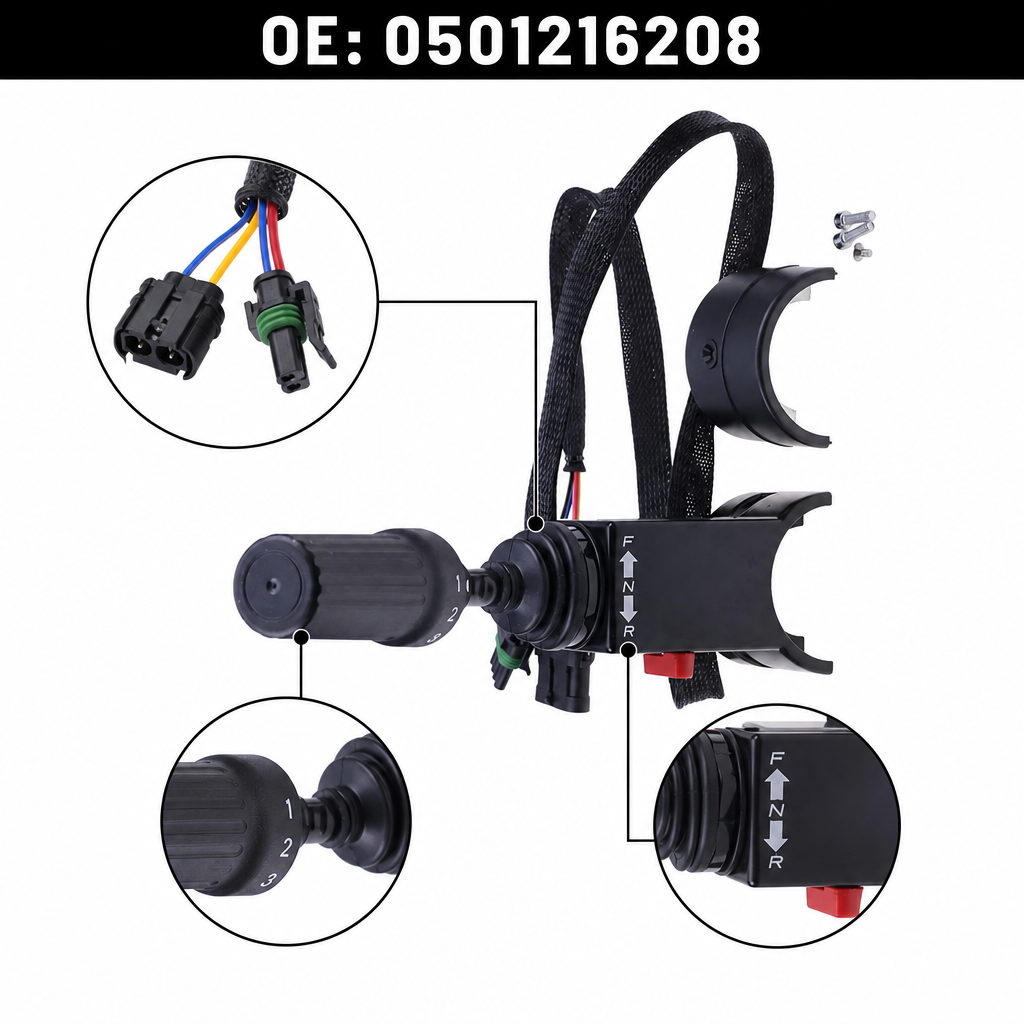

Heavy Duty OE 0501216208 Forward & Reverse Switch for ZF (CAP Part No. C36154-010)

The CAP C36154-010 is a heavy-duty Forward & Reverse (F&R) Directional Switch engineered as a 1:1 direct replacement for ZF transmission systems used in construction and agricultural machinery. Cross-referenced to original OE code 0501216208, this steering column-mounted gear selector stalk provides high-precision control over the transmission system (Forward-Neutral-Reverse), ensuring smooth and responsive shifting for wheel loaders and industrial vehicles equipped with ZF gearboxes. As a professional manufacturer of Steering Column Switch solutions, CAP ensures each unit meets original technical standards for global machinery maintenance.

Core Technical Specifications

CAP Part Number: C36154-010

OE Cross Reference: 0501216208

Function Type: F&R SWITCH (Forward - Neutral - Reverse Shifting)

Application: ZF Transmission Equipped Wheel Loaders and Industrial Vehicles

Rated Voltage: 12V / 24V DC Dual-Compatible

Contact Material: High-Purity Silver Alloy (Ag-Alloy) — Over 100,000 Cycles

Housing Material: Reinforced PA66 + 30% Glass Fiber (Flame Retardant UL94 V-0)

Operating Temperature: -40°C to +85°C

Protection Grade: IP54 (Dust & Splash Resistant)

Why Choose CAP C36154-010?

Precision Shifting Performance: Specifically calibrated for high-frequency directional engagement with ZF transmission control systems. The internal detent mechanism delivers a crisp tactile click for each gear position, preventing accidental gear slips. Our Combination Switch series is trusted by industrial fleet operators worldwide.

Superior Contact Integrity: Silver-alloy contacts resist arc erosion and terminal oxidation. This Forward Reverse Switch assembly is built for maximum service life in off-road environments.

Ruggedized Industrial Build: High-density PA66 reinforced with 30% glass fiber offers exceptional impact resistance. Our Truck Indicator Switch standards guarantee reliability in the harshest working conditions.

500-Hour Salt Spray Protection: All internal metal components treated with anti-corrosion coatings. CAP's Wiper Control Lever expertise ensures longevity in extreme environments.

Quality & Packaging

Every CAP C36154-010 unit undergoes 100% end-of-line testing including electrical continuity, shifting torque profiling, and insulation resistance (≥100MΩ). Standard packaging: individual anti-static PE bag and neutral white brand box; 40 units per master carton. Private label service available through our Transmission Selector supply chain.
