Modular, Quick-Assembly Crushing Station for Remote Copper Mine Sites
Copper Ore Crushing Line Project Overview:
This solution is designed for the coarse, medium, and fine crushing of sulfide copper ore. It addresses key pain points in traditional production lines-such as installation cycles lasting several weeks, inconsistent final product particle size due to experience-based on-site parameter adjustments, frequent screen clogging in fine ore processing, and high wear-and-tear on consumable parts-by providing a modular production line featuring a quick-assembly jaw crusher and cone crusher system with a 90% pre-assembly rate using mortise-and-tenon joints. Key features of the solution include: 90% factory pre-assembly of core units, requiring only on-site connection of piping and wiring; trial production in 2–3 days followed by full-capacity operation in 7 days, saving 70% of installation time compared to traditional production lines; an industrial-grade AI controller that continuously monitors feed particle size, ore hardness, and moisture content to automatically adjust the jaw crusher’s feed rate and the cone crusher’s discharge opening, ensuring a finished product size deviation of ≤5 mm; a built-in fault diagnosis model provides 48-hour advance warnings for bearing overheating and lubricant contamination, increasing mean time between failures (MTBF) by 60%; a custom deep-chamber moving-jaw crusher with a crushing ratio of 1:15, combined with a laminated cone chamber design, reduces over-crushing and improves copper mineral liberation by 10–15%; and an anti-adhesion screen coating resolves the issue of fine ore clogging the screen, maintaining a stable screening efficiency of over 92%.
Copper Ore Crushing Line Process Flow:

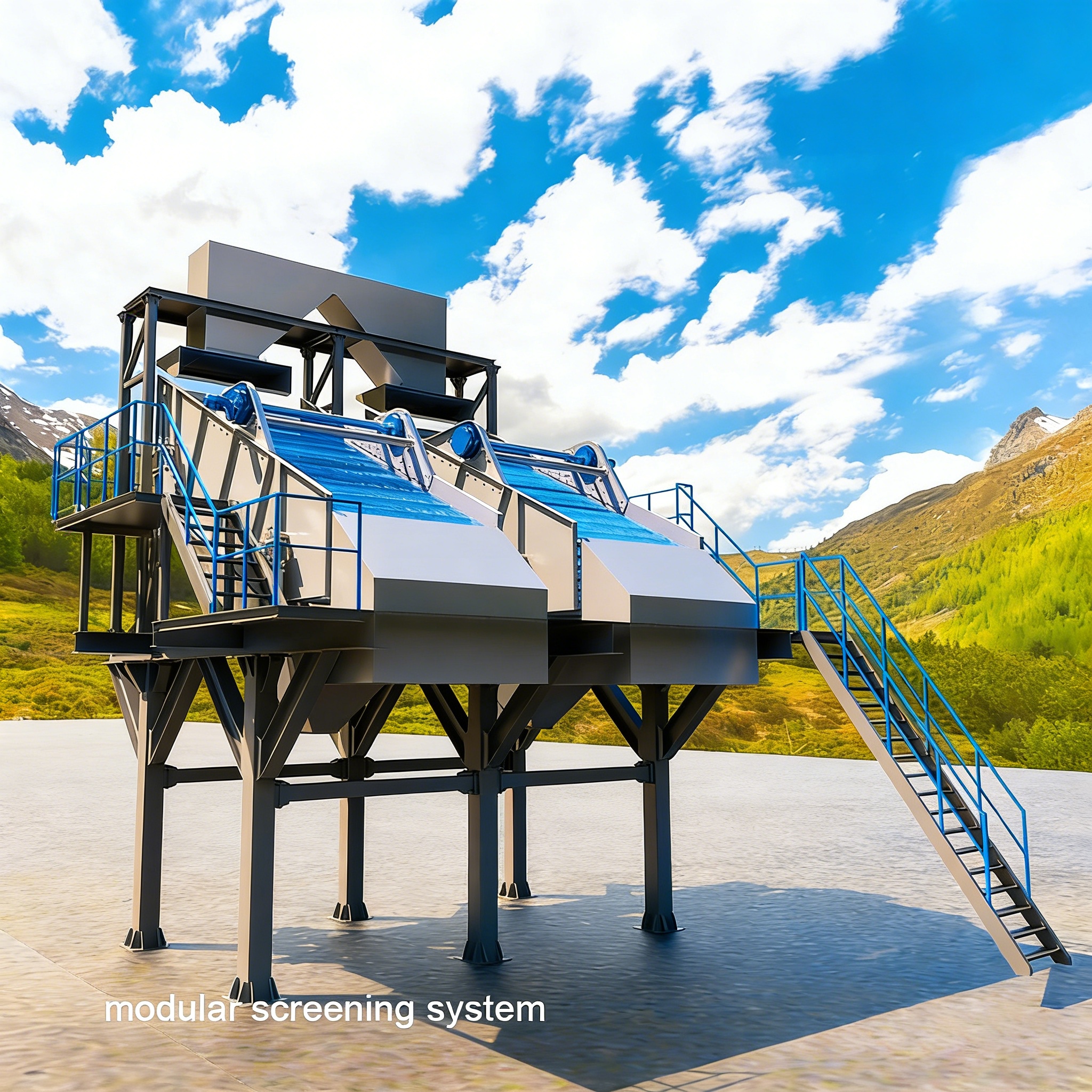

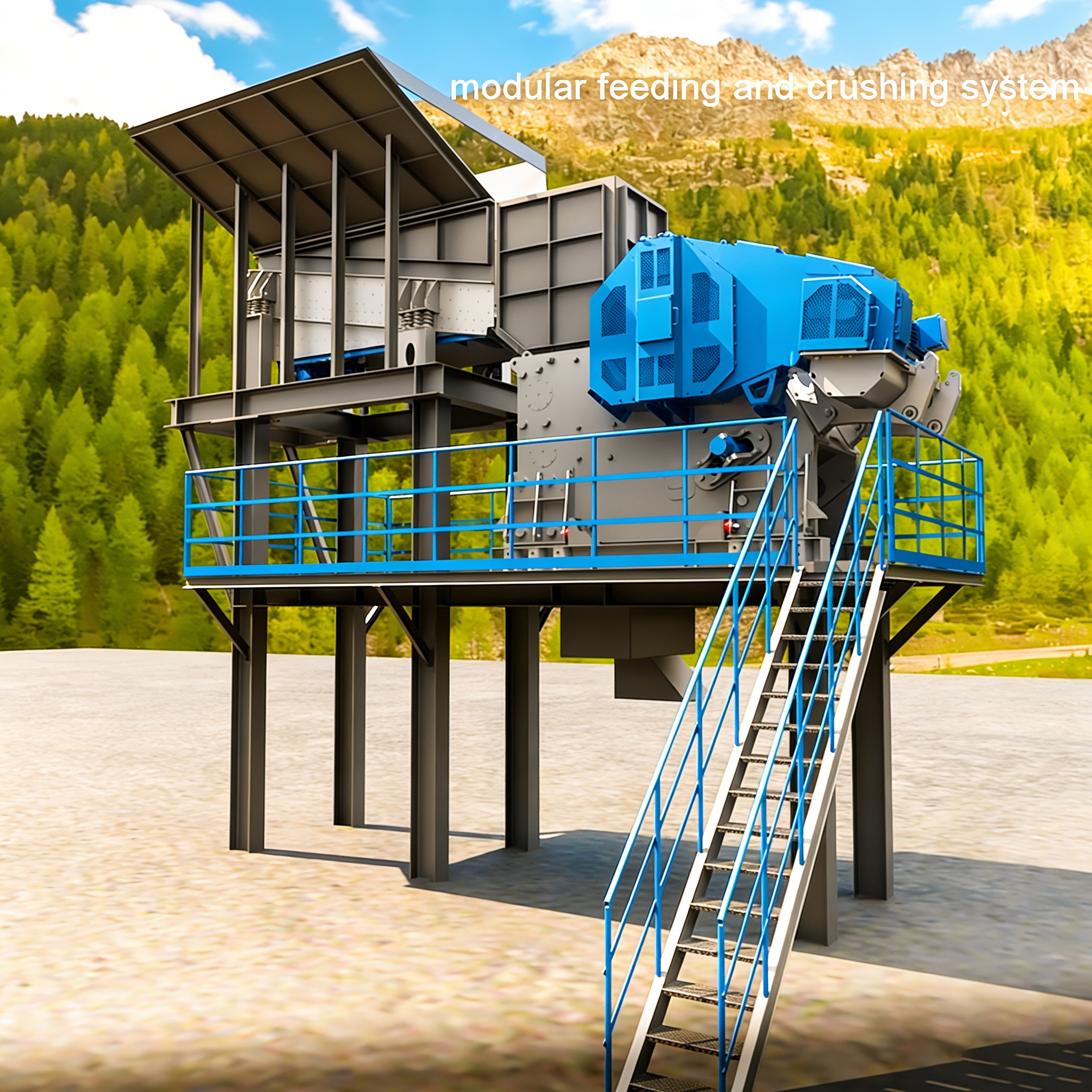

Copper sulfide ore is fed via a vibrating feeder into a custom deep-chamber jaw crusher for primary crushing, with a crushing ratio of 1:15; An AI controller continuously monitors feed particle size and ore hardness to automatically adjust the jaw crusher’s feed rate to match the load; after primary crushing, the material is conveyed via belt to a laminated-chamber cone crusher for secondary and tertiary crushing. The AI system dynamically adjusts the discharge opening size to ensure the finished product’s size deviation is ≤5 mm, minimizing over-crushing and ensuring thorough liberation of copper minerals; Vibrating screens are used for classification; anti-adhesion-coated screens ensure a screening efficiency of over 92% for fine ore. Material meeting the required particle size proceeds to the grinding and flotation process, while oversized material is returned to the cone crusher for recirculation. The entire line features a modular tongue-and-groove assembly structure, with individual modules weighing just enough to fit into shipping containers, allowing for deployment in remote mining areas without the need for large lifting equipment.
Copper Ore Crushing Line EPC Service Scope:
Solution Design-Analysis of the mineralogy of copper sulfide ore and the crushing work index, providing a 90% pre-assembled modular configuration plan and 3D layout diagrams. Equipment Manufacturing-Complete pre-assembly and pre-commissioning of core modules at the factory; precision inspection of each mortise-and-tenon joint; shipment following verification of container-size compatibility. Installation and Commissioning-On-site work requires only connecting piping and wiring; trial production begins in 2–3 days, with full-scale production achieved in 7 days. No large-scale lifting equipment is required, enabling rapid commissioning in remote mining areas. Operations and Maintenance Management-System training on operation and AI platform usage; a 1-year warranty on core equipment; continuous iteration and optimization of fault diagnosis models; global supply of wear parts plus remote diagnostic support.
Copper Ore Crushing Line Project Case Study:

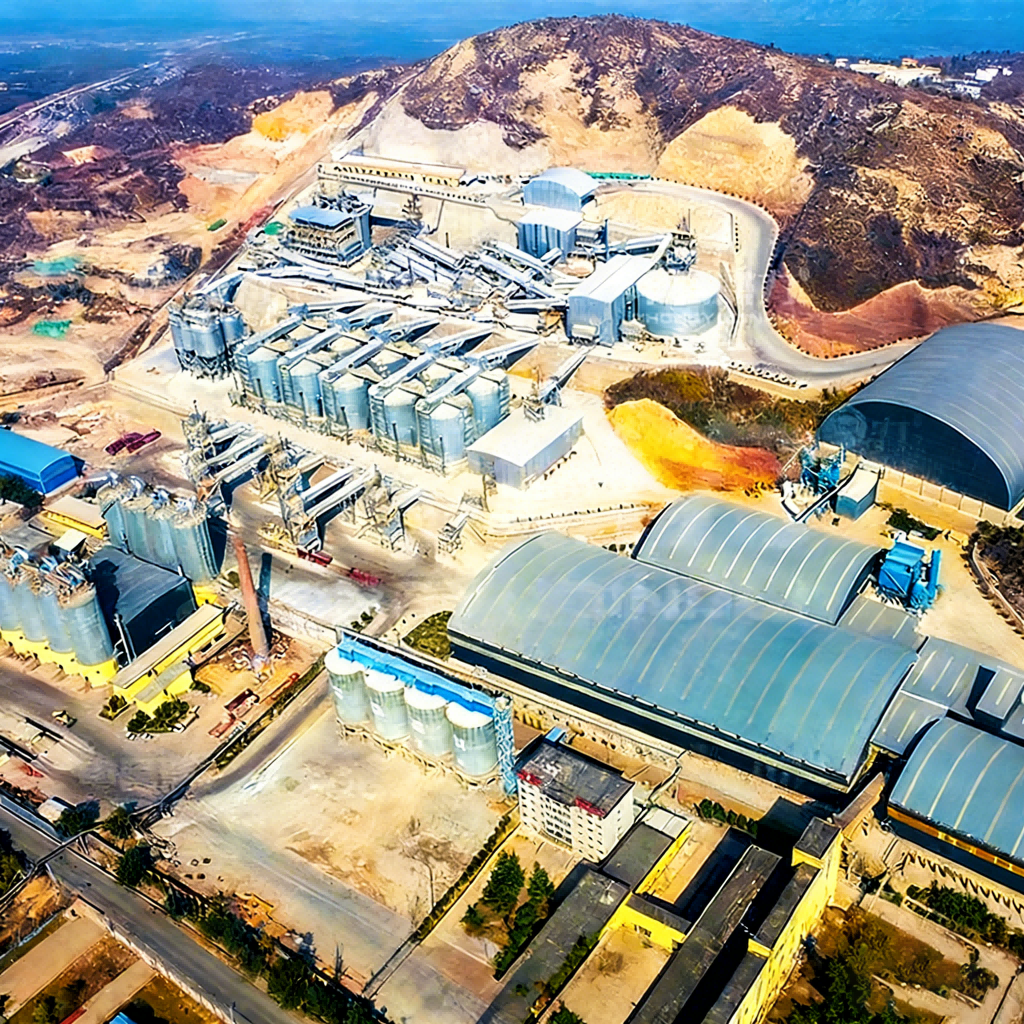

Kansanshi Copper Mine Crushing Plant, Lusaka Province, Zambia (in operation for 15 months). The mine is located at the junction of Zambia’s Copper Belt and Lusaka Province. The feed consists of primary copper sulfide ore with a copper content of 1.6%, and the ore hardness ranges from 5 to 8 on the Mohs scale. The site features a quick-assembly production line comprising a 90% pre-assembled jaw crusher and cone crusher connected via mortise-and-tenon joints, with a designed capacity of 200 t/h and an actual stable operating rate of 195–225 t/h. On-site installation was completed in just 2.5 days, followed by trial production—a 68% reduction in construction time compared to the original installation plan. After commissioning, the copper mineral liberation rate increased to 96.1%, and the measured average deviation in finished product particle size was 4.2 mm. The AI fault early-warning system issued early alerts for bearing abnormalities on three occasions and lubricant contamination once, effectively preventing four potential unplanned shutdowns. The mean time between failures (MTBF) was 58% higher than that of comparable equipment. Customer Feedback: “Zhongyu Dingli’s rapid assembly design allowed us to commence production before the rainy season. The AI early warning system notified our maintenance team before two bearing issues occurred, significantly reducing the risk of production downtime. Both the equipment’s operational stability and copper ore recovery rate exceeded the contractual commitments.”
Copper Ore Crushing Line FAQ:
Q: What does a 90% pre-assembly rate mean?
A: Jaw crushers, cone crushers, and screening modules are fully assembled and undergo integrated commissioning at the factory. Quick Assembly Production Line for Copper Ore Jaw and Cone Crushers After shipment to the site, only piping and electrical connections between modules need to be completed; there is no need to reinstall internal components, allowing trial production to begin within 2–3 days on-site.
Q: How does the AI control system ensure consistent final product particle size?
A: The industrial-grade AI controller continuously monitors parameters such as feed particle size, ore hardness, and moisture content in real time. AI Powered Copper Ore Crushing EPC Turnkey Project It automatically adjusts the jaw crusher’s feed rate and the cone crusher’s discharge opening size, keeping the final product particle size deviation within 5 mm without the need for frequent manual parameter adjustments.
Q: How is screen clogging addressed?
A: The surface of the vibrating screen mesh features an anti-adhesion coating that effectively prevents fine ore particles from sticking and agglomerating. Quick Commissioning Solution for Copper Ore Crushing Even with high-moisture ore, screening efficiency remains stable at over 92%, significantly reducing the frequency of screen-cleaning downtime.
