Shenzhen Fubang Wiring Harness Co., Ltd. is a professional manufacturer specializing in the design and production of custom interconnection solutions for industrial automation, automotive testing and on-board electronic equipment. Supported by complete in-house production capabilities covering wire cutting, terminal crimping, connector overmolding, braided sleeve wrapping and comprehensive electrical testing, we deliver reliable wiring products to global clients. We have rich experience developing customized car wiring harness for vehicle power takeoff, sensor connection and on-board testing equipment. Our engineering team also designs various custom industrial wiring for factory automation, M12 sensor networks and portable measurement devices. We supply a wide range of automotive wiring harness connectors and matching terminals, fully complying with RoHS environmental standards and strict quality inspection procedures.

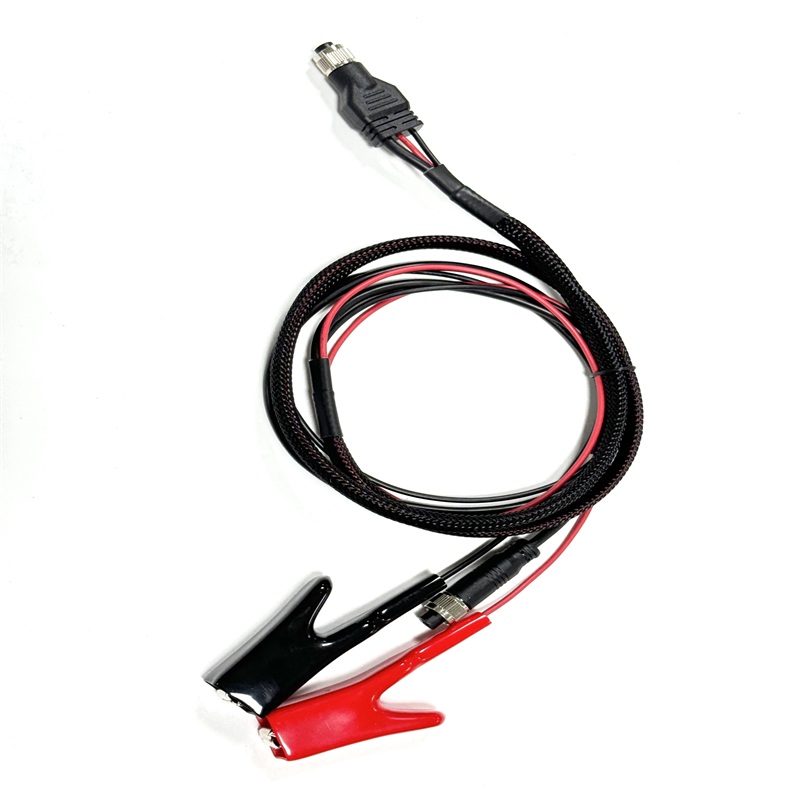

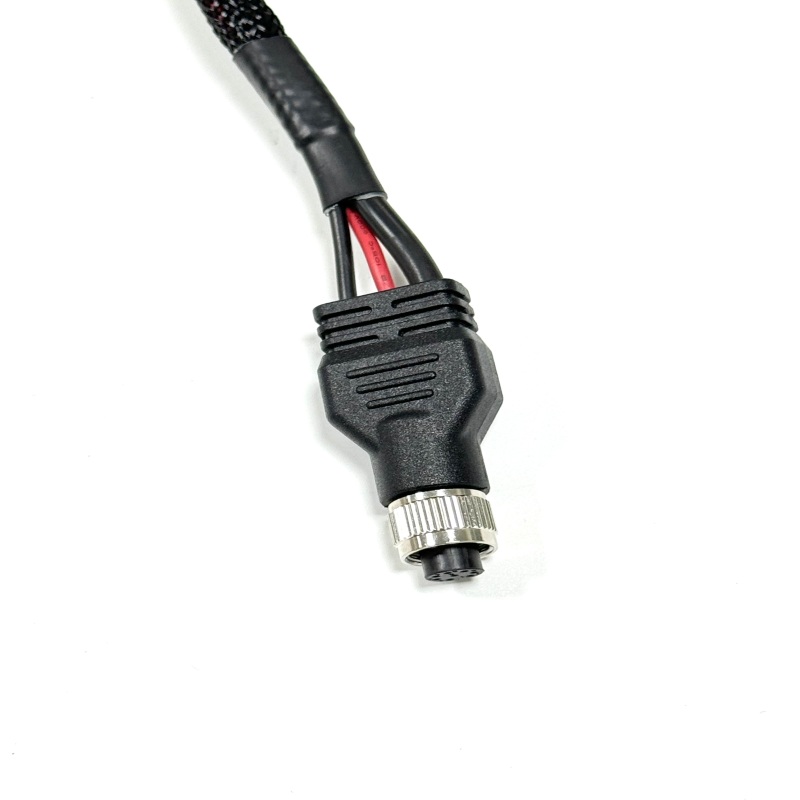

This M12 8Pin female to M12 3Pin female with alligator clips Y cable is an integrated signal and power connection assembly designed for industrial sensor testing and on-site equipment power supply. Different from pure sensor extension harnesses and multi-branch temperature sensor cables, this product combines industrial M12 circular connector interfaces with automotive battery alligator clips in one Y-type split architecture. The main branch uses an M12 8Pin A-code female connector for sensor signal acquisition, while the two sub-branches provide an M12 3Pin A-code female connector and a pair of 50A red/black insulated alligator clips respectively. This unique combination allows technicians to simultaneously connect sensor signals and draw power directly from a vehicle battery or DC power source, eliminating the need for separate power cables and greatly simplifying on-site testing wiring.
| Item |
Description |
| Product Name |
Custom M12 8Pin Female to M12 3Pin Female with Alligator Clips Y Cable |
| Type |
Y Split Sensor Power Cable / M12 Connector with Battery Alligator Clips |
| Rated Test Voltage |
DC 500V 10MS Test Voltage, Working Voltage Customizable |
| Pins Material |
Nickel Plated Brass Terminals, Gold Plating Optional |
| Plug Material |
PA66+GF Automotive Grade M12 Connector Housing, 50A Alligator Clips with Insulated Rubber Cover |
| Working Temperature |
-40℃ ~ +105℃ Or Customized |
| Length |
Total Length 1500±20mm, Main Branch 800±20mm, Customized Length Available |
| Minimum Insulation Resistance |
≥10MΩ |
| Maximum Conduction Resistance |
≤3Ω |
| Application Fields |
Industrial sensor connection, M12 sensor power supply, automotive testing equipment, battery power connection, industrial control wiring, portable device power takeoff, sensor signal and power integrated cable |
| Specific Shipping Cost |
Please Contact Us |

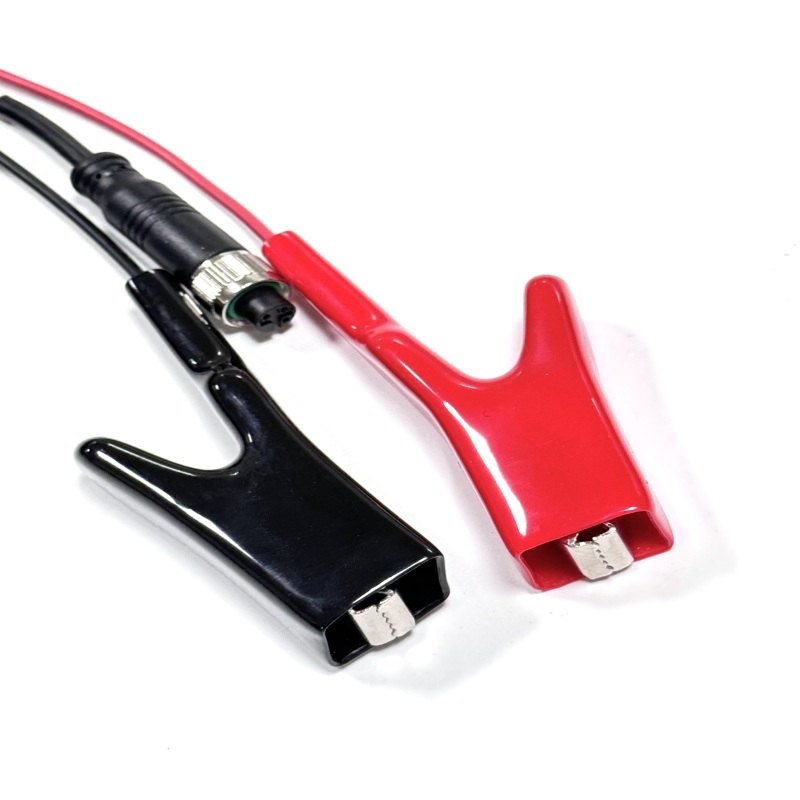

The cable assembly adopts mixed wire specification design to balance signal transmission and power carrying capacity. The signal section uses UL2464 certified 20AWG 3-core shielded cable with aluminum foil shielding layer to suppress electromagnetic interference and ensure stable sensor signal transmission. The power section uses UL1015 18AWG single-core wires to support higher current load for the alligator clip branch. The main cable section is wrapped with black braided mesh sleeve for abrasion resistance and mechanical protection, effectively extending service life in workshop and field testing environments. Heat shrink tubes are applied at branch split points and connector transitions for reinforced strain relief and sealing. The 50A alligator clips are covered with insulated rubber handles for safe operation, with clear red and black color coding for positive and negative polarity identification.
Every finished cable undergoes strict 100% electrical testing before delivery, including full continuity inspection, DC 500V withstand voltage test, insulation resistance measurement and conduction resistance verification to eliminate open circuits, short circuits and pin misalignment. The insulation resistance is maintained above 10MΩ while maximum conduction resistance is controlled within 3Ω, ensuring stable electrical performance under continuous working conditions. All raw materials fully comply with RoHS environmental requirements. The M12 connector housings are made of high-strength PA66+GF engineering plastic with threaded locking structure for reliable vibration resistance and IP-rated sealing performance. The product is individually packaged with protective air bags at connector ends and bundled with cable ties for convenient storage and transit.
This Y-type M12 sensor and power cable is widely applied in industrial sensor field testing, automotive on-board diagnostic equipment, portable measurement instrument power supply, factory automation sensor connection, vehicle battery power takeoff, mobile data acquisition systems and on-site equipment debugging projects. It serves as a versatile interconnection medium for scenarios requiring both sensor signal access and external DC power supply. If you need to adjust connector types, cable length, wire gauge, alligator clip current rating or branch configuration, our engineering team can develop exclusive custom industrial wiring to match your equipment requirements. We continuously optimize the durability and signal stability of every product in our customized car wiring harness lineup, and our comprehensive automotive wiring harness connectors portfolio can support various custom interconnection projects. Welcome to send technical drawings, pin definitions or sample requests for detailed evaluation and competitive quotation.
