Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures IDC3F03 series 3.0 millimeter pitch B type straddle IDC female connector to achieve stable wire to board signal interconnection through insulation displacement termination without complex soldering operations, complying with drawing dimensional tolerances to guarantee reliable cable crimping and consistent mating performance with matched male connectors. This straddle type female socket adopts PA66 insulator housing with UL94V 0 flame retardant grade available in black or blue color, contacts support varied selective gold plating options and nickel underplate, electrically rated for 0.5 Amp signal current and 1.5 Amp power current per pin, features minimum 1000 Megohms insulation resistance and 1000V AC dielectric withstand voltage, initial contact resistance maximum 30 milliohms and works within minus 55 degree Celsius to plus 85 degree Celsius while satisfying RoHS and HSF environmental standards. This 20 position IDC connector supports tray bag tube packing choices to fit high volume automated production. This insulation displacement connector is widely deployed in liquid crystal display modules, digital cameras, communication hardware, industrial control panels, digital household appliances, computer peripherals, automotive electronic assemblies and precision measuring instruments. Operators need to select appropriate plating finish and packing form for practical projects, apply proper pressing force during IDC cable termination to avoid contact damage, prevent excessive mechanical force in mating process and store finished connectors inside dry sealed packages to guard metal contacts against oxidation. Unlike competitors outsourcing stamping molding and plating services Antenk completes full in house production workflow covering self‑developed precision plastic and metal mold fabrication, metal contact high speed stamping, PA66 injection molding and multi grade electroplating plus comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH rules, own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, deliver custom solutions and round the clock professional engineering support, and over seventy percent of our IDC connector products are exported globally backed by ANTENK brand and consistent stable mass production quality.

1. Straddle Mount IDC Receptacle realizes convenient through‑edge board mounting and delivers stable wire‑to‑signal connection for electronic equipment.

2. PA66 IDC Insulation Housing provides outstanding mechanical strength and flame retardant performance for insulation displacement connection applications.

3. Insulation Displacement Female Socket accomplishes fast cable termination without soldering to boost assembly efficiency for mass production.

Detailed Specifications:

1. Electrical Specifications

1.1 Signal current rating: 0.5 Amp per pin minimum

1.2 VBUS power current rating: 1.5 Amp per pin minimum

1.3 Dielectric withstanding voltage: AC 100V (RMS)

1.4 Minimum insulation resistance: 100 Megohms

1.5 Contact resistance: 30 milliohms maximum at initial mated state; 50 milliohms maximum after stress

2. Mechanical Specifications

2.1 Maximum mating force: 35 Newtons

2.2 Minimum unmating force: 15 Newtons

2.3 Mating durability: 25 cycles at maximum rate of 200 cycles per hour

3. Material & Plating

3.1 Housing material: PA66 + 30% glass fiber, UL94V-0 flame retardant, blue color

3.2 Cover material: LCP + 30% glass fiber, UL94V-0 flame retardant, black color

3.3 Contact material: Copper alloy

3.4 Plating structure: Overall nickel underplating; gold plating on contact area, tin plating on solder tail area

3.5 Selective gold plating options: 1u", 3u", 5u", 10u", 15u", 30u" available

3.6 Optional insulator materials: PBT (blue), LCP (black), PA66 (blue)

4. Dimensional Parameters (Unit: mm)

4.1 Pitch: 3.0mm

4.2 Overall length: 22.85 ± 0.20

4.3 Main body length: 20.55 ± 0.15

4.4 Main body width: 18.00 ± 0.15

4.5 Pin dimension: 2.00 ± 0.10

4.6 Contact configuration: 20 positions, PIN 20 removed

4.7 Mounting type: B type straddle mount

4.8 General tolerances follow drawing specified standards

5. Packing Options

5.1 Available packing forms: Tray, Bag, Tube

6. Environmental & Compliance

6.1 Operating temperature range: -55°C to +85°C

6.2 Compliance: RoHS and HSF compliant

7. Application Scenarios

7.1 Liquid crystal display modules, digital cameras

7.2 Communication equipment, industrial control panels

7.3 Digital home appliances, computer peripherals

7.4 Automotive electronics, precision measuring instruments

8. Operation & Storage Precautions

8.1 Apply proper pressing force during IDC cable termination to avoid contact damage

8.2 Control mating and unmating force within the specified range to prevent structural deformation

8.3 Select appropriate insulator material and plating grade according to actual application requirements

8.4 Store finished products in dry sealed packages to protect contact plating from oxidation

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

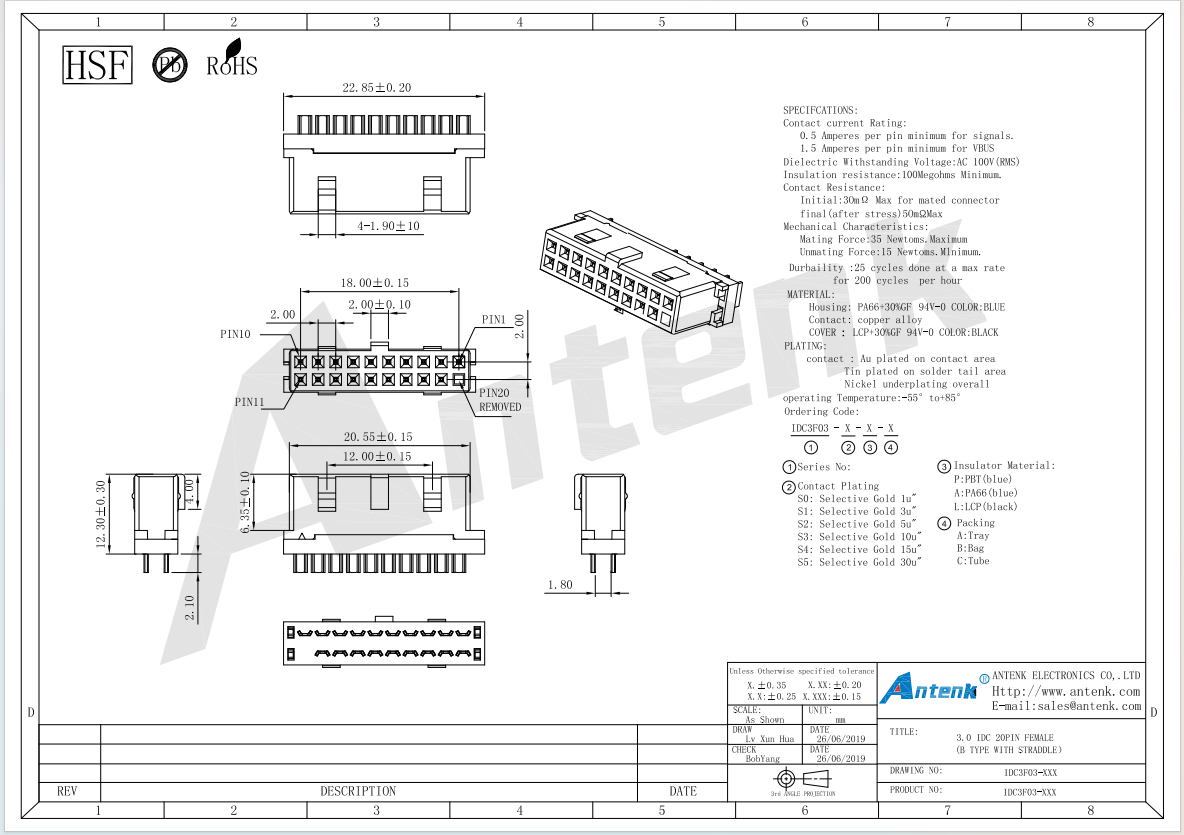

Product Drawing：

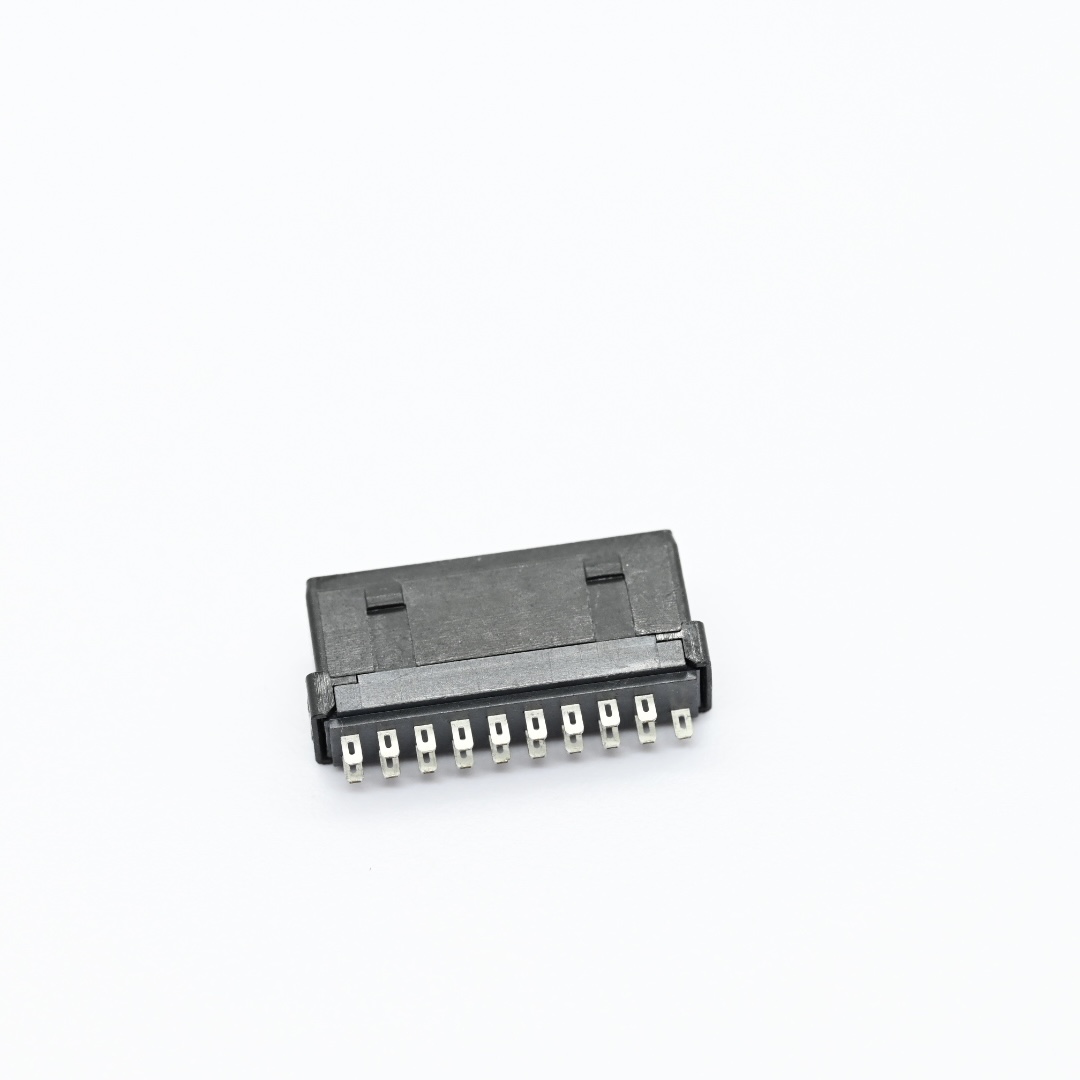

IDC3F03-S0PB+3.0IDC 2OPIN FEMALE (B TYPE WITH STRADDLE)（6）

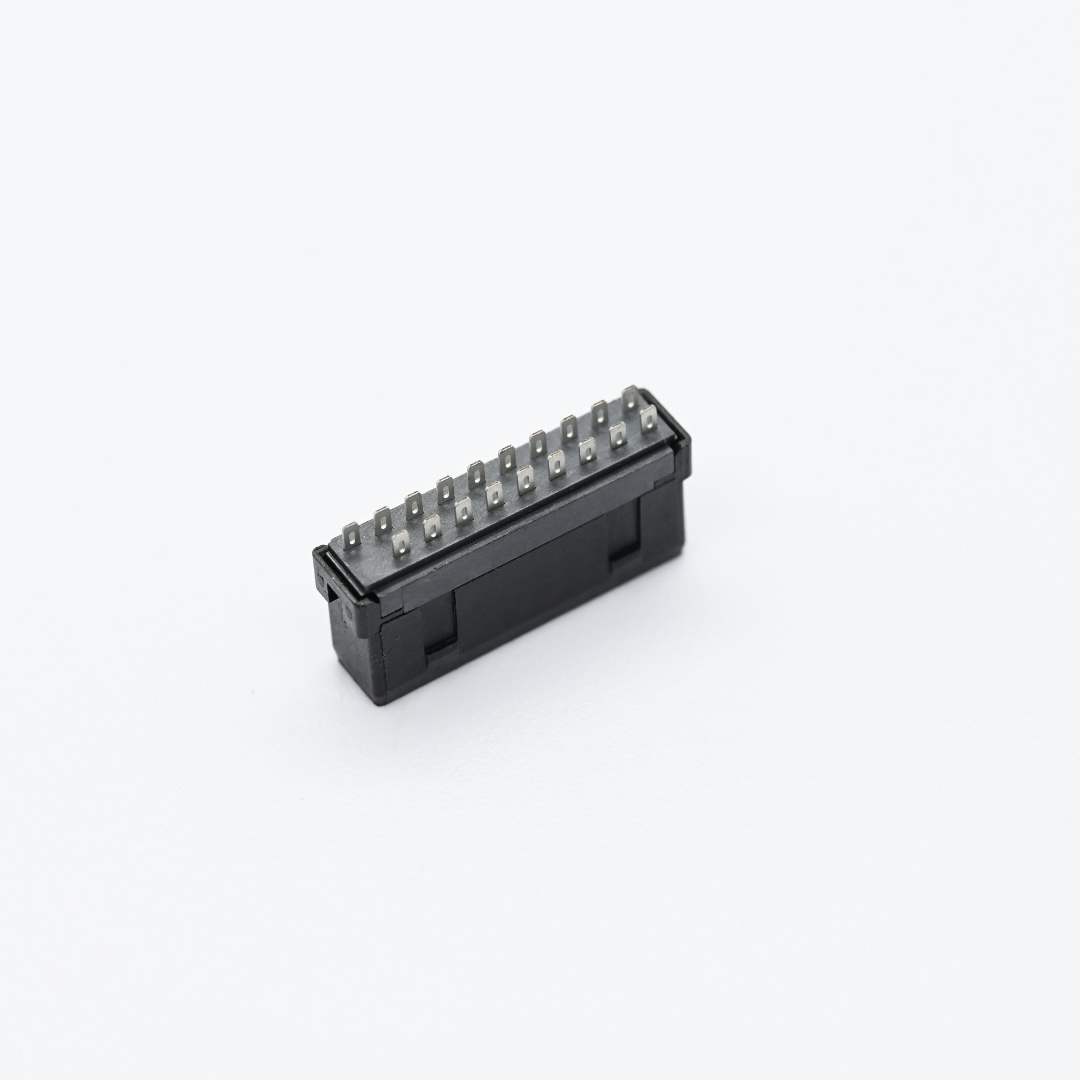

IDC3F03-S0PB+3.0IDC 2OPIN FEMALE (B TYPE WITH STRADDLE)（3）

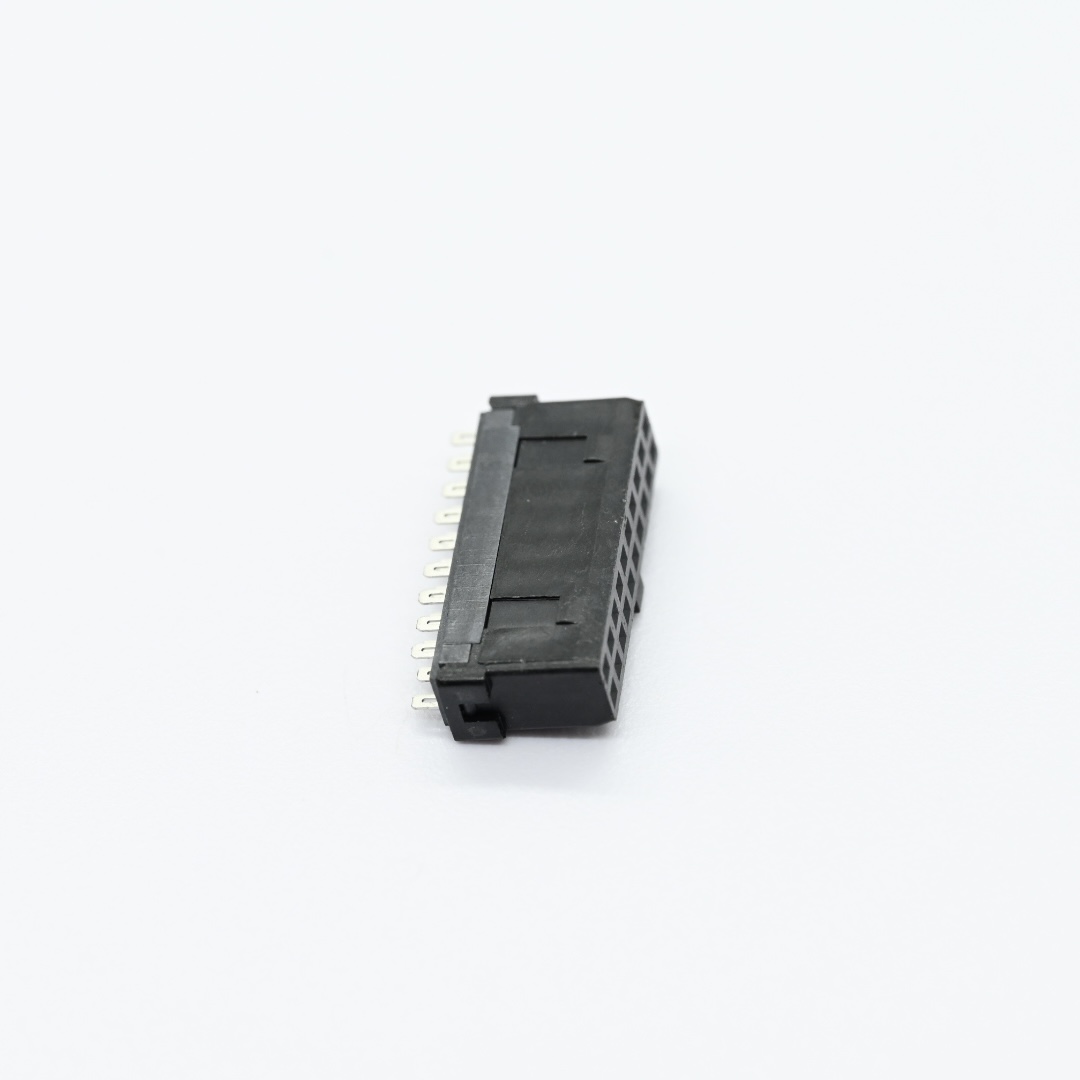

IDC3F03-S0PB+3.0IDC 2OPIN FEMALE (B TYPE WITH STRADDLE)（5）

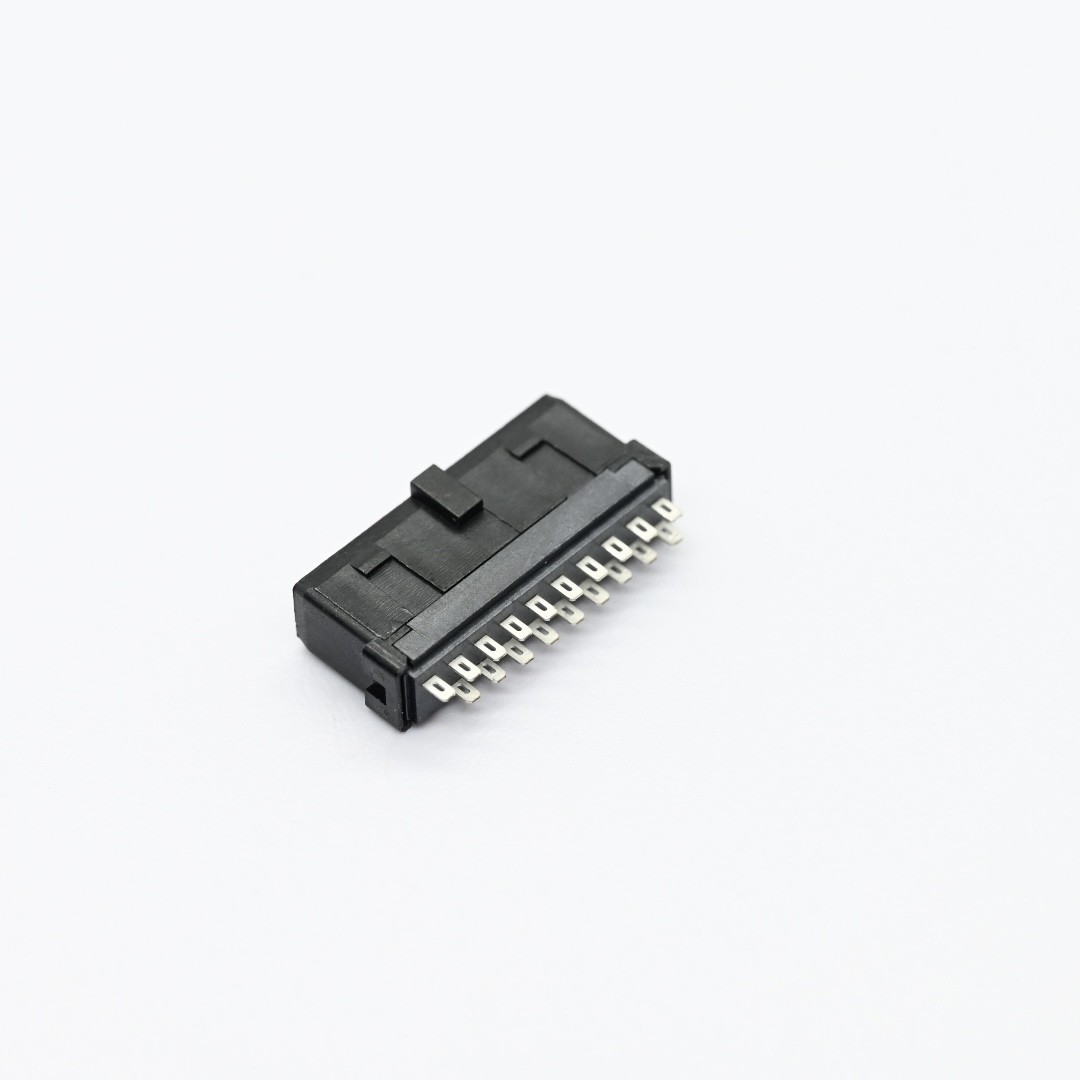

IDC3F03-S0PB+3.0IDC 2OPIN FEMALE (B TYPE WITH STRADDLE)（2）

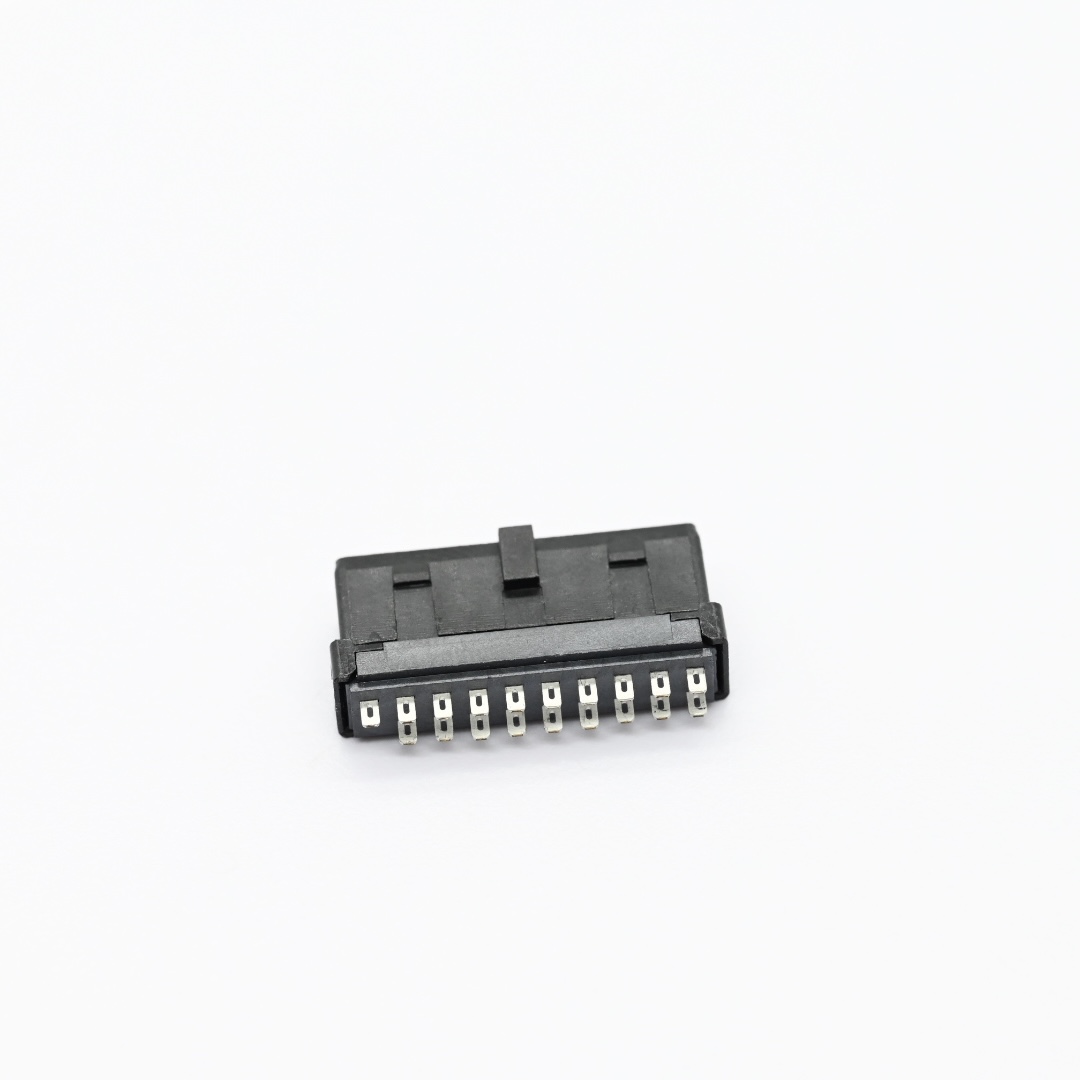

IDC3F03-S0PB+3.0IDC 2OPIN FEMALE (B TYPE WITH STRADDLE)（1）

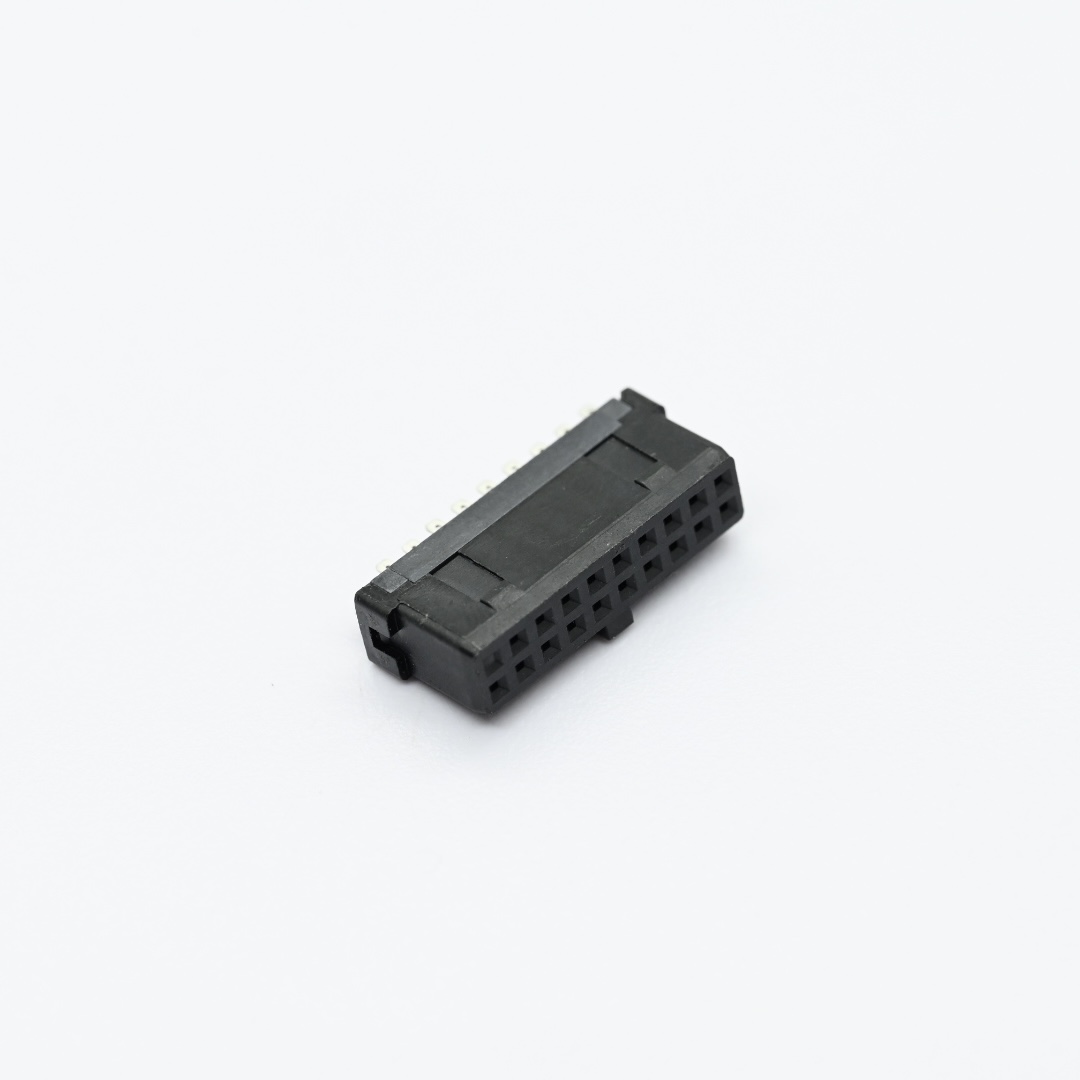

IDC3F03-S0PB+3.0IDC 2OPIN FEMALE (B TYPE WITH STRADDLE)（4）
