2.5mm Pitch SMT Battery Connector

2.5mm Pitch SMT Battery Connector

3 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures ABT24 04 L B X D X series 2.5 millimeter pitch 4P SMT battery connectors to deliver stable power connection for surface‑mount printed circuit board assembly complying with drawing dimensional tolerances to guarantee precise SMT placement and consistent mating performance with matching battery contacts. This SMT battery connector adopts phosphor copper terminals with multiple gold plating alternatives including gold flash 3u inch 5u inch 10u inch 15u inch or 30u inch gold finishes, and supports LCP or PBT plus 30 percent glass fiber insulator material with multiple plastic height options. It features 2 Amp rated current, 12 Volt rated voltage, maximum 30 milliohms contact resistance and minimum 500 megaohms insulation resistance, operating temperature ranges from minus 40 degree Celsius to plus 85 degree Celsius and satisfies RoHS and HSF environmental standards, supporting tape reel tray bag or tube packaging for automated SMT mounting workflows. This battery connector is widely deployed in digital home appliances portable electronic devices industrial control modules and precision measuring instruments. Operators need to select suitable insulator material plastic height contact plating and packing style for practical projects, follow official recommended PCB layout for SMT soldering, control reflow soldering temperature to prevent housing deformation and store finished goods in dry sealed packages to avoid phosphor copper terminal oxidation. Unlike competitors outsourcing stamping molding and plating services Antenk completes full in house manufacturing workflow covering independent plastic and metal mold development, phosphor copper terminal high speed stamping, precision plastic injection molding and multi grade electroplating plus comprehensive laboratory reliability verification. We hold ISO9001 ISO14001 IATF16949 and UL E472792 certifications complying with REACH rules, own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, deliver custom dimension solutions and round the clock engineering support, and over seventy percent of our connector products are exported globally backed by reliable ANTENK brand mass‑production quality.

1. SMT Battery Connector enables efficient surface mount assembly for compact portable electronic equipment.

2. Phosphor Copper Terminal provides excellent elasticity and stable electrical performance for frequent mating cycles.

3. LCP Housing Connector maintains structural stability under high temperature reflow soldering conditions.

Detailed Specifications:

1. Mechanical Specifications

1.1 Product type: 2.5 mm pitch 4‑position SMT battery connector

1.2 Unit of measurement: millimeter

1.3 Pitch: 2.5 mm

1.4 Optional plastic height: 2.4 mm, 3.0 mm, 3.5 mm

1.5 Packaging options: Tray, Bag, Tube, Tape Reel

1.6 General tolerance: Follow drawing default tolerance rules when no special tolerance is marked

1.7 Mounting requirement: Apply official recommended PCB layout for SMT pad design

2. Material & Surface Plating

2.1 Terminal material: Phosphor copper

2.2 Housing material options: LCP or PBT plus 30% glass fiber

2.3 Contact plating options: gold flash, 3u" gold, 5u" gold, 10u" gold, 15u" gold, 30u" gold

3. Electrical Parameters

3.1 Rated current: 2 Amp

3.2 Rated voltage: 12 Volt

3.3 Max contact resistance: 30 mΩ

3.4 Min insulation resistance: 500 MΩ

3.5 Operating temperature range: ‑40 °C to +85 °C

4. Compliance Standard

4.1 Environmental compliance: RoHS, Pb‑free and HSF compliant

5. Mounting Method

5.1 Assembly mode: SMT surface‑mount soldering on printed circuit board

5.2 Follow official recommended PCB layout for pad dimension design

6. Application Scenarios

6.1 Portable consumer electronic devices

6.2 Digital home appliances

6.3 Industrial control modules

6.4 Compact precision measuring instruments

7. Operation & Storage Precautions

7.1 Select proper housing material, plastic height and contact plating for actual projects

7.2 Choose suitable packing format according to customer SMT production requirements

7.3 Control reflow soldering temperature to prevent housing thermal deformation

7.4 Store finished connectors in dry sealed packages to avoid phosphor copper terminal oxidation

7.5 Keep to drawing dimensional tolerance during PCB layout design

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

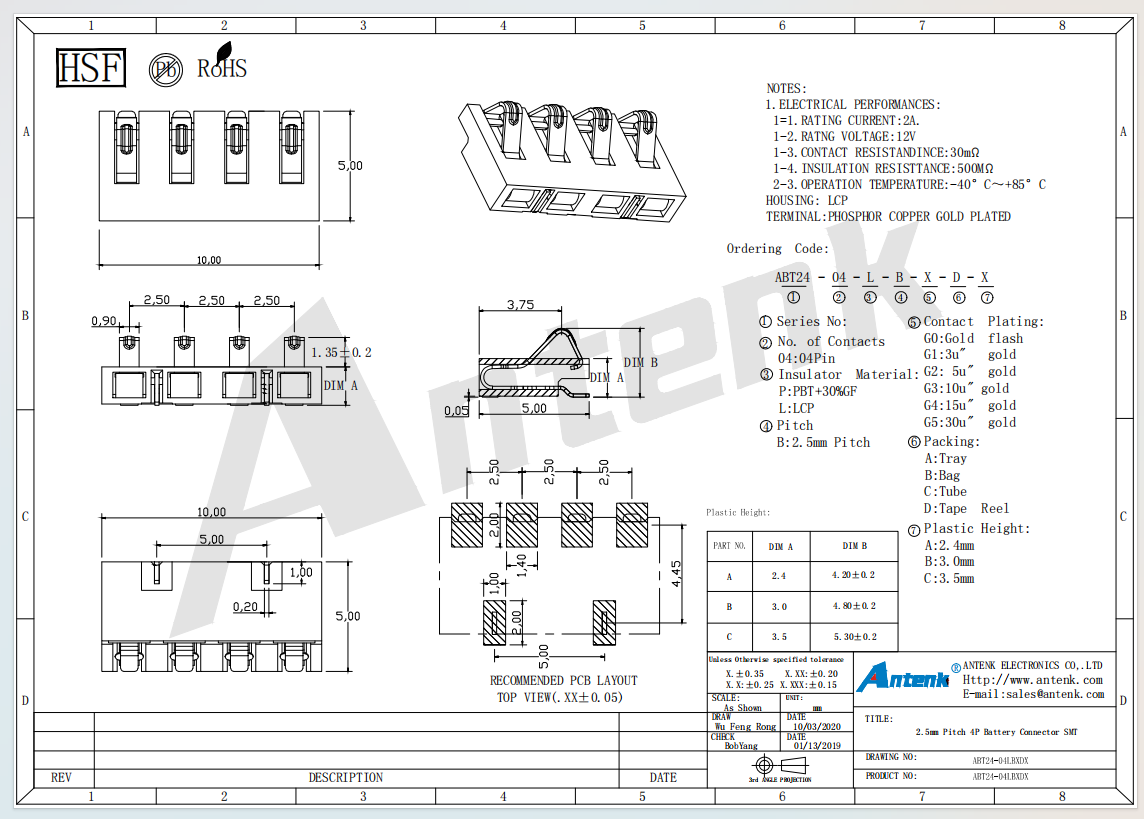

Product Drawing:

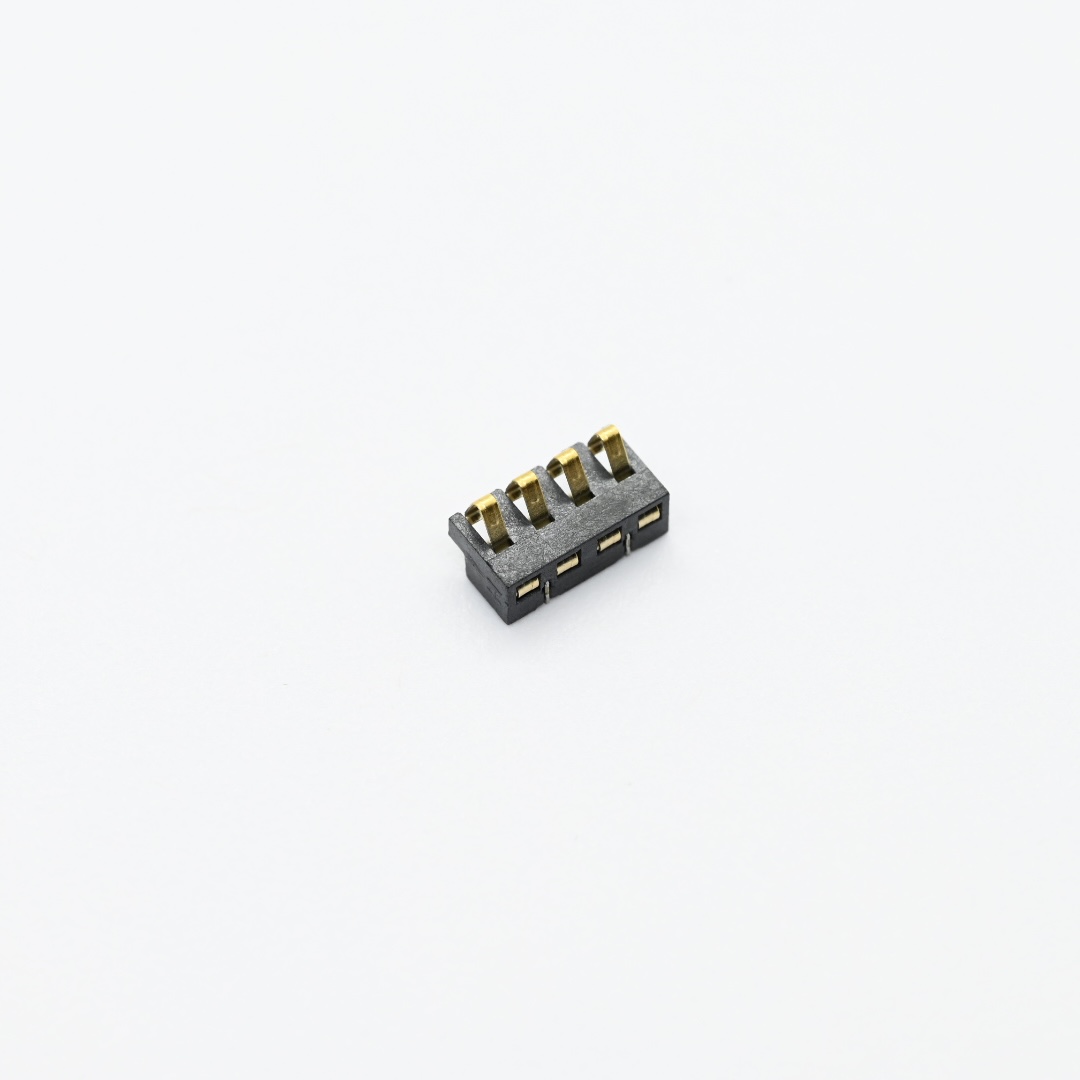

ABT24-04-L-B-G0-D-C+2.5mm Pitch 4P Battery Connector SMT（3）

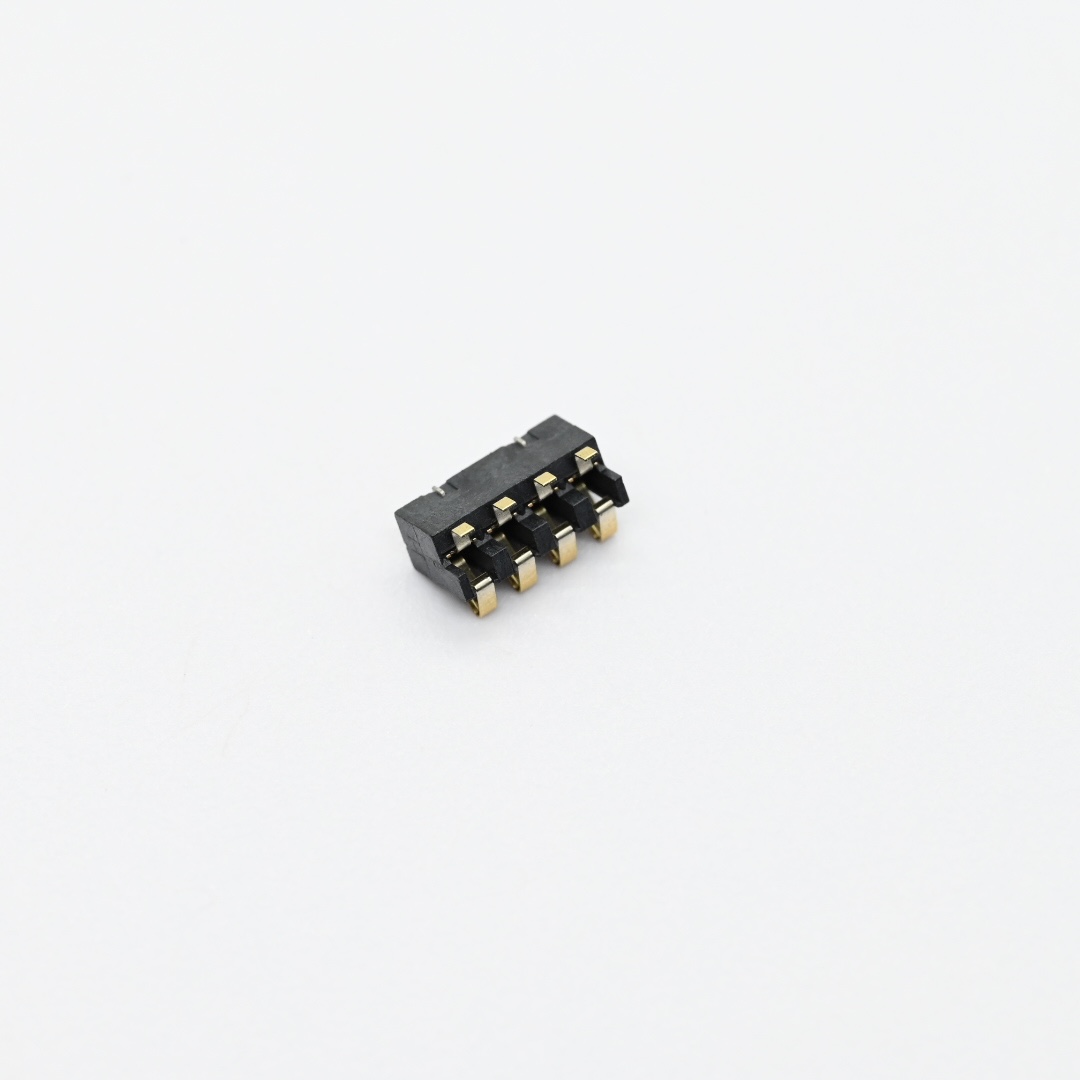

ABT24-04-L-B-G0-D-C+2.5mm Pitch 4P Battery Connector SMT（6）

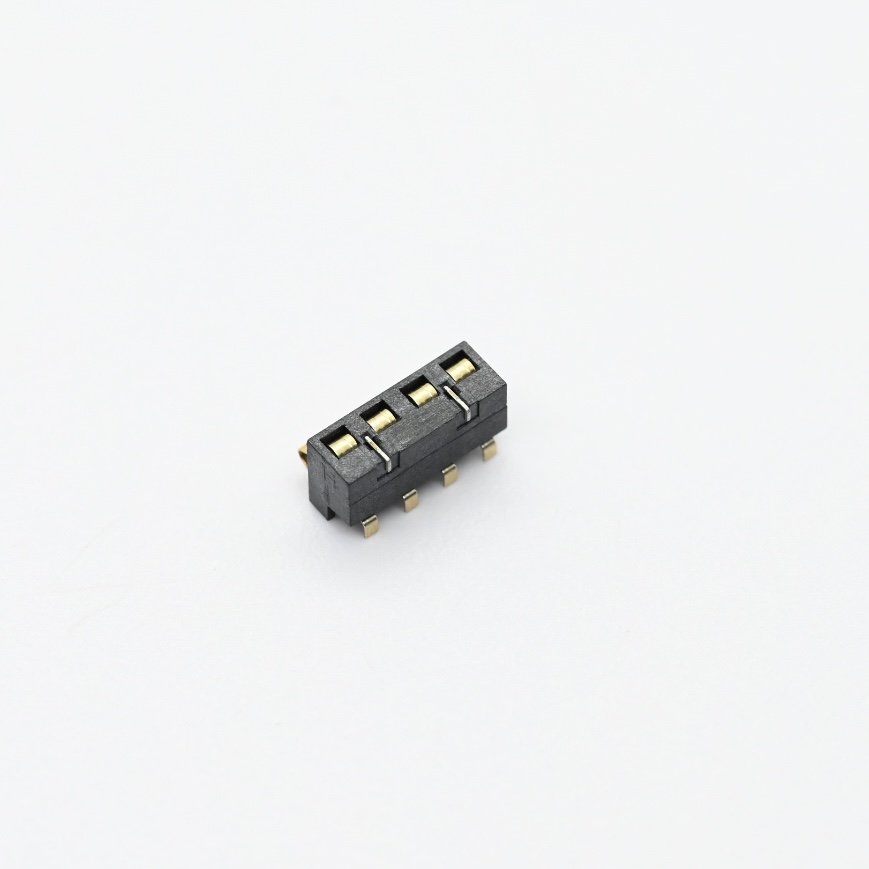

ABT24-04-L-B-G0-D-C+2.5mm Pitch 4P Battery Connector SMT（4）

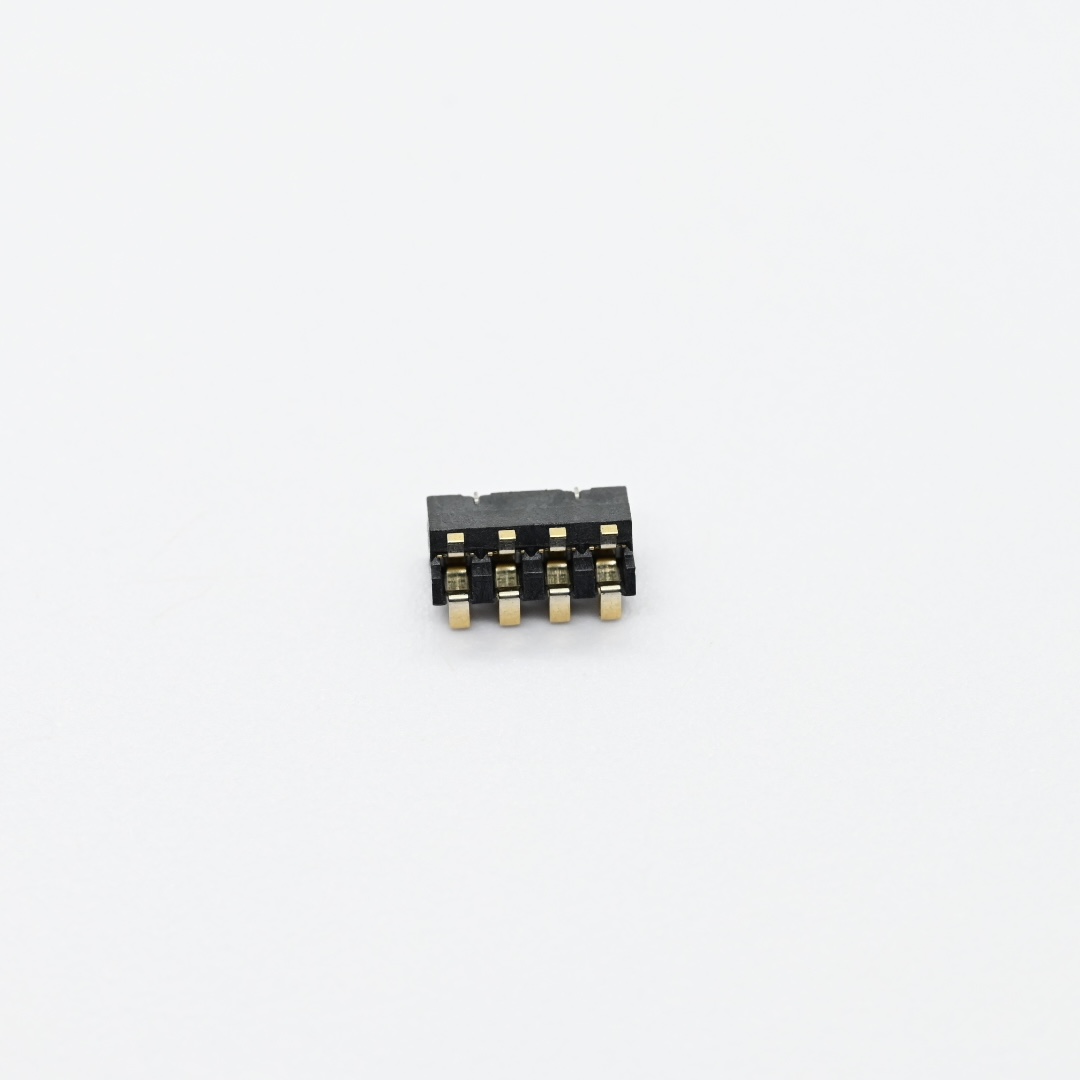

ABT24-04-L-B-G0-D-C+2.5mm Pitch 4P Battery Connector SMT（5）

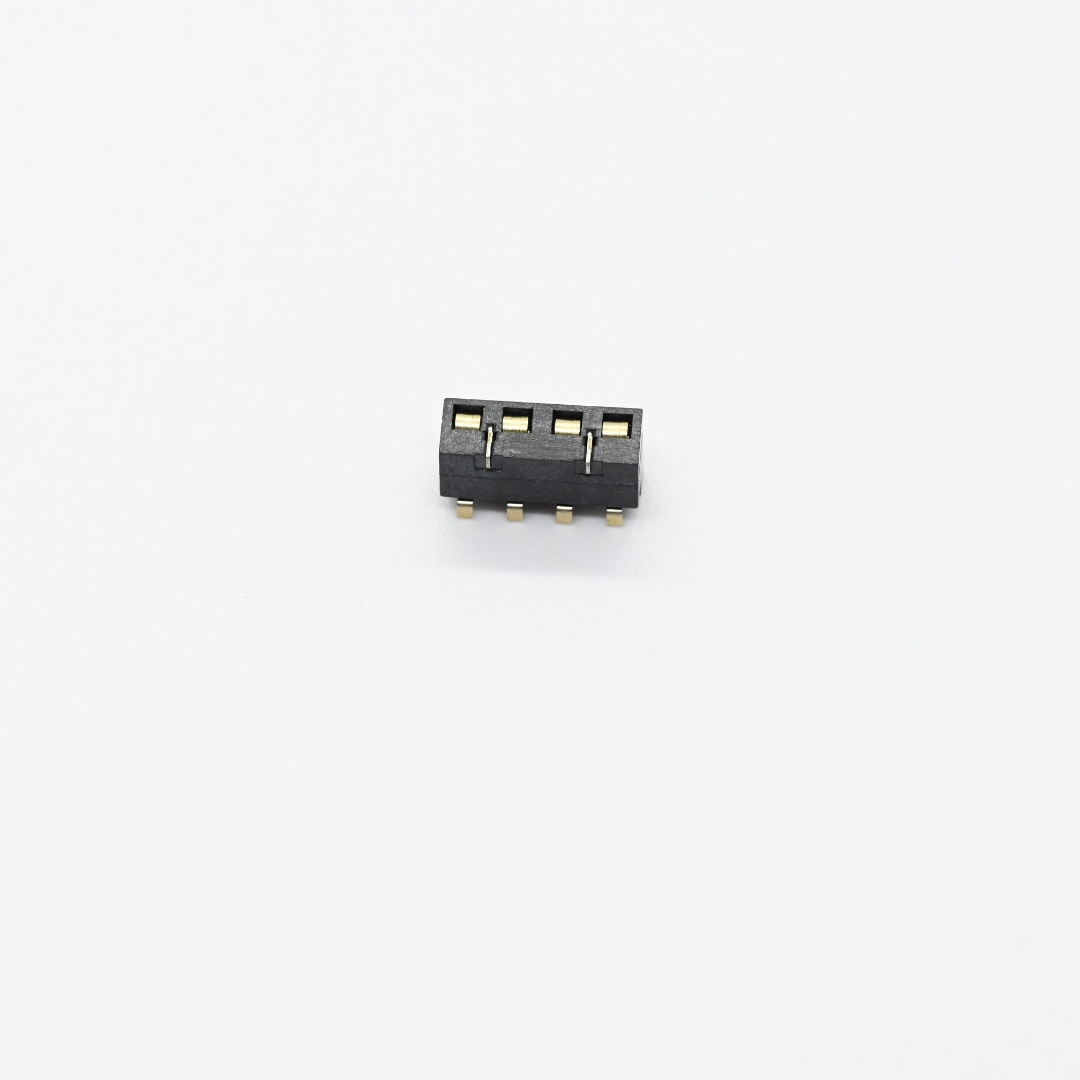

ABT24-04-L-B-G0-D-C+2.5mm Pitch 4P Battery Connector SMT（2）

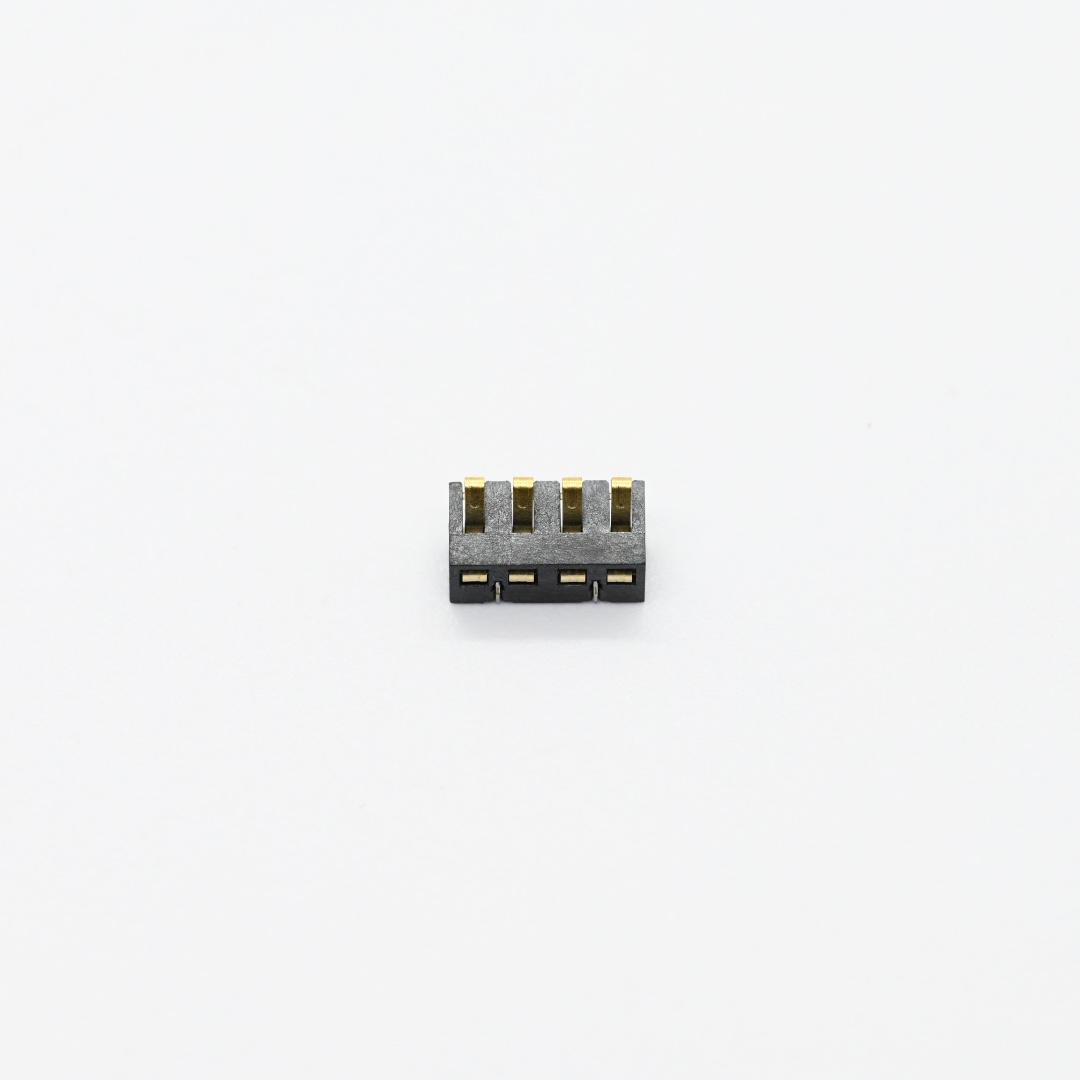

ABT24-04-L-B-G0-D-C+2.5mm Pitch 4P Battery Connector SMT（1）
