Product Description：

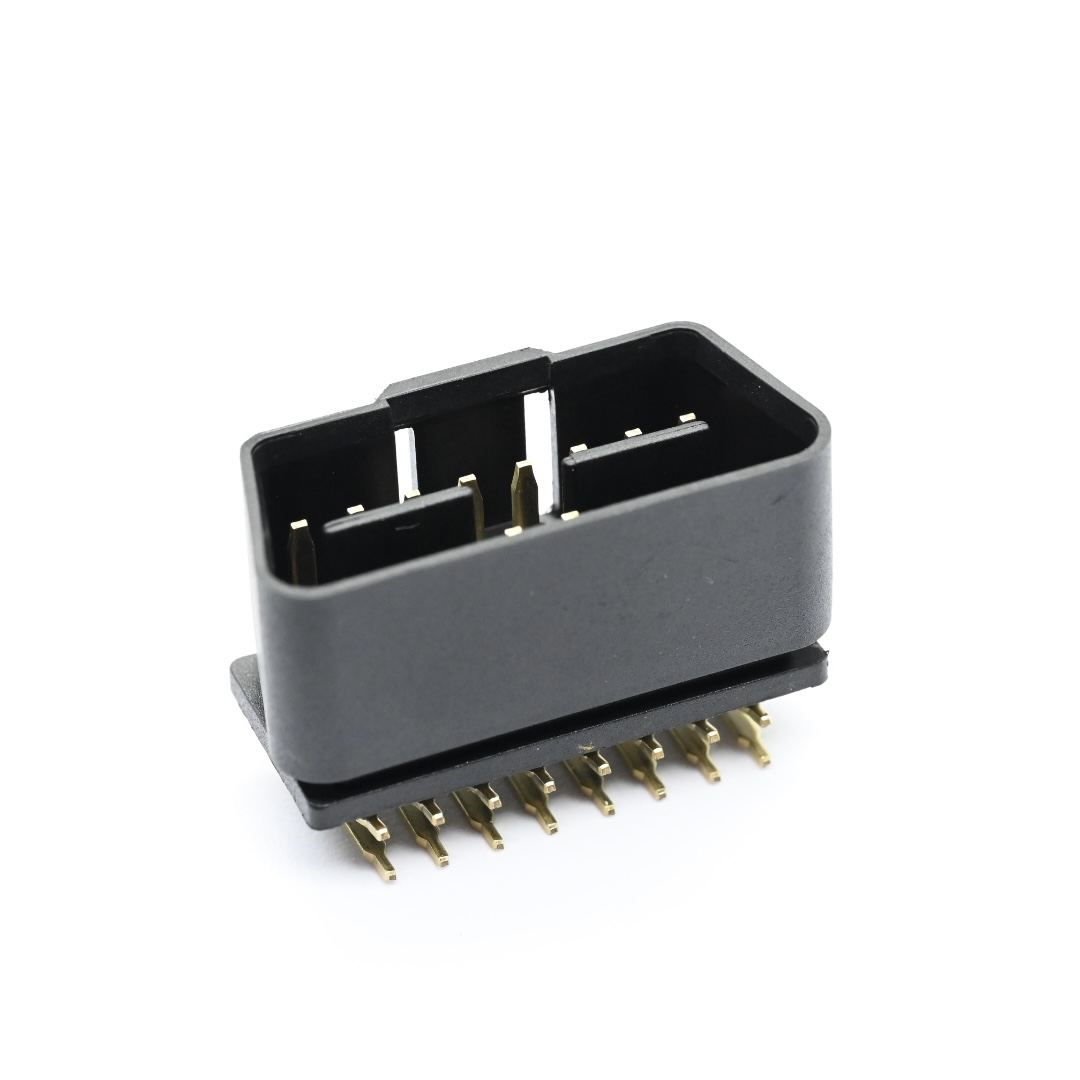

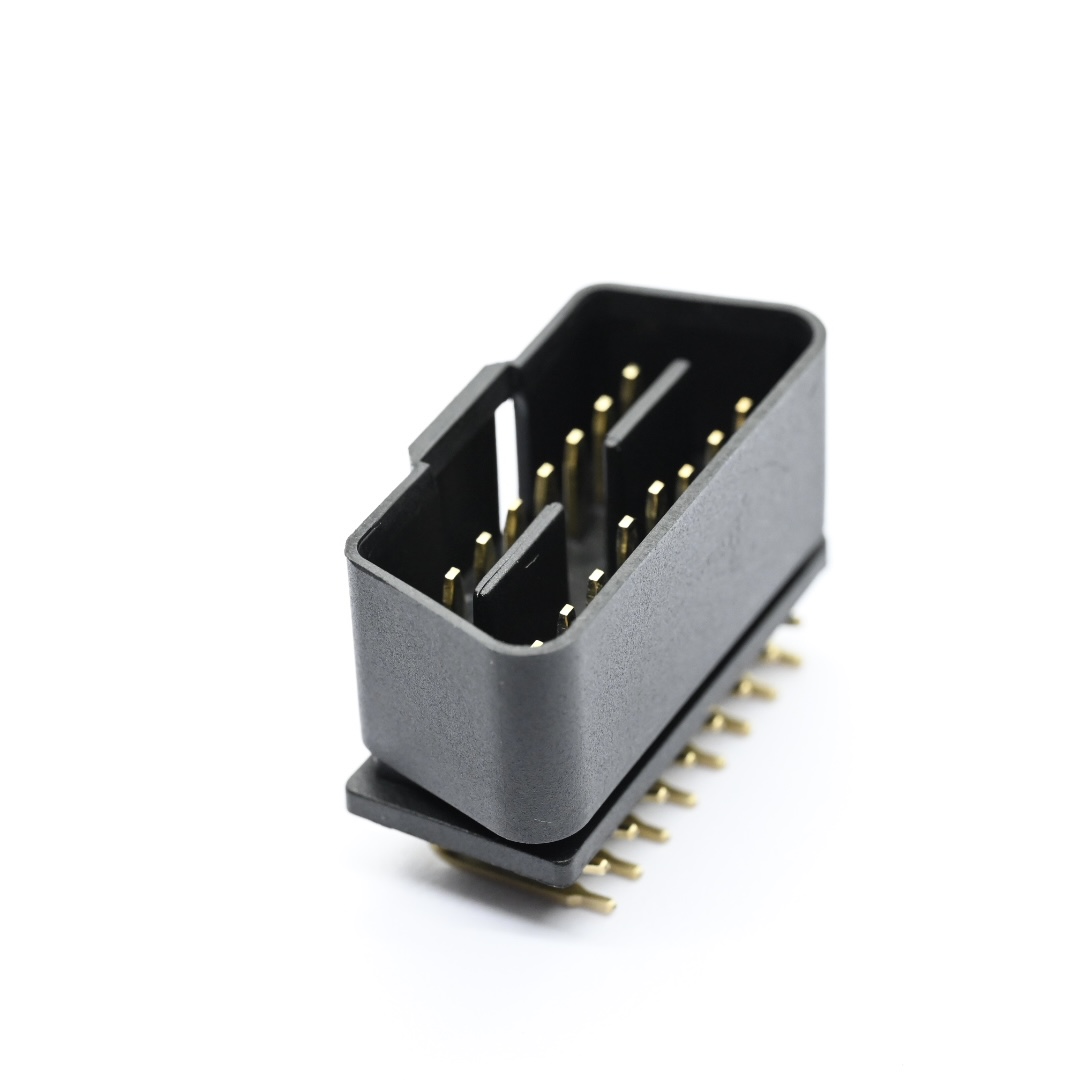

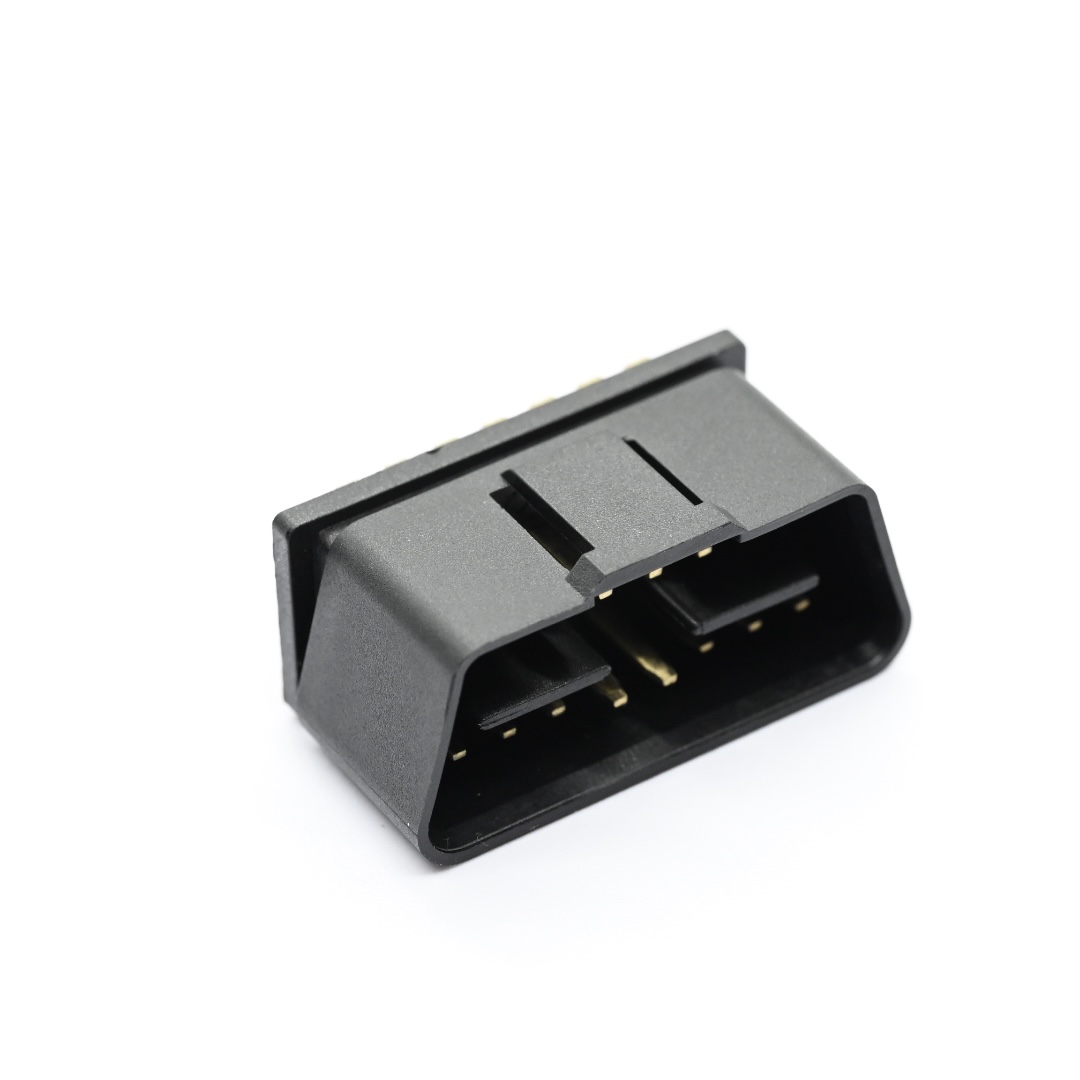

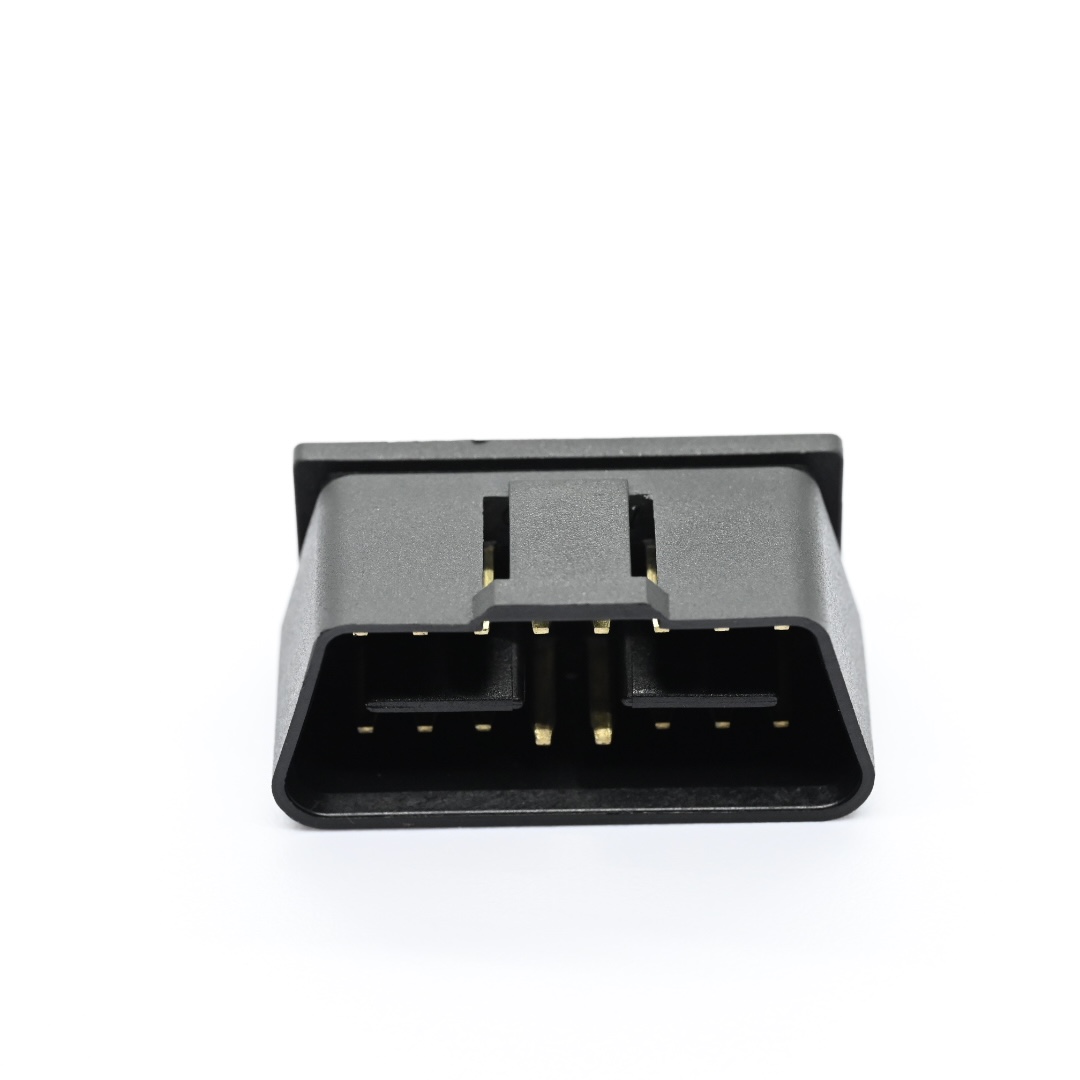

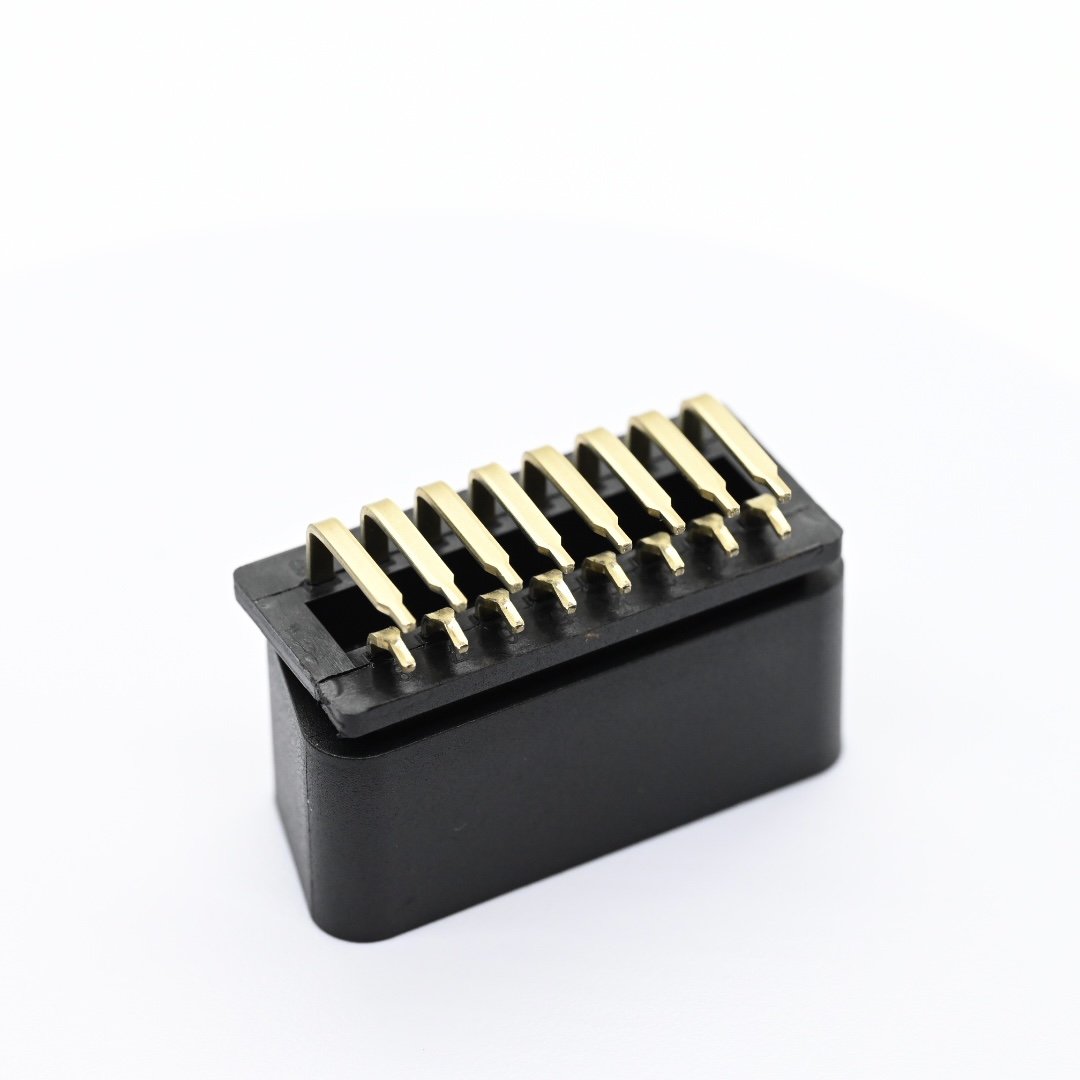

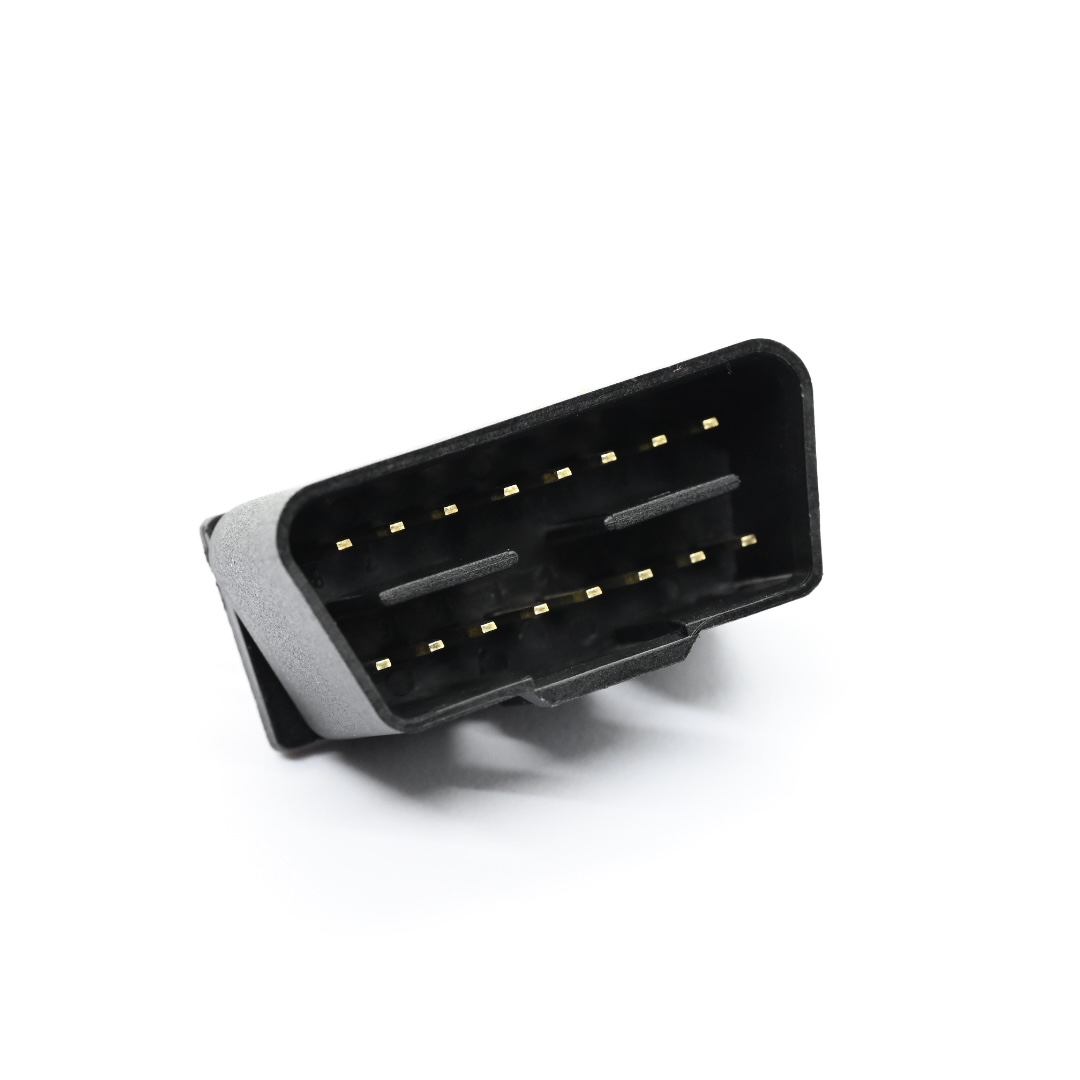

Huizhou Antenk Electronics Co., Ltd. manufactures OBD PG003 series 16 pin angled male automotive connector with 14.6 millimeter standard lock for reliable vehicle diagnostic signal and power transmission through soldering onto printed circuit boards. This automotive connector housing is made of PA66 plus fifteen percent glass fiber in black color, paired with brass gilded terminals with multiple gold plating options, rated for maximum 30 volt voltage and 5 amp current, supports wire insulation outer diameter from 1.2 millimeter to 2.6 millimeter. It reaches 1000V AC one minute dielectric strength, maximum 100 milliohm contact resistance and minimum 100 megaohm insulation resistance, operating within minus 40 degree Celsius to plus 85 degree Celsius. It adopts tray or bag packaging and complies with RoHS and REACH environmental standards and is specially designed for automobile diagnostic equipment and on‑board electronic systems. Operators shall follow official PCB layout for soldering installation and store finished items under dry environment to prevent brass terminals from oxidation. Unlike competitors outsourcing stamping molding and plating Antenk completes full in house production covering independent mold development brass terminal stamping glass filled nylon injection molding multi grade electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, deliver custom configuration solutions and round the clock engineering support, over seventy percent of connector goods are exported globally. Feel free to submit your project specifications for sample quotation and full datasheet resources.

1. Black Automotive Plug delivers stable connection performance for long‑term on‑board vehicle electronic systems.

2. Gold Gilded OBD Terminal reduces signal loss and guarantees reliable data communication during vehicle diagnosis.

3. Standard Lock OBD Connector provides firm locking force to avoid accidental disconnection in automotive diagnostic equipment.

Detailed Specifications ：

1. Mechanical Specifications

1.1 Product type: Angled male OBD automotive connector

1.2 Measurement unit: millimeter

1.3 Key dimension: standard lock size 14.6 mm, pin count 16 positions, long contact pins extend 10.0 mm above plastic housing, other physical dimensions refer to official drawing

1.4 Available option: multiple gold plating grades, tray or bag packing options

1.5 CTA: Contact our engineering team to acquire full dimension drawings and PCB layout reference files for your automotive hardware design validation.

2. Material Construction

2.1 Housing material: PA66 plus 15 percent glass fiber, black color

2.2 Terminal material: Brass with gold gilded surface treatment

3. Electrical Parameters

3.1 Rated voltage: 30V max

3.2 Rated current: 5A

3.3 Dielectric strength: 1000V AC per one minute

3.4 Maximum contact resistance: 100 milliohm

3.5 Minimum insulation resistance: 1000 megaohm

4. Environmental Parameters

4.1 Operating temperature range: minus 40°C to plus 85°C

5. Compliance Standard

5.1 Environmental compliance: RoHS compliant

6. Usage Method

6.1 Assembly mode: Soldering onto printed circuit board

6.2 Operation tip: Match suitable wire with wire insulation diameter from 1.2 mm to 2.6 mm for proper connection

7. Application Scenarios

7.1 Automobile diagnostic equipment

7.2 On‑board automotive electronic systems

7.3 Vehicle testing instruments

8. Operation & Storage Precautions

8.1 Follow official PCB layout drawing for soldering assembly

8.2 Do not bend extended long contact pins to avoid terminal damage

8.3 Keep products in dry storage environment to prevent brass terminal oxidation

8.4 Select proper contact plating and packing method for your actual project requirements

8.5 CTA: Submit your pin plating and packing requirements, we can provide free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

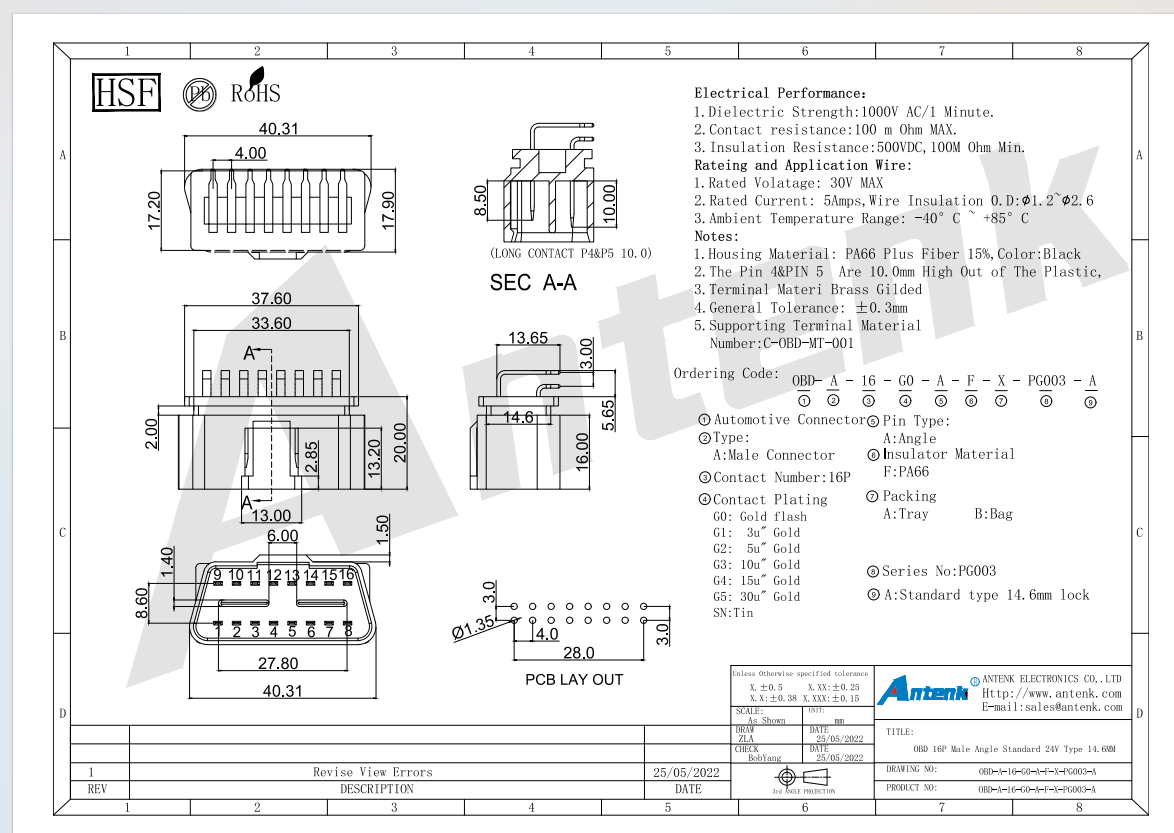

Product Drawing：
